3 Piece Thrust Bearings Open Type with Flat Washers
These bearings are designed so that when one ring turns, the other remains stationary.
Some have a larger bore on one side allowing a shaft with no steps to pass through. Others will require a stepped shaft as they have the same bore on both races.
Some have a reduced size OD on one race allowing it to sit into an unstepped housing bore, whilst others will require a stepped housing to allow one ring to rotate.
Please be sure to take note of the figures shown for ID and OD of both races to ensure you select the correct bearing.

Additional resources:
Thrust Bearings PDF Catalogue
Shafting

A more concise listing may be found on the Smallparts store at Bearings - Thrust Ball - Flat - Chrome Steel. Smallparts promote the most popular MBA products.

Shaft Diameter (A)	OD (D1)	Thickness (T)	Bore (d2)	OD (D2)	Dynamic Load Capacity
Shaft Diameter (A) 2.000 mm _{(0.079 in.)}	OD (D1) 6.000 mm _{(0.236 in.)}	Thickness (T) 3.000 mm _{(0.118 in.)}	Bore (d2) 2.000 mm	OD (D2) 6.000 mm	Dynamic Load Capacity 12 kgf

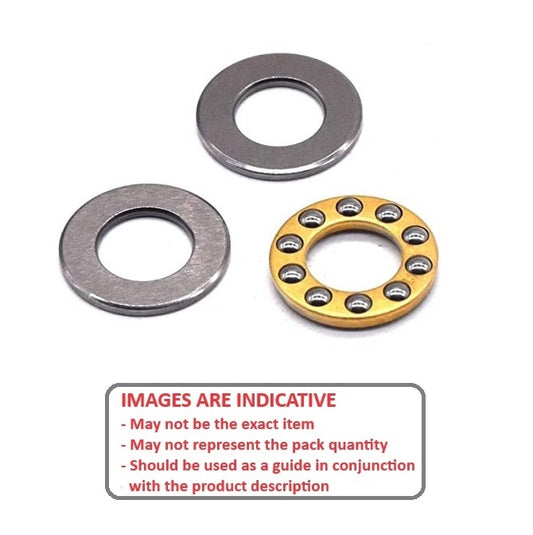

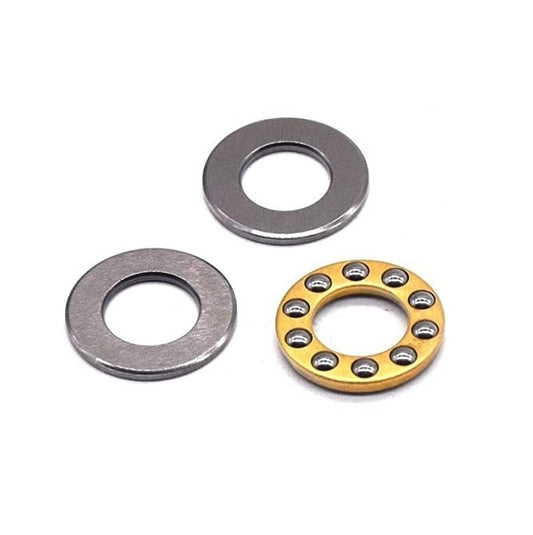

Material: Chrome Steel Cage Type: Brass
Part Number: T-0020-0060-F-BR Thrust Ball Bearings - 2x6x3 mm / 2 mm - Chrome Steel 12 Available Immediately \| Further orders can be expected around Fri, Jun 13, 2025 Regular price $8.86 AUD Regular price ~~$10.64 AUD~~ Sale price $8.86 AUD Unit price per Each
Shaft Diameter (A)	OD (D1)	Thickness (T)	Bore (d2)	Indicative Image
Shaft Diameter (A) 2.000 mm _{(0.079 in.)}	OD (D1) 6.000 mm _{(0.236 in.)}	Thickness (T) 3.000 mm _{(0.118 in.)}	Bore (d2) 2.000 mm
Material: Chrome Steel OD (D2): 6.000 mm Dynamic Load Capacity: 12 kgf Cage Type: Brass
Part Number: T-0020-0060-F-BR Thrust Ball Bearings - 2x6x3 mm / 2 mm - Chrome Steel 12 Available Immediately \| Further orders can be expected around Fri, Jun 13, 2025 Regular price $8.86 AUD Regular price ~~$10.64 AUD~~ Sale price $8.86 AUD Unit price per Each View the product page first if you are unsure.
T-0020-0060-F-BR --- Thrust Ball Bearings - 2x6x3 mm / 2 mm - Chrome Steel Sale T-0020-0060-F-BR --- Thrust Ball Bearings - 2x6x3 mm / 2 mm - Chrome Steel Regular price $8.86 AUD Regular price ~~$10.64 AUD~~ Sale price $8.86 AUD Unit price per 12 Available Now Sale
Shaft Diameter (A) 3.175 mm + 0.076 / + 0.203 _{(0.125 in.)}	OD (D1) 11.113 mm - 0.013 / - 0.208 _{(0.438 in.)}	Thickness (T) 4.763 mm + 0.076 / + 0.215 _{(0.188 in.)}	Bore (d2) 3.175 mm - 0.025 / - 0.202	OD (D2) 11.113 mm - 0.025 / - 0.202	Dynamic Load Capacity 21 kgf

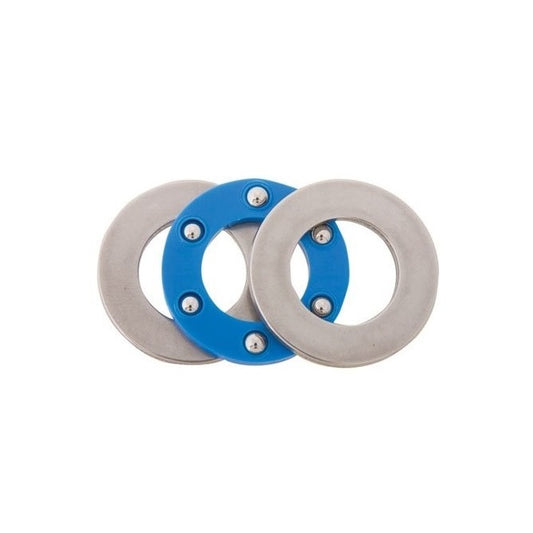

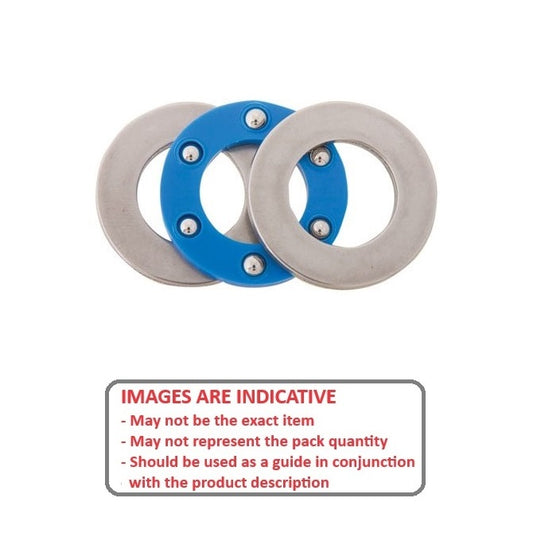

Material: Chrome Steel Cage Type: Moulded Nylon
Part Number: T-0032-0109-F-NY Thrust Ball Bearings - 3.175x11.113x4.763 mm / 3.175 mm - Chrome Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $8.77 AUD Regular price Sale price $8.77 AUD Unit price per Each
Shaft Diameter (A) 3.175 mm + 0.076 / + 0.203 _{(0.125 in.)}	OD (D1) 11.113 mm - 0.013 / - 0.208 _{(0.438 in.)}	Thickness (T) 4.763 mm + 0.076 / + 0.215 _{(0.188 in.)}	Bore (d2) 3.175 mm - 0.025 / - 0.202
Material: Chrome Steel OD (D2): 11.113 mm - 0.025 / - 0.202 Dynamic Load Capacity: 21 kgf Cage Type: Moulded Nylon
Part Number: T-0032-0109-F-NY Thrust Ball Bearings - 3.175x11.113x4.763 mm / 3.175 mm - Chrome Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $8.77 AUD Regular price Sale price $8.77 AUD Unit price per Each View the product page first if you are unsure.
T-0032-0109-F-NY --- Thrust Ball Bearings - 3.175x11.113x4.763 mm / 3.175 mm - Chrome Steel T-0032-0109-F-NY --- Thrust Ball Bearings - 3.175x11.113x4.763 mm / 3.175 mm - Chrome Steel Regular price $8.77 AUD Regular price Sale price $8.77 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (A) 4.000 mm _{(0.157 in.)}	OD (D1) 9.000 mm _{(0.354 in.)}	Thickness (T) 4.000 mm _{(0.157 in.)}	Bore (d2) 4.000 mm	OD (D2) 9.000 mm	Dynamic Load Capacity 17 kgf

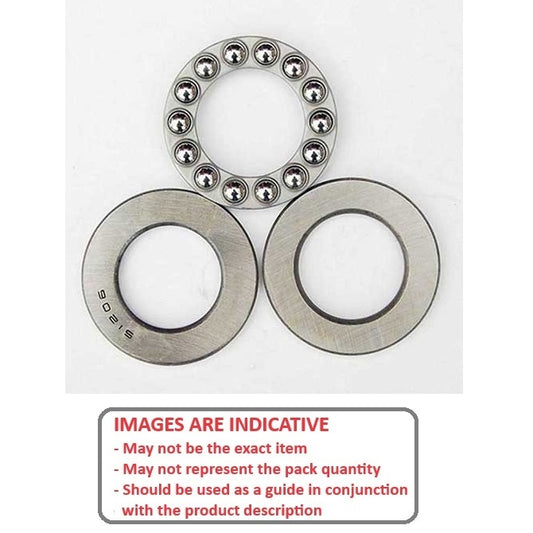

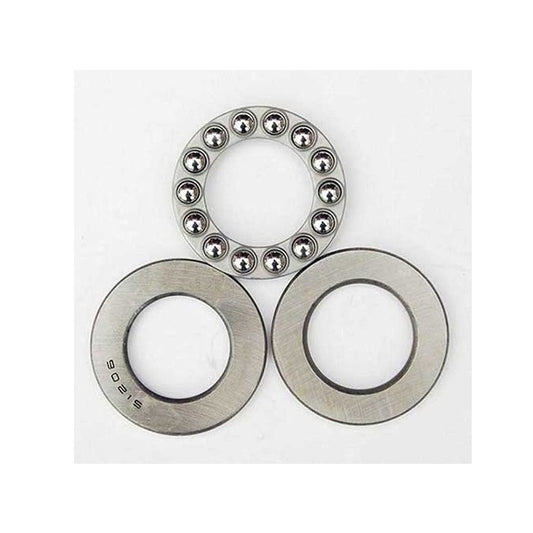

Material: Chrome Steel Cage Type: Steel
Part Number: T-0040-0090-F Thrust Ball Bearings - 4x9x4 mm / 4 mm - Chrome Steel 3 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $8.00 AUD Regular price ~~$9.60 AUD~~ Sale price $8.00 AUD Unit price per Each
Shaft Diameter (A) 4.000 mm _{(0.157 in.)}	OD (D1) 9.000 mm _{(0.354 in.)}	Thickness (T) 4.000 mm _{(0.157 in.)}	Bore (d2) 4.000 mm
Material: Chrome Steel OD (D2): 9.000 mm Dynamic Load Capacity: 17 kgf Cage Type: Steel
Part Number: T-0040-0090-F Thrust Ball Bearings - 4x9x4 mm / 4 mm - Chrome Steel 3 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $8.00 AUD Regular price ~~$9.60 AUD~~ Sale price $8.00 AUD Unit price per Each
T-0040-0090-F --- Thrust Ball Bearings - 4x9x4 mm / 4 mm - Chrome Steel Sale T-0040-0090-F --- Thrust Ball Bearings - 4x9x4 mm / 4 mm - Chrome Steel Regular price $8.00 AUD Regular price ~~$9.60 AUD~~ Sale price $8.00 AUD Unit price per 3 Available Now Sale
Shaft Diameter (A) 4.763 mm + 0.088 / + 0.190 _{(0.188 in.)}	OD (D1) 12.700 mm - 0.013 / - 0.208 _{(0.5 in.)}	Thickness (T) 4.763 mm + 0.076 / + 0.215 _{(0.188 in.)}	Bore (d2) 4.763 mm - 0.025 / - 0.202	OD (D2) 12.700 mm - 0.025 / - 0.202	Dynamic Load Capacity 25 kgf
Material: Chrome Steel Cage Type: Moulded Nylon
Part Number: T-0048-0125-F-NY Thrust Ball Bearings - 4.763x12.7x4.763 mm / 4.763 mm - Chrome Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $15.77 AUD Regular price Sale price $15.77 AUD Unit price per Each
Shaft Diameter (A) 4.763 mm + 0.088 / + 0.190 _{(0.188 in.)}	OD (D1) 12.700 mm - 0.013 / - 0.208 _{(0.5 in.)}	Thickness (T) 4.763 mm + 0.076 / + 0.215 _{(0.188 in.)}	Bore (d2) 4.763 mm - 0.025 / - 0.202
Material: Chrome Steel OD (D2): 12.700 mm - 0.025 / - 0.202 Dynamic Load Capacity: 25 kgf Cage Type: Moulded Nylon
Part Number: T-0048-0125-F-NY Thrust Ball Bearings - 4.763x12.7x4.763 mm / 4.763 mm - Chrome Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $15.77 AUD Regular price Sale price $15.77 AUD Unit price per Each View the product page first if you are unsure.
T-0048-0125-F-NY --- Thrust Ball Bearings - 4.763x12.7x4.763 mm / 4.763 mm - Chrome Steel T-0048-0125-F-NY --- Thrust Ball Bearings - 4.763x12.7x4.763 mm / 4.763 mm - Chrome Steel Regular price $15.77 AUD Regular price Sale price $15.77 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (A) 5.000 mm _{(0.197 in.)}	OD (D1) 11.000 mm _{(0.433 in.)}	Thickness (T) 4.500 mm _{(0.177 in.)}	Bore (d2) 5.000 mm	OD (D2) 11.000 mm	Dynamic Load Capacity 29 kgf
Material: Chrome Steel Cage Type: Brass
Part Number: T-0050-0110-F-BR Thrust Ball Bearings - 5x11x4.5 mm / 5 mm - Chrome Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 13, 2025 Regular price $10.95 AUD Regular price Sale price $10.95 AUD Unit price per Each
Shaft Diameter (A) 5.000 mm _{(0.197 in.)}	OD (D1) 11.000 mm _{(0.433 in.)}	Thickness (T) 4.500 mm _{(0.177 in.)}	Bore (d2) 5.000 mm
Material: Chrome Steel OD (D2): 11.000 mm Dynamic Load Capacity: 29 kgf Cage Type: Brass
Part Number: T-0050-0110-F-BR Thrust Ball Bearings - 5x11x4.5 mm / 5 mm - Chrome Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 13, 2025 Regular price $10.95 AUD Regular price Sale price $10.95 AUD Unit price per Each View the product page first if you are unsure.
T-0050-0110-F-BR --- Thrust Ball Bearings - 5x11x4.5 mm / 5 mm - Chrome Steel T-0050-0110-F-BR --- Thrust Ball Bearings - 5x11x4.5 mm / 5 mm - Chrome Steel Regular price $10.95 AUD Regular price Sale price $10.95 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (A) 5.000 mm + 0.08 / + 0.21 _{(0.197 in.)}	OD (D1) 12.000 mm - 0.040 / - 0.220 _{(0.472 in.)}	Thickness (T) 5.000 mm + 0.020 / - 0.180 _{(0.197 in.)}	Bore (d2) 5.000 mm - 0.025 / - 0.202	OD (D2) 12.000 mm - 0.025 / - 0.202	Dynamic Load Capacity 24 kgf
Material: Chrome Steel Cage Type: Moulded Nylon
Part Number: T-0050-0120-F-NY Thrust Ball Bearings - 5x12x5 mm / 5 mm - Chrome Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $20.95 AUD Regular price Sale price $20.95 AUD Unit price per Each
Shaft Diameter (A) 5.000 mm + 0.08 / + 0.21 _{(0.197 in.)}	OD (D1) 12.000 mm - 0.040 / - 0.220 _{(0.472 in.)}	Thickness (T) 5.000 mm + 0.020 / - 0.180 _{(0.197 in.)}	Bore (d2) 5.000 mm - 0.025 / - 0.202
Material: Chrome Steel OD (D2): 12.000 mm - 0.025 / - 0.202 Dynamic Load Capacity: 24 kgf Cage Type: Moulded Nylon
Part Number: T-0050-0120-F-NY Thrust Ball Bearings - 5x12x5 mm / 5 mm - Chrome Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $20.95 AUD Regular price Sale price $20.95 AUD Unit price per Each View the product page first if you are unsure.
T-0050-0120-F-NY --- Thrust Ball Bearings - 5x12x5 mm / 5 mm - Chrome Steel T-0050-0120-F-NY --- Thrust Ball Bearings - 5x12x5 mm / 5 mm - Chrome Steel Regular price $20.95 AUD Regular price Sale price $20.95 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (A) 6.000 mm _{(0.236 in.)}	OD (D1) 12.000 mm _{(0.472 in.)}	Thickness (T) 4.500 mm _{(0.177 in.)}	Bore (d2) 6.000 mm	OD (D2) 12.000 mm	Dynamic Load Capacity 28 kgf
Material: Chrome Steel Cage Type: Brass
Part Number: T-0060-0120-F-BR Thrust Ball Bearings - 6x12x4.5 mm / 6 mm - Chrome Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $57.86 AUD Regular price Sale price $57.86 AUD Unit price per Each
Shaft Diameter (A) 6.000 mm _{(0.236 in.)}	OD (D1) 12.000 mm _{(0.472 in.)}	Thickness (T) 4.500 mm _{(0.177 in.)}	Bore (d2) 6.000 mm
Material: Chrome Steel OD (D2): 12.000 mm Dynamic Load Capacity: 28 kgf Cage Type: Brass
Part Number: T-0060-0120-F-BR Thrust Ball Bearings - 6x12x4.5 mm / 6 mm - Chrome Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $57.86 AUD Regular price Sale price $57.86 AUD Unit price per Each View the product page first if you are unsure.
T-0060-0120-F-BR --- Thrust Ball Bearings - 6x12x4.5 mm / 6 mm - Chrome Steel T-0060-0120-F-BR --- Thrust Ball Bearings - 6x12x4.5 mm / 6 mm - Chrome Steel Regular price $57.86 AUD Regular price Sale price $57.86 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (A) 6.000 mm + 0.07 / + 0.20 _{(0.236 in.)}	OD (D1) 14.000 mm - 0.040 / - 0.220 _{(0.551 in.)}	Thickness (T) 5.000 mm + 0.020 / - 0.180 _{(0.197 in.)}	Bore (d2) 6.000 mm - 0.025 / - 0.202	OD (D2) 14.000 mm - 0.025 / - 0.202	Dynamic Load Capacity 28 kgf
Material: Chrome Steel Cage Type: Moulded Nylon
Part Number: T-0060-0140-F-NY Thrust Ball Bearings - 6x14x5 mm / 6 mm - Chrome Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $21.32 AUD Regular price Sale price $21.32 AUD Unit price per Each
Shaft Diameter (A) 6.000 mm + 0.07 / + 0.20 _{(0.236 in.)}	OD (D1) 14.000 mm - 0.040 / - 0.220 _{(0.551 in.)}	Thickness (T) 5.000 mm + 0.020 / - 0.180 _{(0.197 in.)}	Bore (d2) 6.000 mm - 0.025 / - 0.202
Material: Chrome Steel OD (D2): 14.000 mm - 0.025 / - 0.202 Dynamic Load Capacity: 28 kgf Cage Type: Moulded Nylon
Part Number: T-0060-0140-F-NY Thrust Ball Bearings - 6x14x5 mm / 6 mm - Chrome Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $21.32 AUD Regular price Sale price $21.32 AUD Unit price per Each View the product page first if you are unsure.
T-0060-0140-F-NY --- Thrust Ball Bearings - 6x14x5 mm / 6 mm - Chrome Steel T-0060-0140-F-NY --- Thrust Ball Bearings - 6x14x5 mm / 6 mm - Chrome Steel Regular price $21.32 AUD Regular price Sale price $21.32 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (A) 6.350 mm + 0.076 / + 0.203 _{(0.25 in.)}	OD (D1) 14.288 mm - 0.013 / - 0.208 _{(0.563 in.)}	Thickness (T) 4.763 mm + 0.076 / + 0.215 _{(0.188 in.)}	Bore (d2) 6.350 mm - 0.025 / - 0.202	OD (D2) 14.288 mm - 0.025 / - 0.202	Dynamic Load Capacity 28 kgf
Material: Chrome Steel Cage Type: Moulded Nylon
Part Number: T-0064-0141-F-NY Thrust Ball Bearings - 6.35x14.288x4.763 mm / 6.35 mm - Chrome Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $9.59 AUD Regular price Sale price $9.59 AUD Unit price per Each
Shaft Diameter (A) 6.350 mm + 0.076 / + 0.203 _{(0.25 in.)}	OD (D1) 14.288 mm - 0.013 / - 0.208 _{(0.563 in.)}	Thickness (T) 4.763 mm + 0.076 / + 0.215 _{(0.188 in.)}	Bore (d2) 6.350 mm - 0.025 / - 0.202
Material: Chrome Steel OD (D2): 14.288 mm - 0.025 / - 0.202 Dynamic Load Capacity: 28 kgf Cage Type: Moulded Nylon
Part Number: T-0064-0141-F-NY Thrust Ball Bearings - 6.35x14.288x4.763 mm / 6.35 mm - Chrome Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $9.59 AUD Regular price Sale price $9.59 AUD Unit price per Each View the product page first if you are unsure.
T-0064-0141-F-NY --- Thrust Ball Bearings - 6.35x14.288x4.763 mm / 6.35 mm - Chrome Steel T-0064-0141-F-NY --- Thrust Ball Bearings - 6.35x14.288x4.763 mm / 6.35 mm - Chrome Steel Regular price $9.59 AUD Regular price Sale price $9.59 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (A) 7.000 mm _{(0.276 in.)}	OD (D1) 15.000 mm _{(0.591 in.)}	Thickness (T) 5.000 mm _{(0.197 in.)}	Bore (d2) 7.000 mm	OD (D2) 15.000 mm	Dynamic Load Capacity 57 kgf
Material: Chrome Steel Cage Type: Brass
Part Number: T-0070-0150-F-BR Thrust Ball Bearings - 7x15x5 mm / 7 mm - Chrome Steel 7 Available Immediately \| Further orders can be expected around Fri, Jun 13, 2025 Regular price $8.59 AUD Regular price ~~$10.31 AUD~~ Sale price $8.59 AUD Unit price per Each
Shaft Diameter (A) 7.000 mm _{(0.276 in.)}	OD (D1) 15.000 mm _{(0.591 in.)}	Thickness (T) 5.000 mm _{(0.197 in.)}	Bore (d2) 7.000 mm
Material: Chrome Steel OD (D2): 15.000 mm Dynamic Load Capacity: 57 kgf Cage Type: Brass
Part Number: T-0070-0150-F-BR Thrust Ball Bearings - 7x15x5 mm / 7 mm - Chrome Steel 7 Available Immediately \| Further orders can be expected around Fri, Jun 13, 2025 Regular price $8.59 AUD Regular price ~~$10.31 AUD~~ Sale price $8.59 AUD Unit price per Each View the product page first if you are unsure.
T-0070-0150-F-BR --- Thrust Ball Bearings - 7x15x5 mm / 7 mm - Chrome Steel Sale T-0070-0150-F-BR --- Thrust Ball Bearings - 7x15x5 mm / 7 mm - Chrome Steel Regular price $8.59 AUD Regular price ~~$10.31 AUD~~ Sale price $8.59 AUD Unit price per 7 Available Now Sale
Shaft Diameter (A) 7.000 mm _{(0.276 in.)}	OD (D1) 15.000 mm _{(0.591 in.)}	Thickness (T) 5.000 mm _{(0.197 in.)}	Bore (d2) 7.000 mm	OD (D2) 15.000 mm	Dynamic Load Capacity 57 kgf
Material: Chrome Steel Cage Type: Steel
Part Number: T-0070-0150-F-ST (2 Pcs) Thrust Ball Bearings - 7x15x5 mm / 7 mm - Chrome Steel 35 units (70 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $5.05 AUD Regular price Sale price $5.05 AUD Unit price per Per 2
Shaft Diameter (A) 7.000 mm _{(0.276 in.)}	OD (D1) 15.000 mm _{(0.591 in.)}	Thickness (T) 5.000 mm _{(0.197 in.)}	Bore (d2) 7.000 mm
Material: Chrome Steel OD (D2): 15.000 mm Dynamic Load Capacity: 57 kgf Cage Type: Steel
Part Number: T-0070-0150-F-ST (2 Pcs) Thrust Ball Bearings - 7x15x5 mm / 7 mm - Chrome Steel 35 units (70 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $5.05 AUD Regular price Sale price $5.05 AUD Unit price per Per 2 View the product page first if you are unsure.
T-0070-0150-F-ST (2 Pcs) --- Thrust Ball Bearings - 7x15x5 mm / 7 mm - Chrome Steel T-0070-0150-F-ST (2 Pcs) --- Thrust Ball Bearings - 7x15x5 mm / 7 mm - Chrome Steel Regular price $5.05 AUD Regular price Sale price $5.05 AUD Unit price per 35 Available Now
Shaft Diameter (A) 7.000 mm _{(0.276 in.)}	OD (D1) 17.000 mm - 0.040 / - 0.220 _{(0.669 in.)}	Thickness (T) 5.000 mm + 0.020 / - 0.180 _{(0.197 in.)}	Bore (d2) 7.000 mm - 0.025 / - 0.202	OD (D2) 17.000 mm - 0.025 / - 0.202	Dynamic Load Capacity 31 kgf
Material: Chrome Steel Cage Type: Moulded Nylon
Part Number: T-0070-0170-F-NY Thrust Ball Bearings - 7x17x5 mm / 7 mm - Chrome Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $21.77 AUD Regular price Sale price $21.77 AUD Unit price per Each
Shaft Diameter (A) 7.000 mm _{(0.276 in.)}	OD (D1) 17.000 mm - 0.040 / - 0.220 _{(0.669 in.)}	Thickness (T) 5.000 mm + 0.020 / - 0.180 _{(0.197 in.)}	Bore (d2) 7.000 mm - 0.025 / - 0.202
Material: Chrome Steel OD (D2): 17.000 mm - 0.025 / - 0.202 Dynamic Load Capacity: 31 kgf Cage Type: Moulded Nylon
Part Number: T-0070-0170-F-NY Thrust Ball Bearings - 7x17x5 mm / 7 mm - Chrome Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $21.77 AUD Regular price Sale price $21.77 AUD Unit price per Each View the product page first if you are unsure.
T-0070-0170-F-NY --- Thrust Ball Bearings - 7x17x5 mm / 7 mm - Chrome Steel T-0070-0170-F-NY --- Thrust Ball Bearings - 7x17x5 mm / 7 mm - Chrome Steel Regular price $21.77 AUD Regular price Sale price $21.77 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (A) 8.000 mm + 0.08 / + 0.20 _{(0.315 in.)}	OD (D1) 16.000 mm - 0.040 / - 0.220 _{(0.63 in.)}	Thickness (T) 5.000 mm + 0.020 / - 0.180 _{(0.197 in.)}	Bore (d2) 8.000 mm - 0.025 / - 0.202	OD (D2) 16.000 mm - 0.025 / - 0.202	Dynamic Load Capacity 31 kgf
Material: Chrome Steel Cage Type: Moulded Nylon
Part Number: T-0080-0160-F-NY Thrust Ball Bearings - 8x16x5 mm / 8 mm - Chrome Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $13.23 AUD Regular price Sale price $13.23 AUD Unit price per Each
Shaft Diameter (A) 8.000 mm + 0.08 / + 0.20 _{(0.315 in.)}	OD (D1) 16.000 mm - 0.040 / - 0.220 _{(0.63 in.)}	Thickness (T) 5.000 mm + 0.020 / - 0.180 _{(0.197 in.)}	Bore (d2) 8.000 mm - 0.025 / - 0.202
Material: Chrome Steel OD (D2): 16.000 mm - 0.025 / - 0.202 Dynamic Load Capacity: 31 kgf Cage Type: Moulded Nylon
Part Number: T-0080-0160-F-NY Thrust Ball Bearings - 8x16x5 mm / 8 mm - Chrome Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $13.23 AUD Regular price Sale price $13.23 AUD Unit price per Each View the product page first if you are unsure.
T-0080-0160-F-NY --- Thrust Ball Bearings - 8x16x5 mm / 8 mm - Chrome Steel T-0080-0160-F-NY --- Thrust Ball Bearings - 8x16x5 mm / 8 mm - Chrome Steel Regular price $13.23 AUD Regular price Sale price $13.23 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (A) 8.000 mm _{(0.315 in.)}	OD (D1) 16.000 mm _{(0.63 in.)}	Thickness (T) 5.000 mm _{(0.197 in.)}	Bore (d2) 8.000 mm	OD (D2) 16.000 mm	Dynamic Load Capacity 61 kgf
Material: Chrome Steel Cage Type: Brass
Part Number: T-0080-0160-F-BR (50 Pcs) Thrust Ball Bearings - 8x16x5 mm / 8 mm - Chrome Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 13, 2025 Regular price $551.86 AUD Regular price Sale price $551.86 AUD Unit price per Per 50
Shaft Diameter (A) 8.000 mm _{(0.315 in.)}	OD (D1) 16.000 mm _{(0.63 in.)}	Thickness (T) 5.000 mm _{(0.197 in.)}	Bore (d2) 8.000 mm
Material: Chrome Steel OD (D2): 16.000 mm Dynamic Load Capacity: 61 kgf Cage Type: Brass
Part Number: T-0080-0160-F-BR (50 Pcs) Thrust Ball Bearings - 8x16x5 mm / 8 mm - Chrome Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 13, 2025 Regular price $551.86 AUD Regular price Sale price $551.86 AUD Unit price per Per 50 View the product page first if you are unsure.
T-0080-0160-F-BR (50 Pcs) --- Thrust Ball Bearings - 8x16x5 mm / 8 mm - Chrome Steel T-0080-0160-F-BR (50 Pcs) --- Thrust Ball Bearings - 8x16x5 mm / 8 mm - Chrome Steel Regular price $551.86 AUD Regular price Sale price $551.86 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (A) 9.000 mm _{(0.354 in.)}	OD (D1) 17.000 mm _{(0.669 in.)}	Thickness (T) 5.000 mm _{(0.197 in.)}	Bore (d2) 9.000 mm	OD (D2) 17.000 mm	Dynamic Load Capacity 59 kgf
Material: Chrome Steel Cage Type: Brass
Part Number: T-0090-0170-F-BR Thrust Ball Bearings - 9x17x5 mm / 9 mm - Chrome Steel 44 Available Immediately \| Further orders can be expected around Fri, Jun 13, 2025 Regular price $11.05 AUD Regular price Sale price $11.05 AUD Unit price per Each
Shaft Diameter (A) 9.000 mm _{(0.354 in.)}	OD (D1) 17.000 mm _{(0.669 in.)}	Thickness (T) 5.000 mm _{(0.197 in.)}	Bore (d2) 9.000 mm
Material: Chrome Steel OD (D2): 17.000 mm Dynamic Load Capacity: 59 kgf Cage Type: Brass
Part Number: T-0090-0170-F-BR Thrust Ball Bearings - 9x17x5 mm / 9 mm - Chrome Steel 44 Available Immediately \| Further orders can be expected around Fri, Jun 13, 2025 Regular price $11.05 AUD Regular price Sale price $11.05 AUD Unit price per Each View the product page first if you are unsure.
T-0090-0170-F-BR --- Thrust Ball Bearings - 9x17x5 mm / 9 mm - Chrome Steel T-0090-0170-F-BR --- Thrust Ball Bearings - 9x17x5 mm / 9 mm - Chrome Steel Regular price $11.05 AUD Regular price Sale price $11.05 AUD Unit price per 44 Available Now
Shaft Diameter (A) 9.525 mm + 0.076 / + 0.203 _{(0.375 in.)}	OD (D1) 20.638 mm - 0.013 / - 0.208 _{(0.813 in.)}	Thickness (T) 6.350 mm + 0.076 / - 0.127 _{(0.25 in.)}	Bore (d2) 9.525 mm - 0.025 / - 0.202	OD (D2) 20.638 mm - 0.025 / - 0.202	Dynamic Load Capacity 35 kgf
Material: Chrome Steel Cage Type: Moulded Nylon
Part Number: T-0095-0204-F-NY Thrust Ball Bearings - 9.525x20.638x6.35 mm / 9.525 mm - Chrome Steel 1 Available Immediately \| Further orders can be expected around Mon, Jun 02, 2025 Regular price $10.68 AUD Regular price ~~$12.82 AUD~~ Sale price $10.68 AUD Unit price per Each
Shaft Diameter (A) 9.525 mm + 0.076 / + 0.203 _{(0.375 in.)}	OD (D1) 20.638 mm - 0.013 / - 0.208 _{(0.813 in.)}	Thickness (T) 6.350 mm + 0.076 / - 0.127 _{(0.25 in.)}	Bore (d2) 9.525 mm - 0.025 / - 0.202
Material: Chrome Steel OD (D2): 20.638 mm - 0.025 / - 0.202 Dynamic Load Capacity: 35 kgf Cage Type: Moulded Nylon
Part Number: T-0095-0204-F-NY Thrust Ball Bearings - 9.525x20.638x6.35 mm / 9.525 mm - Chrome Steel 1 Available Immediately \| Further orders can be expected around Mon, Jun 02, 2025 Regular price $10.68 AUD Regular price ~~$12.82 AUD~~ Sale price $10.68 AUD Unit price per Each View the product page first if you are unsure.
T-0095-0204-F-NY --- Thrust Ball Bearings - 9.525x20.638x6.35 mm / 9.525 mm - Chrome Steel Sale T-0095-0204-F-NY --- Thrust Ball Bearings - 9.525x20.638x6.35 mm / 9.525 mm - Chrome Steel Regular price $10.68 AUD Regular price ~~$12.82 AUD~~ Sale price $10.68 AUD Unit price per 1 Available Now Sale
Shaft Diameter (A) 10.000 mm + 0.06 / + 0.19 _{(0.394 in.)}	OD (D1) 21.000 mm - 0.040 / - 0.220 _{(0.827 in.)}	Thickness (T) 6.350 mm + 0.076 / - 0.127 _{(0.25 in.)}	Bore (d2) 10.000 mm - 0.025 / - 0.202	OD (D2) 21.000 mm - 0.025 / - 0.202	Dynamic Load Capacity 35 kgf
Material: Chrome Steel Cage Type: Moulded Nylon
Part Number: T-0100-0210-F-NY Thrust Ball Bearings - 10x21x6.35 mm / 10 mm - Chrome Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $24.68 AUD Regular price Sale price $24.68 AUD Unit price per Each
Shaft Diameter (A) 10.000 mm + 0.06 / + 0.19 _{(0.394 in.)}	OD (D1) 21.000 mm - 0.040 / - 0.220 _{(0.827 in.)}	Thickness (T) 6.350 mm + 0.076 / - 0.127 _{(0.25 in.)}	Bore (d2) 10.000 mm - 0.025 / - 0.202
Material: Chrome Steel OD (D2): 21.000 mm - 0.025 / - 0.202 Dynamic Load Capacity: 35 kgf Cage Type: Moulded Nylon
Part Number: T-0100-0210-F-NY Thrust Ball Bearings - 10x21x6.35 mm / 10 mm - Chrome Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $24.68 AUD Regular price Sale price $24.68 AUD Unit price per Each View the product page first if you are unsure.
T-0100-0210-F-NY --- Thrust Ball Bearings - 10x21x6.35 mm / 10 mm - Chrome Steel T-0100-0210-F-NY --- Thrust Ball Bearings - 10x21x6.35 mm / 10 mm - Chrome Steel Regular price $24.68 AUD Regular price Sale price $24.68 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (A) 11.112 mm + 0.088 / + 0.215 _{(0.437 in.)}	OD (D1) 22.225 mm - 0.013 / - 0.208 _{(0.875 in.)}	Thickness (T) 6.350 mm + 0.076 / - 0.127 _{(0.25 in.)}	Bore (d2) 11.113 mm - 0.025 / - 0.202	OD (D2) 22.225 mm - 0.025 / - 0.202	Dynamic Load Capacity 41 kgf
Material: Chrome Steel Cage Type: Moulded Nylon
Part Number: T-0111-0220-F-NY Thrust Ball Bearings - 11.112x22.225x6.35 mm / 11.113 mm - Chrome Steel 3 Available Immediately \| Further orders can be expected around Mon, Jun 02, 2025 Regular price $9.05 AUD Regular price ~~$10.85 AUD~~ Sale price $9.05 AUD Unit price per Each
Shaft Diameter (A) 11.112 mm + 0.088 / + 0.215 _{(0.437 in.)}	OD (D1) 22.225 mm - 0.013 / - 0.208 _{(0.875 in.)}	Thickness (T) 6.350 mm + 0.076 / - 0.127 _{(0.25 in.)}	Bore (d2) 11.113 mm - 0.025 / - 0.202
Material: Chrome Steel OD (D2): 22.225 mm - 0.025 / - 0.202 Dynamic Load Capacity: 41 kgf Cage Type: Moulded Nylon
Part Number: T-0111-0220-F-NY Thrust Ball Bearings - 11.112x22.225x6.35 mm / 11.113 mm - Chrome Steel 3 Available Immediately \| Further orders can be expected around Mon, Jun 02, 2025 Regular price $9.05 AUD Regular price ~~$10.85 AUD~~ Sale price $9.05 AUD Unit price per Each View the product page first if you are unsure.
T-0111-0220-F-NY --- Thrust Ball Bearings - 11.112x22.225x6.35 mm / 11.113 mm - Chrome Steel Sale T-0111-0220-F-NY --- Thrust Ball Bearings - 11.112x22.225x6.35 mm / 11.113 mm - Chrome Steel Regular price $9.05 AUD Regular price ~~$10.85 AUD~~ Sale price $9.05 AUD Unit price per 3 Available Now Sale
Shaft Diameter (A) 12.000 mm + 0.06 / + 0.19 _{(0.472 in.)}	OD (D1) 24.000 mm - 0.040 / - 0.220 _{(0.945 in.)}	Thickness (T) 6.350 mm + 0.076 / - 0.127 _{(0.25 in.)}	Bore (d2) 12.000 mm - 0.025 / - 0.202	OD (D2) 24.000 mm - 0.025 / - 0.202	Dynamic Load Capacity 47 kgf
Material: Chrome Steel Cage Type: Moulded Nylon
Part Number: T-0120-0240-F-NY Thrust Ball Bearings - 12x24x6.35 mm / 12 mm - Chrome Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $25.41 AUD Regular price Sale price $25.41 AUD Unit price per Each
Shaft Diameter (A) 12.000 mm + 0.06 / + 0.19 _{(0.472 in.)}	OD (D1) 24.000 mm - 0.040 / - 0.220 _{(0.945 in.)}	Thickness (T) 6.350 mm + 0.076 / - 0.127 _{(0.25 in.)}	Bore (d2) 12.000 mm - 0.025 / - 0.202
Material: Chrome Steel OD (D2): 24.000 mm - 0.025 / - 0.202 Dynamic Load Capacity: 47 kgf Cage Type: Moulded Nylon
Part Number: T-0120-0240-F-NY Thrust Ball Bearings - 12x24x6.35 mm / 12 mm - Chrome Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $25.41 AUD Regular price Sale price $25.41 AUD Unit price per Each View the product page first if you are unsure.
T-0120-0240-F-NY --- Thrust Ball Bearings - 12x24x6.35 mm / 12 mm - Chrome Steel T-0120-0240-F-NY --- Thrust Ball Bearings - 12x24x6.35 mm / 12 mm - Chrome Steel Regular price $25.41 AUD Regular price Sale price $25.41 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (A) 12.700 mm + 0.076 / + 0.203 _{(0.5 in.)}	OD (D1) 23.813 mm - 0.013 / - 0.208 _{(0.938 in.)}	Thickness (T) 6.350 mm + 0.076 / - 0.127 _{(0.25 in.)}	Bore (d2) 12.700 mm - 0.025 / - 0.202	OD (D2) 23.813 mm - 0.025 / - 0.202	Dynamic Load Capacity 47 kgf
Material: Chrome Steel Cage Type: Moulded Nylon
Part Number: T-0127-0236-F-NY Thrust Ball Bearings - 12.7x23.813x6.35 mm / 12.7 mm - Chrome Steel 1 Available Immediately \| Further orders can be expected around Mon, Jun 02, 2025 Regular price $10.59 AUD Regular price Sale price $10.59 AUD Unit price per Each
Shaft Diameter (A) 12.700 mm + 0.076 / + 0.203 _{(0.5 in.)}	OD (D1) 23.813 mm - 0.013 / - 0.208 _{(0.938 in.)}	Thickness (T) 6.350 mm + 0.076 / - 0.127 _{(0.25 in.)}	Bore (d2) 12.700 mm - 0.025 / - 0.202
Material: Chrome Steel OD (D2): 23.813 mm - 0.025 / - 0.202 Dynamic Load Capacity: 47 kgf Cage Type: Moulded Nylon
Part Number: T-0127-0236-F-NY Thrust Ball Bearings - 12.7x23.813x6.35 mm / 12.7 mm - Chrome Steel 1 Available Immediately \| Further orders can be expected around Mon, Jun 02, 2025 Regular price $10.59 AUD Regular price Sale price $10.59 AUD Unit price per Each View the product page first if you are unsure.
T-0127-0236-F-NY --- Thrust Ball Bearings - 12.7x23.813x6.35 mm / 12.7 mm - Chrome Steel T-0127-0236-F-NY --- Thrust Ball Bearings - 12.7x23.813x6.35 mm / 12.7 mm - Chrome Steel Regular price $10.59 AUD Regular price Sale price $10.59 AUD Unit price per 1 Available Now
Shaft Diameter (A) 14.288 mm + 0.089 / + 0.216 _{(0.563 in.)}	OD (D1) 25.400 mm - 0.013 / - 0.208 _{(1 in.)}	Thickness (T) 6.350 mm + 0.076 / - 0.127 _{(0.25 in.)}	Bore (d2) 14.288 mm - 0.025 / - 0.202	OD (D2) 25.400 mm - 0.025 / - 0.202	Dynamic Load Capacity 53 kgf
Material: Chrome Steel Cage Type: Moulded Nylon
Part Number: T-0143-0252-F-NY Thrust Ball Bearings - 14.288x25.4x6.35 mm / 14.288 mm - Chrome Steel 2 Available Immediately \| Further orders can be expected around Mon, Jun 02, 2025 Regular price $15.77 AUD Regular price ~~$18.93 AUD~~ Sale price $15.77 AUD Unit price per Each
Shaft Diameter (A) 14.288 mm + 0.089 / + 0.216 _{(0.563 in.)}	OD (D1) 25.400 mm - 0.013 / - 0.208 _{(1 in.)}	Thickness (T) 6.350 mm + 0.076 / - 0.127 _{(0.25 in.)}	Bore (d2) 14.288 mm - 0.025 / - 0.202
Material: Chrome Steel OD (D2): 25.400 mm - 0.025 / - 0.202 Dynamic Load Capacity: 53 kgf Cage Type: Moulded Nylon
Part Number: T-0143-0252-F-NY Thrust Ball Bearings - 14.288x25.4x6.35 mm / 14.288 mm - Chrome Steel 2 Available Immediately \| Further orders can be expected around Mon, Jun 02, 2025 Regular price $15.77 AUD Regular price ~~$18.93 AUD~~ Sale price $15.77 AUD Unit price per Each View the product page first if you are unsure.
T-0143-0252-F-NY --- Thrust Ball Bearings - 14.288x25.4x6.35 mm / 14.288 mm - Chrome Steel Sale T-0143-0252-F-NY --- Thrust Ball Bearings - 14.288x25.4x6.35 mm / 14.288 mm - Chrome Steel Regular price $15.77 AUD Regular price ~~$18.93 AUD~~ Sale price $15.77 AUD Unit price per 2 Available Now Sale
Shaft Diameter (A) 15.875 mm + 0.076 / + 0.203 _{(0.625 in.)}	OD (D1) 28.575 mm - 0.013 / - 0.208 _{(1.125 in.)}	Thickness (T) 8.731 mm + 0.076 / - 0.127 _{(0.344 in.)}	Bore (d2) 15.875 mm - 0.025 / - 0.202	OD (D2) 28.575 mm - 0.025 / - 0.202	Dynamic Load Capacity 58 kgf
Material: Chrome Steel Cage Type: Moulded Nylon
Part Number: T-0159-0283-F-NY Thrust Ball Bearings - 15.875x28.575x8.731 mm / 15.875 mm - Chrome Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $20.68 AUD Regular price Sale price $20.68 AUD Unit price per Each
Shaft Diameter (A) 15.875 mm + 0.076 / + 0.203 _{(0.625 in.)}	OD (D1) 28.575 mm - 0.013 / - 0.208 _{(1.125 in.)}	Thickness (T) 8.731 mm + 0.076 / - 0.127 _{(0.344 in.)}	Bore (d2) 15.875 mm - 0.025 / - 0.202
Material: Chrome Steel OD (D2): 28.575 mm - 0.025 / - 0.202 Dynamic Load Capacity: 58 kgf Cage Type: Moulded Nylon
Part Number: T-0159-0283-F-NY Thrust Ball Bearings - 15.875x28.575x8.731 mm / 15.875 mm - Chrome Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $20.68 AUD Regular price Sale price $20.68 AUD Unit price per Each View the product page first if you are unsure.
T-0159-0283-F-NY --- Thrust Ball Bearings - 15.875x28.575x8.731 mm / 15.875 mm - Chrome Steel T-0159-0283-F-NY --- Thrust Ball Bearings - 15.875x28.575x8.731 mm / 15.875 mm - Chrome Steel Regular price $20.68 AUD Regular price Sale price $20.68 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (A) 16.000 mm + 0.07 / + 0.26 _{(0.63 in.)}	OD (D1) 28.000 mm - 0.040 / - 0.220 _{(1.102 in.)}	Thickness (T) 8.731 mm + 0.076 / - 0.127 _{(0.344 in.)}	Bore (d2) 16.000 mm - 0.025 / - 0.202	OD (D2) 28.000 mm - 0.025 / - 0.202	Dynamic Load Capacity 57 kgf
Material: Chrome Steel Cage Type: Moulded Nylon
Part Number: T-0160-0280-F-NY Thrust Ball Bearings - 16x28x8.731 mm / 16 mm - Chrome Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $30.50 AUD Regular price Sale price $30.50 AUD Unit price per Each
Shaft Diameter (A) 16.000 mm + 0.07 / + 0.26 _{(0.63 in.)}	OD (D1) 28.000 mm - 0.040 / - 0.220 _{(1.102 in.)}	Thickness (T) 8.731 mm + 0.076 / - 0.127 _{(0.344 in.)}	Bore (d2) 16.000 mm - 0.025 / - 0.202
Material: Chrome Steel OD (D2): 28.000 mm - 0.025 / - 0.202 Dynamic Load Capacity: 57 kgf Cage Type: Moulded Nylon
Part Number: T-0160-0280-F-NY Thrust Ball Bearings - 16x28x8.731 mm / 16 mm - Chrome Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 18, 2025 Regular price $30.50 AUD Regular price Sale price $30.50 AUD Unit price per Each View the product page first if you are unsure.
T-0160-0280-F-NY --- Thrust Ball Bearings - 16x28x8.731 mm / 16 mm - Chrome Steel T-0160-0280-F-NY --- Thrust Ball Bearings - 16x28x8.731 mm / 16 mm - Chrome Steel Regular price $30.50 AUD Regular price Sale price $30.50 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (A) 17.463 mm + 0.088 / + 0.262 _{(0.688 in.)}	OD (D1) 30.175 mm - 0.013 / - 0.208 _{(1.188 in.)}	Thickness (T) 8.731 mm + 0.076 / - 0.127 _{(0.344 in.)}	Bore (d2) 17.463 mm - 0.025 / - 0.202	OD (D2) 30.163 mm - 0.025 / - 0.202	Dynamic Load Capacity 67 kgf
Material: Chrome Steel Cage Type: Moulded Nylon
Part Number: T-0175-0299-F-NY Thrust Ball Bearings - 17.463x30.175x8.731 mm / 17.463 mm - Chrome Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $25.05 AUD Regular price Sale price $25.05 AUD Unit price per Each
Shaft Diameter (A) 17.463 mm + 0.088 / + 0.262 _{(0.688 in.)}	OD (D1) 30.175 mm - 0.013 / - 0.208 _{(1.188 in.)}	Thickness (T) 8.731 mm + 0.076 / - 0.127 _{(0.344 in.)}	Bore (d2) 17.463 mm - 0.025 / - 0.202
Material: Chrome Steel OD (D2): 30.163 mm - 0.025 / - 0.202 Dynamic Load Capacity: 67 kgf Cage Type: Moulded Nylon
Part Number: T-0175-0299-F-NY Thrust Ball Bearings - 17.463x30.175x8.731 mm / 17.463 mm - Chrome Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 02, 2025 Regular price $25.05 AUD Regular price Sale price $25.05 AUD Unit price per Each View the product page first if you are unsure.
T-0175-0299-F-NY --- Thrust Ball Bearings - 17.463x30.175x8.731 mm / 17.463 mm - Chrome Steel T-0175-0299-F-NY --- Thrust Ball Bearings - 17.463x30.175x8.731 mm / 17.463 mm - Chrome Steel Regular price $25.05 AUD Regular price Sale price $25.05 AUD Unit price per Out of stock! Backorder Now

Country/region

Country/region

Collection: Bearings - Thrust Ball - Flat - Chrome Steel

Filter

Filter

Subscribe to our emails
