Bearings - Thrust Ball - Flat - Chrome Steel

35 Products in this selection

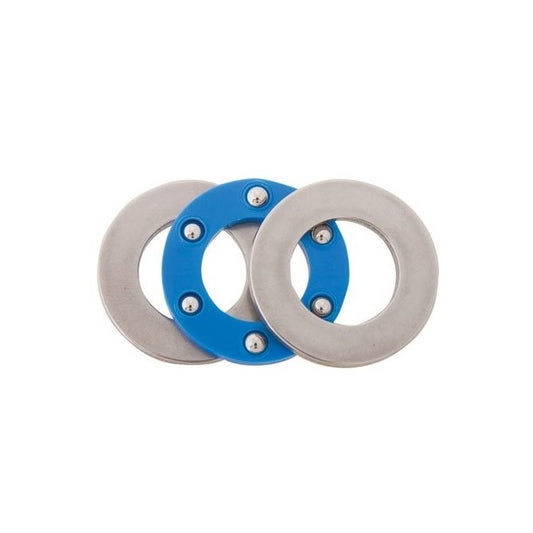

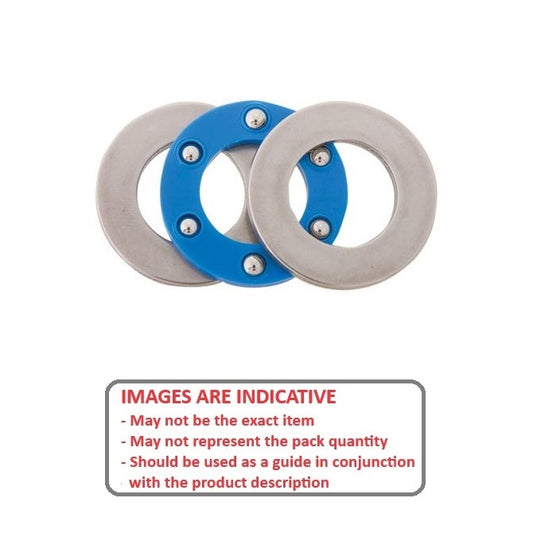

  • 3 Piece Thrust Bearings Open Type with Flat Washers
  • These bearings are designed so that when one ring turns, the other remains stationary.
  • Some have a larger bore on one side allowing a shaft with no steps to pass through. Others will require a stepped shaft as they have the same bore on both races.
  • Some have a reduced size OD on one race allowing it to sit into an unstepped housing bore, whilst others will require a stepped housing to allow one ring to rotate.
  • Please be sure to take note of the figures shown for ID and OD of both races to ensure you select the correct bearing.
Additional resources:
Thrust Bearings PDF Catalogue
Shafting
A more concise listing may be found on the Smallparts store at Bearings - Thrust Ball - Flat - Chrome Steel. Smallparts promote the most popular MBA products.
Shaft Diameter (A) OD (D1) Thickness (T) Bore (d2) OD (D2) Dynamic Load Capacity Indicative
Shaft Diameter (A)
19.000
mm
+ 0.08 / + 0.25
(0.748 in.)
OD (D1)
32.000
mm
- 0.040 / - 0.220
(1.26 in.)
Thickness (T)
8.731
mm
+ 0.076 / - 0.127
(0.344 in.)
Bore (d2)
19.000
mm
- 0.025 / - 0.202
OD (D2)
32.000
mm
- 0.025 / - 0.202
Dynamic Load Capacity
76
kgf
Thrust Ball Bearings - 19x32x8.731 mm / 19 mm - Chrome Steel
Material: Chrome Steel    Cage Type: Moulded Nylon
Part Number: T-0190-0320-F-NY Thrust Ball Bearings - 19x32x8.731 mm / 19 mm - Chrome Steel
Out of Stock | Backorder Now | Orders can be expected around Wed, Jun 18, 2025
$37.59 AUD
$37.59 AUD
Each
Shaft Diameter (A) OD (D1) Thickness (T) Bore (d2) Indicative
Shaft Diameter (A)
19.000
mm
+ 0.08 / + 0.25
(0.748 in.)
OD (D1)
32.000
mm
- 0.040 / - 0.220
(1.26 in.)
Thickness (T)
8.731
mm
+ 0.076 / - 0.127
(0.344 in.)
Bore (d2)
19.000
mm
- 0.025 / - 0.202
Thrust Ball Bearings - 19x32x8.731 mm / 19 mm - Chrome Steel
Material: Chrome Steel    OD (D2): 32.000 mm - 0.025 / - 0.202    Dynamic Load Capacity: 76 kgf    Cage Type: Moulded Nylon
Part Number: T-0190-0320-F-NY Thrust Ball Bearings - 19x32x8.731 mm / 19 mm - Chrome Steel
Out of Stock | Backorder Now | Orders can be expected around Wed, Jun 18, 2025
$37.59 AUD
$37.59 AUD
Each
View the product page first if you are unsure.
Shaft Diameter (A)
19.050
mm
+ 0.076 / + 0.263
(0.75 in.)
OD (D1)
31.750
mm
- 0.013 / - 0.208
(1.25 in.)
Thickness (T)
8.731
mm
+ 0.076 / - 0.127
(0.344 in.)
Bore (d2)
19.050
mm
- 0.025 / - 0.202
OD (D2)
31.750
mm
- 0.025 / - 0.202
Dynamic Load Capacity
77
kgf
Thrust Ball Bearings - 19.05x31.75x8.731 mm / 19.05 mm - Chrome Steel
Material: Chrome Steel    Cage Type: Moulded Nylon
Part Number: T-0191-0315-F-NY Thrust Ball Bearings - 19.05x31.75x8.731 mm / 19.05 mm - Chrome Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Jun 02, 2025
$15.95 AUD
$15.95 AUD
Each
Shaft Diameter (A)
19.050
mm
+ 0.076 / + 0.263
(0.75 in.)
OD (D1)
31.750
mm
- 0.013 / - 0.208
(1.25 in.)
Thickness (T)
8.731
mm
+ 0.076 / - 0.127
(0.344 in.)
Bore (d2)
19.050
mm
- 0.025 / - 0.202
Thrust Ball Bearings - 19.05x31.75x8.731 mm / 19.05 mm - Chrome Steel
Material: Chrome Steel    OD (D2): 31.750 mm - 0.025 / - 0.202    Dynamic Load Capacity: 77 kgf    Cage Type: Moulded Nylon
Part Number: T-0191-0315-F-NY Thrust Ball Bearings - 19.05x31.75x8.731 mm / 19.05 mm - Chrome Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Jun 02, 2025
$15.95 AUD
$15.95 AUD
Each
View the product page first if you are unsure.
Shaft Diameter (A)
20.638
mm
+ 0.088 / + 0.262
(0.813 in.)
OD (D1)
33.338
mm
- 0.013 / - 0.208
(1.313 in.)
Thickness (T)
8.731
mm
+ 0.076 / - 0.127
(0.344 in.)
Bore (d2)
20.638
mm
- 0.025 / - 0.202
OD (D2)
33.338
mm
- 0.025 / - 0.202
Dynamic Load Capacity
86
kgf
Thrust Ball Bearings - 20.638x33.338x8.731 mm / 20.638 mm - Chrome Steel
Material: Chrome Steel    Cage Type: Moulded Nylon
Part Number: T-0206-0331-F-NY Thrust Ball Bearings - 20.638x33.338x8.731 mm / 20.638 mm - Chrome Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Jun 02, 2025
$25.14 AUD
$25.14 AUD
Each
Shaft Diameter (A)
20.638
mm
+ 0.088 / + 0.262
(0.813 in.)
OD (D1)
33.338
mm
- 0.013 / - 0.208
(1.313 in.)
Thickness (T)
8.731
mm
+ 0.076 / - 0.127
(0.344 in.)
Bore (d2)
20.638
mm
- 0.025 / - 0.202
Thrust Ball Bearings - 20.638x33.338x8.731 mm / 20.638 mm - Chrome Steel
Material: Chrome Steel    OD (D2): 33.338 mm - 0.025 / - 0.202    Dynamic Load Capacity: 86 kgf    Cage Type: Moulded Nylon
Part Number: T-0206-0331-F-NY Thrust Ball Bearings - 20.638x33.338x8.731 mm / 20.638 mm - Chrome Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Jun 02, 2025
$25.14 AUD
$25.14 AUD
Each
View the product page first if you are unsure.
Shaft Diameter (A)
22.225
mm
+ 0.076 / + 0.263
(0.875 in.)
OD (D1)
34.925
mm
- 0.013 / - 0.208
(1.375 in.)
Thickness (T)
8.731
mm
+ 0.076 / - 0.127
(0.344 in.)
Bore (d2)
22.225
mm
- 0.025 / - 0.202
OD (D2)
34.925
mm
- 0.025 / - 0.202
Dynamic Load Capacity
96
kgf
Thrust Ball Bearings - 22.225x34.925x8.731 mm / 22.225 mm - Chrome Steel
Material: Chrome Steel    Cage Type: Moulded Nylon
Part Number: T-0222-0347-F-NY Thrust Ball Bearings - 22.225x34.925x8.731 mm / 22.225 mm - Chrome Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Jun 02, 2025
$34.86 AUD
$34.86 AUD
Each
Shaft Diameter (A)
22.225
mm
+ 0.076 / + 0.263
(0.875 in.)
OD (D1)
34.925
mm
- 0.013 / - 0.208
(1.375 in.)
Thickness (T)
8.731
mm
+ 0.076 / - 0.127
(0.344 in.)
Bore (d2)
22.225
mm
- 0.025 / - 0.202
Thrust Ball Bearings - 22.225x34.925x8.731 mm / 22.225 mm - Chrome Steel
Material: Chrome Steel    OD (D2): 34.925 mm - 0.025 / - 0.202    Dynamic Load Capacity: 96 kgf    Cage Type: Moulded Nylon
Part Number: T-0222-0347-F-NY Thrust Ball Bearings - 22.225x34.925x8.731 mm / 22.225 mm - Chrome Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Jun 02, 2025
$34.86 AUD
$34.86 AUD
Each
View the product page first if you are unsure.
Shaft Diameter (A)
23.813
mm
+ 0.088 / + 0.262
(0.938 in.)
OD (D1)
36.688
mm
- 0.013 / - 0.208
(1.444 in.)
Thickness (T)
11.113
mm
+ 0.360 / - 0.240
(0.438 in.)
Bore (d2)
23.813
mm
- 0.025 / - 0.202
OD (D2)
39.688
mm
- 0.025 / - 0.202
Dynamic Load Capacity
106
kgf
Thrust Ball Bearings - 23.813x36.688x11.113 mm / 23.813 mm - Chrome Steel
Material: Chrome Steel    Cage Type: Moulded Nylon
Part Number: T-0238-0394-F-NY Thrust Ball Bearings - 23.813x36.688x11.113 mm / 23.813 mm - Chrome Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Jun 02, 2025
$37.86 AUD
$37.86 AUD
Each
Shaft Diameter (A)
23.813
mm
+ 0.088 / + 0.262
(0.938 in.)
OD (D1)
36.688
mm
- 0.013 / - 0.208
(1.444 in.)
Thickness (T)
11.113
mm
+ 0.360 / - 0.240
(0.438 in.)
Bore (d2)
23.813
mm
- 0.025 / - 0.202
Thrust Ball Bearings - 23.813x36.688x11.113 mm / 23.813 mm - Chrome Steel
Material: Chrome Steel    OD (D2): 39.688 mm - 0.025 / - 0.202    Dynamic Load Capacity: 106 kgf    Cage Type: Moulded Nylon
Part Number: T-0238-0394-F-NY Thrust Ball Bearings - 23.813x36.688x11.113 mm / 23.813 mm - Chrome Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Jun 02, 2025
$37.86 AUD
$37.86 AUD
Each
View the product page first if you are unsure.
Shaft Diameter (A)
25.000
mm
+ 0.070 / + 0.300
(0.984 in.)
OD (D1)
41.000
mm
- 0.040 / - 0.220
(1.614 in.)
Thickness (T)
11.000
mm
+ 0.360 / - 0.240
(0.433 in.)
Bore (d2)
25.000
mm
- 0.025 / - 0.202
OD (D2)
41.000
mm
- 0.025 / - 0.202
Dynamic Load Capacity
117
kgf
Thrust Ball Bearings - 25x41x11 mm / 25 mm - Chrome Steel
Material: Chrome Steel    Cage Type: Moulded Nylon
Part Number: T-0250-0410-F-NY Thrust Ball Bearings - 25x41x11 mm / 25 mm - Chrome Steel
Out of Stock | Backorder Now | Orders can be expected around Wed, Jun 18, 2025
$53.68 AUD
$53.68 AUD
Each
Shaft Diameter (A)
25.000
mm
+ 0.070 / + 0.300
(0.984 in.)
OD (D1)
41.000
mm
- 0.040 / - 0.220
(1.614 in.)
Thickness (T)
11.000
mm
+ 0.360 / - 0.240
(0.433 in.)
Bore (d2)
25.000
mm
- 0.025 / - 0.202
Thrust Ball Bearings - 25x41x11 mm / 25 mm - Chrome Steel
Material: Chrome Steel    OD (D2): 41.000 mm - 0.025 / - 0.202    Dynamic Load Capacity: 117 kgf    Cage Type: Moulded Nylon
Part Number: T-0250-0410-F-NY Thrust Ball Bearings - 25x41x11 mm / 25 mm - Chrome Steel
Out of Stock | Backorder Now | Orders can be expected around Wed, Jun 18, 2025
$53.68 AUD
$53.68 AUD
Each
View the product page first if you are unsure.
Shaft Diameter (A)
25.400
mm
+ 0.076 / + 0.263
(1 in.)
OD (D1)
41.275
mm
- 0.013 / - 0.208
(1.625 in.)
Thickness (T)
11.113
mm
+ 0.360 / - 0.240
(0.438 in.)
Bore (d2)
25.400
mm
- 0.025 / - 0.202
OD (D2)
41.275
mm
- 0.025 / - 0.202
Dynamic Load Capacity
118
kgf
Thrust Ball Bearings - 25.4x41.275x11.113 mm / 25.4 mm - Chrome Steel
Material: Chrome Steel    Cage Type: Moulded Nylon
Part Number: T-0254-0410-F-NY Thrust Ball Bearings - 25.4x41.275x11.113 mm / 25.4 mm - Chrome Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Jun 02, 2025
$38.68 AUD
$38.68 AUD
Each
Shaft Diameter (A)
25.400
mm
+ 0.076 / + 0.263
(1 in.)
OD (D1)
41.275
mm
- 0.013 / - 0.208
(1.625 in.)
Thickness (T)
11.113
mm
+ 0.360 / - 0.240
(0.438 in.)
Bore (d2)
25.400
mm
- 0.025 / - 0.202
Thrust Ball Bearings - 25.4x41.275x11.113 mm / 25.4 mm - Chrome Steel
Material: Chrome Steel    OD (D2): 41.275 mm - 0.025 / - 0.202    Dynamic Load Capacity: 118 kgf    Cage Type: Moulded Nylon
Part Number: T-0254-0410-F-NY Thrust Ball Bearings - 25.4x41.275x11.113 mm / 25.4 mm - Chrome Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Jun 02, 2025
$38.68 AUD
$38.68 AUD
Each
View the product page first if you are unsure.
Shaft Diameter (A)
28.000
mm
+ 0.070 / + 0.300
(1.102 in.)
OD (D1)
41.000
mm
- 0.040 / - 0.220
(1.614 in.)
Thickness (T)
11.000
mm
+ 0.360 / - 0.240
(0.433 in.)
Bore (d2)
28.000
mm
- 0.025 / - 0.202
OD (D2)
41.000
mm
- 0.025 / - 0.202
Dynamic Load Capacity
141
kgf
Thrust Ball Bearings - 28x41x11 mm / 28 mm - Chrome Steel
Material: Chrome Steel    Cage Type: Moulded Nylon
Part Number: T-0280-0440-F-NY Thrust Ball Bearings - 28x41x11 mm / 28 mm - Chrome Steel
Out of Stock | Backorder Now | Orders can be expected around Wed, Jun 18, 2025
$60.86 AUD
$60.86 AUD
Each
Shaft Diameter (A)
28.000
mm
+ 0.070 / + 0.300
(1.102 in.)
OD (D1)
41.000
mm
- 0.040 / - 0.220
(1.614 in.)
Thickness (T)
11.000
mm
+ 0.360 / - 0.240
(0.433 in.)
Bore (d2)
28.000
mm
- 0.025 / - 0.202
Thrust Ball Bearings - 28x41x11 mm / 28 mm - Chrome Steel
Material: Chrome Steel    OD (D2): 41.000 mm - 0.025 / - 0.202    Dynamic Load Capacity: 141 kgf    Cage Type: Moulded Nylon
Part Number: T-0280-0440-F-NY Thrust Ball Bearings - 28x41x11 mm / 28 mm - Chrome Steel
Out of Stock | Backorder Now | Orders can be expected around Wed, Jun 18, 2025
$60.86 AUD
$60.86 AUD
Each
View the product page first if you are unsure.
Shaft Diameter (A)
28.575
mm
+ 0.076 / + 0.263
(1.125 in.)
OD (D1)
44.450
mm
- 0.013 / - 0.208
(1.75 in.)
Thickness (T)
11.113
mm
+ 0.360 / - 0.240
(0.438 in.)
Bore (d2)
28.575
mm
- 0.025 / - 0.202
OD (D2)
44.450
mm
- 0.025 / - 0.202
Dynamic Load Capacity
142
kgf
Thrust Ball Bearings - 28.575x44.45x11.113 mm / 28.575 mm - Chrome Steel
Material: Chrome Steel    Cage Type: Moulded Nylon
Part Number: T-0286-0441-F-NY Thrust Ball Bearings - 28.575x44.45x11.113 mm / 28.575 mm - Chrome Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Jun 02, 2025
$18.41 AUD
$18.41 AUD
Each
Shaft Diameter (A)
28.575
mm
+ 0.076 / + 0.263
(1.125 in.)
OD (D1)
44.450
mm
- 0.013 / - 0.208
(1.75 in.)
Thickness (T)
11.113
mm
+ 0.360 / - 0.240
(0.438 in.)
Bore (d2)
28.575
mm
- 0.025 / - 0.202
Thrust Ball Bearings - 28.575x44.45x11.113 mm / 28.575 mm - Chrome Steel
Material: Chrome Steel    OD (D2): 44.450 mm - 0.025 / - 0.202    Dynamic Load Capacity: 142 kgf    Cage Type: Moulded Nylon
Part Number: T-0286-0441-F-NY Thrust Ball Bearings - 28.575x44.45x11.113 mm / 28.575 mm - Chrome Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Jun 02, 2025
$18.41 AUD
$18.41 AUD
Each
View the product page first if you are unsure.
Shaft Diameter (A)
28.575
mm
+ 0.076 / + 0.263
(1.125 in.)
OD (D1)
47.625
mm
- 0.013 / - 0.208
(1.875 in.)
Thickness (T)
11.113
mm
+ 0.360 / - 0.240
(0.438 in.)
Bore (d2)
28.575
mm
- 0.025 / - 0.202
OD (D2)
47.625
mm
- 0.025 / - 0.202
Dynamic Load Capacity
165
kgf
Thrust Ball Bearings - 28.575x47.625x11.113 mm / 28.575 mm - Chrome Steel
Material: Chrome Steel    Cage Type: Moulded Nylon
Part Number: T-0318-0473-F-NY Thrust Ball Bearings - 28.575x47.625x11.113 mm / 28.575 mm - Chrome Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Jun 02, 2025
$49.14 AUD
$49.14 AUD
Each
Shaft Diameter (A)
28.575
mm
+ 0.076 / + 0.263
(1.125 in.)
OD (D1)
47.625
mm
- 0.013 / - 0.208
(1.875 in.)
Thickness (T)
11.113
mm
+ 0.360 / - 0.240
(0.438 in.)
Bore (d2)
28.575
mm
- 0.025 / - 0.202
Thrust Ball Bearings - 28.575x47.625x11.113 mm / 28.575 mm - Chrome Steel
Material: Chrome Steel    OD (D2): 47.625 mm - 0.025 / - 0.202    Dynamic Load Capacity: 165 kgf    Cage Type: Moulded Nylon
Part Number: T-0318-0473-F-NY Thrust Ball Bearings - 28.575x47.625x11.113 mm / 28.575 mm - Chrome Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Jun 02, 2025
$49.14 AUD
$49.14 AUD
Each
View the product page first if you are unsure.
Shaft Diameter (A)
38.100
mm
+ 0.076 / + 0.263
(1.5 in.)
OD (D1)
53.975
mm
- 0.013 / - 0.208
(2.125 in.)
Thickness (T)
11.113
mm
+ 0.360 / - 0.240
(0.438 in.)
Bore (d2)
38.100
mm
- 0.025 / - 0.202
OD (D2)
53.975
mm
- 0.025 / - 0.202
Dynamic Load Capacity
123
kgf
Thrust Ball Bearings - 38.1x53.975x11.113 mm / 38.1 mm - Chrome Steel
Material: Chrome Steel    Cage Type: Moulded Nylon
Part Number: T-0381-0540-F-NY Thrust Ball Bearings - 38.1x53.975x11.113 mm / 38.1 mm - Chrome Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Jun 02, 2025
$61.68 AUD
$61.68 AUD
Each
Shaft Diameter (A)
38.100
mm
+ 0.076 / + 0.263
(1.5 in.)
OD (D1)
53.975
mm
- 0.013 / - 0.208
(2.125 in.)
Thickness (T)
11.113
mm
+ 0.360 / - 0.240
(0.438 in.)
Bore (d2)
38.100
mm
- 0.025 / - 0.202
Thrust Ball Bearings - 38.1x53.975x11.113 mm / 38.1 mm - Chrome Steel
Material: Chrome Steel    OD (D2): 53.975 mm - 0.025 / - 0.202    Dynamic Load Capacity: 123 kgf    Cage Type: Moulded Nylon
Part Number: T-0381-0540-F-NY Thrust Ball Bearings - 38.1x53.975x11.113 mm / 38.1 mm - Chrome Steel
Out of Stock | Backorder Now | Orders can be expected around Mon, Jun 02, 2025
$61.68 AUD
$61.68 AUD
Each
View the product page first if you are unsure.
