CC-027-032-SS - Datasheet
MBA
Category Information

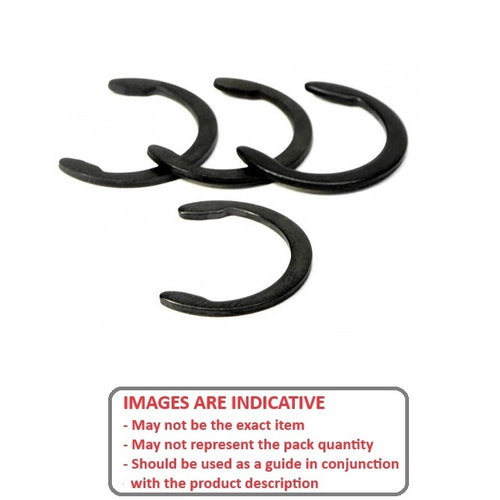

Retaining Rings - CrescentCrescent Retaining Rings. Variation of an E-Clip with an open face. Also known as a C-Clip.
- Narrow section height provides good clearance capabilities.
- Absence of teeth and deep set mean less thrust load ratings than e-clips.
- For best results install using the recommended applicator tool.

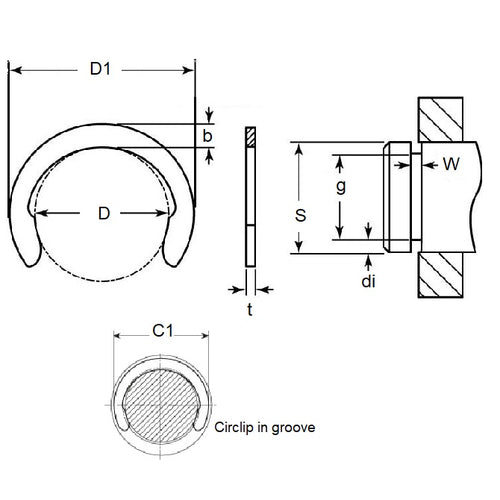

Product Data
- Groove Diameter (G) : 2.69 mm
- Shaft Diameter (S) 3.18 mm
- Thickness (t) 0.38 mm
- Clip OD in groove (C1) 4.57 mm
- Clip OD Loose (D1) 4.19 mm
- Groove Width (W) 0.46
- Material Stainless Steel Grade PH15-7-17
Product Compliance and Data
Additional Resources
Cross References
- Military 16632-012-SS/B
- Military 16632-012-SS-B
- Waldes® 5103-012-SS/B
- Waldes® 5103-012-SS-B
- Ellison® 9103-012-SS/B
- Ellison® 9103-012-SS-B
- Huyett® C-012-SS/B
- NoCor® C-012-SS/B
- Rotor Clip® C-012-SS/B
- NoCor® C-012-SS-B
- Rotor Clip® C-012-SS-B
- C012SS/B
- C012SSB
- N1800-012-SS/B
- N1800012SSB
- N1800012SS/B
- N1800-012-SS-B
- 16632012SSB
- 16632012SS/B
- 9103012SS/B
- 9103012SSB
- 5103012SS/B
- 5103012SSB
