P-030H-010-060FH-AL-G-032

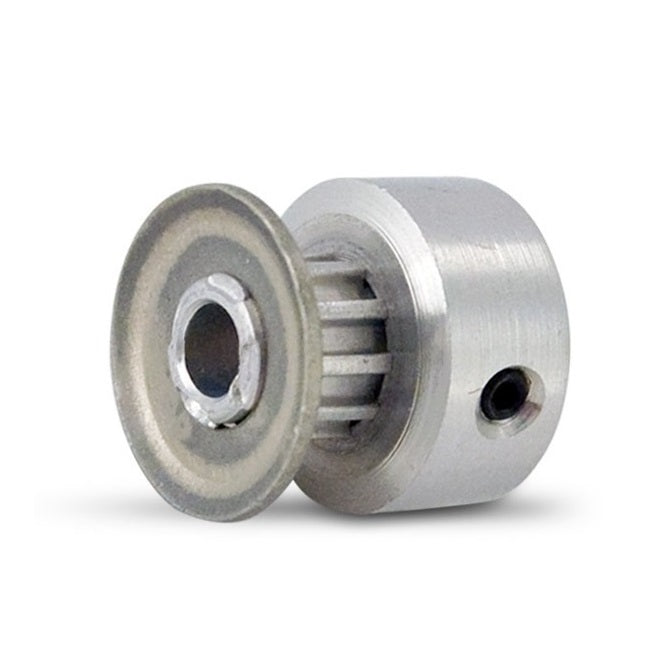

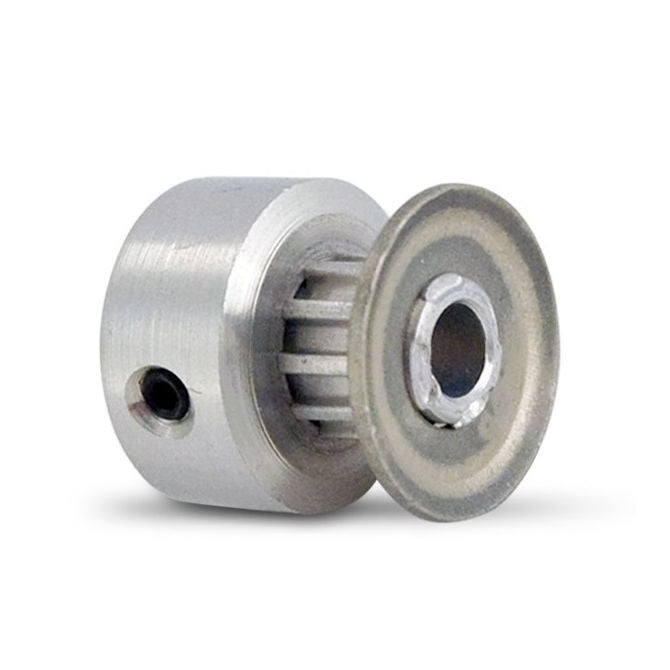

Metric Timing Pulleys - 10 tooth - 6x3.175 mm - Aluminium

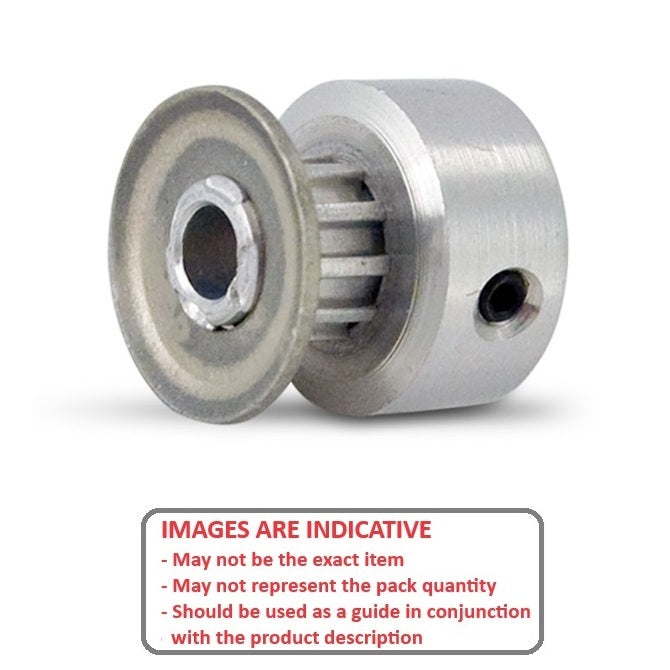

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Metric Timing Pulleys - 10 tooth - 6x3.175 mm - Aluminium
1 4

MBA

Additional resources:
Timing Pulleys Catalogue PDF
3mm HTD Timing Belts
Price:
$41.14 AUD
$41.14 AUD
Each
Out Of Stock
Order 50 or more for $37.03 AUD Each
Pre-Order now! Backorders for more than the stock quantity are expected before Jun 27, 2025

Base Category: Pulleys - Metric Timing

Top Level Category: Pulleys - Metric Timing - 3.000mm Pitch - HTD - 6mm Wide - Through Bore

Product Details:

Teeth: 10
Aluminium
  • Max Belt Width: 6.00mm
  • Bore (d): 3.175mm
  • Bore Type: Finished
  • Locking Type: Set Screw

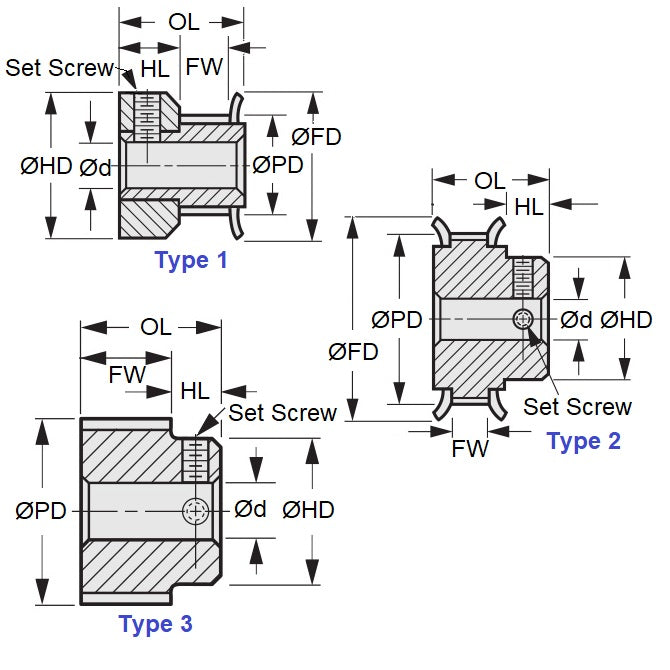

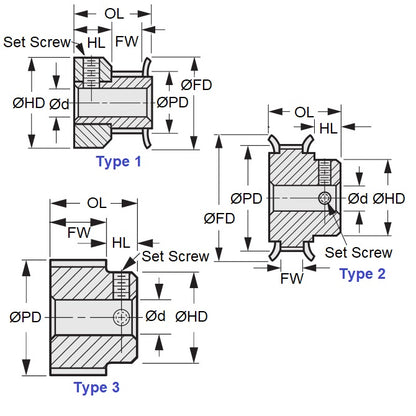

  • Type: 1
  • Pitch Dia. (PD): 9.55mm
  • Flange Diameter (FD): 12.8mm
  • Overall Length: 14.3mm
  • Hub Diameter (HD): 12.8mm

Brand: MBA
Country of Origin: IN

Alternative Parts Include: A6A23010DF0604, A6A23-010DF0604, 10-3M06-6CA1, 103M066CA1, Gates

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
