| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) | Radial Wall (S) Approx. | Groove Width (W) |
Indicative Image |
|---|---|---|---|---|---|---|
| Internal Retaining Rings - 26.98x1.27x28.3 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
26.98
mm |
Clip Thickness (T)
1.27
mm +/- 0.05 (Equiv. 0.05 in.) |
Groove Dia. (Dg)
28.30
mm +/- 0.13 (Equiv. 1.114 in.) |
Approx. Loose Circlip OD (Dr)
28.80
mm + 0.79 / - 0.00 |
Radial Wall (S) Approx.
2.36
+/- 0.08 |
Groove Width (W)
1.42
mm |
|
|
Material: Carbon Spring Steel
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0270-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) |
Indicative Image |
||
| Internal Retaining Rings - 26.98x1.27x28.3 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
26.98
mm |
Clip Thickness (T)
1.27
mm +/- 0.05 (Equiv. 0.05 in.) |
Groove Dia. (Dg)
28.30
mm +/- 0.13 (Equiv. 1.114 in.) |
Approx. Loose Circlip OD (Dr)
28.80
mm + 0.79 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 2.36 +/- 0.08
Groove Width (W): 1.42 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0270-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 27x1.2x28.61 mm Circlips - Carbon Spring Steel Circlip | ||||||
|
Housing Bore (B)
27.00
mm |
Clip Thickness (T)
1.20
mm + 0.00 / - 0.06 (Equiv. 0.047 in.) |
Groove Dia. (Dg)
28.61
mm + 0.00 / - 0.21 (Equiv. 1.126 in.) |
Approx. Loose Circlip OD (Dr)
28.89 - 29.52
mm |
Radial Wall (S) Approx.
2.90
|
Groove Width (W)
1.30
mm |
|
|
Material: Carbon Spring Steel
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: DJK-027 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 27x1.2x28.61 mm Circlips - Carbon Spring Steel Circlip | ||||||
|
Housing Bore (B)
27.00
mm |
Clip Thickness (T)
1.20
mm + 0.00 / - 0.06 (Equiv. 0.047 in.) |
Groove Dia. (Dg)
28.61
mm + 0.00 / - 0.21 (Equiv. 1.126 in.) |
Approx. Loose Circlip OD (Dr)
28.89 - 29.52
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 2.90
Groove Width (W): 1.30 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: DJK-027 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||

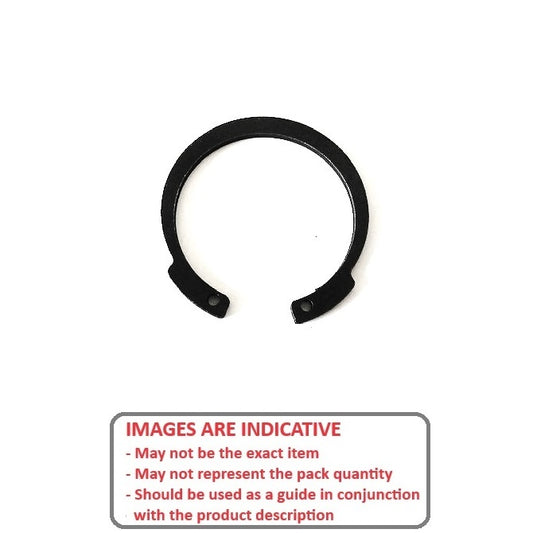

| Internal Retaining Rings - 27x1.5x28.4 mm Circlips - Carbon Spring Steel Self Finish Circlip | ||||||
|
Housing Bore (B)
27.00
mm |
Clip Thickness (T)
1.50
mm + 0.00 / - 0.06 (Equiv. 0.059 in.) |
Groove Dia. (Dg)
28.40
mm + 0.21 / - 0.00 (Equiv. 1.118 in.) |
Approx. Loose Circlip OD (Dr)
29.10
mm + 0.50 / - 0.25 |
Groove Width (W)
1.60
mm + 0.10 / - 0.00 |
|
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-02700H-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 27x1.5x28.4 mm Circlips - Carbon Spring Steel Self Finish Circlip | ||||||
|
Housing Bore (B)
27.00
mm |
Clip Thickness (T)
1.50
mm + 0.00 / - 0.06 (Equiv. 0.059 in.) |
Groove Dia. (Dg)
28.40
mm + 0.21 / - 0.00 (Equiv. 1.118 in.) |
Approx. Loose Circlip OD (Dr)
29.10
mm + 0.50 / - 0.25 |
|
||
|
Material: Carbon Spring Steel Self Finish
Groove Width (W): 1.60 mm + 0.10 / - 0.00
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-02700H-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 28x1.2x28.8 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
28.00
mm |
Clip Thickness (T)
1.20
mm + 0 / - 0.10 (Equiv. 0.047 in.) |
Groove Dia. (Dg)
28.80
mm + 0.13 / - 0.00 (Equiv. 1.134 in.) |
Approx. Loose Circlip OD (Dr)
29.20
mm |
Radial Wall (S) Approx.
1.75
+ 0 / - 0.10 |
Groove Width (W)
1.30
mm |
|
|
Material: Carbon Spring Steel
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0280-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 28x1.2x28.8 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
28.00
mm |
Clip Thickness (T)
1.20
mm + 0 / - 0.10 (Equiv. 0.047 in.) |
Groove Dia. (Dg)
28.80
mm + 0.13 / - 0.00 (Equiv. 1.134 in.) |
Approx. Loose Circlip OD (Dr)
29.20
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 1.75 + 0 / - 0.10
Groove Width (W): 1.30 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0280-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 28x1.2x29.61 mm Circlips - Carbon Spring Steel Circlip | ||||||
|
Housing Bore (B)
28.00
mm |
Clip Thickness (T)
1.20
mm + 0.00 / - 0.06 (Equiv. 0.047 in.) |
Groove Dia. (Dg)
29.61
mm + 0.00 / - 0.21 (Equiv. 1.166 in.) |
Approx. Loose Circlip OD (Dr)
29.85
mm |
Radial Wall (S) Approx.
3.00
|
Groove Width (W)
1.30
mm |
|
|
Material: Carbon Spring Steel
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: DJK-028 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 28x1.2x29.61 mm Circlips - Carbon Spring Steel Circlip | ||||||
|
Housing Bore (B)
28.00
mm |
Clip Thickness (T)
1.20
mm + 0.00 / - 0.06 (Equiv. 0.047 in.) |
Groove Dia. (Dg)
29.61
mm + 0.00 / - 0.21 (Equiv. 1.166 in.) |
Approx. Loose Circlip OD (Dr)
29.85
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 3.00
Groove Width (W): 1.30 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: DJK-028 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||

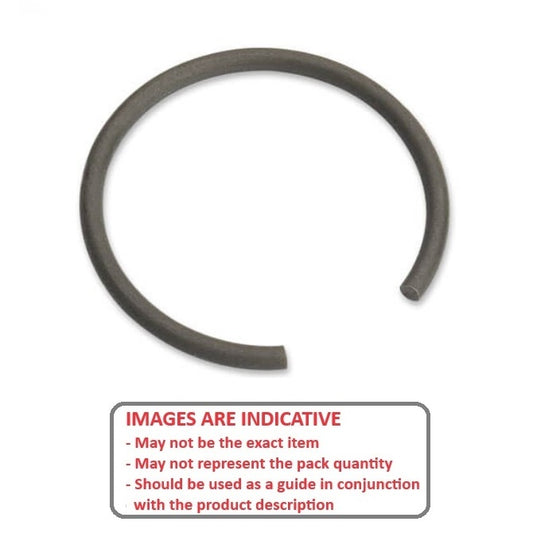

| Internal Retaining Rings - 28x2x30.3 mm Round Wire - Carbon Spring Steel Wire Clip | ||||||
|
Housing Bore (B)
28.00
mm |
Clip Thickness (T)
2.0
mm + 0.10 / - 0.05 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
30.30
mm Min. (Equiv. 1.193 in.) |
Approx. Loose Circlip OD (Dr)
31.10
mm |
Groove Width (W)
2.10
mm + 0.10 / - 0.00 |
|
|
|
Material: Carbon Spring Steel
Clearance in Bore (C): 27.1 mm
Category: Retaining Rings - Internal - Round Wire |
||||||
|
Part Number: WRI-0280A-RD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 28x2x30.3 mm Round Wire - Carbon Spring Steel Wire Clip | ||||||
|
Housing Bore (B)
28.00
mm |
Clip Thickness (T)
2.0
mm + 0.10 / - 0.05 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
30.30
mm Min. (Equiv. 1.193 in.) |
Approx. Loose Circlip OD (Dr)
31.10
mm |
|
||
|
Material: Carbon Spring Steel
Groove Width (W): 2.10 mm + 0.10 / - 0.00
Clearance in Bore (C): 27.1 mm
Category: Retaining Rings - Internal - Round Wire |
||||||
|
Part Number: WRI-0280A-RD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 25x1.2x25.8 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
25.00
mm |
Clip Thickness (T)
1.20
mm + 0 / - 0.10 (Equiv. 0.047 in.) |
Groove Dia. (Dg)
25.80
mm + 0.13 / - 0.00 (Equiv. 1.016 in.) |
Approx. Loose Circlip OD (Dr)
26.20
mm |
Radial Wall (S) Approx.
1.75
+ 0 / - 0.10 |
Groove Width (W)
1.30
mm |
|
|
Material: Carbon Spring Steel
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0250-LS (Each)
180 Available Now | Further orders can be expected around Tue, Mar 23, 2027 Regular price
$3.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 25x1.2x25.8 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
25.00
mm |
Clip Thickness (T)
1.20
mm + 0 / - 0.10 (Equiv. 0.047 in.) |
Groove Dia. (Dg)
25.80
mm + 0.13 / - 0.00 (Equiv. 1.016 in.) |
Approx. Loose Circlip OD (Dr)
26.20
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 1.75 + 0 / - 0.10
Groove Width (W): 1.30 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0250-LS (Each)
180 Available Now | Further orders can be expected around Tue, Mar 23, 2027 Regular price
$3.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 25x1.2x26.2 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
25.00
mm |
Clip Thickness (T)
1.20
mm + 0.00 / - 0.06 (Equiv. 0.047 in.) |
Groove Dia. (Dg)
26.20
mm + 0.21 / - 0.00 (Equiv. 1.031 in.) |
Approx. Loose Circlip OD (Dr)
26.90
mm + 0.42 / - 0.21 |
Groove Width (W)
1.30
mm + 0.08 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 15.50 mm
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 340 |
||||||
|
Part Number: CCI-02500-S15 (Each)
4 Available Now | Further orders can be expected around Wed, Aug 26, 2026 Regular price
$3.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 25x1.2x26.2 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
25.00
mm |
Clip Thickness (T)
1.20
mm + 0.00 / - 0.06 (Equiv. 0.047 in.) |
Groove Dia. (Dg)
26.20
mm + 0.21 / - 0.00 (Equiv. 1.031 in.) |
Approx. Loose Circlip OD (Dr)
26.90
mm + 0.42 / - 0.21 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 1.30 mm + 0.08 / - 0.00
Clearance in Bore (C): 15.50 mm
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 340 |
||||||
|
Part Number: CCI-02500-S15 (Each)
4 Available Now | Further orders can be expected around Wed, Aug 26, 2026 Regular price
$3.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 25x1.2x26.2 mm Circlips - Carbon Steel Circlip | ||||||
|
Housing Bore (B)
25.00
mm |
Clip Thickness (T)
1.20
mm + 0.00 / - 0.06 (Equiv. 0.047 in.) |
Groove Dia. (Dg)
26.20
mm + 0.21 / - 0.00 (Equiv. 1.031 in.) |
Approx. Loose Circlip OD (Dr)
26.90
mm + 0.42 / - 0.21 |
Groove Width (W)
1.30
mm + 0.08 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 15.50 mm
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 1654 |
||||||
|
Part Number: CCI-02500-C (Pack of 20)
7 units (140 pcs) Available Now | Further orders can be expected around Wed, Aug 26, 2026 Regular price
$5.50 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per pack of 20
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 25x1.2x26.2 mm Circlips - Carbon Steel Circlip | ||||||
|
Housing Bore (B)
25.00
mm |
Clip Thickness (T)
1.20
mm + 0.00 / - 0.06 (Equiv. 0.047 in.) |
Groove Dia. (Dg)
26.20
mm + 0.21 / - 0.00 (Equiv. 1.031 in.) |
Approx. Loose Circlip OD (Dr)
26.90
mm + 0.42 / - 0.21 |
|
||
|
Material: Carbon Steel
Groove Width (W): 1.30 mm + 0.08 / - 0.00
Clearance in Bore (C): 15.50 mm
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 1654 |
||||||
|
Part Number: CCI-02500-C (Pack of 20)
7 units (140 pcs) Available Now | Further orders can be expected around Wed, Aug 26, 2026 Regular price
$5.50 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per pack of 20
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 25x1.2x26.2 mm Circlips - Carbon Spring Steel Circlip | ||||||
|
Housing Bore (B)
25.00
mm |
Clip Thickness (T)
1.20
mm + 0.00 / - 0.06 (Equiv. 0.047 in.) |
Groove Dia. (Dg)
26.20
mm + 0.21 / - 0.00 (Equiv. 1.031 in.) |
Approx. Loose Circlip OD (Dr)
26.90
mm + 0.42 / - 0.21 |
Radial Wall (S) Approx.
2.7 - 2.8
|
Groove Width (W)
1.30
mm |
|
|
Material: Carbon Spring Steel
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-02500-C-V (Pack of 600)
Out of Stock | Backorder Now | Backorder now for delivery around Sun, Oct 25, 2026 Regular price
$240.68 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per pack of 600
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 25x1.2x26.2 mm Circlips - Carbon Spring Steel Circlip | ||||||
|
Housing Bore (B)
25.00
mm |
Clip Thickness (T)
1.20
mm + 0.00 / - 0.06 (Equiv. 0.047 in.) |
Groove Dia. (Dg)
26.20
mm + 0.21 / - 0.00 (Equiv. 1.031 in.) |
Approx. Loose Circlip OD (Dr)
26.90
mm + 0.42 / - 0.21 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 2.7 - 2.8
Groove Width (W): 1.30 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-02500-C-V (Pack of 600)
Out of Stock | Backorder Now | Backorder now for delivery around Sun, Oct 25, 2026 Regular price
$240.68 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per pack of 600
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 28.58x1.07x30 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
28.58
mm |
Clip Thickness (T)
1.07
mm +/- 0.06 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
30.00
mm +/- 0.13 (Equiv. 1.181 in.) |
Approx. Loose Circlip OD (Dr)
30.38
mm + 0.79 / - 0.00 |
Radial Wall (S) Approx.
2.36
+/- 0.08 |
Groove Width (W)
1.17
mm |
|
|
Material: Carbon Spring Steel
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0286-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 28.58x1.07x30 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
28.58
mm |
Clip Thickness (T)
1.07
mm +/- 0.06 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
30.00
mm +/- 0.13 (Equiv. 1.181 in.) |
Approx. Loose Circlip OD (Dr)
30.38
mm + 0.79 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 2.36 +/- 0.08
Groove Width (W): 1.17 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0286-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 28.58x1.27x30 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
28.58
mm |
Clip Thickness (T)
1.27
mm +/- 0.05 (Equiv. 0.05 in.) |
Groove Dia. (Dg)
30.00
mm +/- 0.13 (Equiv. 1.181 in.) |
Approx. Loose Circlip OD (Dr)
30.53
mm + 0.79 / - 0.00 |
Radial Wall (S) Approx.
2.36
+/- 0.08 |
Groove Width (W)
1.42
mm |
|
|
Material: Carbon Spring Steel
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0286-LS-HO (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 28.58x1.27x30 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
28.58
mm |
Clip Thickness (T)
1.27
mm +/- 0.05 (Equiv. 0.05 in.) |
Groove Dia. (Dg)
30.00
mm +/- 0.13 (Equiv. 1.181 in.) |
Approx. Loose Circlip OD (Dr)
30.53
mm + 0.79 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 2.36 +/- 0.08
Groove Width (W): 1.42 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0286-LS-HO (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 29x1.2x29.8 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
29.00
mm |
Clip Thickness (T)
1.20
mm + 0 / - 0.10 (Equiv. 0.047 in.) |
Groove Dia. (Dg)
29.80
mm + 0.13 / - 0.00 (Equiv. 1.173 in.) |
Approx. Loose Circlip OD (Dr)
30.20
mm |
Radial Wall (S) Approx.
1.75
+ 0 / - 0.10 |
Groove Width (W)
1.30
mm |
|
|
Material: Carbon Spring Steel
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0290-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 29x1.2x29.8 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
29.00
mm |
Clip Thickness (T)
1.20
mm + 0 / - 0.10 (Equiv. 0.047 in.) |
Groove Dia. (Dg)
29.80
mm + 0.13 / - 0.00 (Equiv. 1.173 in.) |
Approx. Loose Circlip OD (Dr)
30.20
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 1.75 + 0 / - 0.10
Groove Width (W): 1.30 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0290-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 30x1.2x31.65 mm Circlips - Carbon Spring Steel Circlip | ||||||
|
Housing Bore (B)
30.00
mm |
Clip Thickness (T)
1.20
mm + 0.00 / - 0.06 (Equiv. 0.047 in.) |
Groove Dia. (Dg)
31.65
mm + 0.00 / - 0.25 (Equiv. 1.246 in.) |
Approx. Loose Circlip OD (Dr)
31.85
mm |
Radial Wall (S) Approx.
3.20
|
Groove Width (W)
1.30
mm |
|
|
Material: Carbon Spring Steel
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: DJK-030 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 30x1.2x31.65 mm Circlips - Carbon Spring Steel Circlip | ||||||
|
Housing Bore (B)
30.00
mm |
Clip Thickness (T)
1.20
mm + 0.00 / - 0.06 (Equiv. 0.047 in.) |
Groove Dia. (Dg)
31.65
mm + 0.00 / - 0.25 (Equiv. 1.246 in.) |
Approx. Loose Circlip OD (Dr)
31.85
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 3.20
Groove Width (W): 1.30 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: DJK-030 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 30x2x32.3 mm Round Wire - Carbon Spring Steel Wire Clip | ||||||
|
Housing Bore (B)
30.00
mm |
Clip Thickness (T)
2.0
mm + 0.10 / - 0.05 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
32.30
mm Min. (Equiv. 1.272 in.) |
Approx. Loose Circlip OD (Dr)
33.10
mm |
Groove Width (W)
2.10
mm + 0.10 / - 0.00 |
|
|
|
Material: Carbon Spring Steel
Clearance in Bore (C): 29.1 mm
Category: Retaining Rings - Internal - Round Wire |
||||||
|
Part Number: WRI-0300A-RD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 30x2x32.3 mm Round Wire - Carbon Spring Steel Wire Clip | ||||||
|
Housing Bore (B)
30.00
mm |
Clip Thickness (T)
2.0
mm + 0.10 / - 0.05 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
32.30
mm Min. (Equiv. 1.272 in.) |
Approx. Loose Circlip OD (Dr)
33.10
mm |
|
||
|
Material: Carbon Spring Steel
Groove Width (W): 2.10 mm + 0.10 / - 0.00
Clearance in Bore (C): 29.1 mm
Category: Retaining Rings - Internal - Round Wire |
||||||
|
Part Number: WRI-0300A-RD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 25.4x0.94x26.5 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring | ||||||
|
Housing Bore (B)
25.40
mm |
Clip Thickness (T)
0.94
mm +/- 0.05 (Equiv. 0.037 in.) |
Groove Dia. (Dg)
26.50
mm |
Approx. Loose Circlip OD (Dr)
26.52
mm + 0.33 / - 0.00 |
Radial Wall (S) Approx.
1.91
+/- 0.11 |
Groove Width (W)
1.11
mm +/- 0.07 |
|
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Category: Retaining Rings - Internal - Spiral Rings Additional stock available from USA subject to Prior Sale = 70 |
||||||
|
Part Number: RR-100-S02 (Each)
80 Available Now | Further orders can be expected around Wed, Aug 26, 2026 Regular price
$5.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 25.4x0.94x26.5 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring | ||||||
|
Housing Bore (B)
25.40
mm |
Clip Thickness (T)
0.94
mm +/- 0.05 (Equiv. 0.037 in.) |
Groove Dia. (Dg)
26.50
mm |
Approx. Loose Circlip OD (Dr)
26.52
mm + 0.33 / - 0.00 |
|
||
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Radial Wall (S) Approx.: 1.91 +/- 0.11
Groove Width (W): 1.11 mm +/- 0.07
Category: Retaining Rings - Internal - Spiral Rings Additional stock available from USA subject to Prior Sale = 70 |
||||||
|
Part Number: RR-100-S02 (Each)
80 Available Now | Further orders can be expected around Wed, Aug 26, 2026 Regular price
$5.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 25.4x0.94x26.5 mm Spiral Rings - Carbon Spring Steel Spiral Ring | ||||||
|
Housing Bore (B)
25.40
mm |
Clip Thickness (T)
0.94
mm +/- 0.05 (Equiv. 0.037 in.) |
Groove Dia. (Dg)
26.50
mm |
Approx. Loose Circlip OD (Dr)
26.52
mm + 0.33 / - 0.00 |
Radial Wall (S) Approx.
1.91
+/- 0.11 |
Groove Width (W)
1.11
mm +/- 0.07 |
|
|
Material: Carbon Spring Steel
Category: Retaining Rings - Internal - Spiral Rings Additional stock available from USA subject to Prior Sale = 25907 |
||||||
|
Part Number: RR-100 (Pack of 2)
96 units (192 pcs) Available Now | Further orders can be expected around Wed, Aug 26, 2026 Regular price
$5.50 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per pack of 2
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 25.4x0.94x26.5 mm Spiral Rings - Carbon Spring Steel Spiral Ring | ||||||
|
Housing Bore (B)
25.40
mm |
Clip Thickness (T)
0.94
mm +/- 0.05 (Equiv. 0.037 in.) |
Groove Dia. (Dg)
26.50
mm |
Approx. Loose Circlip OD (Dr)
26.52
mm + 0.33 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 1.91 +/- 0.11
Groove Width (W): 1.11 mm +/- 0.07
Category: Retaining Rings - Internal - Spiral Rings Additional stock available from USA subject to Prior Sale = 25907 |
||||||
|
Part Number: RR-100 (Pack of 2)
96 units (192 pcs) Available Now | Further orders can be expected around Wed, Aug 26, 2026 Regular price
$5.50 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per pack of 2
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 25.4x1.07x27.08 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
25.40
mm |
Clip Thickness (T)
1.07
mm + 0.00 / - 0.06 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
27.08
mm +/- 0.075 (Equiv. 1.066 in.) |
Approx. Loose Circlip OD (Dr)
28.22
mm + 0.38 / - 0.25 |
Groove Width (W)
1.17
mm + 0.08 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 17.27 mm
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 4633 |
||||||
|
Part Number: CCI-02540-S15 (Each)
2 Available Now | Further orders can be expected around Wed, Aug 26, 2026 Regular price
$3.14 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 25.4x1.07x27.08 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
25.40
mm |
Clip Thickness (T)
1.07
mm + 0.00 / - 0.06 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
27.08
mm +/- 0.075 (Equiv. 1.066 in.) |
Approx. Loose Circlip OD (Dr)
28.22
mm + 0.38 / - 0.25 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 1.17 mm + 0.08 / - 0.00
Clearance in Bore (C): 17.27 mm
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 4633 |
||||||
|
Part Number: CCI-02540-S15 (Each)
2 Available Now | Further orders can be expected around Wed, Aug 26, 2026 Regular price
$3.14 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 25.4x1.07x27.08 mm Spiral Rings - Carbon Spring Steel Spiral Ring | ||||||
|
Housing Bore (B)
25.40
mm |
Clip Thickness (T)
1.07
mm +/- 0.05 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
27.08
mm |
Approx. Loose Circlip OD (Dr)
27.10
mm + 0.33 / - 0.00 |
Radial Wall (S) Approx.
2.16
+/- 0.10 |
Groove Width (W)
1.21
mm +/- 0.07 |
|
|
Material: Carbon Spring Steel
Category: Retaining Rings - Internal - Spiral Rings Additional stock available from USA subject to Prior Sale = 16859 |
||||||
|
Part Number: RRN-100 (Pack of 5)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Aug 26, 2026 Regular price
$7.86 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per pack of 5
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 25.4x1.07x27.08 mm Spiral Rings - Carbon Spring Steel Spiral Ring | ||||||
|
Housing Bore (B)
25.40
mm |
Clip Thickness (T)
1.07
mm +/- 0.05 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
27.08
mm |
Approx. Loose Circlip OD (Dr)
27.10
mm + 0.33 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 2.16 +/- 0.10
Groove Width (W): 1.21 mm +/- 0.07
Category: Retaining Rings - Internal - Spiral Rings Additional stock available from USA subject to Prior Sale = 16859 |
||||||
|
Part Number: RRN-100 (Pack of 5)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Aug 26, 2026 Regular price
$7.86 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per pack of 5
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 25.4x1.07x27.08 mm Circlips - Carbon Steel Circlip | ||||||
|
Housing Bore (B)
25.40
mm |
Clip Thickness (T)
1.07
mm + 0.00 / - 0.06 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
27.08
mm +/- 0.075 (Equiv. 1.066 in.) |
Approx. Loose Circlip OD (Dr)
28.22
mm + 0.38 / - 0.25 |
Groove Width (W)
1.17
mm + 0.08 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 17.27 mm
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 17563 |
||||||
|
Part Number: CCI-02540-C (Pack of 10)
10 units (100 pcs) Available Now | Further orders can be expected around Wed, Aug 26, 2026 Regular price
$4.68 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per pack of 10
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 25.4x1.07x27.08 mm Circlips - Carbon Steel Circlip | ||||||
|
Housing Bore (B)
25.40
mm |
Clip Thickness (T)
1.07
mm + 0.00 / - 0.06 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
27.08
mm +/- 0.075 (Equiv. 1.066 in.) |
Approx. Loose Circlip OD (Dr)
28.22
mm + 0.38 / - 0.25 |
|
||
|
Material: Carbon Steel
Groove Width (W): 1.17 mm + 0.08 / - 0.00
Clearance in Bore (C): 17.27 mm
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 17563 |
||||||
|
Part Number: CCI-02540-C (Pack of 10)
10 units (100 pcs) Available Now | Further orders can be expected around Wed, Aug 26, 2026 Regular price
$4.68 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per pack of 10
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 25.4x1.07x27.08 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring | ||||||
|
Housing Bore (B)
25.40
mm |
Clip Thickness (T)
1.07
mm +/- 0.05 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
27.08
mm |
Approx. Loose Circlip OD (Dr)
27.10
mm + 0.33 / - 0.00 |
Radial Wall (S) Approx.
2.16
+/- 0.10 |
Groove Width (W)
1.21
mm +/- 0.07 |
|
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Category: Retaining Rings - Internal - Spiral Rings Additional stock available from USA subject to Prior Sale = 4230 |
||||||
|
Part Number: RRN-100-S02 (Pack of 5)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Aug 26, 2026 Regular price
$18.59 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per pack of 5
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 25.4x1.07x27.08 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring | ||||||
|
Housing Bore (B)
25.40
mm |
Clip Thickness (T)
1.07
mm +/- 0.05 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
27.08
mm |
Approx. Loose Circlip OD (Dr)
27.10
mm + 0.33 / - 0.00 |
|
||
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Radial Wall (S) Approx.: 2.16 +/- 0.10
Groove Width (W): 1.21 mm +/- 0.07
Category: Retaining Rings - Internal - Spiral Rings Additional stock available from USA subject to Prior Sale = 4230 |
||||||
|
Part Number: RRN-100-S02 (Pack of 5)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Aug 26, 2026 Regular price
$18.59 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per pack of 5
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 25.4x1.07x27.08 mm Circlips - Carbon Steel Zinc Plated Circlip | ||||||
|
Housing Bore (B)
25.40
mm |
Clip Thickness (T)
1.07
mm + 0.00 / - 0.06 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
27.08
mm +/- 0.075 (Equiv. 1.066 in.) |
Approx. Loose Circlip OD (Dr)
28.22
mm + 0.38 / - 0.25 |
Groove Width (W)
1.17
mm + 0.08 / - 0.00 |
|
|
|
Material: Carbon Steel Zinc Plated
Clearance in Bore (C): 17.27 mm
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 817 |
||||||
|
Part Number: CCI-02540-CZY (Pack of 50)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Aug 26, 2026 Regular price
$32.32 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per pack of 50
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 25.4x1.07x27.08 mm Circlips - Carbon Steel Zinc Plated Circlip | ||||||
|
Housing Bore (B)
25.40
mm |
Clip Thickness (T)
1.07
mm + 0.00 / - 0.06 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
27.08
mm +/- 0.075 (Equiv. 1.066 in.) |
Approx. Loose Circlip OD (Dr)
28.22
mm + 0.38 / - 0.25 |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 1.17 mm + 0.08 / - 0.00
Clearance in Bore (C): 17.27 mm
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 817 |
||||||
|
Part Number: CCI-02540-CZY (Pack of 50)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Aug 26, 2026 Regular price
$32.32 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per pack of 50
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 25.4x1.07x27.08 mm Circlips - Carbon Steel Circlip | ||||||
|
Housing Bore (B)
25.40
mm |
Clip Thickness (T)
1.07
mm +/- 0.052 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
27.08
mm +/- 0.076 (Equiv. 1.066 in.) |
Approx. Loose Circlip OD (Dr)
28.22
mm |
Groove Width (W)
1.17
mm |
|
|
|
Material: Carbon Steel
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 1340 |
||||||
|
Part Number: CCI-02540-C-V (Pack of 50)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Aug 26, 2026 Regular price
$39.59 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per pack of 50
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 25.4x1.07x27.08 mm Circlips - Carbon Steel Circlip | ||||||
|
Housing Bore (B)
25.40
mm |
Clip Thickness (T)
1.07
mm +/- 0.052 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
27.08
mm +/- 0.076 (Equiv. 1.066 in.) |
Approx. Loose Circlip OD (Dr)
28.22
mm |
|
||
|
Material: Carbon Steel
Groove Width (W): 1.17 mm
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 1340 |
||||||
|
Part Number: CCI-02540-C-V (Pack of 50)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Aug 26, 2026 Regular price
$39.59 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per pack of 50
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 25.98x1.02x27.97 mm Circlips - Carbon Steel Circlip | ||||||
|
Housing Bore (B)
25.98
mm |
Clip Thickness (T)
1.02
mm +/- 0.05 (Equiv. 0.04 in.) |
Groove Dia. (Dg)
27.97
mm + 0.08 / - 0.00 (Equiv. 1.101 in.) |
Approx. Loose Circlip OD (Dr)
28.60
mm + 0.63 / - 0.00 |
Groove Width (W)
0.91
mm + 0.03 / - 0.00 |
|
|
|
Material: Carbon Steel
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 4721 |
||||||
|
Part Number: CIB-02598-C (Pack of 5)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Aug 26, 2026 Regular price
$8.95 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per pack of 5
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 25.98x1.02x27.97 mm Circlips - Carbon Steel Circlip | ||||||
|
Housing Bore (B)
25.98
mm |
Clip Thickness (T)
1.02
mm +/- 0.05 (Equiv. 0.04 in.) |
Groove Dia. (Dg)
27.97
mm + 0.08 / - 0.00 (Equiv. 1.101 in.) |
Approx. Loose Circlip OD (Dr)
28.60
mm + 0.63 / - 0.00 |
|
||
|
Material: Carbon Steel
Groove Width (W): 0.91 mm + 0.03 / - 0.00
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 4721 |
||||||
|
Part Number: CIB-02598-C (Pack of 5)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Aug 26, 2026 Regular price
$8.95 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per pack of 5
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
