Retaining Rings - Internal

Retaining Rings -> Internal
Housing Bore (B) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip OD (Dr) Radial Wall (S) Approx. Groove Width (W) Indicative

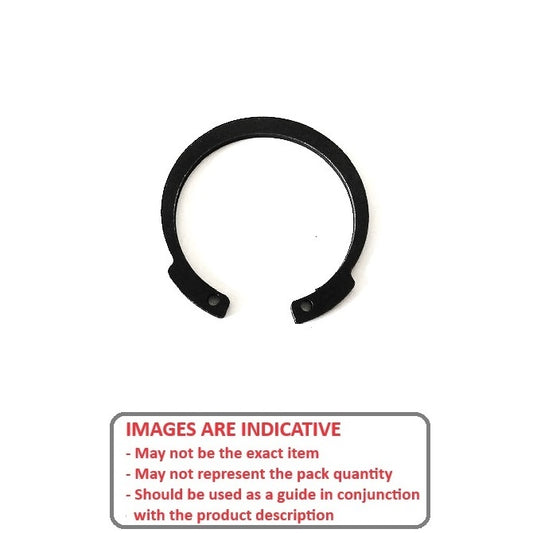

Internal Retaining Rings - 22x1x23 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
22.00
mm
Clip Thickness (T)
1.00
mm
+ 0.00 / - 0.06
(Equiv. 0.039 in.)
Groove Dia. (Dg)
23.00
mm
+/- 0.075
(Equiv. 0.906 in.)
Approx. Loose Circlip OD (Dr)
23.50
mm
+ 0.38 / - 0.25
Groove Width (W)
1.17
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 22x1x23 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Clearance in Bore (C): 13.20 mm    Clearance in Groove (C1): 14.60 mm
Category: Retaining Rings - Internal - Circlips
Additional stock available from USA subject to Prior Sale = 994
Part Number: CCI-02200N-CZY (PK-50)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jul 04, 2026
$23.59 AUD
$55.20 AUD $23.59 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip OD (Dr) Indicative
Internal Retaining Rings - 22x1x23 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
22.00
mm
Clip Thickness (T)
1.00
mm
+ 0.00 / - 0.06
(Equiv. 0.039 in.)
Groove Dia. (Dg)
23.00
mm
+/- 0.075
(Equiv. 0.906 in.)
Approx. Loose Circlip OD (Dr)
23.50
mm
+ 0.38 / - 0.25
Internal Retaining Rings - 22x1x23 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Groove Width (W): 1.17 mm + 0.08 / - 0.00   Clearance in Bore (C): 13.20 mm    Clearance in Groove (C1): 14.60 mm
Category: Retaining Rings - Internal - Circlips
Additional stock available from USA subject to Prior Sale = 994
Part Number: CCI-02200N-CZY (PK-50)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jul 04, 2026
$23.59 AUD
$55.20 AUD $23.59 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.

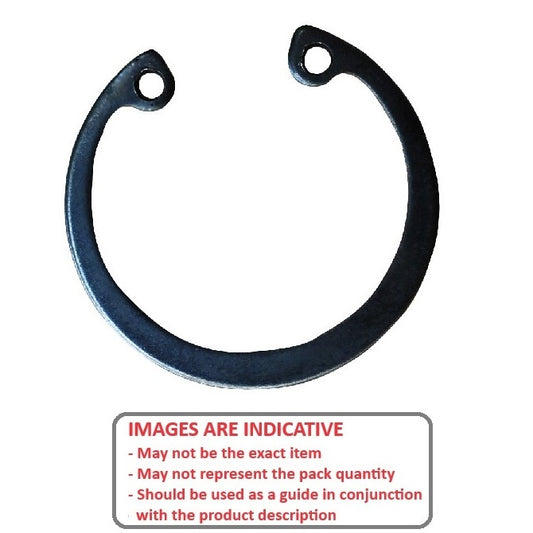

Internal Retaining Rings - 22x1x23 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
22.00
mm
Clip Thickness (T)
1.00
mm
+ 0.00 / - 0.06
(Equiv. 0.039 in.)
Groove Dia. (Dg)
23.00
mm
+ 0.15 / - 0.00
(Equiv. 0.906 in.)
Approx. Loose Circlip OD (Dr)
23.50
mm
+ 0.42 / - 0.13
Radial Wall (S) Approx.
2.3 - 2.4
mm
Groove Width (W)
1.10
mm

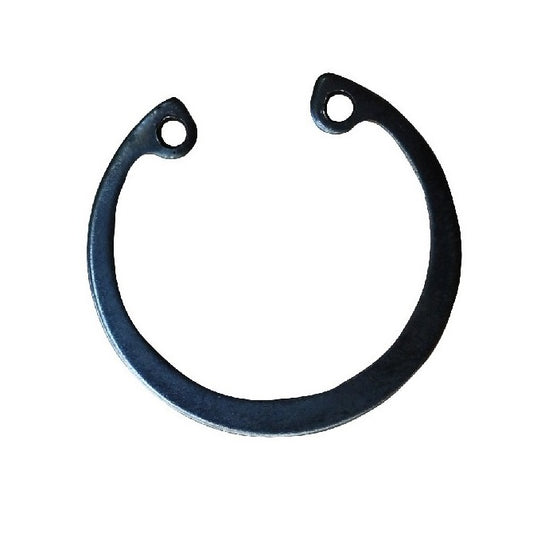

Internal Retaining Rings - 22x1x23 mm - Carbon Steel
Material: Carbon Steel
Category: Retaining Rings - Internal - Circlips
Additional stock available from USA subject to Prior Sale = 657
Part Number: CCI-02200-C-V (PK-5)
37 units (185 pcs) Available Now | Further orders can be expected around Sat, Jul 04, 2026
$1.68 AUD
$4.74 AUD $1.68 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 37 available can be backordered.
Internal Retaining Rings - 22x1x23 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
22.00
mm
Clip Thickness (T)
1.00
mm
+ 0.00 / - 0.06
(Equiv. 0.039 in.)
Groove Dia. (Dg)
23.00
mm
+ 0.15 / - 0.00
(Equiv. 0.906 in.)
Approx. Loose Circlip OD (Dr)
23.50
mm
+ 0.42 / - 0.13
Internal Retaining Rings - 22x1x23 mm - Carbon Steel
Material: Carbon Steel    Radial Wall (S) Approx.: 2.3 - 2.4 mm    Groove Width (W): 1.10 mm
Category: Retaining Rings - Internal - Circlips
Additional stock available from USA subject to Prior Sale = 657
Part Number: CCI-02200-C-V (PK-5)
37 units (185 pcs) Available Now | Further orders can be expected around Sat, Jul 04, 2026
$1.68 AUD
$4.74 AUD $1.68 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

37 units (185 pcs) Available Now. Backorder if more than 37.
Internal Retaining Rings - 22x1x23 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Housing Bore (B)
22.00
mm
Clip Thickness (T)
1.00
mm
+ 0.00 / - 0.06
(Equiv. 0.039 in.)
Groove Dia. (Dg)
23.00
mm
+ 0.15 / - 0.00
(Equiv. 0.906 in.)
Approx. Loose Circlip OD (Dr)
23.50
mm
+ 0.42 / - 0.13
Radial Wall (S) Approx.
2.3 - 2.4
mm
Groove Width (W)
1.10
mm

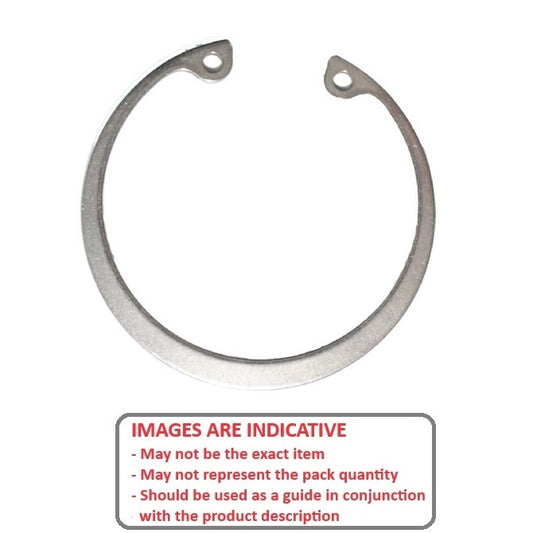

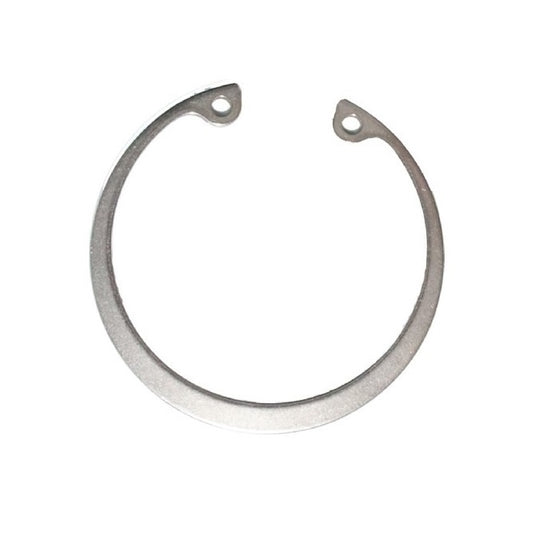

Internal Retaining Rings - 22x1x23 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo
Category: Retaining Rings - Internal - Circlips
Part Number: CCI-02200-S15-V (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 22x1x23 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Housing Bore (B)
22.00
mm
Clip Thickness (T)
1.00
mm
+ 0.00 / - 0.06
(Equiv. 0.039 in.)
Groove Dia. (Dg)
23.00
mm
+ 0.15 / - 0.00
(Equiv. 0.906 in.)
Approx. Loose Circlip OD (Dr)
23.50
mm
+ 0.42 / - 0.13
Internal Retaining Rings - 22x1x23 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Radial Wall (S) Approx.: 2.3 - 2.4 mm    Groove Width (W): 1.10 mm
Category: Retaining Rings - Internal - Circlips
Part Number: CCI-02200-S15-V (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Sat, Aug 15, 2026

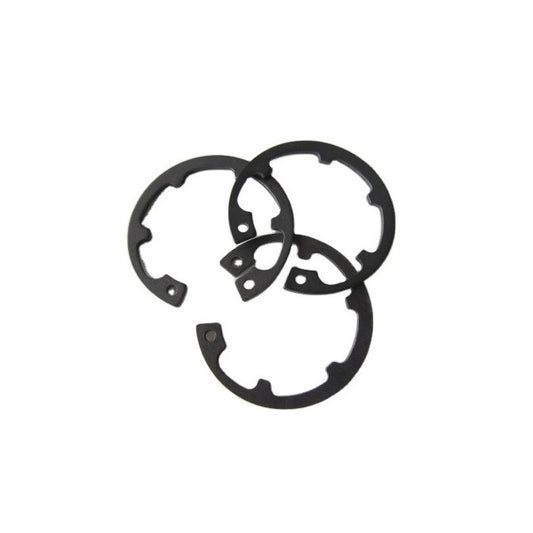

Internal Retaining Rings - 22x1x23.15 mm Circlips - Carbon Spring Steel Circlip
Housing Bore (B)
22.00
mm
Clip Thickness (T)
1.00
mm
+ 0.00 / - 0.06
(Equiv. 0.039 in.)
Groove Dia. (Dg)
23.15
mm
+ 0.00 / - 0.15
(Equiv. 0.911 in.)
Approx. Loose Circlip OD (Dr)
23.37 - 23.92
mm
Radial Wall (S) Approx.
2.60
mm
Groove Width (W)
1.10
mm
Internal Retaining Rings - 22x1x23.15 mm - Spring Steel
Material: Carbon Spring Steel
Category: Retaining Rings - Internal - Circlips
Part Number: DJK-022 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 22x1x23.15 mm Circlips - Carbon Spring Steel Circlip
Housing Bore (B)
22.00
mm
Clip Thickness (T)
1.00
mm
+ 0.00 / - 0.06
(Equiv. 0.039 in.)
Groove Dia. (Dg)
23.15
mm
+ 0.00 / - 0.15
(Equiv. 0.911 in.)
Approx. Loose Circlip OD (Dr)
23.37 - 23.92
mm
Internal Retaining Rings - 22x1x23.15 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 2.60 mm    Groove Width (W): 1.10 mm
Category: Retaining Rings - Internal - Circlips
Part Number: DJK-022 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Thu, Mar 01, 2029
Internal Retaining Rings - 22x1.5x23 mm Circlips - Carbon Spring Steel Self Finish Circlip
Housing Bore (B)
22.00
mm
Clip Thickness (T)
1.50
mm
+ 0.00 / - 0.06
(Equiv. 0.059 in.)
Groove Dia. (Dg)
23.00
mm
+ 0.15 / - 0.00
(Equiv. 0.906 in.)
Approx. Loose Circlip OD (Dr)
24.41
mm
+ 0.42 / - 0.13
Groove Width (W)
1.60
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 22x1.5x23 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - Internal - Circlips
Part Number: CCI-02200H-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 22x1.5x23 mm Circlips - Carbon Spring Steel Self Finish Circlip
Housing Bore (B)
22.00
mm
Clip Thickness (T)
1.50
mm
+ 0.00 / - 0.06
(Equiv. 0.059 in.)
Groove Dia. (Dg)
23.00
mm
+ 0.15 / - 0.00
(Equiv. 0.906 in.)
Approx. Loose Circlip OD (Dr)
24.41
mm
+ 0.42 / - 0.13
Internal Retaining Rings - 22x1.5x23 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish    Groove Width (W): 1.60 mm + 0.08 / - 0.00
Category: Retaining Rings - Internal - Circlips
Part Number: CCI-02200H-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Thu, Mar 01, 2029

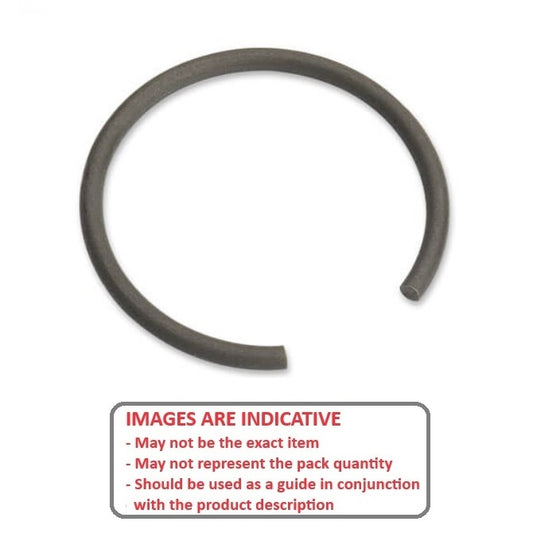

Internal Retaining Rings - 22x1.6x23.9 mm Round Wire - Carbon Spring Steel Wire Clip
Housing Bore (B)
22.00
mm
Clip Thickness (T)
1.6
mm
+ 0.08 / - 0.04
(Equiv. 0.063 in.)
Groove Dia. (Dg)
23.90
mm
Min.
(Equiv. 0.941 in.)
Approx. Loose Circlip OD (Dr)
24.70
mm
Groove Width (W)
1.70
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 22x1.6x23.9 mm - Spring Steel
Material: Carbon Spring Steel    Clearance in Bore (C): 21.5 mm
Category: Retaining Rings - Internal - Round Wire
Additional stock available from USA subject to Prior Sale = 146
Part Number: WRI-0220A-RD (PK-3)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jul 04, 2026
$10.14 AUD
$18.54 AUD $10.14 AUD
Priced, Stocked and Sold Per 3 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 22x1.6x23.9 mm Round Wire - Carbon Spring Steel Wire Clip
Housing Bore (B)
22.00
mm
Clip Thickness (T)
1.6
mm
+ 0.08 / - 0.04
(Equiv. 0.063 in.)
Groove Dia. (Dg)
23.90
mm
Min.
(Equiv. 0.941 in.)
Approx. Loose Circlip OD (Dr)
24.70
mm
Internal Retaining Rings - 22x1.6x23.9 mm - Spring Steel
Material: Carbon Spring Steel    Groove Width (W): 1.70 mm + 0.08 / - 0.00   Clearance in Bore (C): 21.5 mm
Category: Retaining Rings - Internal - Round Wire
Additional stock available from USA subject to Prior Sale = 146
Part Number: WRI-0220A-RD (PK-3)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jul 04, 2026
$10.14 AUD
$18.54 AUD $10.14 AUD
Priced, Stocked and Sold Per 3 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 22x2x24 mm Round Wire - Carbon Spring Steel Wire Clip
Housing Bore (B)
22.00
mm
Clip Thickness (T)
2.0
mm
B DIN 2076
(Equiv. 0.079 in.)
Groove Dia. (Dg)
24.00
mm
+ 0.5 / - 0.0
(Equiv. 0.945 in.)
Approx. Loose Circlip OD (Dr)
24.30
mm
Groove Width (W)
2.20
mm
Internal Retaining Rings - 22x2x24 mm - Spring Steel
Material: Carbon Spring Steel    Clearance in Bore (C): 20.3 mm
Category: Retaining Rings - Internal - Round Wire
Part Number: WRI-0220-RD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 22x2x24 mm Round Wire - Carbon Spring Steel Wire Clip
Housing Bore (B)
22.00
mm
Clip Thickness (T)
2.0
mm
B DIN 2076
(Equiv. 0.079 in.)
Groove Dia. (Dg)
24.00
mm
+ 0.5 / - 0.0
(Equiv. 0.945 in.)
Approx. Loose Circlip OD (Dr)
24.30
mm
Internal Retaining Rings - 22x2x24 mm - Spring Steel
Material: Carbon Spring Steel    Groove Width (W): 2.20 mm    Clearance in Bore (C): 20.3 mm
Category: Retaining Rings - Internal - Round Wire
Part Number: WRI-0220-RD (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Thu, Mar 01, 2029
Internal Retaining Rings - 22.23x1.07x23.42 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Housing Bore (B)
22.23
mm
Clip Thickness (T)
1.07
mm
+/- 0.05
(Equiv. 0.042 in.)
Groove Dia. (Dg)
23.42
mm
Approx. Loose Circlip OD (Dr)
23.61
mm
+ 0.33 / - 0.00
Radial Wall (S) Approx.
1.65
mm
+/- 0.10
Groove Width (W)
1.21
mm
+/- 0.08
Internal Retaining Rings - 22.23x1.07x23.42 mm - Spring Steel
Material: Carbon Spring Steel    Clearance in Groove (C1): 20.31 mm +/- 0.04
Category: Retaining Rings - Internal - Spiral Rings
Deleted Item. Available while stocks last.
Part Number: RRT-087 (PK-6)
15 units (90 pcs) Available Now | Further orders can be expected around Mon, Jul 27, 2026
$5.00 AUD
$5.00 AUD
Priced, Stocked and Sold Per 6 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 15 available can be backordered.
Internal Retaining Rings - 22.23x1.07x23.42 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Housing Bore (B)
22.23
mm
Clip Thickness (T)
1.07
mm
+/- 0.05
(Equiv. 0.042 in.)
Groove Dia. (Dg)
23.42
mm
Approx. Loose Circlip OD (Dr)
23.61
mm
+ 0.33 / - 0.00
Internal Retaining Rings - 22.23x1.07x23.42 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.65 mm +/- 0.10    Groove Width (W): 1.21 mm +/- 0.08   Clearance in Groove (C1): 20.31 mm +/- 0.04
Category: Retaining Rings - Internal - Spiral Rings
Deleted Item. Available while stocks last.
Part Number: RRT-087 (PK-6)
15 units (90 pcs) Available Now | Further orders can be expected around Mon, Jul 27, 2026
$5.00 AUD
$5.00 AUD
Priced, Stocked and Sold Per 6 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

15 units (90 pcs) Available Now. Backorder if more than 15.
Internal Retaining Rings - 22.23x1.07x23.65 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
22.23
mm
Clip Thickness (T)
1.07
mm
+/- 0.052
(Equiv. 0.042 in.)
Groove Dia. (Dg)
23.65
mm
+/- 0.076
(Equiv. 0.931 in.)
Approx. Loose Circlip OD (Dr)
23.98
mm
Groove Width (W)
1.17
mm
Internal Retaining Rings - 22.23x1.07x23.65 mm - Carbon Steel
Material: Carbon Steel
Category: Retaining Rings - Internal - Circlips
Part Number: CCI-02223-C-V (PK-50)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Jul 15, 2026
$45.50 AUD
$106.76 AUD $45.50 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 22.23x1.07x23.65 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
22.23
mm
Clip Thickness (T)
1.07
mm
+/- 0.052
(Equiv. 0.042 in.)
Groove Dia. (Dg)
23.65
mm
+/- 0.076
(Equiv. 0.931 in.)
Approx. Loose Circlip OD (Dr)
23.98
mm
Internal Retaining Rings - 22.23x1.07x23.65 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 1.17 mm
Category: Retaining Rings - Internal - Circlips
Part Number: CCI-02223-C-V (PK-50)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Jul 15, 2026
$45.50 AUD
$106.76 AUD $45.50 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 22.23x1.07x23.65 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Housing Bore (B)
22.23
mm
Clip Thickness (T)
1.07
mm
+ 0.00 / - 0.06
(Equiv. 0.042 in.)
Groove Dia. (Dg)
23.65
mm
+/- 0.075
(Equiv. 0.931 in.)
Approx. Loose Circlip OD (Dr)
24.66
mm
+ 0.38 / - 0.25
Groove Width (W)
1.17
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 22.23x1.07x23.65 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Clearance in Bore (C): 13.97 mm    Clearance in Groove (C1): 15.24 mm
Category: Retaining Rings - Internal - Circlips
Additional stock available from USA subject to Prior Sale = 558
Part Number: CCI-02223-S15 (Each)
18 Available Now | Further orders can be expected around Sat, Jul 04, 2026
$2.32 AUD
$6.17 AUD $2.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 18 available can be backordered.
Internal Retaining Rings - 22.23x1.07x23.65 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Housing Bore (B)
22.23
mm
Clip Thickness (T)
1.07
mm
+ 0.00 / - 0.06
(Equiv. 0.042 in.)
Groove Dia. (Dg)
23.65
mm
+/- 0.075
(Equiv. 0.931 in.)
Approx. Loose Circlip OD (Dr)
24.66
mm
+ 0.38 / - 0.25
Internal Retaining Rings - 22.23x1.07x23.65 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Groove Width (W): 1.17 mm + 0.08 / - 0.00   Clearance in Bore (C): 13.97 mm    Clearance in Groove (C1): 15.24 mm
Category: Retaining Rings - Internal - Circlips
Additional stock available from USA subject to Prior Sale = 558
Part Number: CCI-02223-S15 (Each)
18 Available Now | Further orders can be expected around Sat, Jul 04, 2026
$2.32 AUD
$6.17 AUD $2.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

18 Available Now. Backorder if more than 18.
Internal Retaining Rings - 22.23x1.07x23.65 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
22.23
mm
Clip Thickness (T)
1.07
mm
+ 0.00 / - 0.06
(Equiv. 0.042 in.)
Groove Dia. (Dg)
23.65
mm
+/- 0.075
(Equiv. 0.931 in.)
Approx. Loose Circlip OD (Dr)
24.66
mm
+ 0.38 / - 0.25
Groove Width (W)
1.17
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 22.23x1.07x23.65 mm - Carbon Steel
Material: Carbon Steel    Clearance in Bore (C): 13.97 mm    Clearance in Groove (C1): 15.24 mm
Category: Retaining Rings - Internal - Circlips
Additional stock available from USA subject to Prior Sale = 10594
Part Number: CCI-02223-C (PK-100)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jul 04, 2026
$41.41 AUD
$49.69 AUD $41.41 AUD
Priced, Stocked and Sold Per 100 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 22.23x1.07x23.65 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
22.23
mm
Clip Thickness (T)
1.07
mm
+ 0.00 / - 0.06
(Equiv. 0.042 in.)
Groove Dia. (Dg)
23.65
mm
+/- 0.075
(Equiv. 0.931 in.)
Approx. Loose Circlip OD (Dr)
24.66
mm
+ 0.38 / - 0.25
Internal Retaining Rings - 22.23x1.07x23.65 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 1.17 mm + 0.08 / - 0.00   Clearance in Bore (C): 13.97 mm    Clearance in Groove (C1): 15.24 mm
Category: Retaining Rings - Internal - Circlips
Additional stock available from USA subject to Prior Sale = 10594
Part Number: CCI-02223-C (PK-100)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jul 04, 2026
$41.41 AUD
$49.69 AUD $41.41 AUD
Priced, Stocked and Sold Per 100 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 22.23x1.07x23.65 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
22.23
mm
Clip Thickness (T)
1.07
mm
+ 0.00 / - 0.06
(Equiv. 0.042 in.)
Groove Dia. (Dg)
23.65
mm
+/- 0.075
(Equiv. 0.931 in.)
Approx. Loose Circlip OD (Dr)
24.66
mm
+ 0.38 / - 0.25
Groove Width (W)
1.17
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 22.23x1.07x23.65 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Clearance in Bore (C): 13.97 mm    Clearance in Groove (C1): 15.24 mm
Category: Retaining Rings - Internal - Circlips
Additional stock available from USA subject to Prior Sale = 28
Part Number: CCI-02223-CZY (PK-50)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jul 04, 2026
$22.50 AUD
$52.60 AUD $22.50 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 22.23x1.07x23.65 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
22.23
mm
Clip Thickness (T)
1.07
mm
+ 0.00 / - 0.06
(Equiv. 0.042 in.)
Groove Dia. (Dg)
23.65
mm
+/- 0.075
(Equiv. 0.931 in.)
Approx. Loose Circlip OD (Dr)
24.66
mm
+ 0.38 / - 0.25
Internal Retaining Rings - 22.23x1.07x23.65 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Groove Width (W): 1.17 mm + 0.08 / - 0.00   Clearance in Bore (C): 13.97 mm    Clearance in Groove (C1): 15.24 mm
Category: Retaining Rings - Internal - Circlips
Additional stock available from USA subject to Prior Sale = 28
Part Number: CCI-02223-CZY (PK-50)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jul 04, 2026
$22.50 AUD
$52.60 AUD $22.50 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 22.23x0.79x23.17 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Housing Bore (B)
22.23
mm
Clip Thickness (T)
0.79
mm
+/- 0.05
(Equiv. 0.031 in.)
Groove Dia. (Dg)
23.17
mm
Approx. Loose Circlip OD (Dr)
23.21
mm
+ 0.33 / - 0.00
Radial Wall (S) Approx.
1.65
mm
+/- 0.10
Groove Width (W)
0.95
mm
+/- 0.07
Internal Retaining Rings - 22.23x0.79x23.17 mm - Spring Steel
Material: Carbon Spring Steel    Clearance in Groove (C1): 19.91 mm +/- 0.04
Category: Retaining Rings - Internal - Spiral Rings
Additional stock available from USA subject to Prior Sale = 2402
Part Number: RR-087 (PK-6)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jul 04, 2026
$12.32 AUD
$14.78 AUD $12.32 AUD
Priced, Stocked and Sold Per 6 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 22.23x0.79x23.17 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Housing Bore (B)
22.23
mm
Clip Thickness (T)
0.79
mm
+/- 0.05
(Equiv. 0.031 in.)
Groove Dia. (Dg)
23.17
mm
Approx. Loose Circlip OD (Dr)
23.21
mm
+ 0.33 / - 0.00
Internal Retaining Rings - 22.23x0.79x23.17 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.65 mm +/- 0.10    Groove Width (W): 0.95 mm +/- 0.07   Clearance in Groove (C1): 19.91 mm +/- 0.04
Category: Retaining Rings - Internal - Spiral Rings
Additional stock available from USA subject to Prior Sale = 2402
Part Number: RR-087 (PK-6)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jul 04, 2026
$12.32 AUD
$14.78 AUD $12.32 AUD
Priced, Stocked and Sold Per 6 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 22.23x1.07x23.34 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
22.23
mm
Clip Thickness (T)
1.07
mm
+/- 0.05
(Equiv. 0.042 in.)
Groove Dia. (Dg)
23.34
mm
+/- 0.08
(Equiv. 0.919 in.)
Approx. Loose Circlip OD (Dr)
23.72
mm
+ 0.79 / - 0.00
Radial Wall (S) Approx.
1.58
mm
+/- 0.08
Groove Width (W)
1.17
mm
Internal Retaining Rings - 22.23x1.07x23.34 mm - Spring Steel
Material: Carbon Spring Steel    Clearance in Groove (C1): 20.56 mm
Category: Retaining Rings - Internal - Snap Rings
Part Number: WRI-0222-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 22.23x1.07x23.34 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
22.23
mm
Clip Thickness (T)
1.07
mm
+/- 0.05
(Equiv. 0.042 in.)
Groove Dia. (Dg)
23.34
mm
+/- 0.08
(Equiv. 0.919 in.)
Approx. Loose Circlip OD (Dr)
23.72
mm
+ 0.79 / - 0.00
Internal Retaining Rings - 22.23x1.07x23.34 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.58 mm +/- 0.08    Groove Width (W): 1.17 mm    Clearance in Groove (C1): 20.56 mm
Category: Retaining Rings - Internal - Snap Rings
Part Number: WRI-0222-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Thu, Mar 01, 2029
Internal Retaining Rings - 22.23x1.07x23.65 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Housing Bore (B)
22.23
mm
Clip Thickness (T)
1.07
mm
+/- 0.05
(Equiv. 0.042 in.)
Groove Dia. (Dg)
23.65
mm
Approx. Loose Circlip OD (Dr)
23.72
mm
+ 0.33 / - 0.00
Radial Wall (S) Approx.
2.16
mm
+/- 0.10
Groove Width (W)
1.21
mm
+/- 0.07
Internal Retaining Rings - 22.23x1.07x23.65 mm - Spring Steel
Material: Carbon Spring Steel    Clearance in Groove (C1): 19.4 mm +/- 0.04
Category: Retaining Rings - Internal - Spiral Rings
Additional stock available from USA subject to Prior Sale = 22162
Part Number: RRN-087 (PK-4)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jul 04, 2026
$11.14 AUD
$13.36 AUD $11.14 AUD
Priced, Stocked and Sold Per 4 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 22.23x1.07x23.65 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Housing Bore (B)
22.23
mm
Clip Thickness (T)
1.07
mm
+/- 0.05
(Equiv. 0.042 in.)
Groove Dia. (Dg)
23.65
mm
Approx. Loose Circlip OD (Dr)
23.72
mm
+ 0.33 / - 0.00
Internal Retaining Rings - 22.23x1.07x23.65 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 2.16 mm +/- 0.10    Groove Width (W): 1.21 mm +/- 0.07   Clearance in Groove (C1): 19.4 mm +/- 0.04
Category: Retaining Rings - Internal - Spiral Rings
Additional stock available from USA subject to Prior Sale = 22162
Part Number: RRN-087 (PK-4)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jul 04, 2026
$11.14 AUD
$13.36 AUD $11.14 AUD
Priced, Stocked and Sold Per 4 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 22.89x1.07x24 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
22.89
mm
Clip Thickness (T)
1.07
mm
+/- 0.05
(Equiv. 0.042 in.)
Groove Dia. (Dg)
24.00
mm
+/- 0.08
(Equiv. 0.945 in.)
Approx. Loose Circlip OD (Dr)
24.41
mm
+ 0.79 / - 0.00
Radial Wall (S) Approx.
1.98
mm
+/- 0.08
Groove Width (W)
1.17
mm
Internal Retaining Rings - 22.89x1.07x24 mm - Spring Steel
Material: Carbon Spring Steel    Clearance in Groove (C1): 20.45 mm
Category: Retaining Rings - Internal - Snap Rings
Part Number: WRI-0229-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 22.89x1.07x24 mm Snap Rings - Carbon Spring Steel
Housing Bore (B)
22.89
mm
Clip Thickness (T)
1.07
mm
+/- 0.05
(Equiv. 0.042 in.)
Groove Dia. (Dg)
24.00
mm
+/- 0.08
(Equiv. 0.945 in.)
Approx. Loose Circlip OD (Dr)
24.41
mm
+ 0.79 / - 0.00
Internal Retaining Rings - 22.89x1.07x24 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.98 mm +/- 0.08    Groove Width (W): 1.17 mm    Clearance in Groove (C1): 20.45 mm
Category: Retaining Rings - Internal - Snap Rings
Part Number: WRI-0229-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Thu, Mar 01, 2029
Internal Retaining Rings - 22.89x1.07x24.36 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
22.89
mm
Clip Thickness (T)
1.07
mm
+ 0.00 / - 0.06
(Equiv. 0.042 in.)
Groove Dia. (Dg)
24.36
mm
+/- 0.075
(Equiv. 0.959 in.)
Approx. Loose Circlip OD (Dr)
25.40
mm
+ 0.38 / - 0.25
Groove Width (W)
1.17
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 22.89x1.07x24.36 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Clearance in Bore (C): 14.73 mm    Clearance in Groove (C1): 16.00 mm
Category: Retaining Rings - Internal - Circlips
Additional stock available from USA subject to Prior Sale = 3689
Part Number: CCI-02289-CZY (PK-50)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jul 04, 2026
$66.95 AUD
$157.20 AUD $66.95 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 22.89x1.07x24.36 mm Circlips - Carbon Steel Zinc Plated Circlip
Housing Bore (B)
22.89
mm
Clip Thickness (T)
1.07
mm
+ 0.00 / - 0.06
(Equiv. 0.042 in.)
Groove Dia. (Dg)
24.36
mm
+/- 0.075
(Equiv. 0.959 in.)
Approx. Loose Circlip OD (Dr)
25.40
mm
+ 0.38 / - 0.25
Internal Retaining Rings - 22.89x1.07x24.36 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Groove Width (W): 1.17 mm + 0.08 / - 0.00   Clearance in Bore (C): 14.73 mm    Clearance in Groove (C1): 16.00 mm
Category: Retaining Rings - Internal - Circlips
Additional stock available from USA subject to Prior Sale = 3689
Part Number: CCI-02289-CZY (PK-50)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jul 04, 2026
$66.95 AUD
$157.20 AUD $66.95 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 22.89x1.07x24.36 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Housing Bore (B)
22.89
mm
Clip Thickness (T)
1.07
mm
+ 0.00 / - 0.06
(Equiv. 0.042 in.)
Groove Dia. (Dg)
24.36
mm
+/- 0.075
(Equiv. 0.959 in.)
Approx. Loose Circlip OD (Dr)
25.40
mm
+ 0.38 / - 0.25
Groove Width (W)
1.17
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 22.89x1.07x24.36 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Clearance in Bore (C): 14.73 mm    Clearance in Groove (C1): 16.00 mm
Category: Retaining Rings - Internal - Circlips
Part Number: CCI-02289-S15 (PK-500)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Sep 02, 2026
$1,912.95 AUD
$4,500.00 AUD $1,912.95 AUD
Priced, Stocked and Sold Per 500 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 22.89x1.07x24.36 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Housing Bore (B)
22.89
mm
Clip Thickness (T)
1.07
mm
+ 0.00 / - 0.06
(Equiv. 0.042 in.)
Groove Dia. (Dg)
24.36
mm
+/- 0.075
(Equiv. 0.959 in.)
Approx. Loose Circlip OD (Dr)
25.40
mm
+ 0.38 / - 0.25
Internal Retaining Rings - 22.89x1.07x24.36 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Groove Width (W): 1.17 mm + 0.08 / - 0.00   Clearance in Bore (C): 14.73 mm    Clearance in Groove (C1): 16.00 mm
Category: Retaining Rings - Internal - Circlips
Part Number: CCI-02289-S15 (PK-500)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Sep 02, 2026
$1,912.95 AUD
$4,500.00 AUD $1,912.95 AUD
Priced, Stocked and Sold Per 500 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 22.89x1.07x24.36 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
22.89
mm
Clip Thickness (T)
1.07
mm
+ 0.00 / - 0.06
(Equiv. 0.042 in.)
Groove Dia. (Dg)
24.36
mm
+/- 0.075
(Equiv. 0.959 in.)
Approx. Loose Circlip OD (Dr)
25.40
mm
+ 0.38 / - 0.25
Groove Width (W)
1.17
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 22.89x1.07x24.36 mm - Carbon Steel
Material: Carbon Steel    Clearance in Bore (C): 14.73 mm    Clearance in Groove (C1): 16.00 mm
Category: Retaining Rings - Internal - Circlips
Part Number: CCI-02289-C (PK-100)
Out of Stock | Backorder Now | Backorder now for delivery around Tue, Aug 25, 2026
$130.77 AUD
$156.93 AUD $130.77 AUD
Priced, Stocked and Sold Per 100 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 22.89x1.07x24.36 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
22.89
mm
Clip Thickness (T)
1.07
mm
+ 0.00 / - 0.06
(Equiv. 0.042 in.)
Groove Dia. (Dg)
24.36
mm
+/- 0.075
(Equiv. 0.959 in.)
Approx. Loose Circlip OD (Dr)
25.40
mm
+ 0.38 / - 0.25
Internal Retaining Rings - 22.89x1.07x24.36 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 1.17 mm + 0.08 / - 0.00   Clearance in Bore (C): 14.73 mm    Clearance in Groove (C1): 16.00 mm
Category: Retaining Rings - Internal - Circlips
Part Number: CCI-02289-C (PK-100)
Out of Stock | Backorder Now | Backorder now for delivery around Tue, Aug 25, 2026
$130.77 AUD
$156.93 AUD $130.77 AUD
Priced, Stocked and Sold Per 100 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 23x1.2x24.1 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Housing Bore (B)
23.00
mm
Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.06
(Equiv. 0.047 in.)
Groove Dia. (Dg)
24.10
mm
+ 0.21 / - 0.00
(Equiv. 0.949 in.)
Approx. Loose Circlip OD (Dr)
24.60
mm
+ 0.42 / - 0.21
Groove Width (W)
1.30
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 23x1.2x24.1 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Clearance in Bore (C): 14.20 mm    Clearance in Groove (C1): 15.70 mm
Category: Retaining Rings - Internal - Circlips
Additional stock available from USA subject to Prior Sale = 74
Part Number: CCI-02300-S15 (Each)
44 Available Now | Further orders can be expected around Sat, Jul 04, 2026
$2.50 AUD
$6.54 AUD $2.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 44 available can be backordered.
Internal Retaining Rings - 23x1.2x24.1 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Housing Bore (B)
23.00
mm
Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.06
(Equiv. 0.047 in.)
Groove Dia. (Dg)
24.10
mm
+ 0.21 / - 0.00
(Equiv. 0.949 in.)
Approx. Loose Circlip OD (Dr)
24.60
mm
+ 0.42 / - 0.21
Internal Retaining Rings - 23x1.2x24.1 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Groove Width (W): 1.30 mm + 0.08 / - 0.00   Clearance in Bore (C): 14.20 mm    Clearance in Groove (C1): 15.70 mm
Category: Retaining Rings - Internal - Circlips
Additional stock available from USA subject to Prior Sale = 74
Part Number: CCI-02300-S15 (Each)
44 Available Now | Further orders can be expected around Sat, Jul 04, 2026
$2.50 AUD
$6.54 AUD $2.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

44 Available Now. Backorder if more than 44.
Internal Retaining Rings - 23x1.2x24.1 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
23.00
mm
Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.06
(Equiv. 0.047 in.)
Groove Dia. (Dg)
24.10
mm
+ 0.21 / - 0.00
(Equiv. 0.949 in.)
Approx. Loose Circlip OD (Dr)
24.60
mm
+ 0.42 / - 0.21
Groove Width (W)
1.30
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 23x1.2x24.1 mm - Carbon Steel
Material: Carbon Steel    Clearance in Bore (C): 14.20 mm    Clearance in Groove (C1): 15.70 mm
Category: Retaining Rings - Internal - Circlips
Additional stock available from USA subject to Prior Sale = 1461
Part Number: CCI-02300-C (PK-20)
21 units (420 pcs) Available Now | Further orders can be expected around Sat, Jul 04, 2026
$3.77 AUD
$7.10 AUD $3.77 AUD
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 21 available can be backordered.
Internal Retaining Rings - 23x1.2x24.1 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
23.00
mm
Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.06
(Equiv. 0.047 in.)
Groove Dia. (Dg)
24.10
mm
+ 0.21 / - 0.00
(Equiv. 0.949 in.)
Approx. Loose Circlip OD (Dr)
24.60
mm
+ 0.42 / - 0.21
Internal Retaining Rings - 23x1.2x24.1 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 1.30 mm + 0.08 / - 0.00   Clearance in Bore (C): 14.20 mm    Clearance in Groove (C1): 15.70 mm
Category: Retaining Rings - Internal - Circlips
Additional stock available from USA subject to Prior Sale = 1461
Part Number: CCI-02300-C (PK-20)
21 units (420 pcs) Available Now | Further orders can be expected around Sat, Jul 04, 2026
$3.77 AUD
$7.10 AUD $3.77 AUD
Priced, Stocked and Sold Per 20 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

21 units (420 pcs) Available Now. Backorder if more than 21.
Internal Retaining Rings - 23x1.2x23.6 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
23.00
mm
Clip Thickness (T)
1.20
mm
+ 0 / - 0.10
(Equiv. 0.047 in.)
Groove Dia. (Dg)
23.60
mm
+ 0.13 / - 0.00
(Equiv. 0.929 in.)
Approx. Loose Circlip OD (Dr)
24.00
mm
Radial Wall (S) Approx.
1.75
mm
+ 0 / - 0.10
Groove Width (W)
1.30
mm
Internal Retaining Rings - 23x1.2x23.6 mm - Spring Steel
Material: Carbon Spring Steel    Clearance in Groove (C1): 20.5 mm
Category: Retaining Rings - Internal - Snap Rings
Part Number: WRI-0230-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 23x1.2x23.6 mm Snap Rings - Carbon Spring Steel Snap Ring
Housing Bore (B)
23.00
mm
Clip Thickness (T)
1.20
mm
+ 0 / - 0.10
(Equiv. 0.047 in.)
Groove Dia. (Dg)
23.60
mm
+ 0.13 / - 0.00
(Equiv. 0.929 in.)
Approx. Loose Circlip OD (Dr)
24.00
mm
Internal Retaining Rings - 23x1.2x23.6 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.75 mm + 0 / - 0.10    Groove Width (W): 1.30 mm    Clearance in Groove (C1): 20.5 mm
Category: Retaining Rings - Internal - Snap Rings
Part Number: WRI-0230-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Thu, Mar 01, 2029
Internal Retaining Rings - 23x1.2x24.25 mm Circlips - Carbon Spring Steel Circlip
Housing Bore (B)
23.00
mm
Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.06
(Equiv. 0.047 in.)
Groove Dia. (Dg)
24.25
mm
+ 0.00 / - 0.15
(Equiv. 0.955 in.)
Approx. Loose Circlip OD (Dr)
24.47 - 25.02
mm
Radial Wall (S) Approx.
2.60
mm
Groove Width (W)
1.30
mm
Internal Retaining Rings - 23x1.2x24.25 mm - Spring Steel
Material: Carbon Spring Steel
Category: Retaining Rings - Internal - Circlips
Part Number: DJK-023 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 23x1.2x24.25 mm Circlips - Carbon Spring Steel Circlip
Housing Bore (B)
23.00
mm
Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.06
(Equiv. 0.047 in.)
Groove Dia. (Dg)
24.25
mm
+ 0.00 / - 0.15
(Equiv. 0.955 in.)
Approx. Loose Circlip OD (Dr)
24.47 - 25.02
mm
Internal Retaining Rings - 23x1.2x24.25 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 2.60 mm    Groove Width (W): 1.30 mm
Category: Retaining Rings - Internal - Circlips
Part Number: DJK-023 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Thu, Mar 01, 2029
Internal Retaining Rings - 23.81x1.07x25.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Housing Bore (B)
23.81
mm
Clip Thickness (T)
1.07
mm
+ 0.00 / - 0.06
(Equiv. 0.042 in.)
Groove Dia. (Dg)
25.40
mm
+/- 0.075
(Equiv. 1 in.)
Approx. Loose Circlip OD (Dr)
26.44
mm
+ 0.38 / - 0.25
Groove Width (W)
1.17
mm
+ 0.08 / - 0.00
Internal Retaining Rings - 23.81x1.07x25.4 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Clearance in Bore (C): 15.49 mm    Clearance in Groove (C1): 17.02 mm
Category: Retaining Rings - Internal - Circlips
Additional stock available from USA subject to Prior Sale = 1217
Part Number: CCI-02381-S15 (Each)
2 Available Now | Further orders can be expected around Sat, Jul 04, 2026
$2.50 AUD
$6.50 AUD $2.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 2 available can be backordered.
Internal Retaining Rings - 23.81x1.07x25.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip
Housing Bore (B)
23.81
mm
Clip Thickness (T)
1.07
mm
+ 0.00 / - 0.06
(Equiv. 0.042 in.)
Groove Dia. (Dg)
25.40
mm
+/- 0.075
(Equiv. 1 in.)
Approx. Loose Circlip OD (Dr)
26.44
mm
+ 0.38 / - 0.25
Internal Retaining Rings - 23.81x1.07x25.4 mm - Stainless Steel Grade PH15-7 Mo
Material: Stainless Steel Grade PH15-7 Mo    Groove Width (W): 1.17 mm + 0.08 / - 0.00   Clearance in Bore (C): 15.49 mm    Clearance in Groove (C1): 17.02 mm
Category: Retaining Rings - Internal - Circlips
Additional stock available from USA subject to Prior Sale = 1217
Part Number: CCI-02381-S15 (Each)
2 Available Now | Further orders can be expected around Sat, Jul 04, 2026
$2.50 AUD
$6.50 AUD $2.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

2 Available Now. Backorder if more than 2.
