| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) | Section (Rd) | Groove Width (W) |

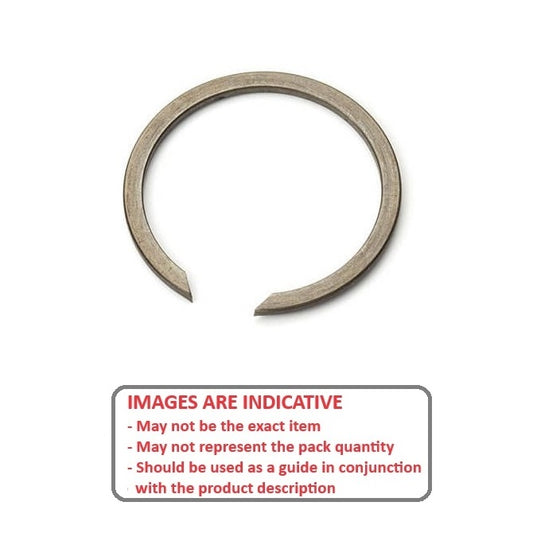

Indicative Image |
|---|---|---|---|---|---|---|
| Internal Retaining Rings - 95.25x2.77x99.11 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
95.25
mm |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
99.11
mm +/- 0.15 (Equiv. 3.902 in.) |
Approx. Loose Circlip OD (Dr)
100.64
mm + 2.00 / - 0.00 |
Section (Rd)
6.35
mm +/- 0.13 |
Groove Width (W)
3.05
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 87.94 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0953-LS-HO (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) |
Indicative Image |
||
| Internal Retaining Rings - 95.25x2.77x99.11 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
95.25
mm |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
99.11
mm +/- 0.15 (Equiv. 3.902 in.) |
Approx. Loose Circlip OD (Dr)
100.64
mm + 2.00 / - 0.00 |
|
||
| Material: Carbon Spring Steel Section (Rd): 6.35 mm +/- 0.13 Groove Width (W): 3.05 mm Approx. Loose Clip ID: 87.94 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0953-LS-HO (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 95.25x2.77x100.94 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
95.25
mm |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
100.94
mm +/- 0.15 (Equiv. 3.974 in.) |
Approx. Loose Circlip OD (Dr)
102.36
mm + 2.55 / - 0.00 |
Section (Rd)
6.35
mm +/- 0.13 |
Groove Width (W)
3.05
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 89.66 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0953-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 95.25x2.77x100.94 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
95.25
mm |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
100.94
mm +/- 0.15 (Equiv. 3.974 in.) |
Approx. Loose Circlip OD (Dr)
102.36
mm + 2.55 / - 0.00 |
|
||
| Material: Carbon Spring Steel Section (Rd): 6.35 mm +/- 0.13 Groove Width (W): 3.05 mm Approx. Loose Clip ID: 89.66 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0953-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 97x2.5x99 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
97.00
mm |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
99.00
mm + 0.22 / - 0.00 (Equiv. 3.898 in.) |
Approx. Loose Circlip OD (Dr)
100.00
mm |
Section (Rd)
3.40
mm + 0 / - 0.10 |
Groove Width (W)
2.70
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 93.2 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0970-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 97x2.5x99 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
97.00
mm |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
99.00
mm + 0.22 / - 0.00 (Equiv. 3.898 in.) |
Approx. Loose Circlip OD (Dr)
100.00
mm |
|
||
| Material: Carbon Spring Steel Section (Rd): 3.40 mm + 0 / - 0.10 Groove Width (W): 2.70 mm Approx. Loose Clip ID: 93.2 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0970-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 98.43x2.77x102.29 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
98.43
mm |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
102.29
mm +/- 0.15 (Equiv. 4.027 in.) |
Approx. Loose Circlip OD (Dr)
103.86
mm + 2.00 / - 0.00 |
Section (Rd)
6.35
mm +/- 0.13 |
Groove Width (W)
3.05
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 91.16 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0984-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 98.43x2.77x102.29 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
98.43
mm |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
102.29
mm +/- 0.15 (Equiv. 4.027 in.) |
Approx. Loose Circlip OD (Dr)
103.86
mm + 2.00 / - 0.00 |
|
||
| Material: Carbon Spring Steel Section (Rd): 6.35 mm +/- 0.13 Groove Width (W): 3.05 mm Approx. Loose Clip ID: 91.16 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0984-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 98.43x2.77x104.32 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
98.43
mm |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
104.32
mm +/- 0.15 (Equiv. 4.107 in.) |
Approx. Loose Circlip OD (Dr)
105.79
mm + 2.55 / - 0.00 |
Section (Rd)
6.35
mm +/- 0.13 |
Groove Width (W)
3.05
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 93.09 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0984-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 98.43x2.77x104.32 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
98.43
mm |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
104.32
mm +/- 0.15 (Equiv. 4.107 in.) |
Approx. Loose Circlip OD (Dr)
105.79
mm + 2.55 / - 0.00 |
|
||
| Material: Carbon Spring Steel Section (Rd): 6.35 mm +/- 0.13 Groove Width (W): 3.05 mm Approx. Loose Clip ID: 93.09 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0984-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 82x2x83.8 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
82.00
mm |
Clip Thickness (T)
2.00
mm + 0 / - 0.10 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
83.80
mm + 0.22 / - 0.00 (Equiv. 3.299 in.) |
Approx. Loose Circlip OD (Dr)
84.60
mm |
Section (Rd)
2.80
mm + 0 / - 0.10 |
Groove Width (W)
2.20
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 79 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0820-LS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Fri, Sep 04, 2026 Regular price
$11.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 82x2x83.8 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
82.00
mm |
Clip Thickness (T)
2.00
mm + 0 / - 0.10 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
83.80
mm + 0.22 / - 0.00 (Equiv. 3.299 in.) |
Approx. Loose Circlip OD (Dr)
84.60
mm |
|
||
| Material: Carbon Spring Steel Section (Rd): 2.80 mm + 0 / - 0.10 Groove Width (W): 2.20 mm Approx. Loose Clip ID: 79 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0820-LS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Fri, Sep 04, 2026 Regular price
$11.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 100.03x2.77x103.99 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
100.03
mm |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
103.99
mm +/- 0.15 (Equiv. 4.094 in.) |
Approx. Loose Circlip OD (Dr)
105.56
mm + 2.00 / - 0.00 |
Section (Rd)
6.35
mm +/- 0.13 |
Groove Width (W)
3.05
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 92.86 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-1000-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 100.03x2.77x103.99 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
100.03
mm |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
103.99
mm +/- 0.15 (Equiv. 4.094 in.) |
Approx. Loose Circlip OD (Dr)
105.56
mm + 2.00 / - 0.00 |
|
||
| Material: Carbon Spring Steel Section (Rd): 6.35 mm +/- 0.13 Groove Width (W): 3.05 mm Approx. Loose Clip ID: 92.86 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-1000-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 100.03x2.77x106.02 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
100.03
mm |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
106.02
mm +/- 0.15 (Equiv. 4.174 in.) |
Approx. Loose Circlip OD (Dr)
107.54
mm + 2.55 / - 0.00 |
Section (Rd)
6.35
mm +/- 0.13 |
Groove Width (W)
3.05
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 94.84 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-1000-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 100.03x2.77x106.02 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
100.03
mm |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
106.02
mm +/- 0.15 (Equiv. 4.174 in.) |
Approx. Loose Circlip OD (Dr)
107.54
mm + 2.55 / - 0.00 |
|
||
| Material: Carbon Spring Steel Section (Rd): 6.35 mm +/- 0.13 Groove Width (W): 3.05 mm Approx. Loose Clip ID: 94.84 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-1000-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 101.6x1.58x104.78 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
101.60
mm |
Clip Thickness (T)
1.58
mm +/- 0.06 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
104.78
mm +/- 0.15 (Equiv. 4.125 in.) |
Approx. Loose Circlip OD (Dr)
105.54
mm + 1.98 / - 0.00 |
Section (Rd)
4.75
mm +/- 0.13 |
Groove Width (W)
1.73
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 96.04 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-1016-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 101.6x1.58x104.78 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
101.60
mm |
Clip Thickness (T)
1.58
mm +/- 0.06 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
104.78
mm +/- 0.15 (Equiv. 4.125 in.) |
Approx. Loose Circlip OD (Dr)
105.54
mm + 1.98 / - 0.00 |
|
||
| Material: Carbon Spring Steel Section (Rd): 4.75 mm +/- 0.13 Groove Width (W): 1.73 mm Approx. Loose Clip ID: 96.04 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-1016-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 101.6x2.77x105.56 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
101.60
mm |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
105.56
mm +/- 0.15 (Equiv. 4.156 in.) |
Approx. Loose Circlip OD (Dr)
107.21
mm + 2.40 / - 0.00 |
Section (Rd)
6.35
mm +/- 0.13 |
Groove Width (W)
3.05
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 94.51 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-1016-LS-HO (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 101.6x2.77x105.56 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
101.60
mm |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
105.56
mm +/- 0.15 (Equiv. 4.156 in.) |
Approx. Loose Circlip OD (Dr)
107.21
mm + 2.40 / - 0.00 |
|
||
| Material: Carbon Spring Steel Section (Rd): 6.35 mm +/- 0.13 Groove Width (W): 3.05 mm Approx. Loose Clip ID: 94.51 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-1016-LS-HO (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 102x2.5x104.3 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
102.00
mm |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
104.3
mm + 0.22 / - 0.00 (Equiv. 4.106 in.) |
Approx. Loose Circlip OD (Dr)
105.30
mm |
Section (Rd)
3.40
mm + 0 / - 0.10 |
Groove Width (W)
2.70
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 98.5 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-1020-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 102x2.5x104.3 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
102.00
mm |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
104.3
mm + 0.22 / - 0.00 (Equiv. 4.106 in.) |
Approx. Loose Circlip OD (Dr)
105.30
mm |
|
||
| Material: Carbon Spring Steel Section (Rd): 3.40 mm + 0 / - 0.10 Groove Width (W): 2.70 mm Approx. Loose Clip ID: 98.5 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-1020-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 103x2.5x105.3 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
103.00
mm |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
105.3
mm + 0.22 / - 0.00 (Equiv. 4.146 in.) |
Approx. Loose Circlip OD (Dr)
106.30
mm |
Section (Rd)
3.40
mm + 0 / - 0.10 |
Groove Width (W)
2.70
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 99.5 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-1030-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 103x2.5x105.3 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
103.00
mm |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
105.3
mm + 0.22 / - 0.00 (Equiv. 4.146 in.) |
Approx. Loose Circlip OD (Dr)
106.30
mm |
|
||
| Material: Carbon Spring Steel Section (Rd): 3.40 mm + 0 / - 0.10 Groove Width (W): 2.70 mm Approx. Loose Clip ID: 99.5 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-1030-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 104.78x2.77x108.84 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
104.78
mm |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
108.84
mm +/- 0.15 (Equiv. 4.285 in.) |
Approx. Loose Circlip OD (Dr)
110.62
mm + 2.40 / - 0.00 |
Section (Rd)
6.35
mm +/- 0.13 |
Groove Width (W)
3.05
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 97.92 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-1048-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 104.78x2.77x108.84 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
104.78
mm |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
108.84
mm +/- 0.15 (Equiv. 4.285 in.) |
Approx. Loose Circlip OD (Dr)
110.62
mm + 2.40 / - 0.00 |
|
||
| Material: Carbon Spring Steel Section (Rd): 6.35 mm +/- 0.13 Groove Width (W): 3.05 mm Approx. Loose Clip ID: 97.92 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-1048-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 104.78x2.77x110.87 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
104.78
mm |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
110.87
mm +/- 0.15 (Equiv. 4.365 in.) |
Approx. Loose Circlip OD (Dr)
112.52
mm + 2.55 / - 0.00 |
Section (Rd)
6.35
mm +/- 0.13 |
Groove Width (W)
3.05
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 99.82 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-1048-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 104.78x2.77x110.87 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
104.78
mm |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
110.87
mm +/- 0.15 (Equiv. 4.365 in.) |
Approx. Loose Circlip OD (Dr)
112.52
mm + 2.55 / - 0.00 |
|
||
| Material: Carbon Spring Steel Section (Rd): 6.35 mm +/- 0.13 Groove Width (W): 3.05 mm Approx. Loose Clip ID: 99.82 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-1048-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 105x2.5x107.3 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
105.00
mm |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
107.3
mm + 0.22 / - 0.00 (Equiv. 4.224 in.) |
Approx. Loose Circlip OD (Dr)
108.30
mm |
Section (Rd)
3.40
mm + 0 / - 0.10 |
Groove Width (W)
2.70
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 101.5 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-1050-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 105x2.5x107.3 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
105.00
mm |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
107.3
mm + 0.22 / - 0.00 (Equiv. 4.224 in.) |
Approx. Loose Circlip OD (Dr)
108.30
mm |
|
||
| Material: Carbon Spring Steel Section (Rd): 3.40 mm + 0 / - 0.10 Groove Width (W): 2.70 mm Approx. Loose Clip ID: 101.5 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-1050-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 90x2.5x92 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
90.00
mm |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
92.00
mm + 0.22 / - 0.00 (Equiv. 3.622 in.) |
Approx. Loose Circlip OD (Dr)
93.00
mm |
Section (Rd)
3.40
mm + 0 / - 0.10 |
Groove Width (W)
2.70
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip ID: 86.2
Section Profile: Rectangular with Square Edge
Additional stock available from USA subject to Prior Sale = 493 |
||||||
|
Part Number: WRI-0900-LS (Pack of 5)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Aug 26, 2026 Regular price
$22.86 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per pack of 5
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 90x2.5x92 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
90.00
mm |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
92.00
mm + 0.22 / - 0.00 (Equiv. 3.622 in.) |
Approx. Loose Circlip OD (Dr)
93.00
mm |
|
||
|
Material: Carbon Spring Steel
Section (Rd): 3.40 mm + 0 / - 0.10
Groove Width (W): 2.70 mm
Approx. Loose Clip ID: 86.2
Section Profile: Rectangular with Square Edge
Additional stock available from USA subject to Prior Sale = 493 |
||||||
|
Part Number: WRI-0900-LS (Pack of 5)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Aug 26, 2026 Regular price
$22.86 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per pack of 5
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 107x2.5x109.3 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
107.00
mm |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
109.3
mm + 0.22 / - 0.00 (Equiv. 4.303 in.) |
Approx. Loose Circlip OD (Dr)
110.30
mm |
Section (Rd)
3.40
mm + 0 / - 0.10 |
Groove Width (W)
2.70
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 103.5 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-1070-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 107x2.5x109.3 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
107.00
mm |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
109.3
mm + 0.22 / - 0.00 (Equiv. 4.303 in.) |
Approx. Loose Circlip OD (Dr)
110.30
mm |
|
||
| Material: Carbon Spring Steel Section (Rd): 3.40 mm + 0 / - 0.10 Groove Width (W): 2.70 mm Approx. Loose Clip ID: 103.5 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-1070-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 107.95x1.58x111.61 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
107.95
mm |
Clip Thickness (T)
1.58
mm +/- 0.06 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
111.61
mm +/- 0.15 (Equiv. 4.394 in.) |
Approx. Loose Circlip OD (Dr)
112.50
mm + 2.36 / - 0.00 |
Section (Rd)
4.75
mm +/- 0.13 |
Groove Width (W)
2.18
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 103 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-1080-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 107.95x1.58x111.61 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
107.95
mm |
Clip Thickness (T)
1.58
mm +/- 0.06 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
111.61
mm +/- 0.15 (Equiv. 4.394 in.) |
Approx. Loose Circlip OD (Dr)
112.50
mm + 2.36 / - 0.00 |
|
||
| Material: Carbon Spring Steel Section (Rd): 4.75 mm +/- 0.13 Groove Width (W): 2.18 mm Approx. Loose Clip ID: 103 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-1080-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 107.95x2.77x112.01 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
107.95
mm |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
112.01
mm +/- 0.15 (Equiv. 4.41 in.) |
Approx. Loose Circlip OD (Dr)
113.92
mm + 2.40 / - 0.00 |
Section (Rd)
6.35
mm +/- 0.13 |
Groove Width (W)
3.05
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 101.22 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-1080-LS-HO (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 107.95x2.77x112.01 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
107.95
mm |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
112.01
mm +/- 0.15 (Equiv. 4.41 in.) |
Approx. Loose Circlip OD (Dr)
113.92
mm + 2.40 / - 0.00 |
|
||
| Material: Carbon Spring Steel Section (Rd): 6.35 mm +/- 0.13 Groove Width (W): 3.05 mm Approx. Loose Clip ID: 101.22 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-1080-LS-HO (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 108x2.5x110.3 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
108.00
mm |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
110.3
mm + 0.22 / - 0.00 (Equiv. 4.343 in.) |
Approx. Loose Circlip OD (Dr)
111.30
mm |
Section (Rd)
3.40
mm + 0 / - 0.10 |
Groove Width (W)
2.70
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 104.5 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-1080-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 108x2.5x110.3 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
108.00
mm |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
110.3
mm + 0.22 / - 0.00 (Equiv. 4.343 in.) |
Approx. Loose Circlip OD (Dr)
111.30
mm |
|
||
| Material: Carbon Spring Steel Section (Rd): 3.40 mm + 0 / - 0.10 Groove Width (W): 2.70 mm Approx. Loose Clip ID: 104.5 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-1080-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 109.98x2.77x114.05 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
109.98
mm |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
114.05
mm +/- 0.15 (Equiv. 4.49 in.) |
Approx. Loose Circlip OD (Dr)
115.95
mm + 2.40 / - 0.00 |
Section (Rd)
6.35
mm +/- 0.13 |
Groove Width (W)
3.05
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 103.25 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-1100-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 109.98x2.77x114.05 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
109.98
mm |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
114.05
mm +/- 0.15 (Equiv. 4.49 in.) |
Approx. Loose Circlip OD (Dr)
115.95
mm + 2.40 / - 0.00 |
|
||
| Material: Carbon Spring Steel Section (Rd): 6.35 mm +/- 0.13 Groove Width (W): 3.05 mm Approx. Loose Clip ID: 103.25 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-1100-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 110.01x2.77x116.1 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
110.01
mm |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
116.10
mm +/- 0.15 (Equiv. 4.571 in.) |
Approx. Loose Circlip OD (Dr)
117.88
mm + 2.55 / - 0.00 |
Section (Rd)
6.35
mm +/- 0.13 |
Groove Width (W)
3.05
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 105.18 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-1100-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 110.01x2.77x116.1 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
110.01
mm |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
116.10
mm +/- 0.15 (Equiv. 4.571 in.) |
Approx. Loose Circlip OD (Dr)
117.88
mm + 2.55 / - 0.00 |
|
||
| Material: Carbon Spring Steel Section (Rd): 6.35 mm +/- 0.13 Groove Width (W): 3.05 mm Approx. Loose Clip ID: 105.18 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-1100-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 95x2.5x97 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
95.00
mm |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
97.00
mm + 0.22 / - 0.00 (Equiv. 3.819 in.) |
Approx. Loose Circlip OD (Dr)
98.00
mm |
Section (Rd)
3.40
mm + 0 / - 0.10 |
Groove Width (W)
2.70
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 91.2 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0950-LS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Fri, Sep 04, 2026 Regular price
$10.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 95x2.5x97 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
95.00
mm |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
97.00
mm + 0.22 / - 0.00 (Equiv. 3.819 in.) |
Approx. Loose Circlip OD (Dr)
98.00
mm |
|
||
| Material: Carbon Spring Steel Section (Rd): 3.40 mm + 0 / - 0.10 Groove Width (W): 2.70 mm Approx. Loose Clip ID: 91.2 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0950-LS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Fri, Sep 04, 2026 Regular price
$10.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 112x2.5x114.3 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
112.00
mm |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
114.3
mm + 0.22 / - 0.00 (Equiv. 4.5 in.) |
Approx. Loose Circlip OD (Dr)
115.40
mm |
Section (Rd)
3.40
mm + 0 / - 0.10 |
Groove Width (W)
2.70
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 108.6 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-1120-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 112x2.5x114.3 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
112.00
mm |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
114.3
mm + 0.22 / - 0.00 (Equiv. 4.5 in.) |
Approx. Loose Circlip OD (Dr)
115.40
mm |
|
||
| Material: Carbon Spring Steel Section (Rd): 3.40 mm + 0 / - 0.10 Groove Width (W): 2.70 mm Approx. Loose Clip ID: 108.6 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-1120-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
