| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) | Section (Rd) | Groove Width (W) |

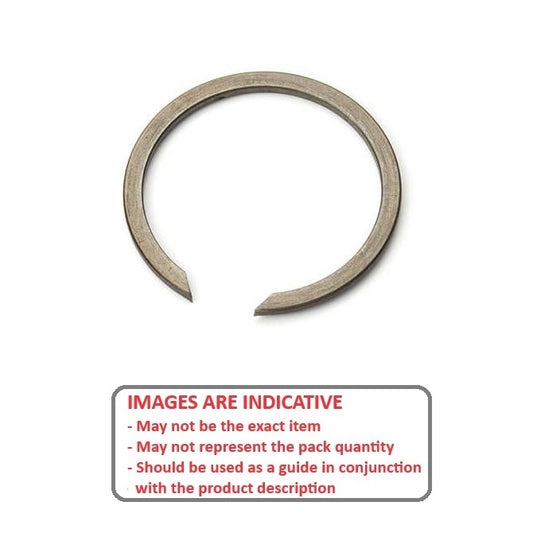

Indicative Image |
|---|---|---|---|---|---|---|
| Internal Retaining Rings - 71.45x2.36x74.8 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
71.45
mm |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
74.80
mm +/- 0.15 (Equiv. 2.945 in.) |
Approx. Loose Circlip OD (Dr)
75.82
mm + 1.60 / - 0.00 |
Section (Rd)
4.75
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 66.32 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0715-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) |
Indicative Image |
||
| Internal Retaining Rings - 71.45x2.36x74.8 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
71.45
mm |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
74.80
mm +/- 0.15 (Equiv. 2.945 in.) |
Approx. Loose Circlip OD (Dr)
75.82
mm + 1.60 / - 0.00 |
|
||
| Material: Carbon Spring Steel Section (Rd): 4.75 mm +/- 0.13 Groove Width (W): 2.62 mm Approx. Loose Clip ID: 66.32 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0715-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 71.98x2.36x75.34 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
71.98
mm |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
75.34
mm +/- 0.15 (Equiv. 2.966 in.) |
Approx. Loose Circlip OD (Dr)
76.35
mm + 1.60 / - 0.00 |
Section (Rd)
4.75
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 66.85 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0720-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 71.98x2.36x75.34 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
71.98
mm |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
75.34
mm +/- 0.15 (Equiv. 2.966 in.) |
Approx. Loose Circlip OD (Dr)
76.35
mm + 1.60 / - 0.00 |
|
||
| Material: Carbon Spring Steel Section (Rd): 4.75 mm +/- 0.13 Groove Width (W): 2.62 mm Approx. Loose Clip ID: 66.85 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0720-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 72.01x2.36x76.33 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
72.01
mm |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
76.33
mm +/- 0.15 (Equiv. 3.005 in.) |
Approx. Loose Circlip OD (Dr)
76.84
mm + 2.05 / - 0.00 |
Section (Rd)
4.78
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 67.28 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0720-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 72.01x2.36x76.33 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
72.01
mm |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
76.33
mm +/- 0.15 (Equiv. 3.005 in.) |
Approx. Loose Circlip OD (Dr)
76.84
mm + 2.05 / - 0.00 |
|
||
| Material: Carbon Spring Steel Section (Rd): 4.78 mm +/- 0.13 Groove Width (W): 2.62 mm Approx. Loose Clip ID: 67.28 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0720-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 73.03x2.36x76.48 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
73.03
mm |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
76.48
mm +/- 0.15 (Equiv. 3.011 in.) |
Approx. Loose Circlip OD (Dr)
77.62
mm + 1.60 / - 0.00 |
Section (Rd)
4.75
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 68.12 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0730-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 73.03x2.36x76.48 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
73.03
mm |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
76.48
mm +/- 0.15 (Equiv. 3.011 in.) |
Approx. Loose Circlip OD (Dr)
77.62
mm + 1.60 / - 0.00 |
|
||
| Material: Carbon Spring Steel Section (Rd): 4.75 mm +/- 0.13 Groove Width (W): 2.62 mm Approx. Loose Clip ID: 68.12 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0730-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 73.03x2.36x77.5 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
73.03
mm |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
77.50
mm +/- 0.15 (Equiv. 3.051 in.) |
Approx. Loose Circlip OD (Dr)
78.38
mm + 2.05 / - 0.00 |
Section (Rd)
5.16
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 68.06 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0730-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 73.03x2.36x77.5 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
73.03
mm |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
77.50
mm +/- 0.15 (Equiv. 3.051 in.) |
Approx. Loose Circlip OD (Dr)
78.38
mm + 2.05 / - 0.00 |
|
||
| Material: Carbon Spring Steel Section (Rd): 5.16 mm +/- 0.13 Groove Width (W): 2.62 mm Approx. Loose Clip ID: 68.06 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0730-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 74x2x75.8 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
74.00
mm |
Clip Thickness (T)
2.00
mm + 0 / - 0.10 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
75.80
mm + 0.19 / - 0.00 (Equiv. 2.984 in.) |
Approx. Loose Circlip OD (Dr)
76.60
mm |
Section (Rd)
2.80
mm + 0 / - 0.10 |
Groove Width (W)
2.20
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 71 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0740-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 74x2x75.8 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
74.00
mm |
Clip Thickness (T)
2.00
mm + 0 / - 0.10 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
75.80
mm + 0.19 / - 0.00 (Equiv. 2.984 in.) |
Approx. Loose Circlip OD (Dr)
76.60
mm |
|
||
| Material: Carbon Spring Steel Section (Rd): 2.80 mm + 0 / - 0.10 Groove Width (W): 2.20 mm Approx. Loose Clip ID: 71 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0740-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 75.01x2.36x79.63 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
75.01
mm |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
79.63
mm +/- 0.15 (Equiv. 3.135 in.) |
Approx. Loose Circlip OD (Dr)
80.65
mm + 2.05 / - 0.00 |
Section (Rd)
5.16
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 70.33 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0750-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 75.01x2.36x79.63 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
75.01
mm |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
79.63
mm +/- 0.15 (Equiv. 3.135 in.) |
Approx. Loose Circlip OD (Dr)
80.65
mm + 2.05 / - 0.00 |
|
||
| Material: Carbon Spring Steel Section (Rd): 5.16 mm +/- 0.13 Groove Width (W): 2.62 mm Approx. Loose Clip ID: 70.33 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0750-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 65x1.5x66.5 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
65.00
mm |
Clip Thickness (T)
1.50
mm + 0 / - 0.10 (Equiv. 0.059 in.) |
Groove Dia. (Dg)
66.50
mm + 0.19 / - 0.00 (Equiv. 2.618 in.) |
Approx. Loose Circlip OD (Dr)
67.30
mm |
Section (Rd)
2.30
mm + 0 / - 0.10 |
Groove Width (W)
1.60
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 62.7 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0650-LS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Fri, Sep 04, 2026 Regular price
$9.14 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 65x1.5x66.5 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
65.00
mm |
Clip Thickness (T)
1.50
mm + 0 / - 0.10 (Equiv. 0.059 in.) |
Groove Dia. (Dg)
66.50
mm + 0.19 / - 0.00 (Equiv. 2.618 in.) |
Approx. Loose Circlip OD (Dr)
67.30
mm |
|
||
| Material: Carbon Spring Steel Section (Rd): 2.30 mm + 0 / - 0.10 Groove Width (W): 1.60 mm Approx. Loose Clip ID: 62.7 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0650-LS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Fri, Sep 04, 2026 Regular price
$9.14 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 76.2x1.58x79.35 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
76.20
mm |
Clip Thickness (T)
1.58
mm +/- 0.06 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
79.35
mm +/- 0.15 (Equiv. 3.124 in.) |
Approx. Loose Circlip OD (Dr)
80.11
mm + 1.98 / - 0.00 |
Section (Rd)
4.75
mm +/- 0.13 |
Groove Width (W)
1.73
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 70.61 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0762-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 76.2x1.58x79.35 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
76.20
mm |
Clip Thickness (T)
1.58
mm +/- 0.06 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
79.35
mm +/- 0.15 (Equiv. 3.124 in.) |
Approx. Loose Circlip OD (Dr)
80.11
mm + 1.98 / - 0.00 |
|
||
| Material: Carbon Spring Steel Section (Rd): 4.75 mm +/- 0.13 Groove Width (W): 1.73 mm Approx. Loose Clip ID: 70.61 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0762-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 76.2x2.36x80.82 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
76.20
mm |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
80.82
mm +/- 0.15 (Equiv. 3.182 in.) |
Approx. Loose Circlip OD (Dr)
81.84
mm + 2.05 / - 0.00 |
Section (Rd)
5.16
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 71.52 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0762-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 76.2x2.36x80.82 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
76.20
mm |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
80.82
mm +/- 0.15 (Equiv. 3.182 in.) |
Approx. Loose Circlip OD (Dr)
81.84
mm + 2.05 / - 0.00 |
|
||
| Material: Carbon Spring Steel Section (Rd): 5.16 mm +/- 0.13 Groove Width (W): 2.62 mm Approx. Loose Clip ID: 71.52 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0762-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 76.2x2.77x79.65 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
76.20
mm |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
79.65
mm +/- 0.15 (Equiv. 3.136 in.) |
Approx. Loose Circlip OD (Dr)
80.80
mm + 1.60 / - 0.00 |
Section (Rd)
4.75
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 71.3 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0762-LS-HO (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 76.2x2.77x79.65 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
76.20
mm |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
79.65
mm +/- 0.15 (Equiv. 3.136 in.) |
Approx. Loose Circlip OD (Dr)
80.80
mm + 1.60 / - 0.00 |
|
||
| Material: Carbon Spring Steel Section (Rd): 4.75 mm +/- 0.13 Groove Width (W): 2.62 mm Approx. Loose Clip ID: 71.3 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0762-LS-HO (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 77.78x2.77x81.33 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
77.78
mm |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
81.33
mm +/- 0.15 (Equiv. 3.202 in.) |
Approx. Loose Circlip OD (Dr)
82.47
mm + 1.60 / - 0.00 |
Section (Rd)
5.54
mm +/- 0.13 |
Groove Width (W)
3.05
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 71.39 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0778-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 77.78x2.77x81.33 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
77.78
mm |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
81.33
mm +/- 0.15 (Equiv. 3.202 in.) |
Approx. Loose Circlip OD (Dr)
82.47
mm + 1.60 / - 0.00 |
|
||
| Material: Carbon Spring Steel Section (Rd): 5.54 mm +/- 0.13 Groove Width (W): 3.05 mm Approx. Loose Clip ID: 71.39 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0778-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 77.78x2.77x82.5 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
77.78
mm |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
82.50
mm +/- 0.15 (Equiv. 3.248 in.) |
Approx. Loose Circlip OD (Dr)
83.52
mm + 2.55 / - 0.00 |
Section (Rd)
5.54
mm +/- 0.13 |
Groove Width (W)
3.05
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 72.44 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0778-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 77.78x2.77x82.5 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
77.78
mm |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
82.50
mm +/- 0.15 (Equiv. 3.248 in.) |
Approx. Loose Circlip OD (Dr)
83.52
mm + 2.55 / - 0.00 |
|
||
| Material: Carbon Spring Steel Section (Rd): 5.54 mm +/- 0.13 Groove Width (W): 3.05 mm Approx. Loose Clip ID: 72.44 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0778-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 78x2x79.8 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
78.00
mm |
Clip Thickness (T)
2.00
mm + 0 / - 0.10 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
79.80
mm + 0.19 / - 0.00 (Equiv. 3.142 in.) |
Approx. Loose Circlip OD (Dr)
80.60
mm |
Section (Rd)
2.80
mm + 0 / - 0.10 |
Groove Width (W)
2.20
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 75 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0780-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 78x2x79.8 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
78.00
mm |
Clip Thickness (T)
2.00
mm + 0 / - 0.10 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
79.80
mm + 0.19 / - 0.00 (Equiv. 3.142 in.) |
Approx. Loose Circlip OD (Dr)
80.60
mm |
|
||
| Material: Carbon Spring Steel Section (Rd): 2.80 mm + 0 / - 0.10 Groove Width (W): 2.20 mm Approx. Loose Clip ID: 75 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0780-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 79x2x80.8 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
79.00
mm |
Clip Thickness (T)
2.00
mm + 0 / - 0.10 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
80.80
mm + 0.22 / - 0.00 (Equiv. 3.181 in.) |
Approx. Loose Circlip OD (Dr)
81.60
mm |
Section (Rd)
2.80
mm + 0 / - 0.10 |
Groove Width (W)
2.20
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 76 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0790-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 79x2x80.8 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
79.00
mm |
Clip Thickness (T)
2.00
mm + 0 / - 0.10 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
80.80
mm + 0.22 / - 0.00 (Equiv. 3.181 in.) |
Approx. Loose Circlip OD (Dr)
81.60
mm |
|
||
| Material: Carbon Spring Steel Section (Rd): 2.80 mm + 0 / - 0.10 Groove Width (W): 2.20 mm Approx. Loose Clip ID: 76 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0790-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 66x1.5x67.5 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
66.00
mm |
Clip Thickness (T)
1.50
mm |
Groove Dia. (Dg)
67.50
mm |
Approx. Loose Circlip OD (Dr)
68.30
mm |
|
||
| Material: Carbon Spring Steel Approx. Loose Clip ID: 63.7 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0660-LS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Fri, Sep 04, 2026 Regular price
$7.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 66x1.5x67.5 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
66.00
mm |
Clip Thickness (T)
1.50
mm |
Groove Dia. (Dg)
67.50
mm |
Approx. Loose Circlip OD (Dr)
68.30
mm |
|
||
| Material: Carbon Spring Steel Approx. Loose Clip ID: 63.7 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0660-LS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Fri, Sep 04, 2026 Regular price
$7.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 79.38x2.77x82.93 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
79.38
mm |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
82.93
mm +/- 0.15 (Equiv. 3.265 in.) |
Approx. Loose Circlip OD (Dr)
84.10
mm + 1.60 / - 0.00 |
Section (Rd)
5.54
mm +/- 0.13 |
Groove Width (W)
3.05
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 73.02 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0794-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 79.38x2.77x82.93 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
79.38
mm |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
82.93
mm +/- 0.15 (Equiv. 3.265 in.) |
Approx. Loose Circlip OD (Dr)
84.10
mm + 1.60 / - 0.00 |
|
||
| Material: Carbon Spring Steel Section (Rd): 5.54 mm +/- 0.13 Groove Width (W): 3.05 mm Approx. Loose Clip ID: 73.02 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0794-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 79.99x2.77x84.86 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
79.99
mm |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
84.86
mm +/- 0.15 (Equiv. 3.341 in.) |
Approx. Loose Circlip OD (Dr)
86.06
mm + 2.55 / - 0.00 |
Section (Rd)
5.54
mm +/- 0.13 |
Groove Width (W)
3.05
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 74.98 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0800-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 79.99x2.77x84.86 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
79.99
mm |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
84.86
mm +/- 0.15 (Equiv. 3.341 in.) |
Approx. Loose Circlip OD (Dr)
86.06
mm + 2.55 / - 0.00 |
|
||
| Material: Carbon Spring Steel Section (Rd): 5.54 mm +/- 0.13 Groove Width (W): 3.05 mm Approx. Loose Clip ID: 74.98 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0800-LS-N (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 80x2x81.8 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
80.00
mm |
Clip Thickness (T)
2.00
mm + 0 / - 0.10 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
81.80
mm + 0.22 / - 0.00 (Equiv. 3.22 in.) |
Approx. Loose Circlip OD (Dr)
82.60
mm |
Section (Rd)
2.80
mm + 0 / - 0.10 |
Groove Width (W)
2.20
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 77 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0800-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 80x2x81.8 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
80.00
mm |
Clip Thickness (T)
2.00
mm + 0 / - 0.10 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
81.80
mm + 0.22 / - 0.00 (Equiv. 3.22 in.) |
Approx. Loose Circlip OD (Dr)
82.60
mm |
|
||
| Material: Carbon Spring Steel Section (Rd): 2.80 mm + 0 / - 0.10 Groove Width (W): 2.20 mm Approx. Loose Clip ID: 77 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0800-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 70x1.5x71.5 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
70.00
mm |
Clip Thickness (T)
1.50
mm + 0 / - 0.10 (Equiv. 0.059 in.) |
Groove Dia. (Dg)
71.50
mm + 0.19 / - 0.00 (Equiv. 2.815 in.) |
Approx. Loose Circlip OD (Dr)
72.30
mm |
Section (Rd)
2.30
mm + 0 / - 0.10 |
Groove Width (W)
1.60
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 67.7 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0700-LS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Fri, Sep 04, 2026 Regular price
$8.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 70x1.5x71.5 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
70.00
mm |
Clip Thickness (T)
1.50
mm + 0 / - 0.10 (Equiv. 0.059 in.) |
Groove Dia. (Dg)
71.50
mm + 0.19 / - 0.00 (Equiv. 2.815 in.) |
Approx. Loose Circlip OD (Dr)
72.30
mm |
|
||
| Material: Carbon Spring Steel Section (Rd): 2.30 mm + 0 / - 0.10 Groove Width (W): 1.60 mm Approx. Loose Clip ID: 67.7 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0700-LS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Fri, Sep 04, 2026 Regular price
$8.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 80.16x2.77x83.72 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
80.16
mm |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
83.72
mm +/- 0.15 (Equiv. 3.296 in.) |
Approx. Loose Circlip OD (Dr)
84.89
mm + 1.60 / - 0.00 |
Section (Rd)
5.54
mm +/- 0.13 |
Groove Width (W)
3.05
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 73.81 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0802-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 80.16x2.77x83.72 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
80.16
mm |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
83.72
mm +/- 0.15 (Equiv. 3.296 in.) |
Approx. Loose Circlip OD (Dr)
84.89
mm + 1.60 / - 0.00 |
|
||
| Material: Carbon Spring Steel Section (Rd): 5.54 mm +/- 0.13 Groove Width (W): 3.05 mm Approx. Loose Clip ID: 73.81 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0802-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 81x2x82.8 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
81.00
mm |
Clip Thickness (T)
2.00
mm + 0 / - 0.10 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
82.80
mm + 0.22 / - 0.00 (Equiv. 3.26 in.) |
Approx. Loose Circlip OD (Dr)
83.60
mm |
Section (Rd)
2.80
mm + 0 / - 0.10 |
Groove Width (W)
2.20
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 78 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0810-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 81x2x82.8 mm Snap Rings - Carbon Spring Steel Snap Ring | ||||||
|
Housing Bore (B)
81.00
mm |
Clip Thickness (T)
2.00
mm + 0 / - 0.10 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
82.80
mm + 0.22 / - 0.00 (Equiv. 3.26 in.) |
Approx. Loose Circlip OD (Dr)
83.60
mm |
|
||
| Material: Carbon Spring Steel Section (Rd): 2.80 mm + 0 / - 0.10 Groove Width (W): 2.20 mm Approx. Loose Clip ID: 78 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0810-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 82.55x1.58x85.7 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
82.55
mm |
Clip Thickness (T)
1.58
mm +/- 0.06 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
85.70
mm +/- 0.15 (Equiv. 3.374 in.) |
Approx. Loose Circlip OD (Dr)
86.46
mm + 1.98 / - 0.00 |
Section (Rd)
4.75
mm +/- 0.13 |
Groove Width (W)
1.73
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 76.96 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0826-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 82.55x1.58x85.7 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
82.55
mm |
Clip Thickness (T)
1.58
mm +/- 0.06 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
85.70
mm +/- 0.15 (Equiv. 3.374 in.) |
Approx. Loose Circlip OD (Dr)
86.46
mm + 1.98 / - 0.00 |
|
||
| Material: Carbon Spring Steel Section (Rd): 4.75 mm +/- 0.13 Groove Width (W): 1.73 mm Approx. Loose Clip ID: 76.96 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0826-LS-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
| Internal Retaining Rings - 82.55x2.77x86.21 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
82.55
mm |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
86.21
mm +/- 0.15 (Equiv. 3.394 in.) |
Approx. Loose Circlip OD (Dr)
87.43
mm + 1.60 / - 0.00 |
Section (Rd)
5.54
mm +/- 0.13 |
Groove Width (W)
3.05
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip ID: 76.35 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0826-LS-HO (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 82.55x2.77x86.21 mm Snap Rings - Carbon Spring Steel | ||||||
|
Housing Bore (B)
82.55
mm |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
86.21
mm +/- 0.15 (Equiv. 3.394 in.) |
Approx. Loose Circlip OD (Dr)
87.43
mm + 1.60 / - 0.00 |
|
||
| Material: Carbon Spring Steel Section (Rd): 5.54 mm +/- 0.13 Groove Width (W): 3.05 mm Approx. Loose Clip ID: 76.35 Info: Special Open Style Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRI-0826-LS-HO (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||||
