Retaining Rings - Internal - Circlips - Standard - Carbon Steel

Retaining Rings -> Internal -> Circlips -> Standard -> Carbon Steel
Housing Bore (B) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip OD (Dr) Radial Wall (S) Approx. Groove Width (W) Indicative
Internal Retaining Rings - 103x4x108 mm Circlips - Carbon Spring Steel Self Finish Circlip
Housing Bore (B)
103.00
mm
Clip Thickness (T)
4.00
mm
+ 0.00 / - 0.10
(Equiv. 0.157 in.)
Groove Dia. (Dg)
108.00
mm
+ 0.54 / - 0.00
(Equiv. 4.252 in.)
Approx. Loose Circlip OD (Dr)
110.76
mm
+ 1.30 / - 0.54
Groove Width (W)
4.15
mm
+ 0.13 / - 0.00
Internal Retaining Rings - 103x4x108 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish    Clearance in Bore (C): 83.00 mm    Clearance in Groove (C1): 88.00 mm    Min. Lug Diameter (h): 3.500 mm    Min. Extension (n): 6.00    Standard: DIN472
Part Number: CCI-10300-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Housing Bore (B) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip OD (Dr) Indicative
Internal Retaining Rings - 103x4x108 mm Circlips - Carbon Spring Steel Self Finish Circlip
Housing Bore (B)
103.00
mm
Clip Thickness (T)
4.00
mm
+ 0.00 / - 0.10
(Equiv. 0.157 in.)
Groove Dia. (Dg)
108.00
mm
+ 0.54 / - 0.00
(Equiv. 4.252 in.)
Approx. Loose Circlip OD (Dr)
110.76
mm
+ 1.30 / - 0.54
Internal Retaining Rings - 103x4x108 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish    Groove Width (W): 4.15 mm + 0.13 / - 0.00   Clearance in Bore (C): 83.00 mm    Clearance in Groove (C1): 88.00 mm    Min. Lug Diameter (h): 3.500 mm    Min. Extension (n): 6.00    Standard: DIN472
Part Number: CCI-10300-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Thu, Mar 01, 2029
Internal Retaining Rings - 104.78x2.77x110.87 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
104.78
mm
Clip Thickness (T)
2.77
mm
+ 0.00 / - 0.10
(Equiv. 0.109 in.)
Groove Dia. (Dg)
110.87
mm
+/- 0.152
(Equiv. 4.365 in.)
Approx. Loose Circlip OD (Dr)
111.76
mm
+ 1.65 / - 1.65
Groove Width (W)
3.05
mm
+ 0.13 / - 0.00
Internal Retaining Rings - 104.78x2.77x110.87 mm - Carbon Steel
Material: Carbon Steel    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 33
Part Number: CCI-10478-C (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jul 04, 2026
$12.23 AUD
$14.67 AUD $12.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 104.78x2.77x110.87 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
104.78
mm
Clip Thickness (T)
2.77
mm
+ 0.00 / - 0.10
(Equiv. 0.109 in.)
Groove Dia. (Dg)
110.87
mm
+/- 0.152
(Equiv. 4.365 in.)
Approx. Loose Circlip OD (Dr)
111.76
mm
+ 1.65 / - 1.65
Internal Retaining Rings - 104.78x2.77x110.87 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 3.05 mm + 0.13 / - 0.00   Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 33
Part Number: CCI-10478-C (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jul 04, 2026
$12.23 AUD
$14.67 AUD $12.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 105x4x409 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
105.00
mm
Clip Thickness (T)
4.00
mm
+ 0.00 / - 0.10
(Equiv. 0.157 in.)
Groove Dia. (Dg)
409.00
mm
+ 0.54 / - 0.00
(Equiv. 16.102 in.)
Approx. Loose Circlip OD (Dr)
112.00
mm
+ 1.30 / - 0.54
Groove Width (W)
4.15
mm
+ 0.13 / - 0.00
Internal Retaining Rings - 105x4x409 mm - Carbon Steel
Material: Carbon Steel    Clearance in Bore (C): 85.00 mm    Clearance in Groove (C1): 90.00 mm    Min. Lug Diameter (h): 3.50 mm    Min. Extension (n): 6.00    Standard: DIN472
Additional stock available from USA subject to Prior Sale = 212
Part Number: CCI-10500-C (Each)
22 Available Now | Further orders can be expected around Sat, Jul 04, 2026
$5.05 AUD
$9.18 AUD $5.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 22 available can be backordered.
Internal Retaining Rings - 105x4x409 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
105.00
mm
Clip Thickness (T)
4.00
mm
+ 0.00 / - 0.10
(Equiv. 0.157 in.)
Groove Dia. (Dg)
409.00
mm
+ 0.54 / - 0.00
(Equiv. 16.102 in.)
Approx. Loose Circlip OD (Dr)
112.00
mm
+ 1.30 / - 0.54
Internal Retaining Rings - 105x4x409 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 4.15 mm + 0.13 / - 0.00   Clearance in Bore (C): 85.00 mm    Clearance in Groove (C1): 90.00 mm    Min. Lug Diameter (h): 3.50 mm    Min. Extension (n): 6.00    Standard: DIN472
Additional stock available from USA subject to Prior Sale = 212
Part Number: CCI-10500-C (Each)
22 Available Now | Further orders can be expected around Sat, Jul 04, 2026
$5.05 AUD
$9.18 AUD $5.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

22 Available Now. Backorder if more than 22.
Internal Retaining Rings - 105x5x109 mm Circlips - Carbon Spring Steel Self Finish Circlip
Housing Bore (B)
105.00
mm
Clip Thickness (T)
5.00
mm
+ 0.00 / - 0.12
(Equiv. 0.197 in.)
Groove Dia. (Dg)
109.00
mm
+ 0.54 / - 0.00
(Equiv. 4.291 in.)
Approx. Loose Circlip OD (Dr)
112.00
mm
+ 1.30 / - 0.54
Groove Width (W)
5.15
mm
+ 0.13 / - 0.00

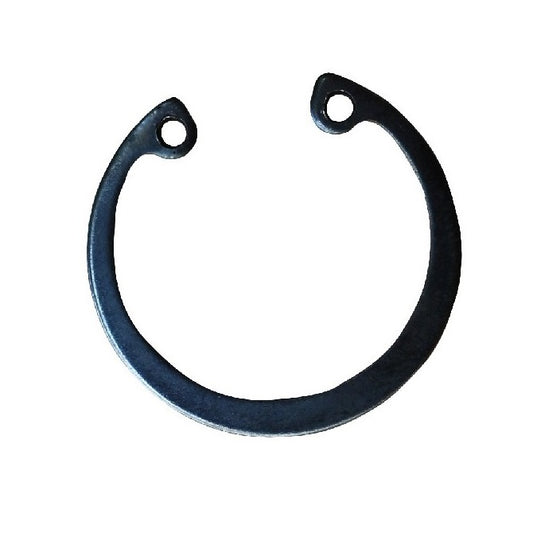

Internal Retaining Rings - 105x5x109 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish    Standard: DIN472
Part Number: CCI-10500H-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 105x5x109 mm Circlips - Carbon Spring Steel Self Finish Circlip
Housing Bore (B)
105.00
mm
Clip Thickness (T)
5.00
mm
+ 0.00 / - 0.12
(Equiv. 0.197 in.)
Groove Dia. (Dg)
109.00
mm
+ 0.54 / - 0.00
(Equiv. 4.291 in.)
Approx. Loose Circlip OD (Dr)
112.00
mm
+ 1.30 / - 0.54
Internal Retaining Rings - 105x5x109 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish    Groove Width (W): 5.15 mm + 0.13 / - 0.00   Standard: DIN472
Part Number: CCI-10500H-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Thu, Mar 01, 2029
Internal Retaining Rings - 107x4x111 mm Circlips - Carbon Spring Steel phosphate and oil finish Circlip
Housing Bore (B)
107.00
mm
Clip Thickness (T)
4.00
mm
+ 0.00 / - 0.10
(Equiv. 0.157 in.)
Groove Dia. (Dg)
111.00
mm
+ 0.54 / - 0.00
(Equiv. 4.37 in.)
Approx. Loose Circlip OD (Dr)
115.00
mm
+ 1.30 / - 0.54
Groove Width (W)
4.15
mm
+ 0.13 / - 0.00
Internal Retaining Rings - 107x4x111 mm - Carbon Spring Steel phosphate and oil finish
Material: Carbon Spring Steel phosphate and oil finish    Min. Extension (n): 6.00    Standard: DIN472
Part Number: CCI-10700-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 107x4x111 mm Circlips - Carbon Spring Steel phosphate and oil finish Circlip
Housing Bore (B)
107.00
mm
Clip Thickness (T)
4.00
mm
+ 0.00 / - 0.10
(Equiv. 0.157 in.)
Groove Dia. (Dg)
111.00
mm
+ 0.54 / - 0.00
(Equiv. 4.37 in.)
Approx. Loose Circlip OD (Dr)
115.00
mm
+ 1.30 / - 0.54
Internal Retaining Rings - 107x4x111 mm - Carbon Spring Steel phosphate and oil finish
Material: Carbon Spring Steel phosphate and oil finish    Groove Width (W): 4.15 mm + 0.13 / - 0.00   Min. Extension (n): 6.00    Standard: DIN472
Part Number: CCI-10700-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Thu, Mar 01, 2029
Internal Retaining Rings - 107.95x2.77x114.05 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
107.95
mm
Clip Thickness (T)
2.77
mm
+ 0.00 / - 0.10
(Equiv. 0.109 in.)
Groove Dia. (Dg)
114.05
mm
+/- 0.152
(Equiv. 4.49 in.)
Approx. Loose Circlip OD (Dr)
116.08
mm
+ 1.65 / - 1.65
Groove Width (W)
3.05
mm
+ 0.13 / - 0.00
Internal Retaining Rings - 107.95x2.77x114.05 mm - Carbon Steel
Material: Carbon Steel    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 566
Part Number: CCI-10795-C (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jul 04, 2026
$11.32 AUD
$13.58 AUD $11.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 107.95x2.77x114.05 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
107.95
mm
Clip Thickness (T)
2.77
mm
+ 0.00 / - 0.10
(Equiv. 0.109 in.)
Groove Dia. (Dg)
114.05
mm
+/- 0.152
(Equiv. 4.49 in.)
Approx. Loose Circlip OD (Dr)
116.08
mm
+ 1.65 / - 1.65
Internal Retaining Rings - 107.95x2.77x114.05 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 3.05 mm + 0.13 / - 0.00   Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 566
Part Number: CCI-10795-C (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jul 04, 2026
$11.32 AUD
$13.58 AUD $11.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 108x4x112 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
108.00
mm
Clip Thickness (T)
4.00
mm
+ 0.00 / - 0.10
(Equiv. 0.157 in.)
Groove Dia. (Dg)
112.00
mm
+ 0.54 / - 0.00
(Equiv. 4.409 in.)
Approx. Loose Circlip OD (Dr)
115.00
mm
+ 1.30 / - 0.54
Groove Width (W)
4.15
mm
+ 0.13 / - 0.00
Internal Retaining Rings - 108x4x112 mm - Carbon Steel
Material: Carbon Steel    Clearance in Bore (C): 88.00 mm    Clearance in Groove (C1): 93.00 mm    Min. Lug Diameter (h): 3.50 mm    Min. Extension (n): 6.00    Standard: DIN472
Part Number: CCI-10800-C (PK-25)
Out of Stock | Backorder Now | Backorder now for delivery around Tue, Aug 25, 2026
$191.50 AUD
$229.80 AUD $191.50 AUD
Priced, Stocked and Sold Per 25 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 108x4x112 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
108.00
mm
Clip Thickness (T)
4.00
mm
+ 0.00 / - 0.10
(Equiv. 0.157 in.)
Groove Dia. (Dg)
112.00
mm
+ 0.54 / - 0.00
(Equiv. 4.409 in.)
Approx. Loose Circlip OD (Dr)
115.00
mm
+ 1.30 / - 0.54
Internal Retaining Rings - 108x4x112 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 4.15 mm + 0.13 / - 0.00   Clearance in Bore (C): 88.00 mm    Clearance in Groove (C1): 93.00 mm    Min. Lug Diameter (h): 3.50 mm    Min. Extension (n): 6.00    Standard: DIN472
Part Number: CCI-10800-C (PK-25)
Out of Stock | Backorder Now | Backorder now for delivery around Tue, Aug 25, 2026
$191.50 AUD
$229.80 AUD $191.50 AUD
Priced, Stocked and Sold Per 25 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 110x4x114 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
110.00
mm
Clip Thickness (T)
4.00
mm
+ 0.00 / - 0.10
(Equiv. 0.157 in.)
Groove Dia. (Dg)
114.00
mm
+ 0.54 / - 0.00
(Equiv. 4.488 in.)
Approx. Loose Circlip OD (Dr)
117.00
mm
+ 1.30 / - 0.54
Groove Width (W)
4.15
mm
+ 0.13 / - 0.00
Internal Retaining Rings - 110x4x114 mm - Carbon Steel
Material: Carbon Steel    Clearance in Bore (C): 88.20 mm    Clearance in Groove (C1): 93.20 mm    Min. Lug Diameter (h): 3.50 mm    Min. Extension (n): 6.00    Standard: DIN472
Additional stock available from USA subject to Prior Sale = 546
Part Number: CCI-11000-C (PK-2)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jul 04, 2026
$18.59 AUD
$22.31 AUD $18.59 AUD
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 110x4x114 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
110.00
mm
Clip Thickness (T)
4.00
mm
+ 0.00 / - 0.10
(Equiv. 0.157 in.)
Groove Dia. (Dg)
114.00
mm
+ 0.54 / - 0.00
(Equiv. 4.488 in.)
Approx. Loose Circlip OD (Dr)
117.00
mm
+ 1.30 / - 0.54
Internal Retaining Rings - 110x4x114 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 4.15 mm + 0.13 / - 0.00   Clearance in Bore (C): 88.20 mm    Clearance in Groove (C1): 93.20 mm    Min. Lug Diameter (h): 3.50 mm    Min. Extension (n): 6.00    Standard: DIN472
Additional stock available from USA subject to Prior Sale = 546
Part Number: CCI-11000-C (PK-2)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jul 04, 2026
$18.59 AUD
$22.31 AUD $18.59 AUD
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.

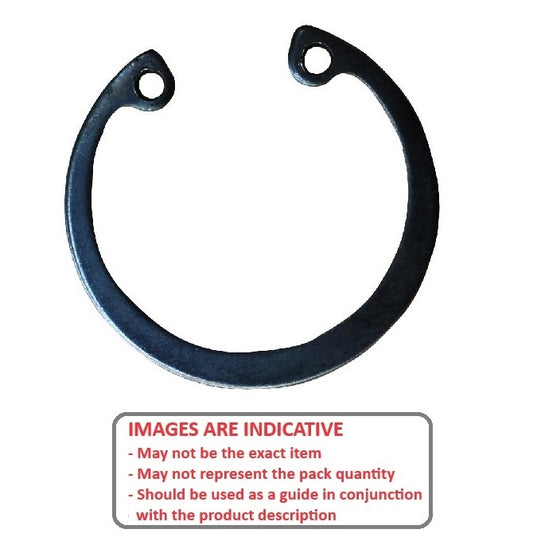

Internal Retaining Rings - 110x5x114 mm Circlips - Carbon Spring Steel Self Finish Circlip
Housing Bore (B)
110.00
mm
Clip Thickness (T)
5.00
mm
+ 0.00 / - 0.12
(Equiv. 0.197 in.)
Groove Dia. (Dg)
114.00
mm
+ 0.54 / - 0.00
(Equiv. 4.488 in.)
Approx. Loose Circlip OD (Dr)
117.00
mm
+ 1.30 / - 0.54
Groove Width (W)
5.15
mm
+ 0.13 / - 0.00
Internal Retaining Rings - 110x5x114 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish    Standard: DIN472
Part Number: CCI-11000H-C (PK-13)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Sep 02, 2026
$184.41 AUD
$221.29 AUD $184.41 AUD
Priced, Stocked and Sold Per 13 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 110x5x114 mm Circlips - Carbon Spring Steel Self Finish Circlip
Housing Bore (B)
110.00
mm
Clip Thickness (T)
5.00
mm
+ 0.00 / - 0.12
(Equiv. 0.197 in.)
Groove Dia. (Dg)
114.00
mm
+ 0.54 / - 0.00
(Equiv. 4.488 in.)
Approx. Loose Circlip OD (Dr)
117.00
mm
+ 1.30 / - 0.54
Internal Retaining Rings - 110x5x114 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish    Groove Width (W): 5.15 mm + 0.13 / - 0.00   Standard: DIN472
Part Number: CCI-11000H-C (PK-13)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Sep 02, 2026
$184.41 AUD
$221.29 AUD $184.41 AUD
Priced, Stocked and Sold Per 13 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 110.01x2.77x116 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
110.01
mm
Clip Thickness (T)
2.77
mm
+ 0.00 / - 0.10
(Equiv. 0.109 in.)
Groove Dia. (Dg)
116.00
mm
+/- 0.152
(Equiv. 4.567 in.)
Approx. Loose Circlip OD (Dr)
120.80
mm
+ 1.65 / - 1.65
Groove Width (W)
3.05
mm
+ 0.13 / - 0.00
Internal Retaining Rings - 110.01x2.77x116 mm - Carbon Steel
Material: Carbon Steel    Clearance in Bore (C): 88.20 mm    Clearance in Groove (C1): 93.20 mm    Min. Lug Diameter (h): 2.50 mm    Min. Extension (n): 6.00    Standard: MIL-16625
Part Number: CCI-11001N-C (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Tue, Jul 14, 2026
$11.77 AUD
$14.13 AUD $11.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 110.01x2.77x116 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
110.01
mm
Clip Thickness (T)
2.77
mm
+ 0.00 / - 0.10
(Equiv. 0.109 in.)
Groove Dia. (Dg)
116.00
mm
+/- 0.152
(Equiv. 4.567 in.)
Approx. Loose Circlip OD (Dr)
120.80
mm
+ 1.65 / - 1.65
Internal Retaining Rings - 110.01x2.77x116 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 3.05 mm + 0.13 / - 0.00   Clearance in Bore (C): 88.20 mm    Clearance in Groove (C1): 93.20 mm    Min. Lug Diameter (h): 2.50 mm    Min. Extension (n): 6.00    Standard: MIL-16625
Part Number: CCI-11001N-C (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Tue, Jul 14, 2026
$11.77 AUD
$14.13 AUD $11.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 112x4x116 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
112.00
mm
Clip Thickness (T)
4.00
mm
+ 0.00 / - 0.10
(Equiv. 0.157 in.)
Groove Dia. (Dg)
116.00
mm
+ 0.54 / - 0.00
(Equiv. 4.567 in.)
Approx. Loose Circlip OD (Dr)
119.00
mm
+ 1.30 / - 0.54
Groove Width (W)
4.15
mm
+ 0.13 / - 0.00
Internal Retaining Rings - 112x4x116 mm - Carbon Steel
Material: Carbon Steel    Clearance in Bore (C): 90.00 mm    Clearance in Groove (C1): 95.00 mm    Min. Lug Diameter (h): 3.50 mm    Min. Extension (n): 6.00    Standard: DIN472
Additional stock available from USA subject to Prior Sale = 471
Part Number: CCI-11200-C (PK-2)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jul 04, 2026
$17.77 AUD
$21.33 AUD $17.77 AUD
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 112x4x116 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
112.00
mm
Clip Thickness (T)
4.00
mm
+ 0.00 / - 0.10
(Equiv. 0.157 in.)
Groove Dia. (Dg)
116.00
mm
+ 0.54 / - 0.00
(Equiv. 4.567 in.)
Approx. Loose Circlip OD (Dr)
119.00
mm
+ 1.30 / - 0.54
Internal Retaining Rings - 112x4x116 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 4.15 mm + 0.13 / - 0.00   Clearance in Bore (C): 90.00 mm    Clearance in Groove (C1): 95.00 mm    Min. Lug Diameter (h): 3.50 mm    Min. Extension (n): 6.00    Standard: DIN472
Additional stock available from USA subject to Prior Sale = 471
Part Number: CCI-11200-C (PK-2)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jul 04, 2026
$17.77 AUD
$21.33 AUD $17.77 AUD
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 114.3x2.77x120.4 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
114.30
mm
Clip Thickness (T)
2.77
mm
+ 0.00 / - 0.10
(Equiv. 0.109 in.)
Groove Dia. (Dg)
120.40
mm
+/- 0.152
(Equiv. 4.74 in.)
Approx. Loose Circlip OD (Dr)
125.48
mm
+ 1.65 / - 1.65
Groove Width (W)
3.05
mm
+ 0.13 / - 0.00
Internal Retaining Rings - 114.3x2.77x120.4 mm - Carbon Steel
Material: Carbon Steel    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 4
Part Number: CCI-11430-C (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Tue, Jul 21, 2026
$11.68 AUD
$14.02 AUD $11.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 114.3x2.77x120.4 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
114.30
mm
Clip Thickness (T)
2.77
mm
+ 0.00 / - 0.10
(Equiv. 0.109 in.)
Groove Dia. (Dg)
120.40
mm
+/- 0.152
(Equiv. 4.74 in.)
Approx. Loose Circlip OD (Dr)
125.48
mm
+ 1.65 / - 1.65
Internal Retaining Rings - 114.3x2.77x120.4 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 3.05 mm + 0.13 / - 0.00   Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 4
Part Number: CCI-11430-C (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Tue, Jul 21, 2026
$11.68 AUD
$14.02 AUD $11.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 115x4x119 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
115.00
mm
Clip Thickness (T)
4.00
mm
+ 0.00 / - 0.10
(Equiv. 0.157 in.)
Groove Dia. (Dg)
119.00
mm
+ 0.54 / - 0.00
(Equiv. 4.685 in.)
Approx. Loose Circlip OD (Dr)
122.00
mm
+ 1.50 / - 0.63
Groove Width (W)
4.15
mm
+ 0.13 / - 0.00
Internal Retaining Rings - 115x4x119 mm - Carbon Steel
Material: Carbon Steel    Clearance in Bore (C): 93.00 mm    Clearance in Groove (C1): 98.00 mm    Min. Lug Diameter (h): 3.50 mm    Min. Extension (n): 6.00    Standard: DIN472
Part Number: CCI-11500-C (Each)
18 Available Now | Further orders can be expected around Tue, Sep 29, 2026
$5.59 AUD
$10.28 AUD $5.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 18 available can be backordered.
Internal Retaining Rings - 115x4x119 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
115.00
mm
Clip Thickness (T)
4.00
mm
+ 0.00 / - 0.10
(Equiv. 0.157 in.)
Groove Dia. (Dg)
119.00
mm
+ 0.54 / - 0.00
(Equiv. 4.685 in.)
Approx. Loose Circlip OD (Dr)
122.00
mm
+ 1.50 / - 0.63
Internal Retaining Rings - 115x4x119 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 4.15 mm + 0.13 / - 0.00   Clearance in Bore (C): 93.00 mm    Clearance in Groove (C1): 98.00 mm    Min. Lug Diameter (h): 3.50 mm    Min. Extension (n): 6.00    Standard: DIN472
Part Number: CCI-11500-C (Each)
18 Available Now | Further orders can be expected around Tue, Sep 29, 2026
$5.59 AUD
$10.28 AUD $5.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

18 Available Now. Backorder if more than 18.
Internal Retaining Rings - 115x5x119 mm Circlips - Carbon Spring Steel Self Finish Circlip
Housing Bore (B)
115.00
mm
Clip Thickness (T)
5.00
mm
+ 0.00 / - 0.12
(Equiv. 0.197 in.)
Groove Dia. (Dg)
119.00
mm
+ 0.54 / - 0.00
(Equiv. 4.685 in.)
Approx. Loose Circlip OD (Dr)
122.00
mm
+ 1.50 / - 0.63
Groove Width (W)
5.15
mm
+ 0.13 / - 0.00
Internal Retaining Rings - 115x5x119 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish    Standard: DIN472
Part Number: CCI-11500H-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 115x5x119 mm Circlips - Carbon Spring Steel Self Finish Circlip
Housing Bore (B)
115.00
mm
Clip Thickness (T)
5.00
mm
+ 0.00 / - 0.12
(Equiv. 0.197 in.)
Groove Dia. (Dg)
119.00
mm
+ 0.54 / - 0.00
(Equiv. 4.685 in.)
Approx. Loose Circlip OD (Dr)
122.00
mm
+ 1.50 / - 0.63
Internal Retaining Rings - 115x5x119 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish    Groove Width (W): 5.15 mm + 0.13 / - 0.00   Standard: DIN472
Part Number: CCI-11500H-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Thu, Mar 01, 2029
Internal Retaining Rings - 117x4x121 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
117.00
mm
Clip Thickness (T)
4.00
mm
+ 0.00 / - 0.10
(Equiv. 0.157 in.)
Groove Dia. (Dg)
121.00
mm
+ 0.54 / - 0.00
(Equiv. 4.764 in.)
Approx. Loose Circlip OD (Dr)
125.00
mm
+ 1.50 / - 0.63
Groove Width (W)
4.15
mm
+ 0.13 / - 0.00
Internal Retaining Rings - 117x4x121 mm - Carbon Steel
Material: Carbon Steel    Min. Extension (n): 6.00    Standard: DIN472
Part Number: CCI-11700-C (PK-2)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 117x4x121 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
117.00
mm
Clip Thickness (T)
4.00
mm
+ 0.00 / - 0.10
(Equiv. 0.157 in.)
Groove Dia. (Dg)
121.00
mm
+ 0.54 / - 0.00
(Equiv. 4.764 in.)
Approx. Loose Circlip OD (Dr)
125.00
mm
+ 1.50 / - 0.63
Internal Retaining Rings - 117x4x121 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 4.15 mm + 0.13 / - 0.00   Min. Extension (n): 6.00    Standard: DIN472
Part Number: CCI-11700-C (PK-2)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Thu, Sep 24, 2026
Internal Retaining Rings - 117.48x2.77x123.57 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
117.48
mm
Clip Thickness (T)
2.77
mm
+ 0.00 / - 0.10
(Equiv. 0.109 in.)
Groove Dia. (Dg)
123.57
mm
+/- 0.152
(Equiv. 4.865 in.)
Approx. Loose Circlip OD (Dr)
126.33
mm
+ 1.50 / - 0.63
Groove Width (W)
3.05
mm
+ 0.13 / - 0.00
Internal Retaining Rings - 117.48x2.77x123.57 mm - Carbon Steel
Material: Carbon Steel    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 633
Part Number: CCI-11748-C (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jul 04, 2026
$21.05 AUD
$25.25 AUD $21.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 117.48x2.77x123.57 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
117.48
mm
Clip Thickness (T)
2.77
mm
+ 0.00 / - 0.10
(Equiv. 0.109 in.)
Groove Dia. (Dg)
123.57
mm
+/- 0.152
(Equiv. 4.865 in.)
Approx. Loose Circlip OD (Dr)
126.33
mm
+ 1.50 / - 0.63
Internal Retaining Rings - 117.48x2.77x123.57 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 3.05 mm + 0.13 / - 0.00   Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 633
Part Number: CCI-11748-C (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jul 04, 2026
$21.05 AUD
$25.25 AUD $21.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 120x4x124 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
120.00
mm
Clip Thickness (T)
4.00
mm
+ 0.00 / - 0.10
(Equiv. 0.157 in.)
Groove Dia. (Dg)
124.00
mm
+ 0.63 / - 0.00
(Equiv. 4.882 in.)
Approx. Loose Circlip OD (Dr)
127.00
mm
+ 1.50 / - 0.63
Groove Width (W)
4.15
mm
+ 0.13 / - 0.00
Internal Retaining Rings - 120x4x124 mm - Carbon Steel
Material: Carbon Steel    Clearance in Bore (C): 96.90 mm    Clearance in Groove (C1): 102.00 mm    Min. Lug Diameter (h): 3.50 mm    Min. Extension (n): 6.00    Standard: DIN472
Additional stock available from USA subject to Prior Sale = 569
Part Number: CCI-12000-C (Each)
72 Available Now | Further orders can be expected around Sat, Jul 04, 2026
$7.23 AUD
$13.33 AUD $7.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 72 available can be backordered.
Internal Retaining Rings - 120x4x124 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
120.00
mm
Clip Thickness (T)
4.00
mm
+ 0.00 / - 0.10
(Equiv. 0.157 in.)
Groove Dia. (Dg)
124.00
mm
+ 0.63 / - 0.00
(Equiv. 4.882 in.)
Approx. Loose Circlip OD (Dr)
127.00
mm
+ 1.50 / - 0.63
Internal Retaining Rings - 120x4x124 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 4.15 mm + 0.13 / - 0.00   Clearance in Bore (C): 96.90 mm    Clearance in Groove (C1): 102.00 mm    Min. Lug Diameter (h): 3.50 mm    Min. Extension (n): 6.00    Standard: DIN472
Additional stock available from USA subject to Prior Sale = 569
Part Number: CCI-12000-C (Each)
72 Available Now | Further orders can be expected around Sat, Jul 04, 2026
$7.23 AUD
$13.33 AUD $7.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

72 Available Now. Backorder if more than 72.
Internal Retaining Rings - 120x5x124 mm Circlips - Carbon Spring Steel Self Finish Circlip
Housing Bore (B)
120.00
mm
Clip Thickness (T)
5.00
mm
+ 0.00 / - 0.12
(Equiv. 0.197 in.)
Groove Dia. (Dg)
124.00
mm
+ 0.54 / - 0.00
(Equiv. 4.882 in.)
Approx. Loose Circlip OD (Dr)
127.00
mm
+ 1.50 / - 0.63
Groove Width (W)
5.15
mm
+ 0.13 / - 0.00
Internal Retaining Rings - 120x5x124 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish    Standard: DIN472
Part Number: CCI-12000H-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 120x5x124 mm Circlips - Carbon Spring Steel Self Finish Circlip
Housing Bore (B)
120.00
mm
Clip Thickness (T)
5.00
mm
+ 0.00 / - 0.12
(Equiv. 0.197 in.)
Groove Dia. (Dg)
124.00
mm
+ 0.54 / - 0.00
(Equiv. 4.882 in.)
Approx. Loose Circlip OD (Dr)
127.00
mm
+ 1.50 / - 0.63
Internal Retaining Rings - 120x5x124 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish    Groove Width (W): 5.15 mm + 0.13 / - 0.00   Standard: DIN472
Part Number: CCI-12000H-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Thu, Mar 01, 2029
Internal Retaining Rings - 120.65x2.77x126.21 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
120.65
mm
Clip Thickness (T)
2.77
mm
+ 0.00 / - 0.10
(Equiv. 0.109 in.)
Groove Dia. (Dg)
126.21
mm
+/- 0.152
(Equiv. 4.969 in.)
Approx. Loose Circlip OD (Dr)
129.03
mm
+ 1.65 / - 1.65
Groove Width (W)
3.05
mm
+ 0.13 / - 0.00
Internal Retaining Rings - 120.65x2.77x126.21 mm - Carbon Steel
Material: Carbon Steel    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 186
Part Number: CCI-12065-C (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jul 04, 2026
$12.32 AUD
$14.78 AUD $12.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 120.65x2.77x126.21 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
120.65
mm
Clip Thickness (T)
2.77
mm
+ 0.00 / - 0.10
(Equiv. 0.109 in.)
Groove Dia. (Dg)
126.21
mm
+/- 0.152
(Equiv. 4.969 in.)
Approx. Loose Circlip OD (Dr)
129.03
mm
+ 1.65 / - 1.65
Internal Retaining Rings - 120.65x2.77x126.21 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 3.05 mm + 0.13 / - 0.00   Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 186
Part Number: CCI-12065-C (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jul 04, 2026
$12.32 AUD
$14.78 AUD $12.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 122x4x126 mm Circlips - Carbon Spring Steel phosphate and oil finish Circlip
Housing Bore (B)
122.00
mm
Clip Thickness (T)
4.00
mm
+ 0.00 / - 0.10
(Equiv. 0.157 in.)
Groove Dia. (Dg)
126.00
mm
+ 0.63 / - 0.00
(Equiv. 4.961 in.)
Approx. Loose Circlip OD (Dr)
129.00
mm
+ 1.50 / - 0.63
Groove Width (W)
4.15
mm
+ 0.13 / - 0.00
Internal Retaining Rings - 122x4x126 mm - Carbon Spring Steel phosphate and oil finish
Material: Carbon Spring Steel phosphate and oil finish    Min. Extension (n): 6.00    Standard: DIN472
Part Number: CCI-12200-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 122x4x126 mm Circlips - Carbon Spring Steel phosphate and oil finish Circlip
Housing Bore (B)
122.00
mm
Clip Thickness (T)
4.00
mm
+ 0.00 / - 0.10
(Equiv. 0.157 in.)
Groove Dia. (Dg)
126.00
mm
+ 0.63 / - 0.00
(Equiv. 4.961 in.)
Approx. Loose Circlip OD (Dr)
129.00
mm
+ 1.50 / - 0.63
Internal Retaining Rings - 122x4x126 mm - Carbon Spring Steel phosphate and oil finish
Material: Carbon Spring Steel phosphate and oil finish    Groove Width (W): 4.15 mm + 0.13 / - 0.00   Min. Extension (n): 6.00    Standard: DIN472
Part Number: CCI-12200-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Thu, Mar 01, 2029
Internal Retaining Rings - 125x4x129 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
125.00
mm
Clip Thickness (T)
4.00
mm
+ 0.00 / - 0.10
(Equiv. 0.157 in.)
Groove Dia. (Dg)
129.00
mm
+ 0.63 / - 0.00
(Equiv. 5.079 in.)
Approx. Loose Circlip OD (Dr)
132.00
mm
+ 1.50 / - 0.63
Groove Width (W)
4.15
mm
+ 0.13 / - 0.00
Internal Retaining Rings - 125x4x129 mm - Carbon Steel
Material: Carbon Steel    Clearance in Bore (C): 101.90 mm    Clearance in Groove (C1): 107.00 mm    Min. Lug Diameter (h): 4.00 mm    Min. Extension (n): 6.00    Standard: DIN472
Additional stock available from USA subject to Prior Sale = 331
Part Number: CCI-12500-C (PK-2)
10 units (20 pcs) Available Now | Further orders can be expected around Sat, Jul 04, 2026
$22.68 AUD
$22.68 AUD
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 10 available can be backordered.
Internal Retaining Rings - 125x4x129 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
125.00
mm
Clip Thickness (T)
4.00
mm
+ 0.00 / - 0.10
(Equiv. 0.157 in.)
Groove Dia. (Dg)
129.00
mm
+ 0.63 / - 0.00
(Equiv. 5.079 in.)
Approx. Loose Circlip OD (Dr)
132.00
mm
+ 1.50 / - 0.63
Internal Retaining Rings - 125x4x129 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 4.15 mm + 0.13 / - 0.00   Clearance in Bore (C): 101.90 mm    Clearance in Groove (C1): 107.00 mm    Min. Lug Diameter (h): 4.00 mm    Min. Extension (n): 6.00    Standard: DIN472
Additional stock available from USA subject to Prior Sale = 331
Part Number: CCI-12500-C (PK-2)
10 units (20 pcs) Available Now | Further orders can be expected around Sat, Jul 04, 2026
$22.68 AUD
$22.68 AUD
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

10 units (20 pcs) Available Now. Backorder if more than 10.
Internal Retaining Rings - 125x5x129 mm Circlips - Carbon Spring Steel Self Finish Circlip
Housing Bore (B)
125.00
mm
Clip Thickness (T)
5.00
mm
+ 0.00 / - 0.12
(Equiv. 0.197 in.)
Groove Dia. (Dg)
129.00
mm
+ 0.63 / - 0.00
(Equiv. 5.079 in.)
Approx. Loose Circlip OD (Dr)
132.00
mm
+ 1.50 / - 0.63
Groove Width (W)
5.15
mm
+ 0.13 / - 0.00
Internal Retaining Rings - 125x5x129 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish    Standard: DIN472
Part Number: CCI-12500H-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 125x5x129 mm Circlips - Carbon Spring Steel Self Finish Circlip
Housing Bore (B)
125.00
mm
Clip Thickness (T)
5.00
mm
+ 0.00 / - 0.12
(Equiv. 0.197 in.)
Groove Dia. (Dg)
129.00
mm
+ 0.63 / - 0.00
(Equiv. 5.079 in.)
Approx. Loose Circlip OD (Dr)
132.00
mm
+ 1.50 / - 0.63
Internal Retaining Rings - 125x5x129 mm - Carbon Spring Steel Self Finish
Material: Carbon Spring Steel Self Finish    Groove Width (W): 5.15 mm + 0.13 / - 0.00   Standard: DIN472
Part Number: CCI-12500H-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Thu, Mar 01, 2029
Internal Retaining Rings - 127x2.84x133.45 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
127.00
mm
Clip Thickness (T)
2.84
mm
+ 0.00 / - 0.08
(Equiv. 0.112 in.)
Groove Dia. (Dg)
133.45
mm
+/- 0.152
(Equiv. 5.254 in.)
Approx. Loose Circlip OD (Dr)
139.32
mm
+ 1.65 / - 1.65
Groove Width (W)
3.05
mm
+ 0.13 / - 0.00
Internal Retaining Rings - 127x2.84x133.45 mm - Carbon Steel
Material: Carbon Steel    Clearance in Bore (C): 103.90 mm    Clearance in Groove (C1): 109.00 mm    Min. Lug Diameter (h): 4.00 mm    Min. Extension (n): 6.00    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 150
Part Number: CCI-12700N-C (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jul 04, 2026
$13.95 AUD
$16.75 AUD $13.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 127x2.84x133.45 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
127.00
mm
Clip Thickness (T)
2.84
mm
+ 0.00 / - 0.08
(Equiv. 0.112 in.)
Groove Dia. (Dg)
133.45
mm
+/- 0.152
(Equiv. 5.254 in.)
Approx. Loose Circlip OD (Dr)
139.32
mm
+ 1.65 / - 1.65
Internal Retaining Rings - 127x2.84x133.45 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 3.05 mm + 0.13 / - 0.00   Clearance in Bore (C): 103.90 mm    Clearance in Groove (C1): 109.00 mm    Min. Lug Diameter (h): 4.00 mm    Min. Extension (n): 6.00    Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 150
Part Number: CCI-12700N-C (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jul 04, 2026
$13.95 AUD
$16.75 AUD $13.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 127x4x131 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
127.00
mm
Clip Thickness (T)
4.00
mm
+ 0.00 / - 0.10
(Equiv. 0.157 in.)
Groove Dia. (Dg)
131.00
mm
+ 0.63 / - 0.00
(Equiv. 5.157 in.)
Approx. Loose Circlip OD (Dr)
135.00
mm
+ 1.50 / - 0.63
Groove Width (W)
4.15
mm
+ 0.13 / - 0.00
Internal Retaining Rings - 127x4x131 mm - Carbon Steel
Material: Carbon Steel    Clearance in Bore (C): 103.90 mm    Clearance in Groove (C1): 109.00 mm    Min. Lug Diameter (h): 4.00 mm    Min. Extension (n): 6.00
Part Number: CCI-12700-C (Each)
150 Available Now | Further orders can be expected around Wed, Jul 15, 2026
$38.41 AUD
$72.80 AUD $38.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 150 available can be backordered.
Internal Retaining Rings - 127x4x131 mm Circlips - Carbon Steel Circlip
Housing Bore (B)
127.00
mm
Clip Thickness (T)
4.00
mm
+ 0.00 / - 0.10
(Equiv. 0.157 in.)
Groove Dia. (Dg)
131.00
mm
+ 0.63 / - 0.00
(Equiv. 5.157 in.)
Approx. Loose Circlip OD (Dr)
135.00
mm
+ 1.50 / - 0.63
Internal Retaining Rings - 127x4x131 mm - Carbon Steel
Material: Carbon Steel    Groove Width (W): 4.15 mm + 0.13 / - 0.00   Clearance in Bore (C): 103.90 mm    Clearance in Groove (C1): 109.00 mm    Min. Lug Diameter (h): 4.00 mm    Min. Extension (n): 6.00
Part Number: CCI-12700-C (Each)
150 Available Now | Further orders can be expected around Wed, Jul 15, 2026
$38.41 AUD
$72.80 AUD $38.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

150 Available Now. Backorder if more than 150.
