Collection: Retaining Rings - Internal - Circlips - Standard - Carbon Steel

Retaining Rings -> Internal -> Circlips -> Standard -> Carbon Steel

Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Radial Wall (S) Approx.	Groove Width (W)	Indicative Image
Internal Retaining Rings - 82x2.5x85.5 mm Circlips - Carbon Steel Circlip
Housing Bore (B) 82.00 mm	Clip Thickness (T) 2.50 mm _{+ 0.00 / - 0.08} (Equiv. 0.098 in.)	Groove Dia. (Dg) 85.50 mm _{+ 0.35 / - 0.00} (Equiv. 3.366 in.)	Approx. Loose Circlip OD (Dr) 87.50 mm + 1.30 / - 0.54		Groove Width (W) 2.65 mm + 0.13 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 64.10 mm Clearance in Groove (C1): 68.50 mm Min. Lug Diameter (h): 3.00 mm Min. Extension (n): 5.30 Standard: DIN472
Part Number: CCI-08200-C (Each) 18 Available Now \| Further orders can be expected around Tue, Jul 21, 2026 Regular price $2.23 AUD Regular price ~~$3.94 AUD~~ Sale price $2.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 18 available can be backordered.
Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Indicative Image
Internal Retaining Rings - 82x2.5x85.5 mm Circlips - Carbon Steel Circlip
Housing Bore (B) 82.00 mm	Clip Thickness (T) 2.50 mm _{+ 0.00 / - 0.08} (Equiv. 0.098 in.)	Groove Dia. (Dg) 85.50 mm _{+ 0.35 / - 0.00} (Equiv. 3.366 in.)	Approx. Loose Circlip OD (Dr) 87.50 mm + 1.30 / - 0.54
Material: Carbon Steel Groove Width (W): 2.65 mm + 0.13 / - 0.00 Clearance in Bore (C): 64.10 mm Clearance in Groove (C1): 68.50 mm Min. Lug Diameter (h): 3.00 mm Min. Extension (n): 5.30 Standard: DIN472
Part Number: CCI-08200-C (Each) 18 Available Now \| Further orders can be expected around Tue, Jul 21, 2026 Regular price $2.23 AUD Regular price ~~$3.94 AUD~~ Sale price $2.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 18 Available Now. Backorder if more than 18.
CCI-08200-C (Each) --- Internal Retaining Rings - 82x2.5x85.5 mm Circlips - Carbon Steel Circlip Sale CCI-08200-C (Each) --- Internal Retaining Rings - 82x2.5x85.5 mm Circlips - Carbon Steel Circlip Regular price $2.23 AUD Regular price ~~$3.94 AUD~~ Sale price $2.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 18 Available Now Sale
Internal Retaining Rings - 82.55x2.77x87.53 mm Circlips - Carbon Steel Circlip
Housing Bore (B) 82.55 mm	Clip Thickness (T) 2.77 mm _{+ 0.00 / - 0.08} (Equiv. 0.109 in.)	Groove Dia. (Dg) 87.53 mm _{+/- 0.152} (Equiv. 3.446 in.)	Approx. Loose Circlip OD (Dr) 92.02 mm + 1.40 / - 1.40		Groove Width (W) 3.05 mm + 0.13 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 67.31 mm Clearance in Groove (C1): 72.14 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 7.47 Standard: MIL-16625 Additional stock available from USA subject to Prior Sale = 924
Part Number: CCI-08255-C (PK-2) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jul 04, 2026 Regular price $10.95 AUD Regular price ~~$13.15 AUD~~ Sale price $10.95 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Internal Retaining Rings - 82.55x2.77x87.53 mm Circlips - Carbon Steel Circlip
Housing Bore (B) 82.55 mm	Clip Thickness (T) 2.77 mm _{+ 0.00 / - 0.08} (Equiv. 0.109 in.)	Groove Dia. (Dg) 87.53 mm _{+/- 0.152} (Equiv. 3.446 in.)	Approx. Loose Circlip OD (Dr) 92.02 mm + 1.40 / - 1.40
Material: Carbon Steel Groove Width (W): 3.05 mm + 0.13 / - 0.00 Clearance in Bore (C): 67.31 mm Clearance in Groove (C1): 72.14 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 7.47 Standard: MIL-16625 Additional stock available from USA subject to Prior Sale = 924
Part Number: CCI-08255-C (PK-2) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jul 04, 2026 Regular price $10.95 AUD Regular price ~~$13.15 AUD~~ Sale price $10.95 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CCI-08255-C (PK-2) --- Internal Retaining Rings - 82.55x2.77x87.53 mm Circlips - Carbon Steel Circlip Sale CCI-08255-C (PK-2) --- Internal Retaining Rings - 82.55x2.77x87.53 mm Circlips - Carbon Steel Circlip Regular price $10.95 AUD Regular price ~~$13.15 AUD~~ Sale price $10.95 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Internal Retaining Rings - 83x2.5x86.5 mm Circlips - Carbon Spring Steel phosphate and oil finish Circlip
Housing Bore (B) 83.00 mm	Clip Thickness (T) 2.50 mm _{+ 0.00 / - 0.08} (Equiv. 0.098 in.)	Groove Dia. (Dg) 86.50 mm _{+ 0.35 / - 0.00} (Equiv. 3.406 in.)	Approx. Loose Circlip OD (Dr) 88.50 mm + 1.30 / - 0.54		Groove Width (W) 2.65 mm + 0.13 / - 0.00
Material: Carbon Spring Steel phosphate and oil finish Min. Extension (n): 5.30 Standard: DIN472
Part Number: CCI-08300-C (Each) Contact Us \| Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 83x2.5x86.5 mm Circlips - Carbon Spring Steel phosphate and oil finish Circlip
Housing Bore (B) 83.00 mm	Clip Thickness (T) 2.50 mm _{+ 0.00 / - 0.08} (Equiv. 0.098 in.)	Groove Dia. (Dg) 86.50 mm _{+ 0.35 / - 0.00} (Equiv. 3.406 in.)	Approx. Loose Circlip OD (Dr) 88.50 mm + 1.30 / - 0.54
Material: Carbon Spring Steel phosphate and oil finish Groove Width (W): 2.65 mm + 0.13 / - 0.00 Min. Extension (n): 5.30 Standard: DIN472
Part Number: CCI-08300-C (Each) Contact Us \| Special Order Only - Please contact us if you need a large quantity \| Backorder now for delivery around Thu, Mar 01, 2029
Internal Retaining Rings - 84.99x2.77x90.07 mm Circlips - Carbon Steel Circlip
Housing Bore (B) 84.99 mm	Clip Thickness (T) 2.77 mm _{+ 0.00 / - 0.08} (Equiv. 0.109 in.)	Groove Dia. (Dg) 90.07 mm _{+/- 0.152} (Equiv. 3.546 in.)	Approx. Loose Circlip OD (Dr) 94.84 mm + 1.40 / - 1.40		Groove Width (W) 3.05 mm + 0.13 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 68.33 mm Clearance in Groove (C1): 73.41 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 7.62 Standard: MIL-16625 Additional stock available from USA subject to Prior Sale = 232
Part Number: CCI-08499-C (PK-2) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jul 04, 2026 Regular price $11.59 AUD Regular price ~~$13.91 AUD~~ Sale price $11.59 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Internal Retaining Rings - 84.99x2.77x90.07 mm Circlips - Carbon Steel Circlip
Housing Bore (B) 84.99 mm	Clip Thickness (T) 2.77 mm _{+ 0.00 / - 0.08} (Equiv. 0.109 in.)	Groove Dia. (Dg) 90.07 mm _{+/- 0.152} (Equiv. 3.546 in.)	Approx. Loose Circlip OD (Dr) 94.84 mm + 1.40 / - 1.40
Material: Carbon Steel Groove Width (W): 3.05 mm + 0.13 / - 0.00 Clearance in Bore (C): 68.33 mm Clearance in Groove (C1): 73.41 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 7.62 Standard: MIL-16625 Additional stock available from USA subject to Prior Sale = 232
Part Number: CCI-08499-C (PK-2) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jul 04, 2026 Regular price $11.59 AUD Regular price ~~$13.91 AUD~~ Sale price $11.59 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CCI-08499-C (PK-2) --- Internal Retaining Rings - 84.99x2.77x90.07 mm Circlips - Carbon Steel Circlip Sale CCI-08499-C (PK-2) --- Internal Retaining Rings - 84.99x2.77x90.07 mm Circlips - Carbon Steel Circlip Regular price $11.59 AUD Regular price ~~$13.91 AUD~~ Sale price $11.59 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Internal Retaining Rings - 85x3x88.5 mm Circlips - Carbon Steel Circlip
Housing Bore (B) 85.00 mm	Clip Thickness (T) 3.00 mm _{+ 0.00 / - 0.08} (Equiv. 0.118 in.)	Groove Dia. (Dg) 88.50 mm _{+ 0.35 / - 0.00} (Equiv. 3.484 in.)	Approx. Loose Circlip OD (Dr) 90.50 mm + 1.30 / - 0.54		Groove Width (W) 3.15 mm + 0.13 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 66.90 mm Clearance in Groove (C1): 71.30 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 5.30 Standard: DIN472 Additional stock available from USA subject to Prior Sale = 174
Part Number: CCI-08500-C (Each) 27 Available Now \| Further orders can be expected around Sat, Jul 04, 2026 Regular price $2.59 AUD Regular price ~~$4.56 AUD~~ Sale price $2.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 27 available can be backordered.
Internal Retaining Rings - 85x3x88.5 mm Circlips - Carbon Steel Circlip
Housing Bore (B) 85.00 mm	Clip Thickness (T) 3.00 mm _{+ 0.00 / - 0.08} (Equiv. 0.118 in.)	Groove Dia. (Dg) 88.50 mm _{+ 0.35 / - 0.00} (Equiv. 3.484 in.)	Approx. Loose Circlip OD (Dr) 90.50 mm + 1.30 / - 0.54
Material: Carbon Steel Groove Width (W): 3.15 mm + 0.13 / - 0.00 Clearance in Bore (C): 66.90 mm Clearance in Groove (C1): 71.30 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 5.30 Standard: DIN472 Additional stock available from USA subject to Prior Sale = 174
Part Number: CCI-08500-C (Each) 27 Available Now \| Further orders can be expected around Sat, Jul 04, 2026 Regular price $2.59 AUD Regular price ~~$4.56 AUD~~ Sale price $2.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 27 Available Now. Backorder if more than 27.
CCI-08500-C (Each) --- Internal Retaining Rings - 85x3x88.5 mm Circlips - Carbon Steel Circlip Sale CCI-08500-C (Each) --- Internal Retaining Rings - 85x3x88.5 mm Circlips - Carbon Steel Circlip Regular price $2.59 AUD Regular price ~~$4.56 AUD~~ Sale price $2.59 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 27 Available Now Sale
Internal Retaining Rings - 85x4x88.5 mm Circlips - Carbon Steel Circlip
Housing Bore (B) 85.00 mm	Clip Thickness (T) 4.00 mm _{+ 0.00 / - 0.10} (Equiv. 0.157 in.)	Groove Dia. (Dg) 88.50 mm _{+ 0.35 / - 0.00} (Equiv. 3.484 in.)	Approx. Loose Circlip OD (Dr) 90.50 mm + 1.30 / - 0.54		Groove Width (W) 4.15 mm + 0.13 / - 0.00
Material: Carbon Steel Standard: DIN472
Part Number: CCI-08500H-C (PK-500) Out of Stock \| Backorder Now \| Backorder now for delivery around Wed, Sep 02, 2026 Regular price $2,722.32 AUD Regular price ~~$3,266.78 AUD~~ Sale price $2,722.32 AUD Unit price per Priced, Stocked and Sold Per 500 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Internal Retaining Rings - 85x4x88.5 mm Circlips - Carbon Steel Circlip
Housing Bore (B) 85.00 mm	Clip Thickness (T) 4.00 mm _{+ 0.00 / - 0.10} (Equiv. 0.157 in.)	Groove Dia. (Dg) 88.50 mm _{+ 0.35 / - 0.00} (Equiv. 3.484 in.)	Approx. Loose Circlip OD (Dr) 90.50 mm + 1.30 / - 0.54
Material: Carbon Steel Groove Width (W): 4.15 mm + 0.13 / - 0.00 Standard: DIN472
Part Number: CCI-08500H-C (PK-500) Out of Stock \| Backorder Now \| Backorder now for delivery around Wed, Sep 02, 2026 Regular price $2,722.32 AUD Regular price ~~$3,266.78 AUD~~ Sale price $2,722.32 AUD Unit price per Priced, Stocked and Sold Per 500 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CCI-08500H-C (PK-500) --- Internal Retaining Rings - 85x4x88.5 mm Circlips - Carbon Steel Circlip Sale CCI-08500H-C (PK-500) --- Internal Retaining Rings - 85x4x88.5 mm Circlips - Carbon Steel Circlip Regular price $2,722.32 AUD Regular price ~~$3,266.78 AUD~~ Sale price $2,722.32 AUD Unit price per Priced, Stocked and Sold Per 500 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Internal Retaining Rings - 87x3x90.5 mm Circlips - Carbon Spring Steel Self Finish Circlip
Housing Bore (B) 87.00 mm	Clip Thickness (T) 3.00 mm _{+ 0.00 / - 0.08} (Equiv. 0.118 in.)	Groove Dia. (Dg) 90.50 mm _{+ 0.35 / - 0.00} (Equiv. 3.563 in.)	Approx. Loose Circlip OD (Dr) 93.50 mm + 1.30 / - 0.54		Groove Width (W) 3.15 mm + 0.13 / - 0.00
Material: Carbon Spring Steel Self Finish Clearance in Bore (C): 68.90 mm Clearance in Groove (C1): 73.30 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 5.30 Standard: DIN472
Part Number: CCI-08700-C (Each) Contact Us \| Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 87x3x90.5 mm Circlips - Carbon Spring Steel Self Finish Circlip
Housing Bore (B) 87.00 mm	Clip Thickness (T) 3.00 mm _{+ 0.00 / - 0.08} (Equiv. 0.118 in.)	Groove Dia. (Dg) 90.50 mm _{+ 0.35 / - 0.00} (Equiv. 3.563 in.)	Approx. Loose Circlip OD (Dr) 93.50 mm + 1.30 / - 0.54
Material: Carbon Spring Steel Self Finish Groove Width (W): 3.15 mm + 0.13 / - 0.00 Clearance in Bore (C): 68.90 mm Clearance in Groove (C1): 73.30 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 5.30 Standard: DIN472
Part Number: CCI-08700-C (Each) Contact Us \| Special Order Only - Please contact us if you need a large quantity \| Backorder now for delivery around Thu, Mar 01, 2029
Internal Retaining Rings - 88x3x91.5 mm Circlips - Carbon Steel Circlip
Housing Bore (B) 88.00 mm	Clip Thickness (T) 3.00 mm _{+ 0.00 / - 0.08} (Equiv. 0.118 in.)	Groove Dia. (Dg) 91.50 mm _{+ 0.35 / - 0.00} (Equiv. 3.602 in.)	Approx. Loose Circlip OD (Dr) 93.50 mm + 1.30 / - 0.54		Groove Width (W) 3.15 mm + 0.13 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 69.90 mm Clearance in Groove (C1): 74.30 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 5.30 Standard: DIN472
Part Number: CCI-08800-C (PK-125) Out of Stock \| Backorder Now \| Backorder now for delivery around Wed, Sep 02, 2026 Regular price $432.05 AUD Regular price ~~$518.45 AUD~~ Sale price $432.05 AUD Unit price per Priced, Stocked and Sold Per 125 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Internal Retaining Rings - 88x3x91.5 mm Circlips - Carbon Steel Circlip
Housing Bore (B) 88.00 mm	Clip Thickness (T) 3.00 mm _{+ 0.00 / - 0.08} (Equiv. 0.118 in.)	Groove Dia. (Dg) 91.50 mm _{+ 0.35 / - 0.00} (Equiv. 3.602 in.)	Approx. Loose Circlip OD (Dr) 93.50 mm + 1.30 / - 0.54
Material: Carbon Steel Groove Width (W): 3.15 mm + 0.13 / - 0.00 Clearance in Bore (C): 69.90 mm Clearance in Groove (C1): 74.30 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 5.30 Standard: DIN472
Part Number: CCI-08800-C (PK-125) Out of Stock \| Backorder Now \| Backorder now for delivery around Wed, Sep 02, 2026 Regular price $432.05 AUD Regular price ~~$518.45 AUD~~ Sale price $432.05 AUD Unit price per Priced, Stocked and Sold Per 125 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CCI-08800-C (PK-125) --- Internal Retaining Rings - 88x3x91.5 mm Circlips - Carbon Steel Circlip Sale CCI-08800-C (PK-125) --- Internal Retaining Rings - 88x3x91.5 mm Circlips - Carbon Steel Circlip Regular price $432.05 AUD Regular price ~~$518.45 AUD~~ Sale price $432.05 AUD Unit price per Priced, Stocked and Sold Per 125 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Internal Retaining Rings - 88.11x2.77x93.35 mm Circlips - Carbon Steel Circlip
Housing Bore (B) 88.11 mm	Clip Thickness (T) 2.77 mm _{+ 0.00 / - 0.08} (Equiv. 0.109 in.)	Groove Dia. (Dg) 93.35 mm _{+/- 0.152} (Equiv. 3.675 in.)	Approx. Loose Circlip OD (Dr) 97.97 mm + 1.40 / - 1.40		Groove Width (W) 3.05 mm + 0.13 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 70.36 mm Clearance in Groove (C1): 75.18 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 7.85 Standard: MIL-16625 Additional stock available from USA subject to Prior Sale = 145
Part Number: CCI-08811-C (PK-2) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jul 04, 2026 Regular price $15.59 AUD Regular price ~~$18.71 AUD~~ Sale price $15.59 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Internal Retaining Rings - 88.11x2.77x93.35 mm Circlips - Carbon Steel Circlip
Housing Bore (B) 88.11 mm	Clip Thickness (T) 2.77 mm _{+ 0.00 / - 0.08} (Equiv. 0.109 in.)	Groove Dia. (Dg) 93.35 mm _{+/- 0.152} (Equiv. 3.675 in.)	Approx. Loose Circlip OD (Dr) 97.97 mm + 1.40 / - 1.40
Material: Carbon Steel Groove Width (W): 3.05 mm + 0.13 / - 0.00 Clearance in Bore (C): 70.36 mm Clearance in Groove (C1): 75.18 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 7.85 Standard: MIL-16625 Additional stock available from USA subject to Prior Sale = 145
Part Number: CCI-08811-C (PK-2) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jul 04, 2026 Regular price $15.59 AUD Regular price ~~$18.71 AUD~~ Sale price $15.59 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CCI-08811-C (PK-2) --- Internal Retaining Rings - 88.11x2.77x93.35 mm Circlips - Carbon Steel Circlip Sale CCI-08811-C (PK-2) --- Internal Retaining Rings - 88.11x2.77x93.35 mm Circlips - Carbon Steel Circlip Regular price $15.59 AUD Regular price ~~$18.71 AUD~~ Sale price $15.59 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Internal Retaining Rings - 88.9x2.77x94.23 mm Circlips - Carbon Steel Circlip
Housing Bore (B) 88.90 mm	Clip Thickness (T) 2.77 mm _{+ 0.00 / - 0.08} (Equiv. 0.109 in.)	Groove Dia. (Dg) 94.23 mm _{+/- 0.152} (Equiv. 3.71 in.)	Approx. Loose Circlip OD (Dr) 98.81 mm + 1.40 / - 1.40		Groove Width (W) 3.05 mm + 0.13 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 71.12 mm Clearance in Groove (C1): 73.66 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 8.00 Standard: MIL-16625 Additional stock available from USA subject to Prior Sale = 430
Part Number: CCI-08890-C (PK-2) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jul 04, 2026 Regular price $14.50 AUD Regular price ~~$17.40 AUD~~ Sale price $14.50 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Internal Retaining Rings - 88.9x2.77x94.23 mm Circlips - Carbon Steel Circlip
Housing Bore (B) 88.90 mm	Clip Thickness (T) 2.77 mm _{+ 0.00 / - 0.08} (Equiv. 0.109 in.)	Groove Dia. (Dg) 94.23 mm _{+/- 0.152} (Equiv. 3.71 in.)	Approx. Loose Circlip OD (Dr) 98.81 mm + 1.40 / - 1.40
Material: Carbon Steel Groove Width (W): 3.05 mm + 0.13 / - 0.00 Clearance in Bore (C): 71.12 mm Clearance in Groove (C1): 73.66 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 8.00 Standard: MIL-16625 Additional stock available from USA subject to Prior Sale = 430
Part Number: CCI-08890-C (PK-2) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jul 04, 2026 Regular price $14.50 AUD Regular price ~~$17.40 AUD~~ Sale price $14.50 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CCI-08890-C (PK-2) --- Internal Retaining Rings - 88.9x2.77x94.23 mm Circlips - Carbon Steel Circlip Sale CCI-08890-C (PK-2) --- Internal Retaining Rings - 88.9x2.77x94.23 mm Circlips - Carbon Steel Circlip Regular price $14.50 AUD Regular price ~~$17.40 AUD~~ Sale price $14.50 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Internal Retaining Rings - 89.99x2.77x95.91 mm Circlips - Carbon Steel Circlip
Housing Bore (B) 89.99 mm	Clip Thickness (T) 2.77 mm _{+ 0.00 / - 0.08} (Equiv. 0.109 in.)	Groove Dia. (Dg) 95.91 mm _{+/- 0.152} (Equiv. 3.776 in.)	Approx. Loose Circlip OD (Dr) 99.97 mm + 1.40 / - 1.40		Groove Width (W) 3.05 mm + 0.13 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 72.14 mm Clearance in Groove (C1): 77.98 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 8.15 Standard: MIL-16625
Part Number: CCI-08999-C (PK-2) Out of Stock \| Backorder Now \| Backorder now for delivery around Tue, Jul 14, 2026 Regular price $13.14 AUD Regular price ~~$15.76 AUD~~ Sale price $13.14 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Internal Retaining Rings - 89.99x2.77x95.91 mm Circlips - Carbon Steel Circlip
Housing Bore (B) 89.99 mm	Clip Thickness (T) 2.77 mm _{+ 0.00 / - 0.08} (Equiv. 0.109 in.)	Groove Dia. (Dg) 95.91 mm _{+/- 0.152} (Equiv. 3.776 in.)	Approx. Loose Circlip OD (Dr) 99.97 mm + 1.40 / - 1.40
Material: Carbon Steel Groove Width (W): 3.05 mm + 0.13 / - 0.00 Clearance in Bore (C): 72.14 mm Clearance in Groove (C1): 77.98 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 8.15 Standard: MIL-16625
Part Number: CCI-08999-C (PK-2) Out of Stock \| Backorder Now \| Backorder now for delivery around Tue, Jul 14, 2026 Regular price $13.14 AUD Regular price ~~$15.76 AUD~~ Sale price $13.14 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CCI-08999-C (PK-2) --- Internal Retaining Rings - 89.99x2.77x95.91 mm Circlips - Carbon Steel Circlip Sale CCI-08999-C (PK-2) --- Internal Retaining Rings - 89.99x2.77x95.91 mm Circlips - Carbon Steel Circlip Regular price $13.14 AUD Regular price ~~$15.76 AUD~~ Sale price $13.14 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Internal Retaining Rings - 90x3x93.5 mm Circlips - Carbon Steel Circlip
Housing Bore (B) 90.00 mm	Clip Thickness (T) 3.00 mm _{+ 0.00 / - 0.08} (Equiv. 0.118 in.)	Groove Dia. (Dg) 93.50 mm _{+ 0.35 / - 0.00} (Equiv. 3.681 in.)	Approx. Loose Circlip OD (Dr) 95.50 mm + 1.30 / - 0.54		Groove Width (W) 3.15 mm + 0.13 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 71.90 mm Clearance in Groove (C1): 76.30 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 5.30 Standard: DIN472 Additional stock available from USA subject to Prior Sale = 511
Part Number: CCI-09000-C (Each) 493 Available Now \| Further orders can be expected around Sat, Jul 04, 2026 Regular price $5.14 AUD Regular price Sale price $5.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 493 available can be backordered.
Internal Retaining Rings - 90x3x93.5 mm Circlips - Carbon Steel Circlip
Housing Bore (B) 90.00 mm	Clip Thickness (T) 3.00 mm _{+ 0.00 / - 0.08} (Equiv. 0.118 in.)	Groove Dia. (Dg) 93.50 mm _{+ 0.35 / - 0.00} (Equiv. 3.681 in.)	Approx. Loose Circlip OD (Dr) 95.50 mm + 1.30 / - 0.54
Material: Carbon Steel Groove Width (W): 3.15 mm + 0.13 / - 0.00 Clearance in Bore (C): 71.90 mm Clearance in Groove (C1): 76.30 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 5.30 Standard: DIN472 Additional stock available from USA subject to Prior Sale = 511
Part Number: CCI-09000-C (Each) 493 Available Now \| Further orders can be expected around Sat, Jul 04, 2026 Regular price $5.14 AUD Regular price Sale price $5.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 493 Available Now. Backorder if more than 493.
CCI-09000-C (Each) --- Internal Retaining Rings - 90x3x93.5 mm Circlips - Carbon Steel Circlip CCI-09000-C (Each) --- Internal Retaining Rings - 90x3x93.5 mm Circlips - Carbon Steel Circlip Regular price $5.14 AUD Regular price Sale price $5.14 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 493 Available Now
Internal Retaining Rings - 90x4x93.5 mm Circlips - Carbon Spring Steel Self Finish Circlip
Housing Bore (B) 90.00 mm	Clip Thickness (T) 4.00 mm _{+ 0.00 / - 0.10} (Equiv. 0.157 in.)	Groove Dia. (Dg) 93.50 mm _{+ 0.35 / - 0.00} (Equiv. 3.681 in.)	Approx. Loose Circlip OD (Dr) 95.50 mm + 1.30 / - 0.54		Groove Width (W) 4.15 mm + 0.13 / - 0.00
Material: Carbon Spring Steel Self Finish Standard: DIN472
Part Number: CCI-09000H-C (Each) Contact Us \| Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 90x4x93.5 mm Circlips - Carbon Spring Steel Self Finish Circlip
Housing Bore (B) 90.00 mm	Clip Thickness (T) 4.00 mm _{+ 0.00 / - 0.10} (Equiv. 0.157 in.)	Groove Dia. (Dg) 93.50 mm _{+ 0.35 / - 0.00} (Equiv. 3.681 in.)	Approx. Loose Circlip OD (Dr) 95.50 mm + 1.30 / - 0.54
Material: Carbon Spring Steel Self Finish Groove Width (W): 4.15 mm + 0.13 / - 0.00 Standard: DIN472
Part Number: CCI-09000H-C (Each) Contact Us \| Special Order Only - Please contact us if you need a large quantity \| Backorder now for delivery around Thu, Mar 01, 2029
Internal Retaining Rings - 92x3x95.5 mm Circlips - Carbon Steel Circlip
Housing Bore (B) 92.00 mm	Clip Thickness (T) 3.00 mm _{+ 0.00 / - 0.08} (Equiv. 0.118 in.)	Groove Dia. (Dg) 95.50 mm _{+ 0.35 / - 0.00} (Equiv. 3.76 in.)	Approx. Loose Circlip OD (Dr) 97.50 mm + 1.30 / - 0.54		Groove Width (W) 3.15 mm + 0.13 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 73.70 mm Clearance in Groove (C1): 78.10 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 5.30 Standard: DIN472 Additional stock available from USA subject to Prior Sale = 79
Part Number: CCI-09200-C (PK-250) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jul 04, 2026 Regular price $1,571.14 AUD Regular price ~~$1,885.36 AUD~~ Sale price $1,571.14 AUD Unit price per Priced, Stocked and Sold Per 250 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Internal Retaining Rings - 92x3x95.5 mm Circlips - Carbon Steel Circlip
Housing Bore (B) 92.00 mm	Clip Thickness (T) 3.00 mm _{+ 0.00 / - 0.08} (Equiv. 0.118 in.)	Groove Dia. (Dg) 95.50 mm _{+ 0.35 / - 0.00} (Equiv. 3.76 in.)	Approx. Loose Circlip OD (Dr) 97.50 mm + 1.30 / - 0.54
Material: Carbon Steel Groove Width (W): 3.15 mm + 0.13 / - 0.00 Clearance in Bore (C): 73.70 mm Clearance in Groove (C1): 78.10 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 5.30 Standard: DIN472 Additional stock available from USA subject to Prior Sale = 79
Part Number: CCI-09200-C (PK-250) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jul 04, 2026 Regular price $1,571.14 AUD Regular price ~~$1,885.36 AUD~~ Sale price $1,571.14 AUD Unit price per Priced, Stocked and Sold Per 250 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CCI-09200-C (PK-250) --- Internal Retaining Rings - 92x3x95.5 mm Circlips - Carbon Steel Circlip Sale CCI-09200-C (PK-250) --- Internal Retaining Rings - 92x3x95.5 mm Circlips - Carbon Steel Circlip Regular price $1,571.14 AUD Regular price ~~$1,885.36 AUD~~ Sale price $1,571.14 AUD Unit price per Priced, Stocked and Sold Per 250 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Internal Retaining Rings - 92.08x2.77x97.56 mm Circlips - Carbon Steel Circlip
Housing Bore (B) 92.08 mm	Clip Thickness (T) 2.77 mm _{+ 0.00 / - 0.08} (Equiv. 0.109 in.)	Groove Dia. (Dg) 97.56 mm _{+/- 0.152} (Equiv. 3.841 in.)	Approx. Loose Circlip OD (Dr) 102.21 mm + 1.40 / - 1.40		Groove Width (W) 3.05 mm + 0.13 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 74.17 mm Clearance in Groove (C1): 79.50 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 8.23 Standard: MIL-16625 Additional stock available from USA subject to Prior Sale = 52
Part Number: CCI-09208-C (PK-2) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jul 04, 2026 Regular price $18.23 AUD Regular price ~~$21.87 AUD~~ Sale price $18.23 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Internal Retaining Rings - 92.08x2.77x97.56 mm Circlips - Carbon Steel Circlip
Housing Bore (B) 92.08 mm	Clip Thickness (T) 2.77 mm _{+ 0.00 / - 0.08} (Equiv. 0.109 in.)	Groove Dia. (Dg) 97.56 mm _{+/- 0.152} (Equiv. 3.841 in.)	Approx. Loose Circlip OD (Dr) 102.21 mm + 1.40 / - 1.40
Material: Carbon Steel Groove Width (W): 3.05 mm + 0.13 / - 0.00 Clearance in Bore (C): 74.17 mm Clearance in Groove (C1): 79.50 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 8.23 Standard: MIL-16625 Additional stock available from USA subject to Prior Sale = 52
Part Number: CCI-09208-C (PK-2) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jul 04, 2026 Regular price $18.23 AUD Regular price ~~$21.87 AUD~~ Sale price $18.23 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CCI-09208-C (PK-2) --- Internal Retaining Rings - 92.08x2.77x97.56 mm Circlips - Carbon Steel Circlip Sale CCI-09208-C (PK-2) --- Internal Retaining Rings - 92.08x2.77x97.56 mm Circlips - Carbon Steel Circlip Regular price $18.23 AUD Regular price ~~$21.87 AUD~~ Sale price $18.23 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Internal Retaining Rings - 95x3x98.5 mm Circlips - Carbon Steel Circlip
Housing Bore (B) 95.00 mm	Clip Thickness (T) 3.00 mm _{+ 0.00 / - 0.08} (Equiv. 0.118 in.)	Groove Dia. (Dg) 98.50 mm _{+ 0.35 / - 0.00} (Equiv. 3.878 in.)	Approx. Loose Circlip OD (Dr) 100.50 mm + 1.30 / - 0.54		Groove Width (W) 3.15 mm + 0.13 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 76.50 mm Clearance in Groove (C1): 80.90 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 5.30 Standard: DIN472 Additional stock available from USA subject to Prior Sale = 275
Part Number: CCI-09500-C (PK-100) Out of Stock \| Backorder Now \| Backorder now for delivery around Tue, Jul 28, 2026 Regular price $751.32 AUD Regular price ~~$901.58 AUD~~ Sale price $751.32 AUD Unit price per Priced, Stocked and Sold Per 100 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Internal Retaining Rings - 95x3x98.5 mm Circlips - Carbon Steel Circlip
Housing Bore (B) 95.00 mm	Clip Thickness (T) 3.00 mm _{+ 0.00 / - 0.08} (Equiv. 0.118 in.)	Groove Dia. (Dg) 98.50 mm _{+ 0.35 / - 0.00} (Equiv. 3.878 in.)	Approx. Loose Circlip OD (Dr) 100.50 mm + 1.30 / - 0.54
Material: Carbon Steel Groove Width (W): 3.15 mm + 0.13 / - 0.00 Clearance in Bore (C): 76.50 mm Clearance in Groove (C1): 80.90 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 5.30 Standard: DIN472 Additional stock available from USA subject to Prior Sale = 275
Part Number: CCI-09500-C (PK-100) Out of Stock \| Backorder Now \| Backorder now for delivery around Tue, Jul 28, 2026 Regular price $751.32 AUD Regular price ~~$901.58 AUD~~ Sale price $751.32 AUD Unit price per Priced, Stocked and Sold Per 100 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CCI-09500-C (PK-100) --- Internal Retaining Rings - 95x3x98.5 mm Circlips - Carbon Steel Circlip Sale CCI-09500-C (PK-100) --- Internal Retaining Rings - 95x3x98.5 mm Circlips - Carbon Steel Circlip Regular price $751.32 AUD Regular price ~~$901.58 AUD~~ Sale price $751.32 AUD Unit price per Priced, Stocked and Sold Per 100 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Internal Retaining Rings - 95x4x98.5 mm Circlips - Carbon Spring Steel Self Finish Circlip
Housing Bore (B) 95.00 mm	Clip Thickness (T) 4.00 mm _{+ 0.00 / - 0.10} (Equiv. 0.157 in.)	Groove Dia. (Dg) 98.50 mm _{+ 0.35 / - 0.00} (Equiv. 3.878 in.)	Approx. Loose Circlip OD (Dr) 100.50 mm + 1.30 / - 0.54		Groove Width (W) 4.15 mm + 0.13 / - 0.00
Material: Carbon Spring Steel Self Finish Standard: DIN472
Part Number: CCI-09500H-C (Each) Contact Us \| Special Order Only - Please contact us if you need a large quantity

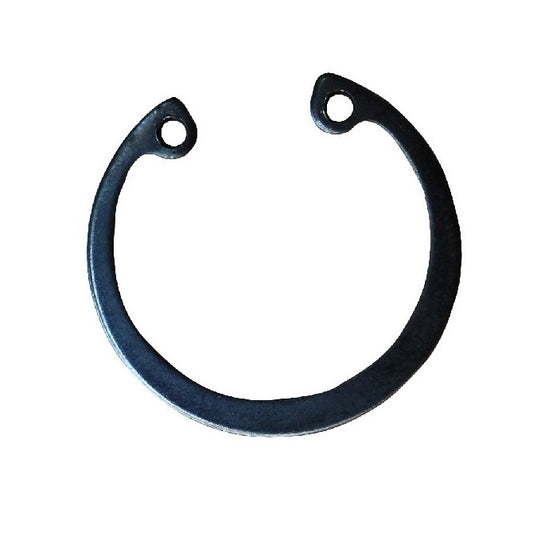

Internal Retaining Rings - 95x4x98.5 mm Circlips - Carbon Spring Steel Self Finish Circlip
Housing Bore (B) 95.00 mm	Clip Thickness (T) 4.00 mm _{+ 0.00 / - 0.10} (Equiv. 0.157 in.)	Groove Dia. (Dg) 98.50 mm _{+ 0.35 / - 0.00} (Equiv. 3.878 in.)	Approx. Loose Circlip OD (Dr) 100.50 mm + 1.30 / - 0.54
Material: Carbon Spring Steel Self Finish Groove Width (W): 4.15 mm + 0.13 / - 0.00 Standard: DIN472
Part Number: CCI-09500H-C (Each) Contact Us \| Special Order Only - Please contact us if you need a large quantity \| Backorder now for delivery around Thu, Mar 01, 2029
Internal Retaining Rings - 95.25x2.77x100.94 mm Circlips - Carbon Steel Circlip
Housing Bore (B) 95.25 mm	Clip Thickness (T) 2.77 mm _{+ 0.00 / - 0.08} (Equiv. 0.109 in.)	Groove Dia. (Dg) 100.94 mm _{+/- 0.152} (Equiv. 3.974 in.)	Approx. Loose Circlip OD (Dr) 105.59 mm + 1.65 / - 1.65		Groove Width (W) 3.05 mm + 0.13 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 77.22 mm Clearance in Groove (C1): 81.69 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 8.53 Standard: MIL-16625
Part Number: CCI-09525-C (PK-2) Out of Stock \| Backorder Now \| Backorder now for delivery around Tue, Aug 25, 2026 Regular price $17.14 AUD Regular price ~~$20.56 AUD~~ Sale price $17.14 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Internal Retaining Rings - 95.25x2.77x100.94 mm Circlips - Carbon Steel Circlip
Housing Bore (B) 95.25 mm	Clip Thickness (T) 2.77 mm _{+ 0.00 / - 0.08} (Equiv. 0.109 in.)	Groove Dia. (Dg) 100.94 mm _{+/- 0.152} (Equiv. 3.974 in.)	Approx. Loose Circlip OD (Dr) 105.59 mm + 1.65 / - 1.65
Material: Carbon Steel Groove Width (W): 3.05 mm + 0.13 / - 0.00 Clearance in Bore (C): 77.22 mm Clearance in Groove (C1): 81.69 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 8.53 Standard: MIL-16625
Part Number: CCI-09525-C (PK-2) Out of Stock \| Backorder Now \| Backorder now for delivery around Tue, Aug 25, 2026 Regular price $17.14 AUD Regular price ~~$20.56 AUD~~ Sale price $17.14 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CCI-09525-C (PK-2) --- Internal Retaining Rings - 95.25x2.77x100.94 mm Circlips - Carbon Steel Circlip Sale CCI-09525-C (PK-2) --- Internal Retaining Rings - 95.25x2.77x100.94 mm Circlips - Carbon Steel Circlip Regular price $17.14 AUD Regular price ~~$20.56 AUD~~ Sale price $17.14 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale

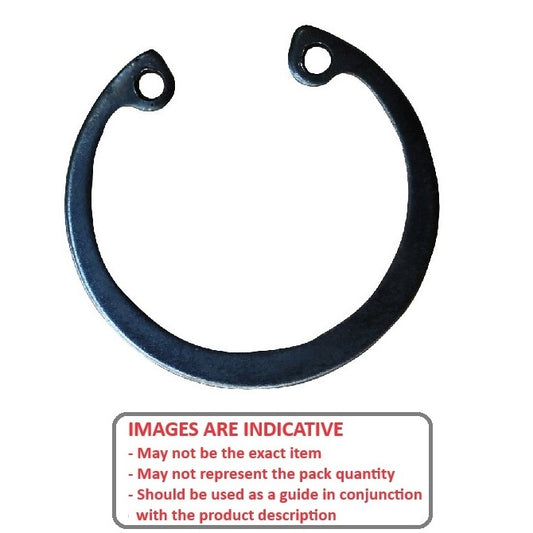

Internal Retaining Rings - 97x3x100.5 mm Circlips - Carbon Spring Steel phosphate and oil finish Circlip
Housing Bore (B) 97.00 mm	Clip Thickness (T) 3.00 mm _{+ 0.00 / - 0.08} (Equiv. 0.118 in.)	Groove Dia. (Dg) 100.50 mm _{+ 0.35 / - 0.00} (Equiv. 3.957 in.)	Approx. Loose Circlip OD (Dr) 103.50 mm + 1.30 / - 0.54		Groove Width (W) 3.15 mm + 0.13 / - 0.00
Material: Carbon Spring Steel phosphate and oil finish Min. Extension (n): 5.30 Standard: DIN472
Part Number: CCI-09700-C (Each) Contact Us \| Special Order Only - Please contact us if you need a large quantity
Internal Retaining Rings - 97x3x100.5 mm Circlips - Carbon Spring Steel phosphate and oil finish Circlip
Housing Bore (B) 97.00 mm	Clip Thickness (T) 3.00 mm _{+ 0.00 / - 0.08} (Equiv. 0.118 in.)	Groove Dia. (Dg) 100.50 mm _{+ 0.35 / - 0.00} (Equiv. 3.957 in.)	Approx. Loose Circlip OD (Dr) 103.50 mm + 1.30 / - 0.54
Material: Carbon Spring Steel phosphate and oil finish Groove Width (W): 3.15 mm + 0.13 / - 0.00 Min. Extension (n): 5.30 Standard: DIN472
Part Number: CCI-09700-C (Each) Contact Us \| Special Order Only - Please contact us if you need a large quantity \| Backorder now for delivery around Thu, Mar 01, 2029
Internal Retaining Rings - 98.43x2.77x104.32 mm Circlips - Carbon Steel Circlip
Housing Bore (B) 98.43 mm	Clip Thickness (T) 2.77 mm _{+ 0.00 / - 0.08} (Equiv. 0.109 in.)	Groove Dia. (Dg) 104.32 mm _{+/- 0.152} (Equiv. 4.107 in.)	Approx. Loose Circlip OD (Dr) 108.99 mm + 1.65 / - 1.65		Groove Width (W) 3.05 mm + 0.13 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 80.52 mm Clearance in Groove (C1): 86.36 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 8.84 Standard: MIL-16625 Additional stock available from USA subject to Prior Sale = 1739
Part Number: CCI-09843-C (PK-2) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jul 04, 2026 Regular price $17.86 AUD Regular price ~~$21.44 AUD~~ Sale price $17.86 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Internal Retaining Rings - 98.43x2.77x104.32 mm Circlips - Carbon Steel Circlip
Housing Bore (B) 98.43 mm	Clip Thickness (T) 2.77 mm _{+ 0.00 / - 0.08} (Equiv. 0.109 in.)	Groove Dia. (Dg) 104.32 mm _{+/- 0.152} (Equiv. 4.107 in.)	Approx. Loose Circlip OD (Dr) 108.99 mm + 1.65 / - 1.65
Material: Carbon Steel Groove Width (W): 3.05 mm + 0.13 / - 0.00 Clearance in Bore (C): 80.52 mm Clearance in Groove (C1): 86.36 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 8.84 Standard: MIL-16625 Additional stock available from USA subject to Prior Sale = 1739
Part Number: CCI-09843-C (PK-2) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jul 04, 2026 Regular price $17.86 AUD Regular price ~~$21.44 AUD~~ Sale price $17.86 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CCI-09843-C (PK-2) --- Internal Retaining Rings - 98.43x2.77x104.32 mm Circlips - Carbon Steel Circlip Sale CCI-09843-C (PK-2) --- Internal Retaining Rings - 98.43x2.77x104.32 mm Circlips - Carbon Steel Circlip Regular price $17.86 AUD Regular price ~~$21.44 AUD~~ Sale price $17.86 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Internal Retaining Rings - 100x3x103.5 mm Circlips - Carbon Steel Circlip
Housing Bore (B) 100.00 mm	Clip Thickness (T) 3.00 mm _{+ 0.00 / - 0.08} (Equiv. 0.118 in.)	Groove Dia. (Dg) 103.50 mm _{+ 0.35 / - 0.00} (Equiv. 4.075 in.)	Approx. Loose Circlip OD (Dr) 105.50 mm + 1.30 / - 0.54		Groove Width (W) 3.15 mm + 0.13 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 80.60 mm Clearance in Groove (C1): 85.10 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 5.30 Standard: DIN472 Additional stock available from USA subject to Prior Sale = 190
Part Number: CCI-10000-C (Each) 235 Available Now \| Further orders can be expected around Sat, Jul 04, 2026 Regular price $3.32 AUD Regular price ~~$5.86 AUD~~ Sale price $3.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 235 available can be backordered.
Internal Retaining Rings - 100x3x103.5 mm Circlips - Carbon Steel Circlip
Housing Bore (B) 100.00 mm	Clip Thickness (T) 3.00 mm _{+ 0.00 / - 0.08} (Equiv. 0.118 in.)	Groove Dia. (Dg) 103.50 mm _{+ 0.35 / - 0.00} (Equiv. 4.075 in.)	Approx. Loose Circlip OD (Dr) 105.50 mm + 1.30 / - 0.54
Material: Carbon Steel Groove Width (W): 3.15 mm + 0.13 / - 0.00 Clearance in Bore (C): 80.60 mm Clearance in Groove (C1): 85.10 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 5.30 Standard: DIN472 Additional stock available from USA subject to Prior Sale = 190
Part Number: CCI-10000-C (Each) 235 Available Now \| Further orders can be expected around Sat, Jul 04, 2026 Regular price $3.32 AUD Regular price ~~$5.86 AUD~~ Sale price $3.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 235 Available Now. Backorder if more than 235.
CCI-10000-C (Each) --- Internal Retaining Rings - 100x3x103.5 mm Circlips - Carbon Steel Circlip Sale CCI-10000-C (Each) --- Internal Retaining Rings - 100x3x103.5 mm Circlips - Carbon Steel Circlip Regular price $3.32 AUD Regular price ~~$5.86 AUD~~ Sale price $3.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 235 Available Now Sale
Internal Retaining Rings - 100.01x2.77x106.02 mm Circlips - Carbon Steel Circlip
Housing Bore (B) 100.01 mm	Clip Thickness (T) 2.77 mm _{+ 0.00 / - 0.10} (Equiv. 0.109 in.)	Groove Dia. (Dg) 106.02 mm _{+/- 0.152} (Equiv. 4.174 in.)	Approx. Loose Circlip OD (Dr) 110.69 mm + 1.65 / - 1.65		Groove Width (W) 3.05 mm + 0.13 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 82.04 mm Clearance in Groove (C1): 87.88 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 8.99 Standard: MIL-16625 Additional stock available from USA subject to Prior Sale = 430
Part Number: CCI-10001-C (PK-2) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jul 04, 2026 Regular price $16.14 AUD Regular price ~~$19.36 AUD~~ Sale price $16.14 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Internal Retaining Rings - 100.01x2.77x106.02 mm Circlips - Carbon Steel Circlip
Housing Bore (B) 100.01 mm	Clip Thickness (T) 2.77 mm _{+ 0.00 / - 0.10} (Equiv. 0.109 in.)	Groove Dia. (Dg) 106.02 mm _{+/- 0.152} (Equiv. 4.174 in.)	Approx. Loose Circlip OD (Dr) 110.69 mm + 1.65 / - 1.65
Material: Carbon Steel Groove Width (W): 3.05 mm + 0.13 / - 0.00 Clearance in Bore (C): 82.04 mm Clearance in Groove (C1): 87.88 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 8.99 Standard: MIL-16625 Additional stock available from USA subject to Prior Sale = 430
Part Number: CCI-10001-C (PK-2) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jul 04, 2026 Regular price $16.14 AUD Regular price ~~$19.36 AUD~~ Sale price $16.14 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CCI-10001-C (PK-2) --- Internal Retaining Rings - 100.01x2.77x106.02 mm Circlips - Carbon Steel Circlip Sale CCI-10001-C (PK-2) --- Internal Retaining Rings - 100.01x2.77x106.02 mm Circlips - Carbon Steel Circlip Regular price $16.14 AUD Regular price ~~$19.36 AUD~~ Sale price $16.14 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Internal Retaining Rings - 101.6x2.84x107.54 mm Circlips - Carbon Steel Circlip
Housing Bore (B) 101.60 mm	Clip Thickness (T) 2.84 mm _{+ 0.00 / - 0.10} (Equiv. 0.112 in.)	Groove Dia. (Dg) 107.54 mm _{+/- 0.152} (Equiv. 4.234 in.)	Approx. Loose Circlip OD (Dr) 112.37 mm + 1.65 / - 1.65		Groove Width (W) 3.05 mm + 0.13 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 82.30 mm Clearance in Groove (C1): 88.14 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 9.14 Standard: MIL-16625 Additional stock available from USA subject to Prior Sale = 431
Part Number: CCI-10160-C (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jul 04, 2026 Regular price $15.68 AUD Regular price Sale price $15.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Internal Retaining Rings - 101.6x2.84x107.54 mm Circlips - Carbon Steel Circlip
Housing Bore (B) 101.60 mm	Clip Thickness (T) 2.84 mm _{+ 0.00 / - 0.10} (Equiv. 0.112 in.)	Groove Dia. (Dg) 107.54 mm _{+/- 0.152} (Equiv. 4.234 in.)	Approx. Loose Circlip OD (Dr) 112.37 mm + 1.65 / - 1.65
Material: Carbon Steel Groove Width (W): 3.05 mm + 0.13 / - 0.00 Clearance in Bore (C): 82.30 mm Clearance in Groove (C1): 88.14 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 9.14 Standard: MIL-16625 Additional stock available from USA subject to Prior Sale = 431
Part Number: CCI-10160-C (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jul 04, 2026 Regular price $15.68 AUD Regular price Sale price $15.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CCI-10160-C (Each) --- Internal Retaining Rings - 101.6x2.84x107.54 mm Circlips - Carbon Steel Circlip CCI-10160-C (Each) --- Internal Retaining Rings - 101.6x2.84x107.54 mm Circlips - Carbon Steel Circlip Regular price $15.68 AUD Regular price Sale price $15.68 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Internal Retaining Rings - 102x4x106 mm Circlips - Carbon Steel Circlip
Housing Bore (B) 102.00 mm	Clip Thickness (T) 4.00 mm _{+ 0.00 / - 0.10} (Equiv. 0.157 in.)	Groove Dia. (Dg) 106.00 mm _{+ 0.54 / - 0.00} (Equiv. 4.173 in.)	Approx. Loose Circlip OD (Dr) 108.00 mm + 1.30 / - 0.54		Groove Width (W) 4.15 mm + 0.13 / - 0.00
Material: Carbon Steel Clearance in Bore (C): 82.00 mm Clearance in Groove (C1): 87.00 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 6.00 Standard: DIN472 Additional stock available from USA subject to Prior Sale = 458
Part Number: CCI-10200-C (PK-2) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jul 04, 2026 Regular price $15.14 AUD Regular price ~~$18.16 AUD~~ Sale price $15.14 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Internal Retaining Rings - 102x4x106 mm Circlips - Carbon Steel Circlip
Housing Bore (B) 102.00 mm	Clip Thickness (T) 4.00 mm _{+ 0.00 / - 0.10} (Equiv. 0.157 in.)	Groove Dia. (Dg) 106.00 mm _{+ 0.54 / - 0.00} (Equiv. 4.173 in.)	Approx. Loose Circlip OD (Dr) 108.00 mm + 1.30 / - 0.54
Material: Carbon Steel Groove Width (W): 4.15 mm + 0.13 / - 0.00 Clearance in Bore (C): 82.00 mm Clearance in Groove (C1): 87.00 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 6.00 Standard: DIN472 Additional stock available from USA subject to Prior Sale = 458
Part Number: CCI-10200-C (PK-2) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Jul 04, 2026 Regular price $15.14 AUD Regular price ~~$18.16 AUD~~ Sale price $15.14 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
CCI-10200-C (PK-2) --- Internal Retaining Rings - 102x4x106 mm Circlips - Carbon Steel Circlip Sale CCI-10200-C (PK-2) --- Internal Retaining Rings - 102x4x106 mm Circlips - Carbon Steel Circlip Regular price $15.14 AUD Regular price ~~$18.16 AUD~~ Sale price $15.14 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale

Miniature Bearings Australia Pty Ltd
3/8 Boyland Avenue
Coopers Plains, Queensland, Australia.
(ABN: 94 069 113 800)
