Collection: Pulleys - Metric Timing - 5.000mm Pitch - AT5 - 25mm Wide

Pulleys (With Images)

Metric Timing

5.000mm Pitch

10mm Wide
16mm Wide
25mm Wide

19 Products in this selection

Timing pulleys to suit AT5 Series belts
Aluminium Alloy
Steel Flanges
Hub is unthreaded, you will need to drill and tap with your required locking screw size

Additional resources:
Timing Pulleys Catalogue PDF
5mm AT Timing Belts

A more concise listing may be found on the Smallparts store at Pulleys - Metric Timing - 5.000mm Pitch - AT5 - 25mm Wide. Smallparts promote the most popular MBA products.

Teeth	Max Belt Width	Bore (d)	Bore Type	Locking Type
Teeth 12	Max Belt Width 25.00 mm	Bore (d) No Bore mm	Bore Type Plain	Locking Type None
Material: Aluminium Type: 2 Pitch Dia. (PD): 19.09 mm Flange Diameter (FD): 23.0 mm Overall Length: 36.0 mm Hub Diameter (HD): 11.0
Part Number: P-050A-012-250FF-AL-N-000 Metric Timing Pulleys - 12 tooth - 25 - No Bore - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $63.95 AUD Regular price Sale price $63.95 AUD Unit price per Each
Teeth	Max Belt Width	Bore (d)	Bore Type	Indicative Image
Teeth 12	Max Belt Width 25.00 mm	Bore (d) No Bore mm	Bore Type Plain
Material: Aluminium Locking Type: None Type: 2 Pitch Dia. (PD): 19.09 mm Flange Diameter (FD): 23.0 mm Overall Length: 36.0 mm Hub Diameter (HD): 11.0
Part Number: P-050A-012-250FF-AL-N-000 Metric Timing Pulleys - 12 tooth - 25 - No Bore - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $63.95 AUD Regular price Sale price $63.95 AUD Unit price per Each View the product page first if you are unsure.
P-050A-012-250FF-AL-N-000 --- Metric Timing Pulleys - 12 tooth - 25 - No Bore - Aluminium P-050A-012-250FF-AL-N-000 --- Metric Timing Pulleys - 12 tooth - 25 - No Bore - Aluminium Regular price $63.95 AUD Regular price Sale price $63.95 AUD Unit price per Out of stock! Backorder Now
Teeth 14	Max Belt Width 25.00 mm	Bore (d) No Bore mm	Bore Type Plain	Locking Type None
Material: Aluminium Type: 2 Pitch Dia. (PD): 22.27 mm Flange Diameter (FD): 25.0 mm Overall Length: 36.0 mm Hub Diameter (HD): 13.0
Part Number: P-050A-014-250FF-AL-N-000 Metric Timing Pulleys - 14 tooth - 25 - No Bore - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $64.50 AUD Regular price Sale price $64.50 AUD Unit price per Each
Teeth 14	Max Belt Width 25.00 mm	Bore (d) No Bore mm	Bore Type Plain
Material: Aluminium Locking Type: None Type: 2 Pitch Dia. (PD): 22.27 mm Flange Diameter (FD): 25.0 mm Overall Length: 36.0 mm Hub Diameter (HD): 13.0
Part Number: P-050A-014-250FF-AL-N-000 Metric Timing Pulleys - 14 tooth - 25 - No Bore - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $64.50 AUD Regular price Sale price $64.50 AUD Unit price per Each View the product page first if you are unsure.
P-050A-014-250FF-AL-N-000 --- Metric Timing Pulleys - 14 tooth - 25 - No Bore - Aluminium P-050A-014-250FF-AL-N-000 --- Metric Timing Pulleys - 14 tooth - 25 - No Bore - Aluminium Regular price $64.50 AUD Regular price Sale price $64.50 AUD Unit price per Out of stock! Backorder Now
Teeth 15	Max Belt Width 25.00 mm	Bore (d) 6.000 mm	Bore Type Plain	Locking Type None
Material: Aluminium Type: 2 Pitch Dia. (PD): 23.86 mm Flange Diameter (FD): 28.0 mm Overall Length: 36.0 mm Hub Diameter (HD): 16.0
Part Number: P-050A-015-250FF-AL-N-060 Metric Timing Pulleys - 15 tooth - 25x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $65.95 AUD Regular price Sale price $65.95 AUD Unit price per Each
Teeth 15	Max Belt Width 25.00 mm	Bore (d) 6.000 mm	Bore Type Plain
Material: Aluminium Locking Type: None Type: 2 Pitch Dia. (PD): 23.86 mm Flange Diameter (FD): 28.0 mm Overall Length: 36.0 mm Hub Diameter (HD): 16.0
Part Number: P-050A-015-250FF-AL-N-060 Metric Timing Pulleys - 15 tooth - 25x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $65.95 AUD Regular price Sale price $65.95 AUD Unit price per Each View the product page first if you are unsure.
P-050A-015-250FF-AL-N-060 --- Metric Timing Pulleys - 15 tooth - 25x6 mm - Aluminium P-050A-015-250FF-AL-N-060 --- Metric Timing Pulleys - 15 tooth - 25x6 mm - Aluminium Regular price $65.95 AUD Regular price Sale price $65.95 AUD Unit price per Out of stock! Backorder Now
Teeth 16	Max Belt Width 25.00 mm	Bore (d) 6.000 mm	Bore Type Plain	Locking Type None
Material: Aluminium Type: 2 Pitch Dia. (PD): 25.45 mm Flange Diameter (FD): 32.0 mm Overall Length: 36.0 mm Hub Diameter (HD): 18.0
Part Number: P-050A-016-250FF-AL-N-060 Metric Timing Pulleys - 16 tooth - 25x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $66.23 AUD Regular price Sale price $66.23 AUD Unit price per Each
Teeth 16	Max Belt Width 25.00 mm	Bore (d) 6.000 mm	Bore Type Plain
Material: Aluminium Locking Type: None Type: 2 Pitch Dia. (PD): 25.45 mm Flange Diameter (FD): 32.0 mm Overall Length: 36.0 mm Hub Diameter (HD): 18.0
Part Number: P-050A-016-250FF-AL-N-060 Metric Timing Pulleys - 16 tooth - 25x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $66.23 AUD Regular price Sale price $66.23 AUD Unit price per Each View the product page first if you are unsure.
P-050A-016-250FF-AL-N-060 --- Metric Timing Pulleys - 16 tooth - 25x6 mm - Aluminium P-050A-016-250FF-AL-N-060 --- Metric Timing Pulleys - 16 tooth - 25x6 mm - Aluminium Regular price $66.23 AUD Regular price Sale price $66.23 AUD Unit price per Out of stock! Backorder Now
Teeth 18	Max Belt Width 25.00 mm	Bore (d) 6.000 mm	Bore Type Plain	Locking Type None
Material: Aluminium Type: 2 Pitch Dia. (PD): 28.64 mm Flange Diameter (FD): 32.0 mm Overall Length: 36.0 mm Hub Diameter (HD): 20.0
Part Number: P-050A-018-250FF-AL-N-060 Metric Timing Pulleys - 18 tooth - 25x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $67.23 AUD Regular price Sale price $67.23 AUD Unit price per Each
Teeth 18	Max Belt Width 25.00 mm	Bore (d) 6.000 mm	Bore Type Plain
Material: Aluminium Locking Type: None Type: 2 Pitch Dia. (PD): 28.64 mm Flange Diameter (FD): 32.0 mm Overall Length: 36.0 mm Hub Diameter (HD): 20.0
Part Number: P-050A-018-250FF-AL-N-060 Metric Timing Pulleys - 18 tooth - 25x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $67.23 AUD Regular price Sale price $67.23 AUD Unit price per Each View the product page first if you are unsure.
P-050A-018-250FF-AL-N-060 --- Metric Timing Pulleys - 18 tooth - 25x6 mm - Aluminium P-050A-018-250FF-AL-N-060 --- Metric Timing Pulleys - 18 tooth - 25x6 mm - Aluminium Regular price $67.23 AUD Regular price Sale price $67.23 AUD Unit price per Out of stock! Backorder Now
Teeth 20	Max Belt Width 25.00 mm	Bore (d) 6.000 mm	Bore Type Plain	Locking Type None
Material: Aluminium Type: 2 Pitch Dia. (PD): 31.82 mm Flange Diameter (FD): 36.0 mm Overall Length: 36.0 mm Hub Diameter (HD): 23.0
Part Number: P-050A-020-250FF-AL-N-060 Metric Timing Pulleys - 20 tooth - 25x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $74.32 AUD Regular price Sale price $74.32 AUD Unit price per Each
Teeth 20	Max Belt Width 25.00 mm	Bore (d) 6.000 mm	Bore Type Plain
Material: Aluminium Locking Type: None Type: 2 Pitch Dia. (PD): 31.82 mm Flange Diameter (FD): 36.0 mm Overall Length: 36.0 mm Hub Diameter (HD): 23.0
Part Number: P-050A-020-250FF-AL-N-060 Metric Timing Pulleys - 20 tooth - 25x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $74.32 AUD Regular price Sale price $74.32 AUD Unit price per Each View the product page first if you are unsure.
P-050A-020-250FF-AL-N-060 --- Metric Timing Pulleys - 20 tooth - 25x6 mm - Aluminium P-050A-020-250FF-AL-N-060 --- Metric Timing Pulleys - 20 tooth - 25x6 mm - Aluminium Regular price $74.32 AUD Regular price Sale price $74.32 AUD Unit price per Out of stock! Backorder Now
Teeth 22	Max Belt Width 25.00 mm	Bore (d) 6.000 mm	Bore Type Plain	Locking Type None
Material: Aluminium Type: 2 Pitch Dia. (PD): 35.00 mm Flange Diameter (FD): 38.0 mm Overall Length: 36.0 mm Hub Diameter (HD): 24.0
Part Number: P-050A-022-250FF-AL-N-060 Metric Timing Pulleys - 22 tooth - 25x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $75.32 AUD Regular price Sale price $75.32 AUD Unit price per Each
Teeth 22	Max Belt Width 25.00 mm	Bore (d) 6.000 mm	Bore Type Plain
Material: Aluminium Locking Type: None Type: 2 Pitch Dia. (PD): 35.00 mm Flange Diameter (FD): 38.0 mm Overall Length: 36.0 mm Hub Diameter (HD): 24.0
Part Number: P-050A-022-250FF-AL-N-060 Metric Timing Pulleys - 22 tooth - 25x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $75.32 AUD Regular price Sale price $75.32 AUD Unit price per Each View the product page first if you are unsure.
P-050A-022-250FF-AL-N-060 --- Metric Timing Pulleys - 22 tooth - 25x6 mm - Aluminium P-050A-022-250FF-AL-N-060 --- Metric Timing Pulleys - 22 tooth - 25x6 mm - Aluminium Regular price $75.32 AUD Regular price Sale price $75.32 AUD Unit price per Out of stock! Backorder Now
Teeth 24	Max Belt Width 25.00 mm	Bore (d) 6.000 mm	Bore Type Plain	Locking Type None
Material: Aluminium Type: 2 Pitch Dia. (PD): 38.18 mm Flange Diameter (FD): 42.0 mm Overall Length: 36.0 mm Hub Diameter (HD): 26.0
Part Number: P-050A-024-250FF-AL-N-060 Metric Timing Pulleys - 24 tooth - 25x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $75.86 AUD Regular price Sale price $75.86 AUD Unit price per Each
Teeth 24	Max Belt Width 25.00 mm	Bore (d) 6.000 mm	Bore Type Plain
Material: Aluminium Locking Type: None Type: 2 Pitch Dia. (PD): 38.18 mm Flange Diameter (FD): 42.0 mm Overall Length: 36.0 mm Hub Diameter (HD): 26.0
Part Number: P-050A-024-250FF-AL-N-060 Metric Timing Pulleys - 24 tooth - 25x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $75.86 AUD Regular price Sale price $75.86 AUD Unit price per Each View the product page first if you are unsure.
P-050A-024-250FF-AL-N-060 --- Metric Timing Pulleys - 24 tooth - 25x6 mm - Aluminium P-050A-024-250FF-AL-N-060 --- Metric Timing Pulleys - 24 tooth - 25x6 mm - Aluminium Regular price $75.86 AUD Regular price Sale price $75.86 AUD Unit price per Out of stock! Backorder Now
Teeth 25	Max Belt Width 25.00 mm	Bore (d) 6.000 mm	Bore Type Plain	Locking Type None
Material: Aluminium Type: 2 Pitch Dia. (PD): 39.77 mm Flange Diameter (FD): 44.0 mm Overall Length: 36.0 mm Hub Diameter (HD): 26.0
Part Number: P-050A-025-250FF-AL-N-060 Metric Timing Pulleys - 25 tooth - 25x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $77.77 AUD Regular price Sale price $77.77 AUD Unit price per Each
Teeth 25	Max Belt Width 25.00 mm	Bore (d) 6.000 mm	Bore Type Plain
Material: Aluminium Locking Type: None Type: 2 Pitch Dia. (PD): 39.77 mm Flange Diameter (FD): 44.0 mm Overall Length: 36.0 mm Hub Diameter (HD): 26.0
Part Number: P-050A-025-250FF-AL-N-060 Metric Timing Pulleys - 25 tooth - 25x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $77.77 AUD Regular price Sale price $77.77 AUD Unit price per Each View the product page first if you are unsure.
P-050A-025-250FF-AL-N-060 --- Metric Timing Pulleys - 25 tooth - 25x6 mm - Aluminium P-050A-025-250FF-AL-N-060 --- Metric Timing Pulleys - 25 tooth - 25x6 mm - Aluminium Regular price $77.77 AUD Regular price Sale price $77.77 AUD Unit price per Out of stock! Backorder Now
Teeth 26	Max Belt Width 25.00 mm	Bore (d) 6.000 mm	Bore Type Plain	Locking Type None
Material: Aluminium Type: 2 Pitch Dia. (PD): 41.36 mm Flange Diameter (FD): 44.0 mm Overall Length: 36.0 mm Hub Diameter (HD): 26.0
Part Number: P-050A-026-250FF-AL-N-060 Metric Timing Pulleys - 26 tooth - 25x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $78.86 AUD Regular price Sale price $78.86 AUD Unit price per Each
Teeth 26	Max Belt Width 25.00 mm	Bore (d) 6.000 mm	Bore Type Plain
Material: Aluminium Locking Type: None Type: 2 Pitch Dia. (PD): 41.36 mm Flange Diameter (FD): 44.0 mm Overall Length: 36.0 mm Hub Diameter (HD): 26.0
Part Number: P-050A-026-250FF-AL-N-060 Metric Timing Pulleys - 26 tooth - 25x6 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $78.86 AUD Regular price Sale price $78.86 AUD Unit price per Each View the product page first if you are unsure.
P-050A-026-250FF-AL-N-060 --- Metric Timing Pulleys - 26 tooth - 25x6 mm - Aluminium P-050A-026-250FF-AL-N-060 --- Metric Timing Pulleys - 26 tooth - 25x6 mm - Aluminium Regular price $78.86 AUD Regular price Sale price $78.86 AUD Unit price per Out of stock! Backorder Now
Teeth 27	Max Belt Width 25.00 mm	Bore (d) 8.000 mm	Bore Type Plain	Locking Type None
Material: Aluminium Type: 2 Pitch Dia. (PD): 42.95 mm Flange Diameter (FD): 46.0 mm Overall Length: 36.0 mm Hub Diameter (HD): 38.0
Part Number: P-050A-027-250FF-AL-N-080 Metric Timing Pulleys - 27 tooth - 25x8 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $79.77 AUD Regular price Sale price $79.77 AUD Unit price per Each
Teeth 27	Max Belt Width 25.00 mm	Bore (d) 8.000 mm	Bore Type Plain
Material: Aluminium Locking Type: None Type: 2 Pitch Dia. (PD): 42.95 mm Flange Diameter (FD): 46.0 mm Overall Length: 36.0 mm Hub Diameter (HD): 38.0
Part Number: P-050A-027-250FF-AL-N-080 Metric Timing Pulleys - 27 tooth - 25x8 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $79.77 AUD Regular price Sale price $79.77 AUD Unit price per Each View the product page first if you are unsure.
P-050A-027-250FF-AL-N-080 --- Metric Timing Pulleys - 27 tooth - 25x8 mm - Aluminium P-050A-027-250FF-AL-N-080 --- Metric Timing Pulleys - 27 tooth - 25x8 mm - Aluminium Regular price $79.77 AUD Regular price Sale price $79.77 AUD Unit price per Out of stock! Backorder Now
Teeth 30	Max Belt Width 25.00 mm	Bore (d) 8.000 mm	Bore Type Plain	Locking Type None
Material: Aluminium Type: 2 Pitch Dia. (PD): 47.73 mm Flange Diameter (FD): 51.0 mm Overall Length: 36.0 mm Hub Diameter (HD): 34.0

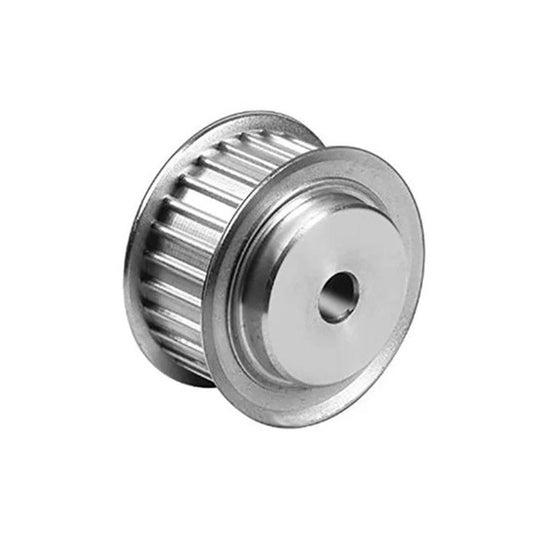

Part Number: P-050A-030-250FF-AL-N-080 Metric Timing Pulleys - 30 tooth - 25x8 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $82.77 AUD Regular price Sale price $82.77 AUD Unit price per Each
Teeth 30	Max Belt Width 25.00 mm	Bore (d) 8.000 mm	Bore Type Plain
Material: Aluminium Locking Type: None Type: 2 Pitch Dia. (PD): 47.73 mm Flange Diameter (FD): 51.0 mm Overall Length: 36.0 mm Hub Diameter (HD): 34.0
Part Number: P-050A-030-250FF-AL-N-080 Metric Timing Pulleys - 30 tooth - 25x8 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $82.77 AUD Regular price Sale price $82.77 AUD Unit price per Each View the product page first if you are unsure.
P-050A-030-250FF-AL-N-080 --- Metric Timing Pulleys - 30 tooth - 25x8 mm - Aluminium P-050A-030-250FF-AL-N-080 --- Metric Timing Pulleys - 30 tooth - 25x8 mm - Aluminium Regular price $82.77 AUD Regular price Sale price $82.77 AUD Unit price per Out of stock! Backorder Now
Teeth 32	Max Belt Width 25.00 mm	Bore (d) 8.000 mm	Bore Type Plain	Locking Type None
Material: Aluminium Type: 2 Pitch Dia. (PD): 50.91 mm Flange Diameter (FD): 54.0 mm Overall Length: 36.0 mm Hub Diameter (HD): 38.0
Part Number: P-050A-032-250FF-AL-N-080 Metric Timing Pulleys - 32 tooth - 25x8 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $98.59 AUD Regular price Sale price $98.59 AUD Unit price per Each
Teeth 32	Max Belt Width 25.00 mm	Bore (d) 8.000 mm	Bore Type Plain
Material: Aluminium Locking Type: None Type: 2 Pitch Dia. (PD): 50.91 mm Flange Diameter (FD): 54.0 mm Overall Length: 36.0 mm Hub Diameter (HD): 38.0
Part Number: P-050A-032-250FF-AL-N-080 Metric Timing Pulleys - 32 tooth - 25x8 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $98.59 AUD Regular price Sale price $98.59 AUD Unit price per Each View the product page first if you are unsure.
P-050A-032-250FF-AL-N-080 --- Metric Timing Pulleys - 32 tooth - 25x8 mm - Aluminium P-050A-032-250FF-AL-N-080 --- Metric Timing Pulleys - 32 tooth - 25x8 mm - Aluminium Regular price $98.59 AUD Regular price Sale price $98.59 AUD Unit price per Out of stock! Backorder Now
Teeth 36	Max Belt Width 25.00 mm	Bore (d) 8.000 mm	Bore Type Plain	Locking Type None
Material: Aluminium Type: 2 Pitch Dia. (PD): 57.27 mm Flange Diameter (FD): 60.3 mm Overall Length: 36.0 mm Hub Diameter (HD): 38.0
Part Number: P-050A-036-250FF-AL-N-080 Metric Timing Pulleys - 36 tooth - 25x8 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $102.05 AUD Regular price Sale price $102.05 AUD Unit price per Each
Teeth 36	Max Belt Width 25.00 mm	Bore (d) 8.000 mm	Bore Type Plain
Material: Aluminium Locking Type: None Type: 2 Pitch Dia. (PD): 57.27 mm Flange Diameter (FD): 60.3 mm Overall Length: 36.0 mm Hub Diameter (HD): 38.0
Part Number: P-050A-036-250FF-AL-N-080 Metric Timing Pulleys - 36 tooth - 25x8 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $102.05 AUD Regular price Sale price $102.05 AUD Unit price per Each View the product page first if you are unsure.
P-050A-036-250FF-AL-N-080 --- Metric Timing Pulleys - 36 tooth - 25x8 mm - Aluminium P-050A-036-250FF-AL-N-080 --- Metric Timing Pulleys - 36 tooth - 25x8 mm - Aluminium Regular price $102.05 AUD Regular price Sale price $102.05 AUD Unit price per Out of stock! Backorder Now
Teeth 40	Max Belt Width 25.00 mm	Bore (d) 8.000 mm	Bore Type Plain	Locking Type None
Material: Aluminium Type: 2 Pitch Dia. (PD): 63.63 mm Flange Diameter (FD): 66.7 mm Overall Length: 36.0 mm Hub Diameter (HD): 40.0
Part Number: P-050A-040-250FF-AL-N-080 Metric Timing Pulleys - 40 tooth - 25x8 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $112.50 AUD Regular price Sale price $112.50 AUD Unit price per Each
Teeth 40	Max Belt Width 25.00 mm	Bore (d) 8.000 mm	Bore Type Plain
Material: Aluminium Locking Type: None Type: 2 Pitch Dia. (PD): 63.63 mm Flange Diameter (FD): 66.7 mm Overall Length: 36.0 mm Hub Diameter (HD): 40.0
Part Number: P-050A-040-250FF-AL-N-080 Metric Timing Pulleys - 40 tooth - 25x8 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $112.50 AUD Regular price Sale price $112.50 AUD Unit price per Each View the product page first if you are unsure.
P-050A-040-250FF-AL-N-080 --- Metric Timing Pulleys - 40 tooth - 25x8 mm - Aluminium P-050A-040-250FF-AL-N-080 --- Metric Timing Pulleys - 40 tooth - 25x8 mm - Aluminium Regular price $112.50 AUD Regular price Sale price $112.50 AUD Unit price per Out of stock! Backorder Now
Teeth 44	Max Belt Width 25.00 mm	Bore (d) 8.000 mm	Bore Type Plain	Locking Type None
Material: Aluminium Type: 3 Pitch Dia. (PD): 70.00 mm Overall Length: 38.0 mm Hub Diameter (HD): 50.0
Part Number: P-050A-044-250P-AL-N-080 Metric Timing Pulleys - 44 tooth - 25x8 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $125.23 AUD Regular price Sale price $125.23 AUD Unit price per Each
Teeth 44	Max Belt Width 25.00 mm	Bore (d) 8.000 mm	Bore Type Plain
Material: Aluminium Locking Type: None Type: 3 Pitch Dia. (PD): 70.00 mm Overall Length: 38.0 mm Hub Diameter (HD): 50.0
Part Number: P-050A-044-250P-AL-N-080 Metric Timing Pulleys - 44 tooth - 25x8 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $125.23 AUD Regular price Sale price $125.23 AUD Unit price per Each View the product page first if you are unsure.
P-050A-044-250P-AL-N-080 --- Metric Timing Pulleys - 44 tooth - 25x8 mm - Aluminium P-050A-044-250P-AL-N-080 --- Metric Timing Pulleys - 44 tooth - 25x8 mm - Aluminium Regular price $125.23 AUD Regular price Sale price $125.23 AUD Unit price per Out of stock! Backorder Now
Teeth 48	Max Belt Width 25.00 mm	Bore (d) 8.000 mm	Bore Type Plain	Locking Type None
Material: Aluminium Type: 3 Pitch Dia. (PD): 76.36 mm Overall Length: 38.0 mm Hub Diameter (HD): 50.0
Part Number: P-050A-048-250P-AL-N-080 Metric Timing Pulleys - 48 tooth - 25x8 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $135.95 AUD Regular price Sale price $135.95 AUD Unit price per Each
Teeth 48	Max Belt Width 25.00 mm	Bore (d) 8.000 mm	Bore Type Plain
Material: Aluminium Locking Type: None Type: 3 Pitch Dia. (PD): 76.36 mm Overall Length: 38.0 mm Hub Diameter (HD): 50.0
Part Number: P-050A-048-250P-AL-N-080 Metric Timing Pulleys - 48 tooth - 25x8 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $135.95 AUD Regular price Sale price $135.95 AUD Unit price per Each View the product page first if you are unsure.
P-050A-048-250P-AL-N-080 --- Metric Timing Pulleys - 48 tooth - 25x8 mm - Aluminium P-050A-048-250P-AL-N-080 --- Metric Timing Pulleys - 48 tooth - 25x8 mm - Aluminium Regular price $135.95 AUD Regular price Sale price $135.95 AUD Unit price per Out of stock! Backorder Now
Teeth 60	Max Belt Width 25.00 mm	Bore (d) 8.000 mm	Bore Type Plain	Locking Type None
Material: Aluminium Type: 3 Pitch Dia. (PD): 95.45 mm Overall Length: 38.0 mm Hub Diameter (HD): 65.0
Part Number: P-050A-060-250P-AL-N-080 Metric Timing Pulleys - 60 tooth - 25x8 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $153.05 AUD Regular price Sale price $153.05 AUD Unit price per Each
Teeth 60	Max Belt Width 25.00 mm	Bore (d) 8.000 mm	Bore Type Plain
Material: Aluminium Locking Type: None Type: 3 Pitch Dia. (PD): 95.45 mm Overall Length: 38.0 mm Hub Diameter (HD): 65.0
Part Number: P-050A-060-250P-AL-N-080 Metric Timing Pulleys - 60 tooth - 25x8 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $153.05 AUD Regular price Sale price $153.05 AUD Unit price per Each View the product page first if you are unsure.
P-050A-060-250P-AL-N-080 --- Metric Timing Pulleys - 60 tooth - 25x8 mm - Aluminium P-050A-060-250P-AL-N-080 --- Metric Timing Pulleys - 60 tooth - 25x8 mm - Aluminium Regular price $153.05 AUD Regular price Sale price $153.05 AUD Unit price per Out of stock! Backorder Now
Teeth 72	Max Belt Width 25.00 mm	Bore (d) 8.000 mm	Bore Type Plain	Locking Type None
Material: Aluminium Type: 3 Pitch Dia. (PD): 114.54 mm Overall Length: 38.0 mm Hub Diameter (HD): 80.0
Part Number: P-050A-072-250P-AL-N-080 Metric Timing Pulleys - 72 tooth - 25x8 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $219.05 AUD Regular price Sale price $219.05 AUD Unit price per Each
Teeth 72	Max Belt Width 25.00 mm	Bore (d) 8.000 mm	Bore Type Plain
Material: Aluminium Locking Type: None Type: 3 Pitch Dia. (PD): 114.54 mm Overall Length: 38.0 mm Hub Diameter (HD): 80.0
Part Number: P-050A-072-250P-AL-N-080 Metric Timing Pulleys - 72 tooth - 25x8 mm - Aluminium Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 27, 2025 Regular price $219.05 AUD Regular price Sale price $219.05 AUD Unit price per Each View the product page first if you are unsure.
P-050A-072-250P-AL-N-080 --- Metric Timing Pulleys - 72 tooth - 25x8 mm - Aluminium P-050A-072-250P-AL-N-080 --- Metric Timing Pulleys - 72 tooth - 25x8 mm - Aluminium Regular price $219.05 AUD Regular price Sale price $219.05 AUD Unit price per Out of stock! Backorder Now
