Collection: Pins - Dowel - Standard - Rounded Ends
Pins -> Dowel -> Standard -> Rounded EndsThere are 167 products in the sub-categories of Pins - Dowel - Standard - Rounded Ends. Scroll down or follow the link to Pins - Dowel - Standard - Rounded Ends in the products table to see all these items combined into a handy table with filters. To narrow down the selection, please choose a sub-category from the links below.

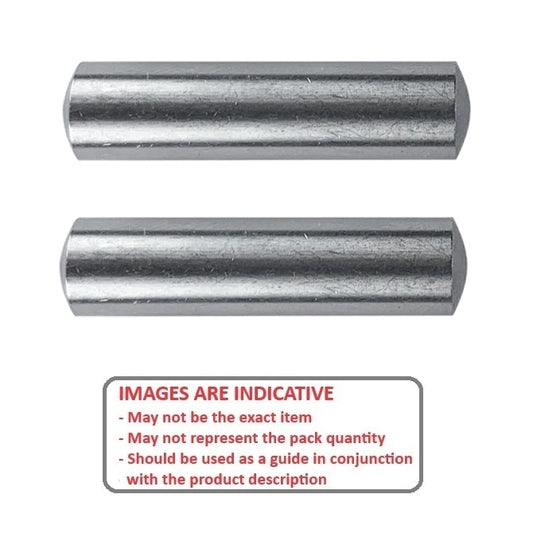

Pins - Dowel - Standard - Rounded Ends - 303-304 Stainless
A selection of 303-304 Stainless Rounded Ends Standard Dowel Pins. Precision Dowel...
Pins - Dowel - Standard - Rounded Ends - 316 Stainless
A selection of 316 Stainless Rounded Ends Standard Dowel Pins. Precision Dowel...
Pins - Dowel - Standard - Rounded Ends - 420 Stainless
A selection of 420 Stainless Rounded Ends Standard Dowel Pins. Precision Dowel...

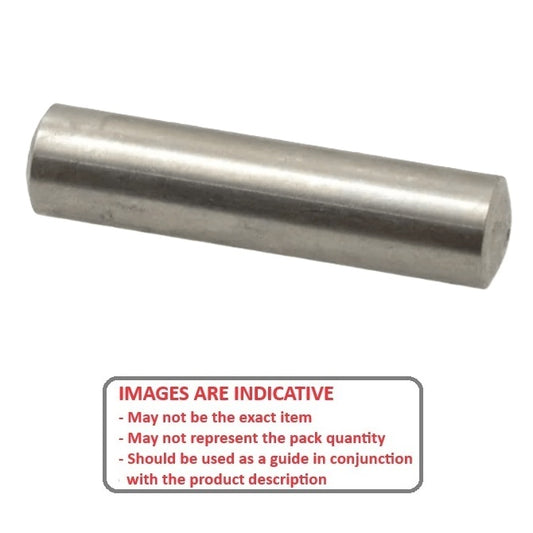

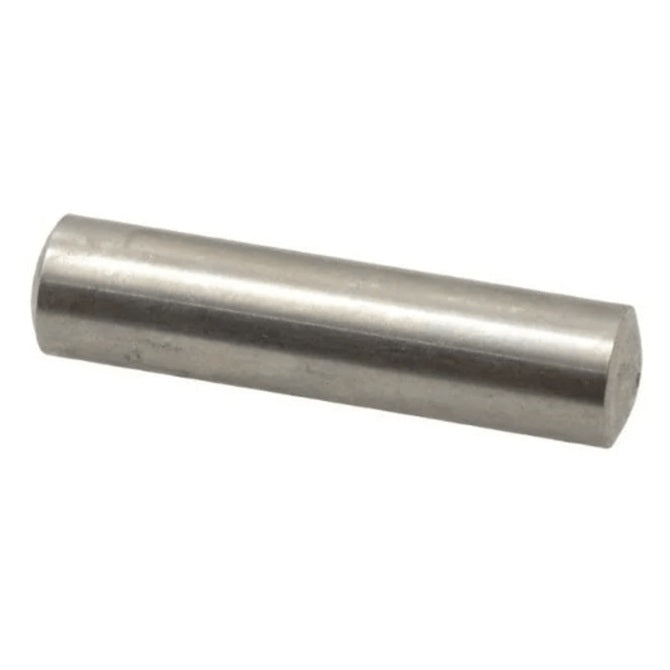

Pins - Dowel - Standard - Rounded Ends - Unhardened Steel
A selection of Unhardened Steel Rounded Ends Standard Dowel Pins. Precision Dowel...
Category Details
This category includes various types of dowel pins.
- Also known as parallel pins.
- Dowel pins are not used as bearing shafts under normal circumstances, due to their oversized tolerances
- An expanded range may be available on special order. Please enquire.
Miniature Bearings Australia - MBA Minibearings
Additional resources:
A more concise listing may be found in the Pins - Dowel - Standard - Rounded Ends category on the Small Parts & Bearings online store.
| Diameter (D) | Length (L) | Approx. Overall Length | Type |
Indicative Image |
|---|---|---|---|---|
| Dowel Pins - 0.792x12.7x13 mm Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Pin | ||||
|
Diameter (D)
0.792
mm + 0.002 / + 0.008
(Equiv. 0.031 in.) |
Length (L)
12.70
mm +/- 0.350 (Equiv. 0.5 in.) |
Approx. Overall Length
13.00
mm +/- 0.350 (Equiv. 0.512 in.) |
Type
3 (Rounded Ends)
|
|
|
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Category: Pins - Dowel - Standard - Rounded Ends - 303-304 Stainless |
||||
|
Part Number: DP007-013-303-3 (Pack of 500)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||
| Diameter (D) | Length (L) | Approx. Overall Length |
Indicative Image |
|
| Dowel Pins - 0.792x12.7x13 mm Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Pin | ||||
|
Diameter (D)
0.792
mm + 0.002 / + 0.008 (Equiv. 0.031 in.) |
Length (L)
12.70
mm +/- 0.350 (Equiv. 0.5 in.) |
Approx. Overall Length
13.00
mm +/- 0.350 (Equiv. 0.512 in.) |
|
|
|
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Type: 3 (Rounded Ends)
Category: Pins - Dowel - Standard - Rounded Ends - 303-304 Stainless |
||||
|
Part Number: DP007-013-303-3 (Pack of 500)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Wed, Oct 21, 2026 |
||||
| Dowel Pins - 1x4x4.3 mm Standard - Stainless Steel 303/304 Similar to A2 or 18-8 HRB80 Pin | ||||
|
Diameter (D)
1.000
mm + 0.002 / + 0.008
(Equiv. 0.039 in.) |
Length (L)
4.00
mm +/- 0.254 (Equiv. 0.157 in.) |
Approx. Overall Length
4.30
mm +/- 0.254 (Equiv. 0.169 in.) |
Type
3 (Rounded Ends)
|
|
|
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Category: Pins - Dowel - Standard - Rounded Ends - 303-304 Stainless |
||||
|
Part Number: DP010-004-303-3 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||
| Dowel Pins - 1x4x4.3 mm Standard - Stainless Steel 303/304 Similar to A2 or 18-8 HRB80 Pin | ||||
|
Diameter (D)
1.000
mm + 0.002 / + 0.008 (Equiv. 0.039 in.) |
Length (L)
4.00
mm +/- 0.254 (Equiv. 0.157 in.) |
Approx. Overall Length
4.30
mm +/- 0.254 (Equiv. 0.169 in.) |
|
|
|
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Type: 3 (Rounded Ends)
Category: Pins - Dowel - Standard - Rounded Ends - 303-304 Stainless |
||||
|
Part Number: DP010-004-303-3 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Sat, Oct 17, 2026 |
||||
| Dowel Pins - 1x6x6.3 mm Standard - Stainless Steel 303/304 Similar to A2 or 18-8 HRB80 Pin | ||||
|
Diameter (D)
1.000
mm + 0.002 / + 0.008
(Equiv. 0.039 in.) |
Length (L)
6.00
mm +/- 0.254 (Equiv. 0.236 in.) |
Approx. Overall Length
6.30
mm +/- 0.254 (Equiv. 0.248 in.) |
Type
3 (Rounded Ends)
|
|
|
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Category: Pins - Dowel - Standard - Rounded Ends - 303-304 Stainless |
||||
|
Part Number: DP010-006-303-3 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||
| Dowel Pins - 1x6x6.3 mm Standard - Stainless Steel 303/304 Similar to A2 or 18-8 HRB80 Pin | ||||
|
Diameter (D)
1.000
mm + 0.002 / + 0.008 (Equiv. 0.039 in.) |
Length (L)
6.00
mm +/- 0.254 (Equiv. 0.236 in.) |
Approx. Overall Length
6.30
mm +/- 0.254 (Equiv. 0.248 in.) |
|
|
|
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Type: 3 (Rounded Ends)
Category: Pins - Dowel - Standard - Rounded Ends - 303-304 Stainless |
||||
|
Part Number: DP010-006-303-3 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||
| Dowel Pins - 1x12x12.3 mm Standard - Stainless Steel 303/304 Similar to A2 or 18-8 HRB80 Pin | ||||
|
Diameter (D)
1.000
mm + 0.002 / + 0.008
(Equiv. 0.039 in.) |
Length (L)
12.00
mm +/- 0.350 (Equiv. 0.472 in.) |
Approx. Overall Length
12.30
mm +/- 0.350 (Equiv. 0.484 in.) |
Type
3 (Rounded Ends)
|
|
|
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Category: Pins - Dowel - Standard - Rounded Ends - 303-304 Stainless |
||||
|
Part Number: DP010-012-303-3 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||
| Dowel Pins - 1x12x12.3 mm Standard - Stainless Steel 303/304 Similar to A2 or 18-8 HRB80 Pin | ||||
|
Diameter (D)
1.000
mm + 0.002 / + 0.008 (Equiv. 0.039 in.) |
Length (L)
12.00
mm +/- 0.350 (Equiv. 0.472 in.) |
Approx. Overall Length
12.30
mm +/- 0.350 (Equiv. 0.484 in.) |
|
|
|
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Type: 3 (Rounded Ends)
Category: Pins - Dowel - Standard - Rounded Ends - 303-304 Stainless |
||||
|
Part Number: DP010-012-303-3 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||
| Dowel Pins - 1.5x4x4.46 mm Standard - Stainless Steel 303/304 Similar to A2 or 18-8 HRB80 Pin | ||||
|
Diameter (D)
1.500
mm + 0.002 / + 0.008
(Equiv. 0.059 in.) |
Length (L)
4.00
mm +/- 0.254 (Equiv. 0.157 in.) |
Approx. Overall Length
4.46
mm +/- 0.254 (Equiv. 0.176 in.) |
Type
3 (Rounded Ends)
|
|
|
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Category: Pins - Dowel - Standard - Rounded Ends - 303-304 Stainless |
||||
|
Part Number: DP015-004-303-3 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||
| Dowel Pins - 1.5x4x4.46 mm Standard - Stainless Steel 303/304 Similar to A2 or 18-8 HRB80 Pin | ||||
|
Diameter (D)
1.500
mm + 0.002 / + 0.008 (Equiv. 0.059 in.) |
Length (L)
4.00
mm +/- 0.254 (Equiv. 0.157 in.) |
Approx. Overall Length
4.46
mm +/- 0.254 (Equiv. 0.176 in.) |
|
|
|
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Type: 3 (Rounded Ends)
Category: Pins - Dowel - Standard - Rounded Ends - 303-304 Stainless |
||||
|
Part Number: DP015-004-303-3 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||

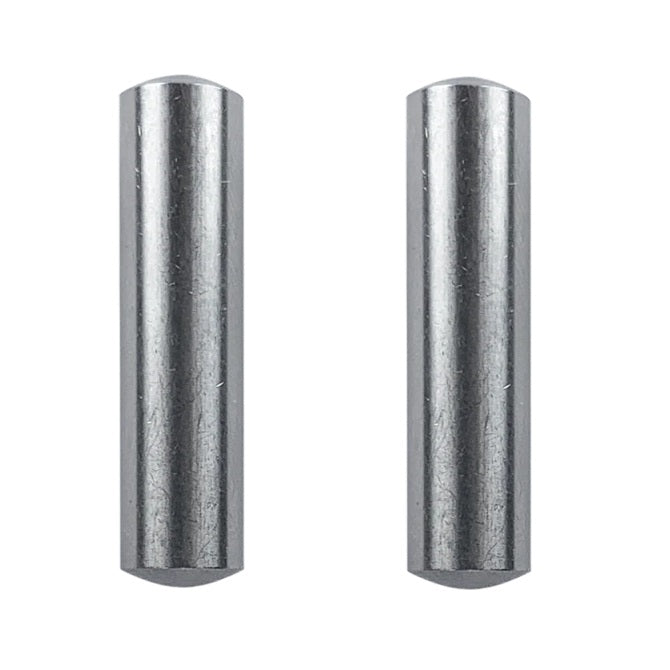

| Dowel Pins - 1.5x6x6.46 mm Standard - Stainless Steel 316 Similar to A4 or 18-10 Pin | ||||
|
Diameter (D)
1.500
mm + 0.002 / + 0.008
(Equiv. 0.059 in.) |
Length (L)
6.00
mm +/- 0.254 (Equiv. 0.236 in.) |
Approx. Overall Length
6.46
mm +/- 0.254 (Equiv. 0.254 in.) |
Type
3 (Rounded Ends)
|
|
|
Material: Stainless Steel 316 (Similar to A4, 18-10)
Category: Pins - Dowel - Standard - Rounded Ends - 316 Stainless |
||||
|
Part Number: DP015-006-316-3 (PK-500)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||
| Dowel Pins - 1.5x6x6.46 mm Standard - Stainless Steel 316 Similar to A4 or 18-10 Pin | ||||
|
Diameter (D)
1.500
mm + 0.002 / + 0.008 (Equiv. 0.059 in.) |
Length (L)
6.00
mm +/- 0.254 (Equiv. 0.236 in.) |
Approx. Overall Length
6.46
mm +/- 0.254 (Equiv. 0.254 in.) |
|
|
|
Material: Stainless Steel 316 (Similar to A4, 18-10)
Type: 3 (Rounded Ends)
Category: Pins - Dowel - Standard - Rounded Ends - 316 Stainless |
||||
|
Part Number: DP015-006-316-3 (PK-500)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||
| Dowel Pins - 1.5x10x10.46 mm Standard - Stainless Steel 316 Similar to A4 or 18-10 Pin | ||||
|
Diameter (D)
1.500
mm + 0.002 / + 0.008
(Equiv. 0.059 in.) |
Length (L)
10.00
mm +/- 0.254 (Equiv. 0.394 in.) |
Approx. Overall Length
10.46
mm +/- 0.350 (Equiv. 0.412 in.) |
Type
3 (Rounded Ends)
|
|
|
Material: Stainless Steel 316 (Similar to A4, 18-10)
Category: Pins - Dowel - Standard - Rounded Ends - 316 Stainless |
||||
|
Part Number: DP015-010-316-3 (PK-500)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||
| Dowel Pins - 1.5x10x10.46 mm Standard - Stainless Steel 316 Similar to A4 or 18-10 Pin | ||||
|
Diameter (D)
1.500
mm + 0.002 / + 0.008 (Equiv. 0.059 in.) |
Length (L)
10.00
mm +/- 0.254 (Equiv. 0.394 in.) |
Approx. Overall Length
10.46
mm +/- 0.350 (Equiv. 0.412 in.) |
|
|
|
Material: Stainless Steel 316 (Similar to A4, 18-10)
Type: 3 (Rounded Ends)
Category: Pins - Dowel - Standard - Rounded Ends - 316 Stainless |
||||
|
Part Number: DP015-010-316-3 (PK-500)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||
| Dowel Pins - 1.5x16x16.46 mm Standard - Stainless Steel 316 Similar to A4 or 18-10 Pin | ||||
|
Diameter (D)
1.500
mm + 0.002 / + 0.008
(Equiv. 0.059 in.) |
Length (L)
16.00
mm +/- 0.350 (Equiv. 0.63 in.) |
Approx. Overall Length
16.46
mm +/- 0.350 (Equiv. 0.648 in.) |
Type
3 (Rounded Ends)
|
|
|
Material: Stainless Steel 316 (Similar to A4, 18-10)
Category: Pins - Dowel - Standard - Rounded Ends - 316 Stainless |
||||
|
Part Number: DP015-016-316-3 (PK-500)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||
| Dowel Pins - 1.5x16x16.46 mm Standard - Stainless Steel 316 Similar to A4 or 18-10 Pin | ||||
|
Diameter (D)
1.500
mm + 0.002 / + 0.008 (Equiv. 0.059 in.) |
Length (L)
16.00
mm +/- 0.350 (Equiv. 0.63 in.) |
Approx. Overall Length
16.46
mm +/- 0.350 (Equiv. 0.648 in.) |
|
|
|
Material: Stainless Steel 316 (Similar to A4, 18-10)
Type: 3 (Rounded Ends)
Category: Pins - Dowel - Standard - Rounded Ends - 316 Stainless |
||||
|
Part Number: DP015-016-316-3 (PK-500)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||
| Dowel Pins - 2x6x6.6 mm Standard - Stainless Steel 304 Similar to A2 or 18-8 HRB80 Pin | ||||
|
Diameter (D)
2.000
mm + 0.002 / + 0.008
(Equiv. 0.079 in.) |
Length (L)
6.00
mm +/- 0.254 (Equiv. 0.236 in.) |
Approx. Overall Length
6.60
mm +/- 0.254 (Equiv. 0.26 in.) |
Type
3 (Rounded Ends)
|
|
|
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Category: Pins - Dowel - Standard - Rounded Ends - 303-304 Stainless |
||||
|
Part Number: DP020-006-304-3 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||
| Dowel Pins - 2x6x6.6 mm Standard - Stainless Steel 304 Similar to A2 or 18-8 HRB80 Pin | ||||
|
Diameter (D)
2.000
mm + 0.002 / + 0.008 (Equiv. 0.079 in.) |
Length (L)
6.00
mm +/- 0.254 (Equiv. 0.236 in.) |
Approx. Overall Length
6.60
mm +/- 0.254 (Equiv. 0.26 in.) |
|
|
|
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Type: 3 (Rounded Ends)
Category: Pins - Dowel - Standard - Rounded Ends - 303-304 Stainless |
||||
|
Part Number: DP020-006-304-3 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||
| Dowel Pins - 2x8x8.6 mm Standard - Stainless Steel 316 Similar to A4 or 18-10 Pin | ||||
|
Diameter (D)
2.000
mm + 0.002 / + 0.008
(Equiv. 0.079 in.) |
Length (L)
8.00
mm +/- 0.254 (Equiv. 0.315 in.) |
Approx. Overall Length
8.60
mm +/- 0.254 (Equiv. 0.339 in.) |
Type
3 (Rounded Ends)
|
|
|
Material: Stainless Steel 316 (Similar to A4, 18-10)
Category: Pins - Dowel - Standard - Rounded Ends - 316 Stainless |
||||
|
Part Number: DP020-008-316-3 (PK-500)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||
| Dowel Pins - 2x8x8.6 mm Standard - Stainless Steel 316 Similar to A4 or 18-10 Pin | ||||
|
Diameter (D)
2.000
mm + 0.002 / + 0.008 (Equiv. 0.079 in.) |
Length (L)
8.00
mm +/- 0.254 (Equiv. 0.315 in.) |
Approx. Overall Length
8.60
mm +/- 0.254 (Equiv. 0.339 in.) |
|
|
|
Material: Stainless Steel 316 (Similar to A4, 18-10)
Type: 3 (Rounded Ends)
Category: Pins - Dowel - Standard - Rounded Ends - 316 Stainless |
||||
|
Part Number: DP020-008-316-3 (PK-500)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||
| Dowel Pins - 2x10x10.6 mm Standard - Stainless Steel 316 Similar to A4 or 18-10 Pin | ||||
|
Diameter (D)
2.000
mm + 0.002 / + 0.008
(Equiv. 0.079 in.) |
Length (L)
10.00
mm +/- 0.254 (Equiv. 0.394 in.) |
Approx. Overall Length
10.60
mm +/- 0.350 (Equiv. 0.417 in.) |
Type
3 (Rounded Ends)
|
|
|
Material: Stainless Steel 316 (Similar to A4, 18-10)
Category: Pins - Dowel - Standard - Rounded Ends - 316 Stainless |
||||
|
Part Number: DP020-010-316-3 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||
| Dowel Pins - 2x10x10.6 mm Standard - Stainless Steel 316 Similar to A4 or 18-10 Pin | ||||
|
Diameter (D)
2.000
mm + 0.002 / + 0.008 (Equiv. 0.079 in.) |
Length (L)
10.00
mm +/- 0.254 (Equiv. 0.394 in.) |
Approx. Overall Length
10.60
mm +/- 0.350 (Equiv. 0.417 in.) |
|
|
|
Material: Stainless Steel 316 (Similar to A4, 18-10)
Type: 3 (Rounded Ends)
Category: Pins - Dowel - Standard - Rounded Ends - 316 Stainless |
||||
|
Part Number: DP020-010-316-3 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||
| Dowel Pins - 2x12x12.6 mm Standard - Stainless Steel 316 Similar to A4 or 18-10 Pin | ||||
|
Diameter (D)
2.000
mm + 0.002 / + 0.008
(Equiv. 0.079 in.) |
Length (L)
12.00
mm +/- 0.350 (Equiv. 0.472 in.) |
Approx. Overall Length
12.60
mm +/- 0.350 (Equiv. 0.496 in.) |
Type
3 (Rounded Ends)
|
|
|
Material: Stainless Steel 316 (Similar to A4, 18-10)
Category: Pins - Dowel - Standard - Rounded Ends - 316 Stainless |
||||
|
Part Number: DP020-012-316-3 (PK-500)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||
| Dowel Pins - 2x12x12.6 mm Standard - Stainless Steel 316 Similar to A4 or 18-10 Pin | ||||
|
Diameter (D)
2.000
mm + 0.002 / + 0.008 (Equiv. 0.079 in.) |
Length (L)
12.00
mm +/- 0.350 (Equiv. 0.472 in.) |
Approx. Overall Length
12.60
mm +/- 0.350 (Equiv. 0.496 in.) |
|
|
|
Material: Stainless Steel 316 (Similar to A4, 18-10)
Type: 3 (Rounded Ends)
Category: Pins - Dowel - Standard - Rounded Ends - 316 Stainless |
||||
|
Part Number: DP020-012-316-3 (PK-500)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||
| Dowel Pins - 2x13x13.6 mm Standard - Stainless Steel 304 Similar to A2 or 18-8 HRB80 Pin | ||||
|
Diameter (D)
2.000
mm + 0.002 / + 0.008
(Equiv. 0.079 in.) |
Length (L)
13.00
mm +/- 0.350 (Equiv. 0.512 in.) |
Approx. Overall Length
13.60
mm +/- 0.350 (Equiv. 0.535 in.) |
Type
3 (Rounded Ends)
|
|
|
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Category: Pins - Dowel - Standard - Rounded Ends - 303-304 Stainless |
||||
|
Part Number: DP020-013-304-3 (PK-500)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||
| Dowel Pins - 2x13x13.6 mm Standard - Stainless Steel 304 Similar to A2 or 18-8 HRB80 Pin | ||||
|
Diameter (D)
2.000
mm + 0.002 / + 0.008 (Equiv. 0.079 in.) |
Length (L)
13.00
mm +/- 0.350 (Equiv. 0.512 in.) |
Approx. Overall Length
13.60
mm +/- 0.350 (Equiv. 0.535 in.) |
|
|
|
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Type: 3 (Rounded Ends)
Category: Pins - Dowel - Standard - Rounded Ends - 303-304 Stainless |
||||
|
Part Number: DP020-013-304-3 (PK-500)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||
| Dowel Pins - 2x20x20.6 mm Standard - Stainless Steel 304 Similar to A2 or 18-8 HRB80 Pin | ||||
|
Diameter (D)
2.000
mm + 0.002 / + 0.008
(Equiv. 0.079 in.) |
Length (L)
20.00
mm +/- 0.420 (Equiv. 0.787 in.) |
Approx. Overall Length
20.60
mm +/- 0.420 (Equiv. 0.811 in.) |
Type
3 (Rounded Ends)
|
|
|
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Category: Pins - Dowel - Standard - Rounded Ends - 303-304 Stainless |
||||
|
Part Number: DP020-020-304-3 (PK-1000)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||
| Dowel Pins - 2x20x20.6 mm Standard - Stainless Steel 304 Similar to A2 or 18-8 HRB80 Pin | ||||
|
Diameter (D)
2.000
mm + 0.002 / + 0.008 (Equiv. 0.079 in.) |
Length (L)
20.00
mm +/- 0.420 (Equiv. 0.787 in.) |
Approx. Overall Length
20.60
mm +/- 0.420 (Equiv. 0.811 in.) |
|
|
|
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Type: 3 (Rounded Ends)
Category: Pins - Dowel - Standard - Rounded Ends - 303-304 Stainless |
||||
|
Part Number: DP020-020-304-3 (PK-1000)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||
| Dowel Pins - 2.5x6x6.8 mm Standard - Stainless Steel 304 Similar to A2 or 18-8 HRB80 Pin | ||||
|
Diameter (D)
2.500
mm + 0.002 / + 0.008
(Equiv. 0.098 in.) |
Length (L)
6.00
mm +/- 0.254 (Equiv. 0.236 in.) |
Approx. Overall Length
6.80
mm +/- 0.254 (Equiv. 0.268 in.) |
Type
3 (Rounded Ends)
|
|
|
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Category: Pins - Dowel - Standard - Rounded Ends - 303-304 Stainless Deleted Item. Available while stocks last. |
||||
|
Part Number: DP025-006-304-3 (PK-5000)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||
| Dowel Pins - 2.5x6x6.8 mm Standard - Stainless Steel 304 Similar to A2 or 18-8 HRB80 Pin | ||||
|
Diameter (D)
2.500
mm + 0.002 / + 0.008 (Equiv. 0.098 in.) |
Length (L)
6.00
mm +/- 0.254 (Equiv. 0.236 in.) |
Approx. Overall Length
6.80
mm +/- 0.254 (Equiv. 0.268 in.) |
|
|
|
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Type: 3 (Rounded Ends)
Category: Pins - Dowel - Standard - Rounded Ends - 303-304 Stainless Deleted Item. Available while stocks last. |
||||
|
Part Number: DP025-006-304-3 (PK-5000)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Oct 27, 2026 |
||||
| Dowel Pins - 2.5x9x9.8 mm Standard - Stainless Steel 304 Similar to A2 or 18-8 HRB80 Pin | ||||
|
Diameter (D)
2.500
mm + 0.002 / + 0.008
(Equiv. 0.098 in.) |
Length (L)
9.00
mm +/- 0.254 (Equiv. 0.354 in.) |
Approx. Overall Length
9.80
mm +/- 0.254 (Equiv. 0.386 in.) |
Type
3 (Rounded Ends)
|
|
|
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Category: Pins - Dowel - Standard - Rounded Ends - 303-304 Stainless Deleted Item. Available while stocks last. |
||||
|
Part Number: DP025-009-304-3 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||
| Dowel Pins - 2.5x9x9.8 mm Standard - Stainless Steel 304 Similar to A2 or 18-8 HRB80 Pin | ||||
|
Diameter (D)
2.500
mm + 0.002 / + 0.008 (Equiv. 0.098 in.) |
Length (L)
9.00
mm +/- 0.254 (Equiv. 0.354 in.) |
Approx. Overall Length
9.80
mm +/- 0.254 (Equiv. 0.386 in.) |
|
|
|
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Type: 3 (Rounded Ends)
Category: Pins - Dowel - Standard - Rounded Ends - 303-304 Stainless Deleted Item. Available while stocks last. |
||||
|
Part Number: DP025-009-304-3 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||
| Dowel Pins - 2.5x10x10.8 mm Standard - Stainless Steel 304 Similar to A2 or 18-8 HRB80 Pin | ||||
|
Diameter (D)
2.500
mm + 0.002 / + 0.008
(Equiv. 0.098 in.) |
Length (L)
10.00
mm +/- 0.254 (Equiv. 0.394 in.) |
Approx. Overall Length
10.80
mm +/- 0.254 (Equiv. 0.425 in.) |
Type
3 (Rounded Ends)
|
|
|
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Category: Pins - Dowel - Standard - Rounded Ends - 303-304 Stainless |
||||
|
Part Number: DP025-010-304-3 (PK-1000)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||
| Dowel Pins - 2.5x10x10.8 mm Standard - Stainless Steel 304 Similar to A2 or 18-8 HRB80 Pin | ||||
|
Diameter (D)
2.500
mm + 0.002 / + 0.008 (Equiv. 0.098 in.) |
Length (L)
10.00
mm +/- 0.254 (Equiv. 0.394 in.) |
Approx. Overall Length
10.80
mm +/- 0.254 (Equiv. 0.425 in.) |
|
|
|
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Type: 3 (Rounded Ends)
Category: Pins - Dowel - Standard - Rounded Ends - 303-304 Stainless |
||||
|
Part Number: DP025-010-304-3 (PK-1000)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||
| Dowel Pins - 2.5x12x12.8 mm Standard - Stainless Steel 304 Similar to A2 or 18-8 HRB80 Pin | ||||
|
Diameter (D)
2.500
mm + 0.002 / + 0.008
(Equiv. 0.098 in.) |
Length (L)
12.00
mm +/- 0.350 (Equiv. 0.472 in.) |
Approx. Overall Length
12.80
mm +/- 0.350 (Equiv. 0.504 in.) |
Type
3 (Rounded Ends)
|
|
|
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Category: Pins - Dowel - Standard - Rounded Ends - 303-304 Stainless |
||||
|
Part Number: DP025-012-304-3 (PK-500)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||
| Dowel Pins - 2.5x12x12.8 mm Standard - Stainless Steel 304 Similar to A2 or 18-8 HRB80 Pin | ||||
|
Diameter (D)
2.500
mm + 0.002 / + 0.008 (Equiv. 0.098 in.) |
Length (L)
12.00
mm +/- 0.350 (Equiv. 0.472 in.) |
Approx. Overall Length
12.80
mm +/- 0.350 (Equiv. 0.504 in.) |
|
|
|
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Type: 3 (Rounded Ends)
Category: Pins - Dowel - Standard - Rounded Ends - 303-304 Stainless |
||||
|
Part Number: DP025-012-304-3 (PK-500)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||
| Dowel Pins - 2.5x14x14.8 mm Standard - Stainless Steel 304 Similar to A2 or 18-8 HRB80 Pin | ||||
|
Diameter (D)
2.500
mm + 0.002 / + 0.008
(Equiv. 0.098 in.) |
Length (L)
14.00
mm +/- 0.350 (Equiv. 0.551 in.) |
Approx. Overall Length
14.80
mm +/- 0.350 (Equiv. 0.583 in.) |
Type
3 (Rounded Ends)
|
|
|
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Category: Pins - Dowel - Standard - Rounded Ends - 303-304 Stainless |
||||
|
Part Number: DP025-014-304-3 (PK-500)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||
| Dowel Pins - 2.5x14x14.8 mm Standard - Stainless Steel 304 Similar to A2 or 18-8 HRB80 Pin | ||||
|
Diameter (D)
2.500
mm + 0.002 / + 0.008 (Equiv. 0.098 in.) |
Length (L)
14.00
mm +/- 0.350 (Equiv. 0.551 in.) |
Approx. Overall Length
14.80
mm +/- 0.350 (Equiv. 0.583 in.) |
|
|
|
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Type: 3 (Rounded Ends)
Category: Pins - Dowel - Standard - Rounded Ends - 303-304 Stainless |
||||
|
Part Number: DP025-014-304-3 (PK-500)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||
| Dowel Pins - 2.5x16x16.8 mm Standard - Stainless Steel 304 Similar to A2 or 18-8 HRB80 Pin | ||||
|
Diameter (D)
2.500
mm + 0.002 / + 0.008
(Equiv. 0.098 in.) |
Length (L)
16.00
mm +/- 0.350 (Equiv. 0.63 in.) |
Approx. Overall Length
16.80
mm +/- 0.350 (Equiv. 0.661 in.) |
Type
3 (Rounded Ends)
|
|
|
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Category: Pins - Dowel - Standard - Rounded Ends - 303-304 Stainless |
||||
|
Part Number: DP025-016-304-3 (PK-1000)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||
| Dowel Pins - 2.5x16x16.8 mm Standard - Stainless Steel 304 Similar to A2 or 18-8 HRB80 Pin | ||||
|
Diameter (D)
2.500
mm + 0.002 / + 0.008 (Equiv. 0.098 in.) |
Length (L)
16.00
mm +/- 0.350 (Equiv. 0.63 in.) |
Approx. Overall Length
16.80
mm +/- 0.350 (Equiv. 0.661 in.) |
|
|
|
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Type: 3 (Rounded Ends)
Category: Pins - Dowel - Standard - Rounded Ends - 303-304 Stainless |
||||
|
Part Number: DP025-016-304-3 (PK-1000)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||
| Dowel Pins - 2.5x19x19.8 mm Standard - Stainless Steel 304 Similar to A2 or 18-8 HRB80 Pin | ||||
|
Diameter (D)
2.500
mm + 0.002 / + 0.008
(Equiv. 0.098 in.) |
Length (L)
19.00
mm +/- 0.420 (Equiv. 0.748 in.) |
Approx. Overall Length
19.80
mm +/- 0.420 (Equiv. 0.78 in.) |
Type
3 (Rounded Ends)
|
|
|
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Category: Pins - Dowel - Standard - Rounded Ends - 303-304 Stainless |
||||
|
Part Number: DP025-019-304-3 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||
| Dowel Pins - 2.5x19x19.8 mm Standard - Stainless Steel 304 Similar to A2 or 18-8 HRB80 Pin | ||||
|
Diameter (D)
2.500
mm + 0.002 / + 0.008 (Equiv. 0.098 in.) |
Length (L)
19.00
mm +/- 0.420 (Equiv. 0.748 in.) |
Approx. Overall Length
19.80
mm +/- 0.420 (Equiv. 0.78 in.) |
|
|
|
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Type: 3 (Rounded Ends)
Category: Pins - Dowel - Standard - Rounded Ends - 303-304 Stainless |
||||
|
Part Number: DP025-019-304-3 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||
| Dowel Pins - 2.5x20x20.8 mm Standard - Stainless Steel 304 Similar to A2 or 18-8 HRB80 Pin | ||||
|
Diameter (D)
2.500
mm + 0.002 / + 0.008
(Equiv. 0.098 in.) |
Length (L)
20.00
mm +/- 0.420 (Equiv. 0.787 in.) |
Approx. Overall Length
20.80
mm +/- 0.420 (Equiv. 0.819 in.) |
Type
3 (Rounded Ends)
|
|
|
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Category: Pins - Dowel - Standard - Rounded Ends - 303-304 Stainless |
||||
|
Part Number: DP025-020-304-3 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||
| Dowel Pins - 2.5x20x20.8 mm Standard - Stainless Steel 304 Similar to A2 or 18-8 HRB80 Pin | ||||
|
Diameter (D)
2.500
mm + 0.002 / + 0.008 (Equiv. 0.098 in.) |
Length (L)
20.00
mm +/- 0.420 (Equiv. 0.787 in.) |
Approx. Overall Length
20.80
mm +/- 0.420 (Equiv. 0.819 in.) |
|
|
|
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Type: 3 (Rounded Ends)
Category: Pins - Dowel - Standard - Rounded Ends - 303-304 Stainless |
||||
|
Part Number: DP025-020-304-3 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||
| Dowel Pins - 2.5x24x24.8 mm Standard - Stainless Steel 304 Similar to A2 or 18-8 HRB80 Pin | ||||
|
Diameter (D)
2.500
mm + 0.002 / + 0.008
(Equiv. 0.098 in.) |
Length (L)
24.00
mm +/- 0.420 (Equiv. 0.945 in.) |
Approx. Overall Length
24.80
mm +/- 0.420 (Equiv. 0.976 in.) |
Type
3 (Rounded Ends)
|
|
|
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Category: Pins - Dowel - Standard - Rounded Ends - 303-304 Stainless |
||||
|
Part Number: DP025-024-304-3 (PK-500)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||
| Dowel Pins - 2.5x24x24.8 mm Standard - Stainless Steel 304 Similar to A2 or 18-8 HRB80 Pin | ||||
|
Diameter (D)
2.500
mm + 0.002 / + 0.008 (Equiv. 0.098 in.) |
Length (L)
24.00
mm +/- 0.420 (Equiv. 0.945 in.) |
Approx. Overall Length
24.80
mm +/- 0.420 (Equiv. 0.976 in.) |
|
|
|
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Type: 3 (Rounded Ends)
Category: Pins - Dowel - Standard - Rounded Ends - 303-304 Stainless |
||||
|
Part Number: DP025-024-304-3 (PK-500)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||
| Dowel Pins - 2.5x30x30.8 mm Standard - Stainless Steel 304 Similar to A2 or 18-8 HRB80 Pin | ||||
|
Diameter (D)
2.500
mm + 0.002 / + 0.008
(Equiv. 0.098 in.) |
Length (L)
30.00
mm +/- 0.500 (Equiv. 1.181 in.) |
Approx. Overall Length
30.80
mm +/- 0.500 (Equiv. 1.213 in.) |
Type
3 (Rounded Ends)
|
|
|
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Category: Pins - Dowel - Standard - Rounded Ends - 303-304 Stainless |
||||
|
Part Number: DP025-030-304-3 (PK-500)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||
| Dowel Pins - 2.5x30x30.8 mm Standard - Stainless Steel 304 Similar to A2 or 18-8 HRB80 Pin | ||||
|
Diameter (D)
2.500
mm + 0.002 / + 0.008 (Equiv. 0.098 in.) |
Length (L)
30.00
mm +/- 0.500 (Equiv. 1.181 in.) |
Approx. Overall Length
30.80
mm +/- 0.500 (Equiv. 1.213 in.) |
|
|
|
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80
Type: 3 (Rounded Ends)
Category: Pins - Dowel - Standard - Rounded Ends - 303-304 Stainless |
||||
|
Part Number: DP025-030-304-3 (PK-500)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029 |
||||
