Belts - Timing 2.000mm Pitch - GT - 6mm Wide - Clean

2 Products in this selection

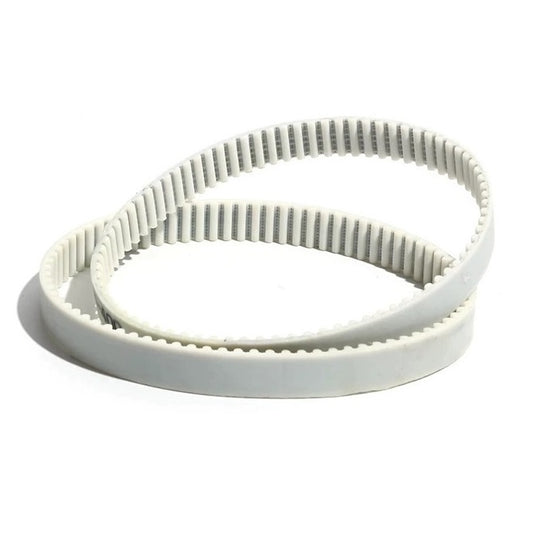

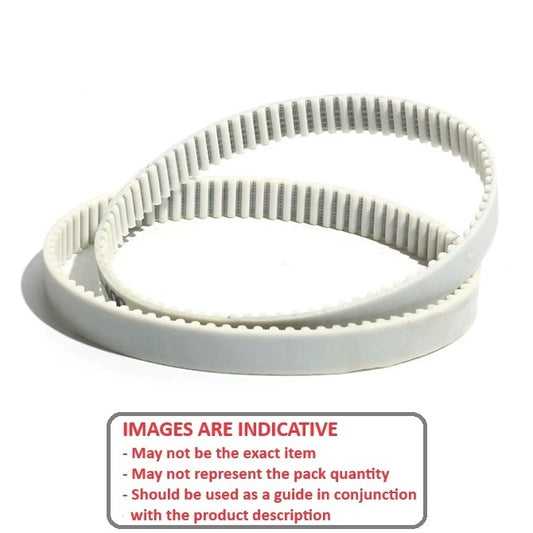

  • PowerGrip(R) TruMotion(R) Timing Belts in 2.000mm.
  • The TruMotion(R) belt construction utilizes a cream-colored polymer compound reinforced with fiberglass tensile cord and a clean polymer-free nylon tooth facing.
  • The belt can withstand high and low temperature ranges of -40oF to +220oF, has a virtually dust-free operation and is non-marking.
  • The belt also has a high flex life and resistance to elongation. GT3 will replace GT2 as stock is depleted.
  • Pitch (P) - 2.00mm, Tooth Height (H) - 0.76mm, Belt Height (W) - 1.52mm.
  • Breaking strength is not indicative of working strength. Belts working load should be rated at approximately 1/15th of their ultimate breaking strength.
Additional resources:
Timing Belts Catalogue PDF
Idler Pulleys
2mm GT Timing Pulleys
A more concise listing may be found on the Smallparts store at Belts - Timing 2.000mm Pitch - GT - 6mm Wide - Clean. Smallparts promote the most popular MBA products.
Teeth Length Width Reinforcement Appearance Indicative
Teeth
100
Length
200
mm
Width
6.0
mm
Reinforcement
Fibreglass (GT2) or Carbon Fibre (GT3)
Appearance
Cream
Timing 2.000mm Pitch Belts - 100 tooth - 200x6 mm - Nylon Covered Neoprene Rubber with Fibreglass GT2 or Carbon Fibre GT3 Cords
Material: Nylon Covered Neoprene Rubber with Fibreglass (GT2) or Carbon Fibre (GT3) Cords    Breaking Strength: 516 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C
Part Number: B-020G-0100-0060-NFC Timing 2.000mm Pitch Belts - 100 tooth - 200x6 mm - Nylon Covered Neoprene Rubber with Fibreglass GT2 or Carbon Fibre GT3 Cords
219 Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$5.00 AUD
$9.50 AUD $5.00 AUD
Each
Teeth Length Width Indicative
Teeth
100
Length
200
mm
Width
6.0
mm
Timing 2.000mm Pitch Belts - 100 tooth - 200x6 mm - Nylon Covered Neoprene Rubber with Fibreglass GT2 or Carbon Fibre GT3 Cords
Material: Nylon Covered Neoprene Rubber with Fibreglass (GT2) or Carbon Fibre (GT3) Cords    Reinforcement: Fibreglass (GT2) or Carbon Fibre (GT3)    Appearance: Cream    Breaking Strength: 516 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C
Part Number: B-020G-0100-0060-NFC Timing 2.000mm Pitch Belts - 100 tooth - 200x6 mm - Nylon Covered Neoprene Rubber with Fibreglass GT2 or Carbon Fibre GT3 Cords
219 Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$5.00 AUD
$9.50 AUD $5.00 AUD
Each
Teeth
126
Length
252
mm
Width
6.0
mm
Reinforcement
Fibreglass (GT2) or Carbon Fibre (GT3)
Appearance
Cream
1193544 | B-020G-0126-0060-NFC --- Timing 2.000mm Pitch Belts - 126 tooth - 252x6 mm - Nylon Covered Neoprene Rubber with Fibreglass (GT2) or Carbon Fibre (GT3) Cords
Material: Nylon Covered Neoprene Rubber with Fibreglass (GT2) or Carbon Fibre (GT3) Cords    Breaking Strength: 516 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C
Part Number: B-020G-0126-0060-NFC Timing 2.000mm Pitch Belts - 126 tooth - 252x6 mm - Nylon Covered Neoprene Rubber with Fibreglass (GT2) or Carbon Fibre (GT3) Cords
220 Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$5.00 AUD
$9.50 AUD $5.00 AUD
Each
Teeth
126
Length
252
mm
Width
6.0
mm
1193544 | B-020G-0126-0060-NFC --- Timing 2.000mm Pitch Belts - 126 tooth - 252x6 mm - Nylon Covered Neoprene Rubber with Fibreglass (GT2) or Carbon Fibre (GT3) Cords
Material: Nylon Covered Neoprene Rubber with Fibreglass (GT2) or Carbon Fibre (GT3) Cords    Reinforcement: Fibreglass (GT2) or Carbon Fibre (GT3)    Appearance: Cream    Breaking Strength: 516 N    Min Temperature (C): -34 Deg C    Max Temperature (C): 85 Deg C
Part Number: B-020G-0126-0060-NFC Timing 2.000mm Pitch Belts - 126 tooth - 252x6 mm - Nylon Covered Neoprene Rubber with Fibreglass (GT2) or Carbon Fibre (GT3) Cords
220 Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$5.00 AUD
$9.50 AUD $5.00 AUD
Each
