WRE-0032-RD - Datasheet
ENQUIRE
Category Information

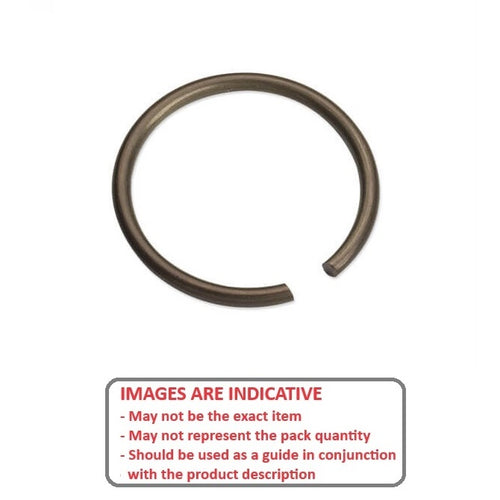

Retaining Rings - External - Round WireRound Wire External Retaining Rings. DIN7993A / RW / BN825. Retaining rings. Snap Rings (USA). Round section circlips.
- An expanded range may be available on special order. Please enquire.
- Round section wire rings are mostly used in semicircular grooves.
- Applications include gear systems, automotive engineering and open gudgeon pins.

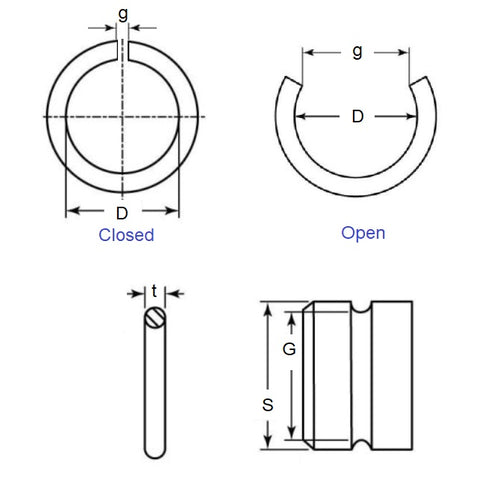

Product Data
- Shaft Diameter (Ds) : 3.18 mm
- Clip Thickness (T) 0.32 mm
- Groove Dia. (Dg) 2.87 mm
- Approx. Loose Circlip ID (A) 2.79 mm
- Radial Wall (S) Approx. 2.87 mm + 0.08 / - 0.00
- Groove Width (W) 0.33 mm + 0.08 / - 0.00
- Free Outside Dia (Dr) 3.43
- Section Profile Round Section
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- NoCor® A10-012
- A10012
- A1000-012
- A1000012
