RP100-0300-4 - Datasheet
MBA
Category Information
Pins - Roll - Stainless Steel - 300 Grade300 Grade Stainless Steel Roll Pins. 300 Grade Stainless DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins

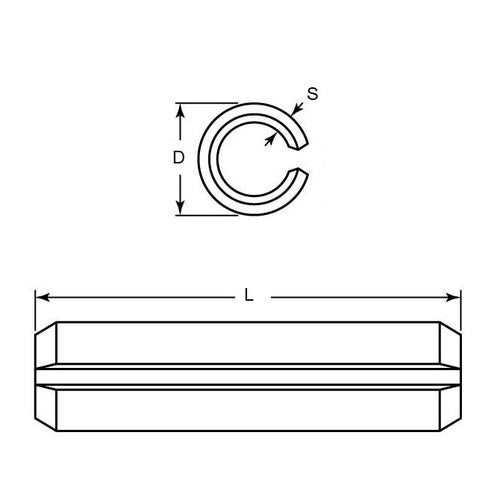

Product Data
- Nominal Diameter (D) : 10.00 mm
- Length (L) 30.00 mm
- Free Diameter 11.00 mm
- Thickness (S) 2.00 mm
- Chamfer Length (cL) 2.00-2.40 mm
- Standard DIN1481 / ISO8752
- Type Standard
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- 91610A916
- Huyett® SPM3P-100-030-A
- NoCor® SPM3P-100-030-I
- NoCor® SPMS-100-030-304SS
- SRP10-30
- SRP1030
- SPM3P100030I
- SPMS100030304SS
