HPE-111-16-029-CZ - Datasheet

MBA

Category Information

Pins - Hitch External

Hitch External Pins. Similar to R-Clips, but designed for both arms to fit around a shaft groove rather thand having one arm through a bored hole.

    Product Data

    • Recommended Groove Diameter : 11.11 mm
    • Rec. Groove Width 2.0 mm
    • Wire Thickness (D) 1.4 mm
    • Inside Eye Diameter (E) 5.6 mm
    • Length (L) 28.6 mm
    • Material Carbon Spring Steel Zinc Plated
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

    Cross References

    • 98395A223
    • Huyett® BPXZ-2306/D
    • NoCor® BPXZ-2306D
    • BPXZ2306D
    View full details

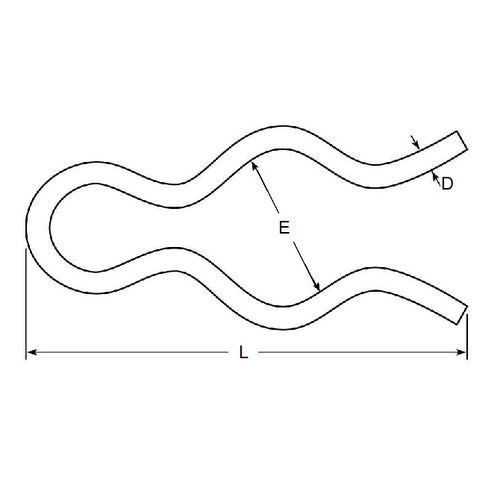

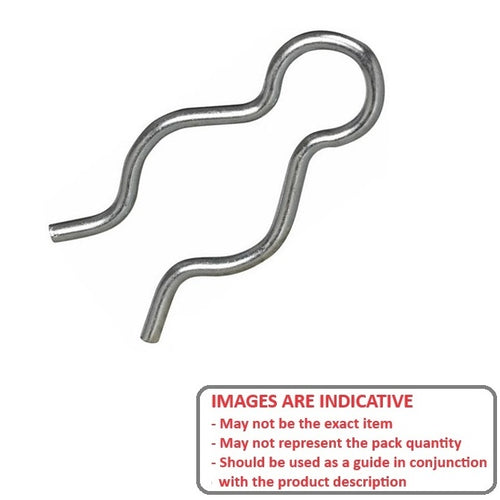

    HPE-111-16-029-CZDiagramHPE-111-16-029-CZImage
