HPE-095-16-025-C - Datasheet

ENQUIRE

Category Information

Pins - Hitch External

Hitch External Pins. Similar to R-Clips, but designed for both arms to fit around a shaft groove rather thand having one arm through a bored hole.

    Product Data

    • Recommended Groove Diameter : 9.53 mm
    • Rec. Groove Width 2.0 mm

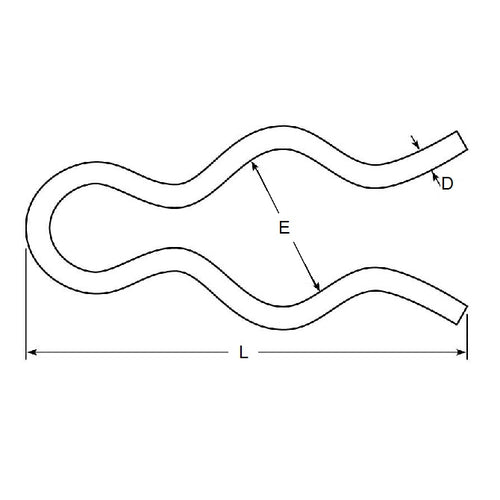

    • Wire Thickness (D) 1.6 mm
    • Inside Eye Diameter (E) 7.9 mm
    • Length (L) 25.4 mm
    • Material Spring Wire, Oil-Tempered
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

    Cross References

    • 98395A221
    • A9Q34-X2
    • A9Q34X2
    View full details

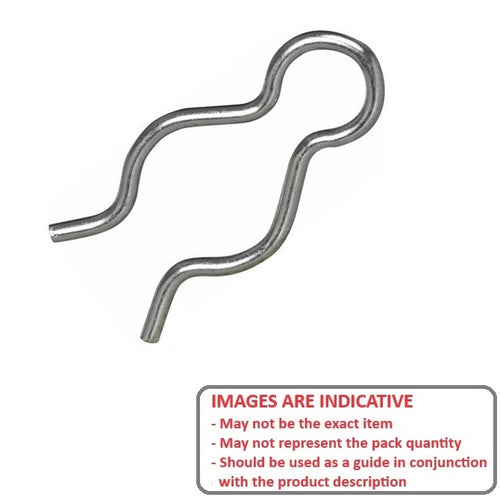

    HPE-095-16-025-CDiagramHPE-095-16-025-CImage
