Miniature Bearings Australia
OR-00369-178-N70-007 - Datasheet
MBA
Category Information
O-Rings - General Purpose - Nitrile Rubber PacksNitrile Rubber Packs General Purpose O-Rings. General purpose. Includes o-rings for dental handpiece applications.
- Neoprene and Nitrile O-Rings with excellent resistance to ageing and weathering effects.
- Mulitple packs may be supplied together in a singular package.
- Temperature Range: -30 Deg C to +90 Deg C.
- Nitrile: Excellent resistance to mineral oil based fluids, hydrocarbon fuels, greases and water.
- Not suitable for aromatic hydrocarbons, chlorinated hydrocarbons, brake fluid and some fire resistant hydraulic fluids.
- If you need a larger quantity, please check the BULK category for these o-rings.
Product Data

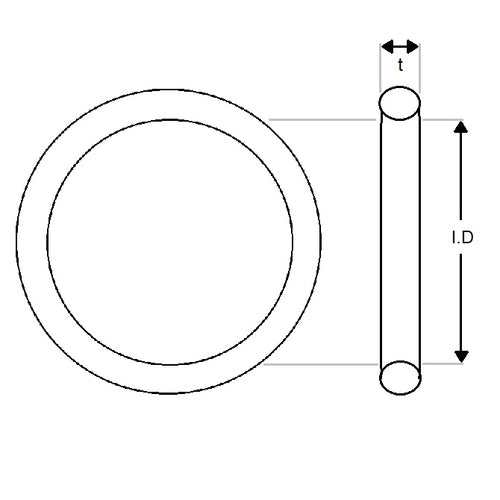

- Inside Diameter (ID)
:
3.69
mm
(Equiv. 0.145 in.) - Section (t)
1.78
mm
(Equiv. 0.07 in.) - Colour Black
- Hardness 70 Durometer
- Material Nitrile (NBR, BUNA-N)
Product Compliance and Data
Additional Resources
Cross References
- 9452K15
- Small Parts ORB-007
- ORB00369178N70007
- ORB007
- ORB-00369-178-N70-007
- BS007
- BS007NBR70
- BS007-NBR70
