KF060M-032-7L-ST - Datasheet
MBA
Category Information

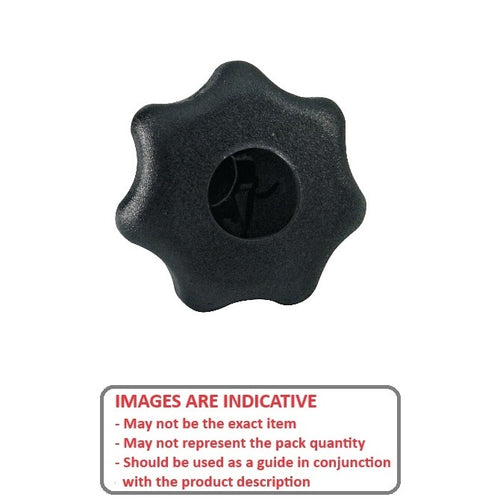

Knobs - Lobe - Seven Lobe - Female - StandardStandard Female Seven Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data

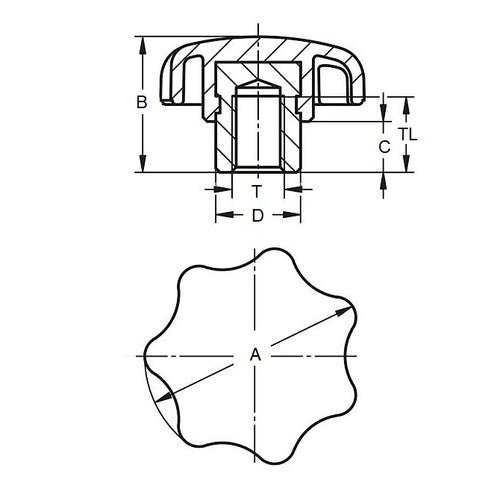

- Thread Size : M6 (6x1mm)
- Head Diameter (A) 32.00 mm
- Thread Length 10.0 mm
- Colour Black
- Hub Diameter (C) 14.00 mm
- Hub Length (D) 10.00 mm
- Knob Height (B) 20.00 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® KPB-1082
- KPB1082
