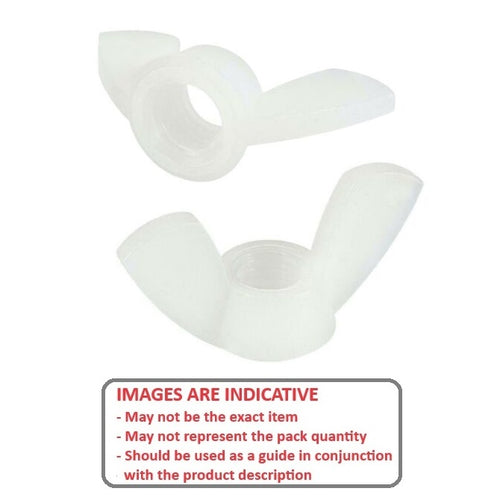

NT100M-WG-NY - Datasheet

MBA

Product Data

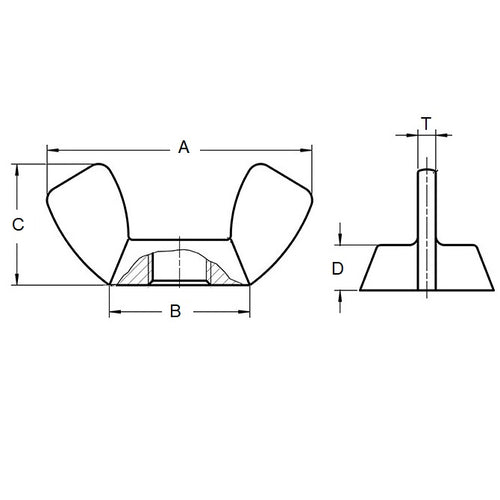

• Thread Size : M10 (10x1.5mm)
• Overall Length (A) 34.0 mm
• Base Diameter (B) 20.0 mm
• Body Height (D) 5.0 mm
• Overall Height (C) 17.0 mm
• Material Natural Nylon 6.6

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Countersunk Head Screws

• Pan Head Screws

• Screws


• Measuring Small Parts
• Metalworking Resource Guide

• Metric Wingnut Dimensions
• Screws & Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• 92124A550
• PWINGM10
• PWING-M10
