KW-095-162-374-Z - Datasheet
ENQUIRE
Category Information

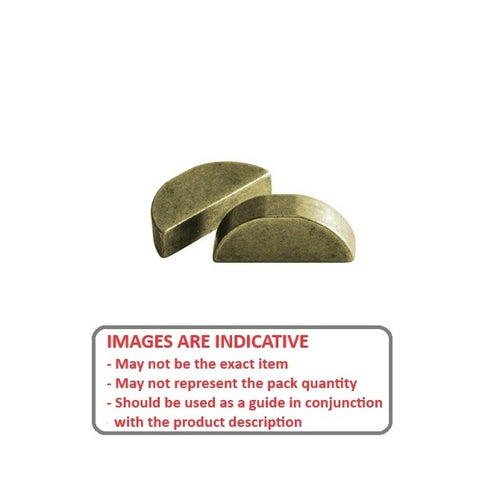

Keys - Woodruff - Zinc PlatedZinc Plated Woodruff Keys. This is the main category in this series
- An expanded range may be available on special order. Please enquire.
Product Data

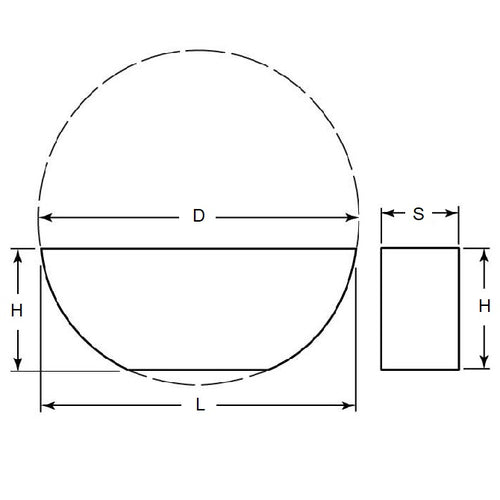

- Thickness (S)
:
9.53
mm
+/- 0.025
(Equiv. 0.375 in.) - Approx. Height (H)
16.2
mm
+/- 0.250
(Equiv. 0.638 in.) - Approx. Length (L) 37.44 mm
- Basis Diameter (D) 38.10 mm
- Finish Zinc Plated
- Material Carbon Steel 1035 Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- ANSI 1212-ZP
- Make-A-Key HMEDWG
- Key Size G Zinc Plated
- KW032381Z
