Miniature Bearings Australia
KW-060-075-186-CH - Datasheet
ENQUIRE
Category Information

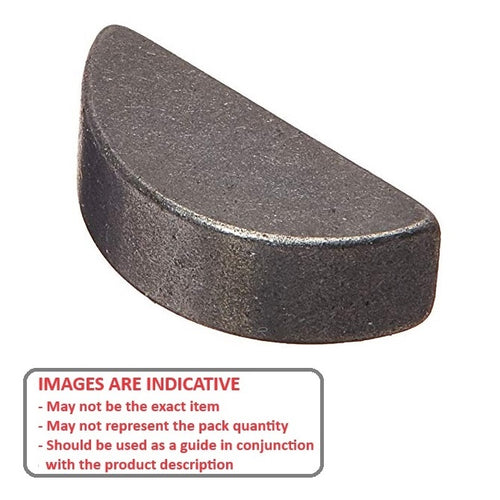

Keys - Woodruff - PlainPlain Woodruff Keys. Plain carbon steel
- An expanded range may be available on special order. Please enquire.
Product Data

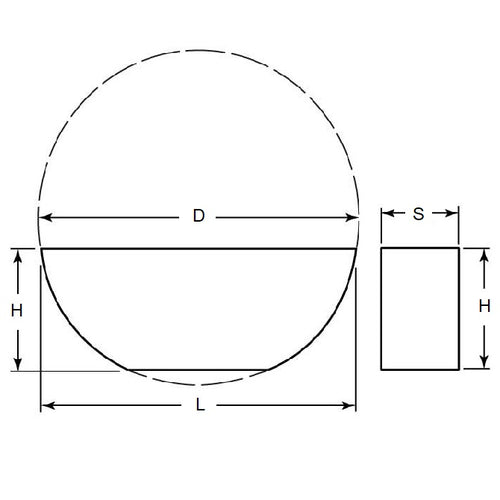

- Thickness (S)
:
6.00
mm
+/- 0.025
(Equiv. 0.236 in.) - Approx. Height (H)
7.5
mm
+/- 0.250
(Equiv. 0.295 in.) - Approx. Length (L) 18.57 mm
- Basis Diameter (D) 19.00 mm
- Finish Plain
- Hardness HRC 40-50
- Material Carbon Steel C45 Hardened
Product Compliance and Data
Additional Resources
Cross References
- KW060190CH
