KW-048-094-217-C-PK20 - Datasheet

ENQUIRE

Category Information

Keys - Woodruff - Plain

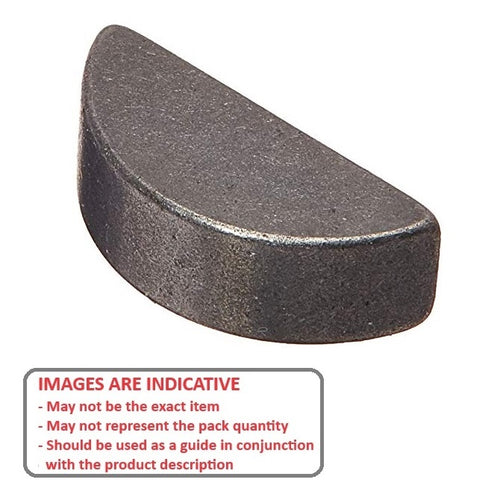

Plain Woodruff Keys. Plain carbon steel

  • An expanded range may be available on special order. Please enquire.

Product Data

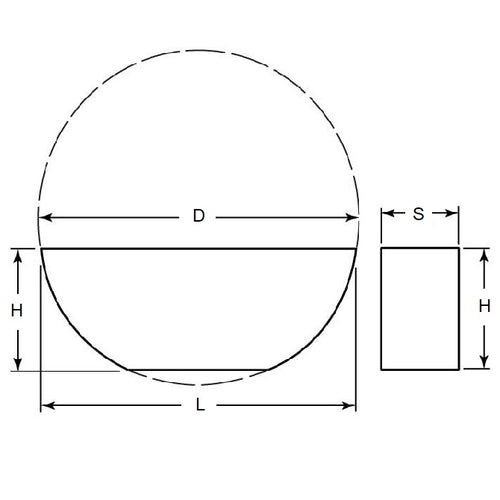

  • Thickness (S) : 4.76 mm +/- 0.025
    (Equiv. 0.187 in.)
  • Approx. Height (H) 9.4 mm +/- 0.250
    (Equiv. 0.37 in.)
  • Approx. Length (L) 21.74 mm
  • Basis Diameter (D) 22.23 mm
  • Finish Plain
  • Material Carbon Steel C45
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • ANSI 607 Packs
  • NoCor® ROCX8081509
  • Reid Tool® ROC-X8081-509
  • Key Size 11 Packs
  • KW048222CPK20
View full details
KW-048-094-217-C-PK20DiagramKW-048-094-217-C-PK20Image
