KW-020-016-036-C - Datasheet
ENQUIRE
Category Information

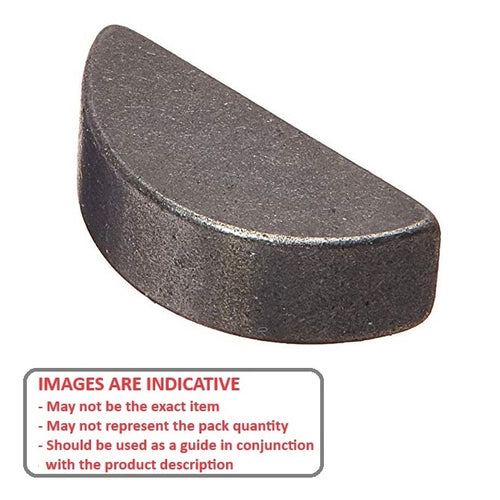

Keys - Woodruff - PlainPlain Woodruff Keys. Plain carbon steel
- An expanded range may be available on special order. Please enquire.
Product Data

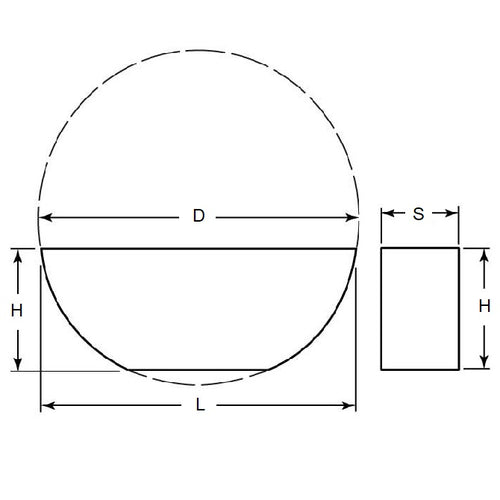

- Thickness (S)
:
2.00
mm
+/- 0.025
(Equiv. 0.079 in.) - Approx. Height (H)
1.6
mm
+/- 0.250
(Equiv. 0.063 in.) - Approx. Length (L) 3.60 mm
- Basis Diameter (D) 3.70 mm
- Finish Plain
- Hardness HRB 80
- Material Carbon Steel C45
Product Compliance and Data
Additional Resources
Cross References
- KW020037C
