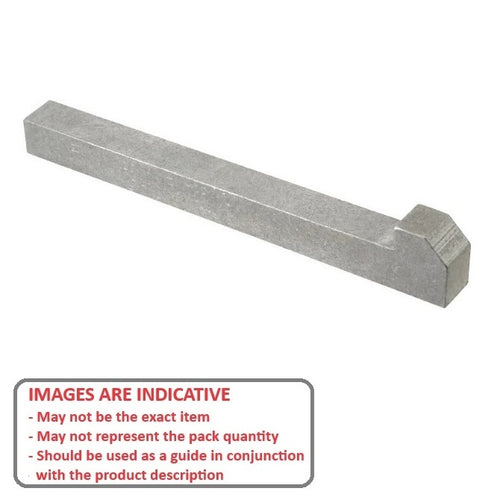

GHK1905-1905-140 - Datasheet
ENQUIRE
Category Information
Keys - Gib Head - SteelSteel Gib Head Keys. Tapered 3.000 mm per 300 mm (1:100)
- An expanded range may be available on special order. Please enquire.
Product Data
- Nominal Key Height (H1) : 19.050 mm
- Width (W) 19.050 mm
- Length (L) 139.7 mm
- Head Height (h2) Approx. 28.5 mm
- Approx (B) 12.70
- Approx (H3) 19.84
- Taper 1:100
- Standard BS46
- Material Cold Finished Steel
Product Compliance and Data
Additional Resources
Cross References
- 68471A363
