GR-M15-12-0250-12-A - Datasheet
ENQUIRE
Category Information

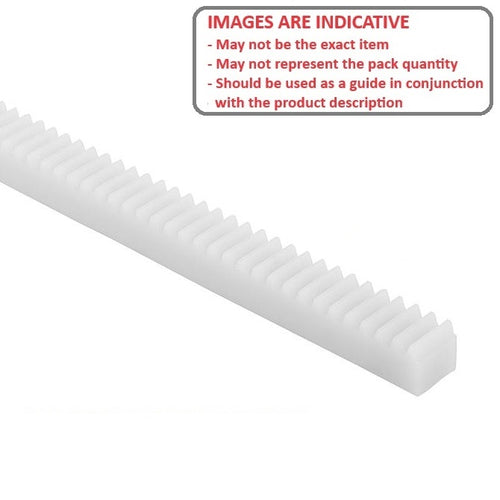

Gears - Rack - Metric - Module 1.5 - PlasticPlastic Module 1.5 Metric Rack Gears. 20 Degree Pressure Angle. Acetal and Nylon.
- Be sure to match the pitch type and tooth angle when selecting rack and spur gears.
- An expanded range may be available on special order. Please enquire.
- Lengths longer than 1mtr can only be shipped internationally using Express not post. Please do not select post at checkout for long lengths.
Product Data
- Length (L) : 250 mm
- Face Width (fw) 12.000 mm
- Height (h) 12.000 mm
- Pitch Type Module 1.5
- Pitch Height (ph) 10.500 mm
- Pressure Angle 20 °
- Precision ISO 8 (AGMA Q9)
- Mounting Holes None
- Shape Square
- Material Acetal - Moulded
Product Compliance and Data
Additional Resources
Cross References
- A1M12MYZ1525
