CP-030-030-15-022-H-SA - Datasheet

MBA

Category Information

Couplings - Helical - Standard

Standard Helical Couplings. 0.1 to 16.2 Nm.

  • An expanded range may be available on special order. Please enquire.
  • Zero backlash.
  • Max. Ang Misalignment 5 Degree
  • Max Parallel Offset 0.25mm.

Product Data

  • Bore (B1) : 3.000 mm
  • Bore (B2) 3.000 mm
  • OD (D) / Clearance Dia (H) 15.000 mm
  • Length (L) 22.000 mm
  • Max. Momentary Dyn. Torque 0.36 N.m
  • Hub Config/Hub Diameter Clamp Hub / 15.0 mm
  • Torsional Flexibility 306.0 Arc.Min / N.m
  • Material Aluminium 7075-T6
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • 2463K1
    • S50HAWM15H0303
    View full details

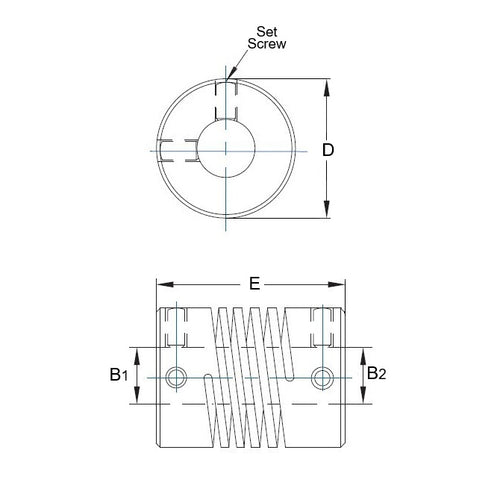

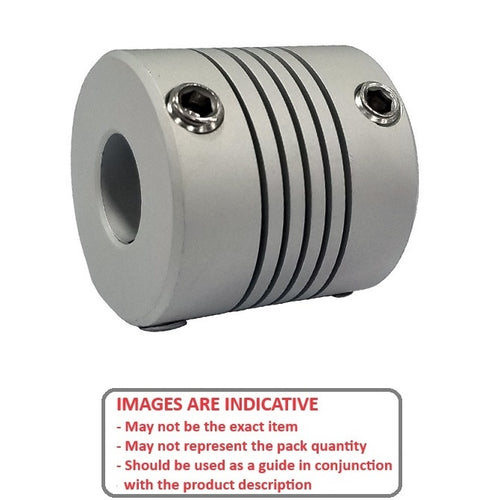

    CP-030-030-15-022-H-SADiagramCP-030-030-15-022-H-SAImage
