CCE-32500-C - Datasheet
ENQUIRE
Category Information

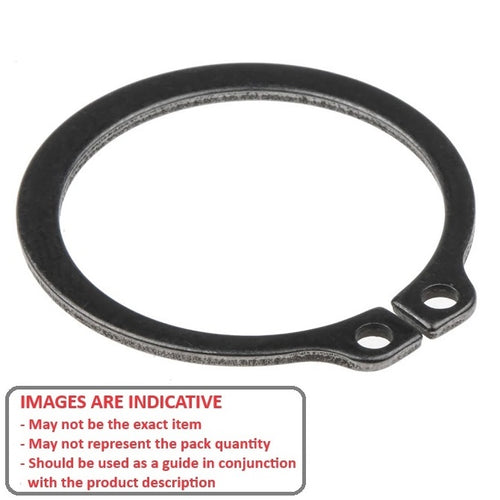

Retaining Rings - External - Circlips - Standard - Carbon SteelCarbon Steel Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Plain carbon steel
Product Data

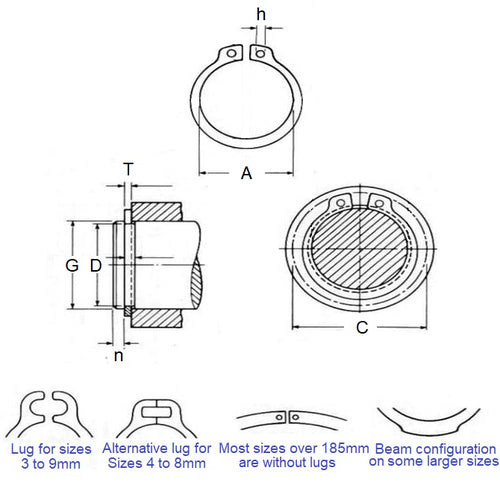

- Shaft Diameter (Ds) : 325.00 mm
- Clip Thickness (T)
6.00
mm
+ 0.00 / - 0.15
(Equiv. 0.236 in.) - Groove Dia. (Dg)
315.00
mm
+ 0.00 / - 0.89
(Equiv. 12.402 in.) - Approx. Loose Circlip ID (A) 308.00 mm
- Groove Width (W) 6.20 mm
- Standard DIN471
- Material Carbon Spring Steel Self Finish
Product Compliance and Data
Additional Resources
Cross References
- Ellison® 471-325
- Seeger® A-325
- Seeger® A325X6
- Bossard® BN818-325
- Waldes® D1400-325
- NoCor® DSH-325
- Rotor Clip® DSH-325
- BN818325
- D1400325
- D1400-3250
- D14003250
- 471325
- DSH325
