CCE-26700-C - Datasheet

ENQUIRE

Category Information

Retaining Rings - External - Circlips - Standard - Carbon Steel

Carbon Steel Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. Retaining rings. Snap Rings (USA).

  • An expanded range may be available on special order. Please enquire.
  • Plain carbon steel

Product Data

  • Shaft Diameter (Ds) : 267.00 mm
  • Clip Thickness (T) 5.00 mm + 0.00 / - 0.12
    (Equiv. 0.197 in.)
  • Groove Dia. (Dg) 259.00 mm + 0.00 / - 0.81
    (Equiv. 10.197 in.)
  • Approx. Loose Circlip ID (A) 250.00 mm
  • Groove Width (W) 5.15 mm
  • Standard DIN471
  • Material Carbon Spring Steel Self Finish
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Ellison® 471-267
  • Seeger® A-267
  • Seeger® A267X5
  • Bossard® BN818-267
  • Waldes® D1400-267
  • NoCor® DSH-267
  • Rotor Clip® DSH-267
  • BN818267
  • D1400267
  • D14002670
  • D1400-2670
  • 471267
  • DSH267
View full details

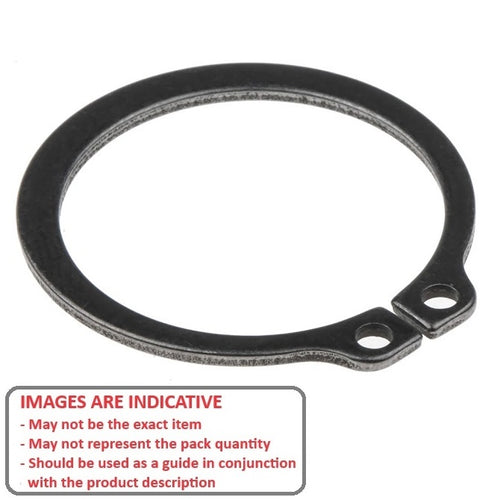

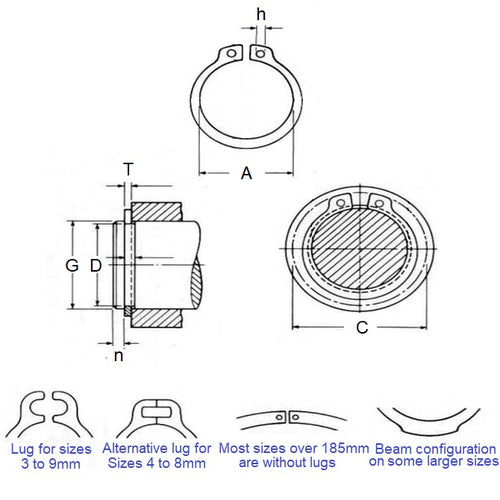

CCE-26700-CDiagramCCE-26700-CImage
