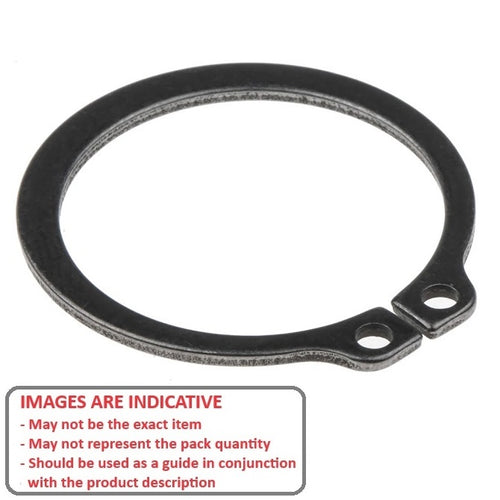

CCE-18800-C - Datasheet
ENQUIRE
Category Information
Retaining Rings - External - Circlips - Standard - Carbon SteelCarbon Steel Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Plain carbon steel
Product Data

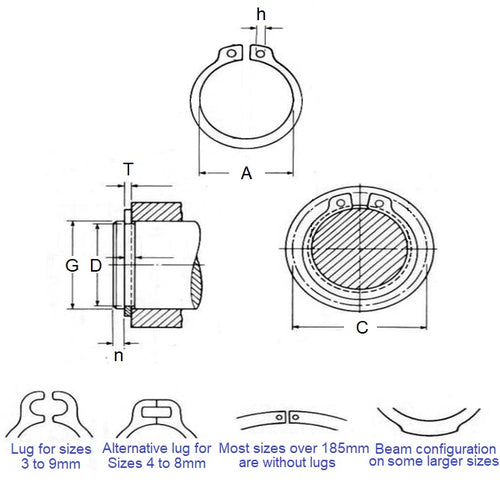

- Shaft Diameter (Ds) : 188.00 mm
- Clip Thickness (T)
4.00
mm
+ 0.00 / - 0.10
(Equiv. 0.157 in.) - Groove Dia. (Dg)
183.00
mm
+ 0.00 / - 0.63
(Equiv. 7.205 in.) - Approx. Loose Circlip ID (A) 177.50 mm
- Groove Width (W) 4.15 mm
- Standard DIN471
- Material Carbon Spring Steel Self Finish
Product Compliance and Data
Additional Resources
Cross References
- Ellison® 471-188
- Seeger® A-188
- Seeger® A188X4
- Bossard® BN818-188
- Waldes® D1400-188
- NoCor® DSH-188
- Rotor Clip® DSH-188
- BN818188
- D1400188
- D14001880
- D1400-1880
- 471188
- DSH188
