T-0250-0410-FCG-S440 - Datasheet
ENQUIRE
Category Information

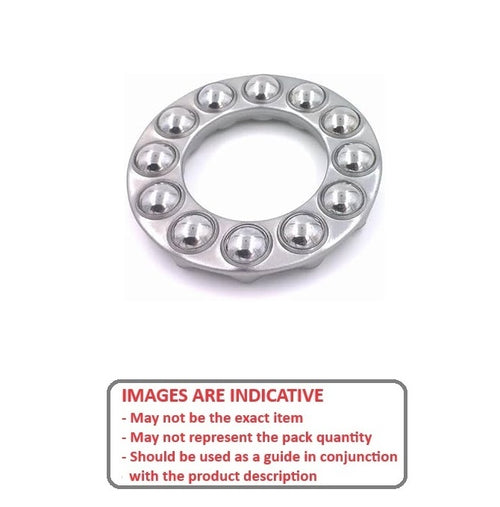

Bearings - Thrust - Ball - Cage and Balls Only - Stainless SteelStainless Steel Cage and Balls Only Ball Thrust Bearings. Match with thrust washers of the same bore and OD.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Nominal ID : 25.000 mm
- Nominal OD 41.000 mm
- Ball Size (Width) 4.762 mm
- Cage Thickness 3.180 mm
- Material Nylon and Stainless AISI 440C
