MLM-240M-108-S3 - Datasheet
MBA
Category Information

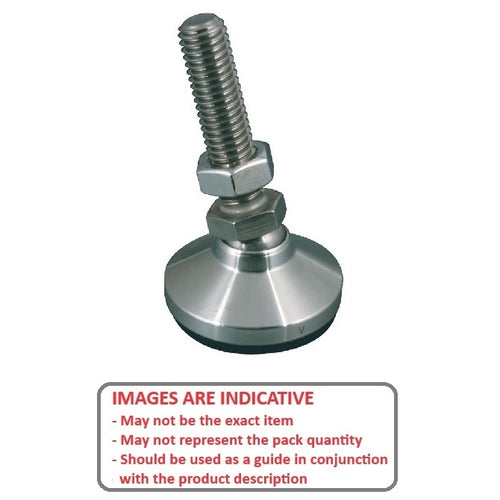

Mounts - Levelling Studded - Standard - 303 Stainless303 Stainless Standard Levelling Studded Mounts. Levelling adjusters. Good quality with value pricing. 303 stainless steel.
- An expanded range may be available on special order. Please enquire.
- Large diameter base for added support.
- 15o off centre swivel for quick leveling on sloped surfaces.
Product Data

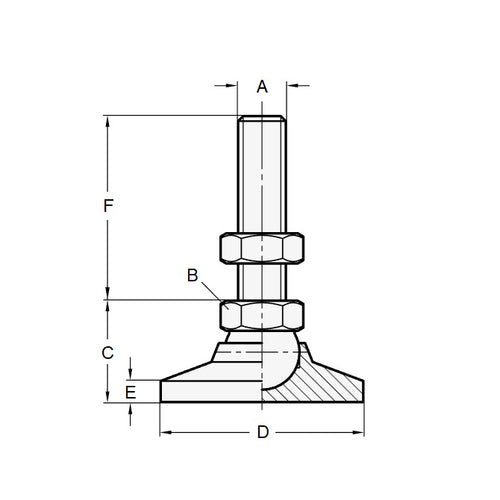

- Thread Size (A) : M24 (24x3mm)
- Base Diameter (D) 102.0 mm
- Foot Height (C) 48.0 mm
- Thread Length (F) 108.0 mm
- Base Height (E) 10.00 mm
- Overall Height 156.0 mm
- Load Rating 9980 Kg
- Hex Flats (B) 36.00 mm
- Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® HVTM-35SS
- HVTM35SS
- MLM9980M24S3
