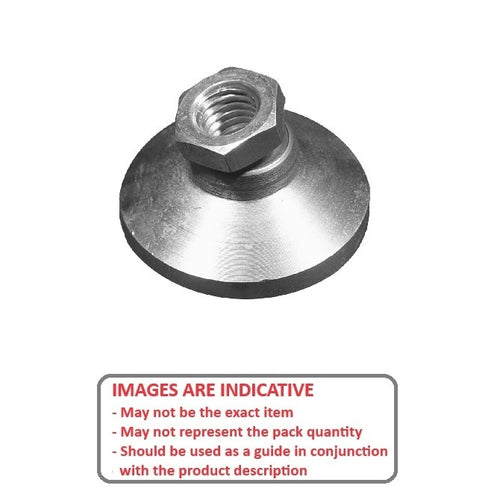

MSF-254C-CCC - Datasheet
MBA
Category Information
Mounts - Levelling Socket - Swivel - Clear Chromate - StandardStandard Clear Chromate Swivel Levelling Socket Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : 1-8 UNC (25.4mm)
- Base Diameter (D) 101.6 mm
- Foot Height (C) 47.6 mm
- Min. Thread Depth 20.6 mm
- Base Height (E) 10.32 mm
- Load Rating 9920 Kg
- Steel
- Finish Clear Chromate
- Hex Flats (B) 34.93
- Material Clear Chromate
Product Compliance and Data
Additional Resources
Cross References
- 6103K12
- Reid Tool® LS-14
- LS14
- MSF9920254CCC
