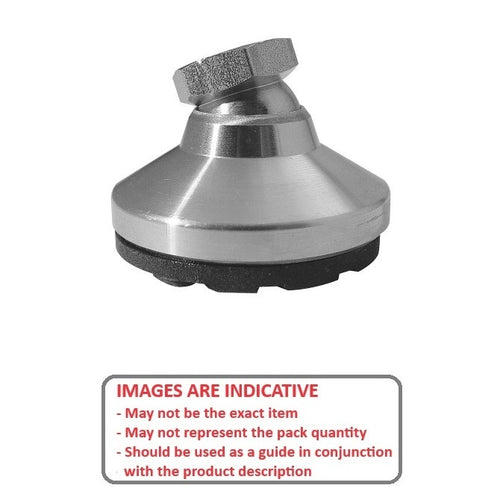

MSF-254C-S3RP - Datasheet
MBA
Category Information
Mounts - Levelling Socket - Swivel - 303 Stainless - Rubber PaddedRubber Padded 303 Stainless Swivel Levelling Socket Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
- 303 Stainless Steel.
Product Data
- Thread Size (A) : 1-8 UNC (25.4mm)
- Base Diameter (D) 101.6 mm
- Foot Height (C) 47.6 mm
- Min. Thread Depth 20.6 mm
- Base Height (E) 13.49 mm
- Load Rating 9530 Kg
- Pad Thickness 3.2 mm
- Pad Material Elastomer
- Hex Flats (B) 34.93 mm
- Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® LE-4SS
- LE4SS
- MSF9530254C36
