Category Information

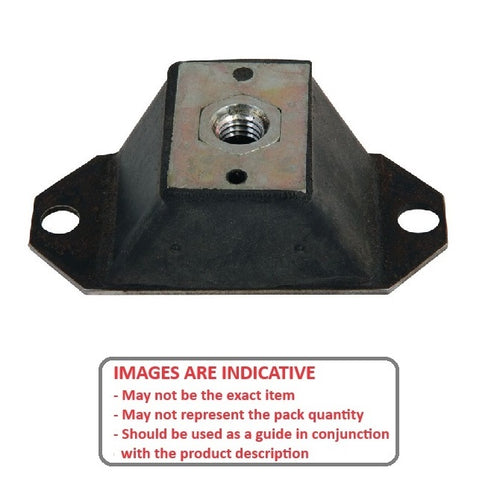

Mounts - CompressionCompression Mounts. Used for vertically applied loads to prevent the transmission of noise and vibration caused by rotation of unbalanced equipment.
- Used for vertically applied loads to prevent the transmission of noise and vibration caused by rotation of unbalanced equipment.
- Made with durable oil and ozone resistant neoprene. No special tools required for installation.
- Made with durable oil and ozone resistant neoprene. No special tools required for installation.

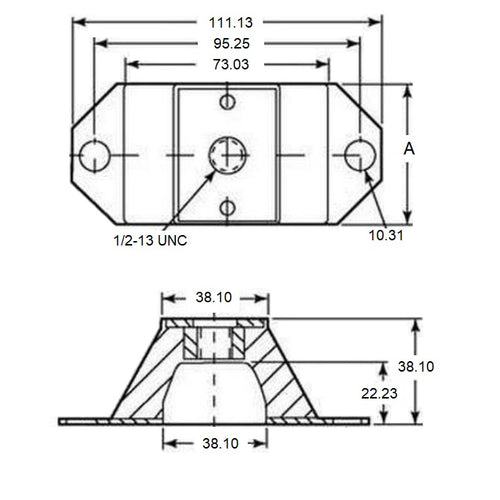

Product Data
- Load Range : 90.718 Kg
- Width (A) 101.6 mm
- Overall Length 111.125 mm
- Height 38.1 mm
- Thread 1/2-13 UNC (12.700mm)
- Material Neoprene Rubber
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® BCM-200
- BCM200
