Leadscrew Nut Flanges - For Acme Nuts

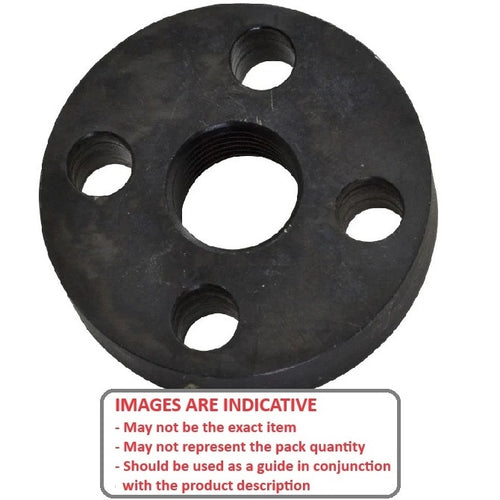

For Acme Nuts Leadscrew Nut Flanges. Flanges for Acme leadscrew thread nuts imperial

  • These flanges are screwed onto the outer thread of the red leadscrew nuts
  • This provides a mounting surface to enable location of the leadscrew nut on the surface to be moved

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

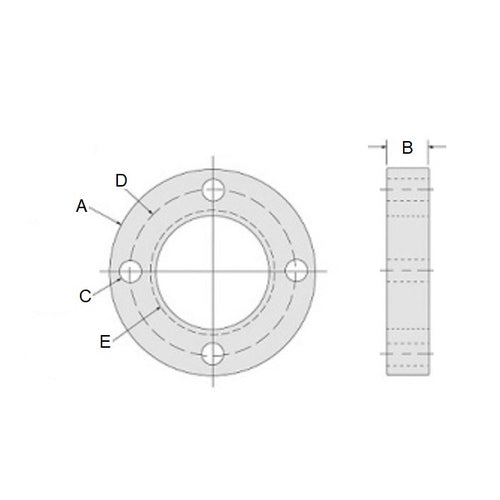

  • Suitable Nut Mounting Thread : 9/16-18 UNF (14.29mm)
  • Flange OD 40.640 mm
  • Flange Thickness 10.414 mm
  • Mounting Hole Diameter 28.575 mm
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • Reid Tool® AR-101
    • AR101
