ES-0914-0318-14-S2 - Datasheet
MBA
Category Information

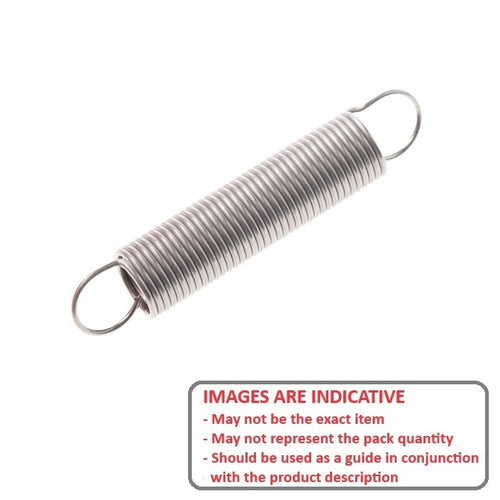

Springs - Extension - Stainless SteelStainless Steel Extension Springs. 300 gradd stainless steel selection, including 303, 304 and 316.
- Helical spring that absorbs and stores energy by resisting a pulling force. When extended, it stores energy, and when released, it redistributes that energy to return to its original, coiled shape.
- Typically used to provide a pulling force between two objects, often with hooks or loops on either end for attachment.
- This category includes short and long lengths. An expanded range may be available on special order. Please enquire.
- 302 Stainless springs not recommended for applications exceeding 260 Deg C (500 Deg F).
- 302 stainless steel is slightly magnetic.

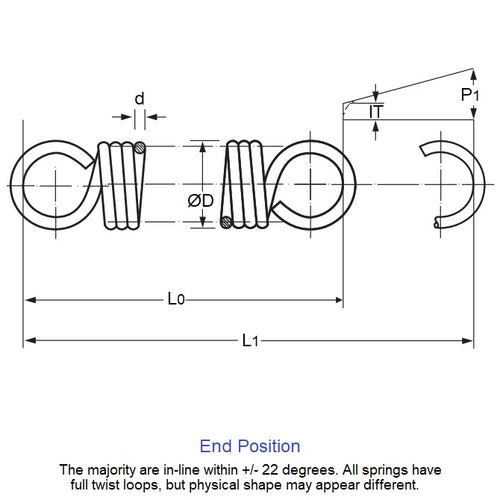

Product Data
- OD (D0) : 9.14 mm
- Approx. Overall Length (L0) 31.8 mm
- Wire Diameter (d) 1.40 mm
- Max. Extension (L1) 42.164 mm
- Spring Rate 5.64 N/mm
- Initial Tension (IT) 5.9 N
- Load at L1 14.66 N
- Material Stainless Steel 302/304 (Similar to A2, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- 9065K112
- S78ESY036055125
- S78ESY-036055125
