F204 - Datasheet
MBA
Category Information

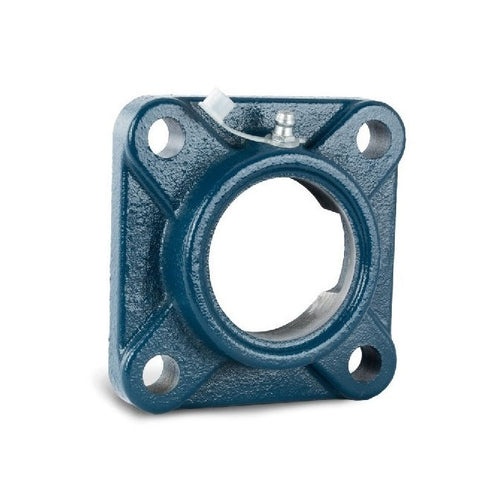

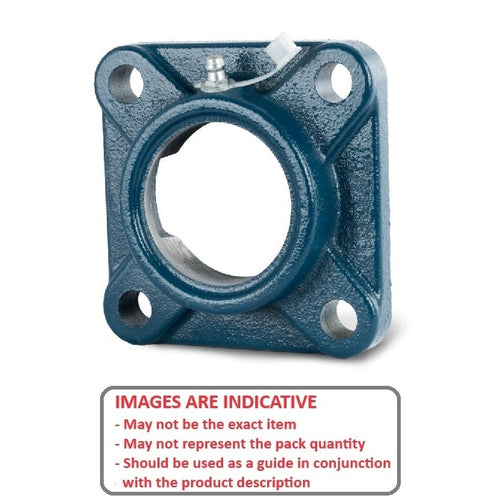

Housings - Flanged Square Cast IronFlanged Square Cast Iron Housings. Lubrication Groove.
- An expanded range may be available on special order. Please enquire.
- Bearings sold separately.
- Larger sizes available on request.
- Use with steel bearing inserts for cast iron housings.
Product Data
- Height (H) : 86.000 mm
- Width - Assembled (W) 33.300 mm
- Base Width (A1) 12.000 mm
- Bolt Hole Centres (J) 64.000 mm
- Housing Width (hW) 25.500 mm
- Bearing Width (B) 31.000 mm
- To Suit Bearing UC201 - UC202 - UC203 - UC204
- Bolt Hole Size (s) 12.000 mm
- Material Cast Iron
Product Compliance and Data
Additional Resources
Cross References
- Nachi® F204J
