P206 - Datasheet
MBA
Category Information

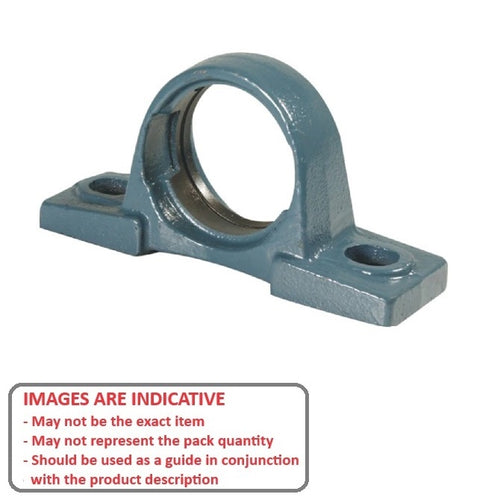

Housings - Cast Iron Pillow BlockCast Iron Pillow Block Housings. Lubrication Groove.
- An expanded range may be available on special order. Please enquire.
- Bearings sold separately.
- Larger sizes available on request.
- Use with steel bearing inserts for cast iron housings.
Product Data

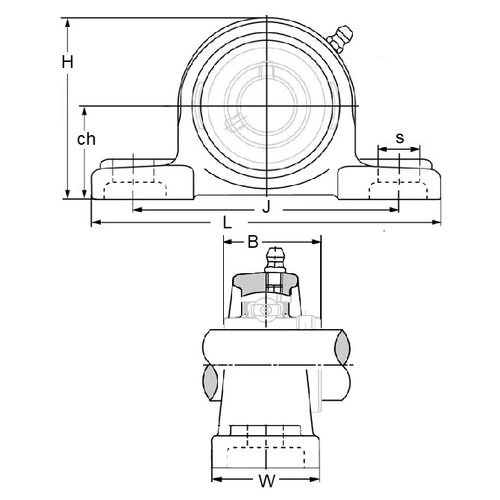

- Height (H) : 83.000 mm
- Length (L) 165.000 mm
- Base Width (W) 48.000 mm
- Bolt Hole Centres (J) 121.000 mm
- Centre Height (cH) 42.900 mm
- Bearing Width (B) 38.100 mm
- To Suit Bearing UC206
- Bolt Hole Size (s) 17 x 21 mm
- Material Cast Iron
Product Compliance and Data
Additional Resources
Cross References
- Nachi® P206J
