FL206 - Datasheet
MBA
Category Information

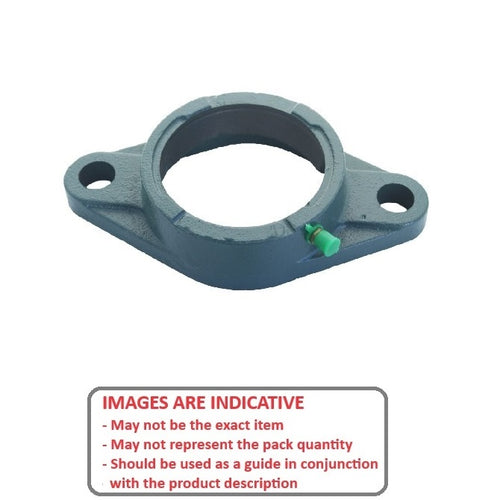

Housings - Flanged - 2 Bolt - Cast Iron to Suit Spherical OD BearingCast Iron to Suit Spherical OD Bearing 2 Bolt Flanged Housings. Lubrication Groove.
- An expanded range may be available on special order. Please enquire.
- Bearings sold separately.
- Larger sizes available on request.
- Use with steel bearing inserts for cast iron housings.

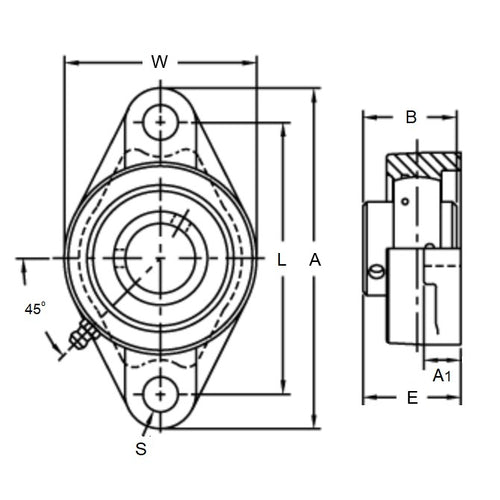

Product Data
- Height (H) : 80.000 mm
- Length (L) 148.000 mm
- Width - Assembled (W) 40.200 mm
- Bolt Hole Centres (J) 117.000 mm
- Base Width (A1) 14.000 mm
- Bearing Width (B) 38.100 mm
- To Suit Bearing UC206
- Bolt Hole Size (s) 16.000 mm
- Material Cast Iron
Product Compliance and Data
Additional Resources
Cross References
- Nachi® FL206J
