Miniature Bearings Australia

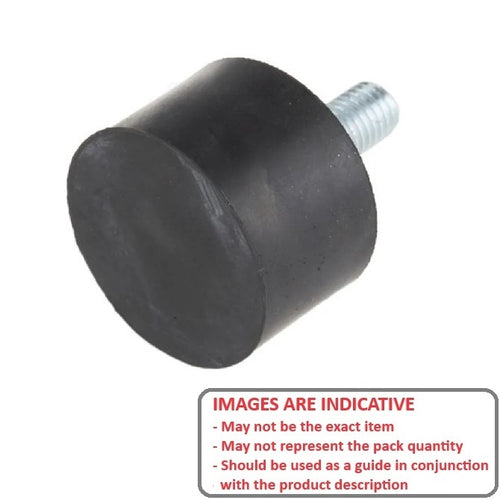

CMB080-80-140M-R45 - Datasheet
MBA
Category Information
Mounts - Buffer - Male - RoundRound Male Buffer Mounts. Vibration dampening
- An expanded range may be available on special order. Please enquire.
Product Data

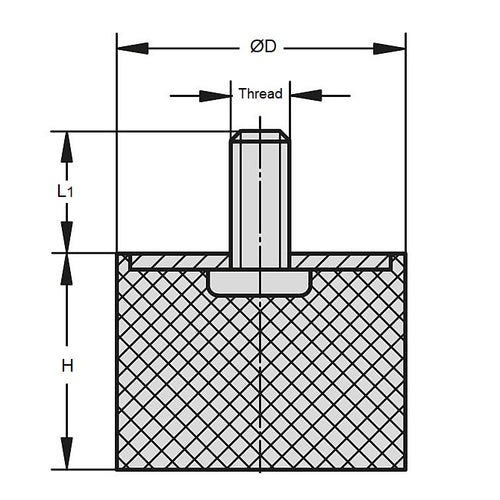

- Nom. Body Diameter (D) : 80.0 mm
- Body Height (H) 80.0 mm
- Thread Size (G) M14x2.00
- Shore Hardness 45
- Thread Length (L1) 35.0 mm
- Compression Load 407 Kg
- Deflection 20.5 mm
- Configuration Male to Blank
- Material Natural Rubber
Product Compliance and Data
Additional Resources
Cross References
- 8080MFB35-45
- 8080MFB3545
