REF-080-R-CB - Datasheet
MBA
Category Information

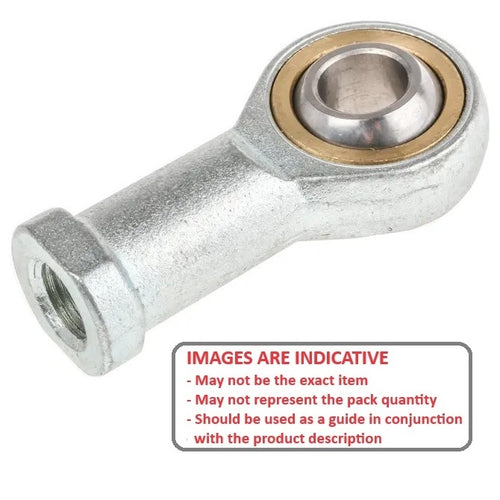

Rod Ends - Female - Steel - Plain - Bronze LinedBronze Lined Plain Steel Female Rod Ends. Imperial and Metric / Carbon Steel. Also known as Heim Joints
- An expanded range may be available on special order. Please enquire.
- Dimensions not shown are available on request.

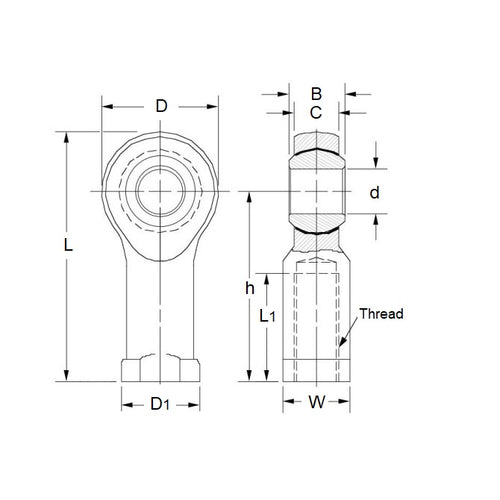

Product Data
- Eye Size : 8 mm
- Overall Length 47.00 mm
- Thread Size M8x1.25 Right
- Thread Length 17.00 mm
- Head Width 9.00 mm
- Eye Width 12.00 mm
- Head Diameter 22.00 mm
- Centre Height 36.00 mm
- Grease Nipple Yes
- Body Width / Flange Width 14.00 / 16.00 mm
- Material Bronze Lined Steel
Product Compliance and Data
Additional Resources
Cross References
- RINO® BEF-08-RH
- MTR BNF8
- IKO PHS8
- BEF08RH
