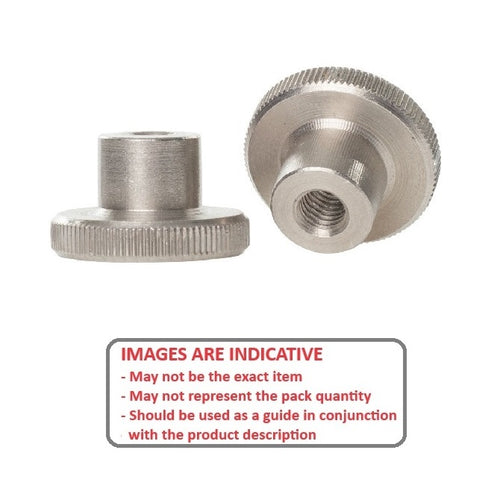

NT042C-TH1912-S3 - Datasheet

MBA

Product Data

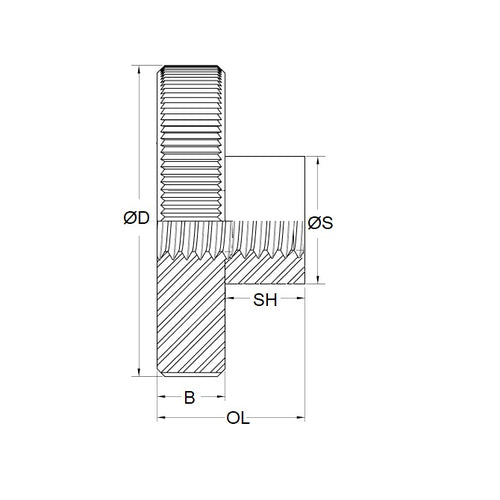

• Thread Size : 8-32 UNC (4.17mm)
• Overall Length 15.9 mm
• Head Width (B) 3.18 mm
• Head Diameter 19.05 mm
• Shoulder Diameter 7.94 mm
• Shoulder Height 12.70 mm
• Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Thumb Screws and Nuts PDF Quick Guide

• Pan Head Screws

• Screws


• Measuring Small Parts
• Metalworking Resource Guide

• Metric Wingnut Dimensions
• Screws & Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• Reid Tool® SKN-40
• SKN40
