CMB008-08-030M-R70 - Datasheet
MBA
Category Information
Mounts - Buffer - Male - RoundRound Male Buffer Mounts. Vibration dampening
- An expanded range may be available on special order. Please enquire.
Product Data

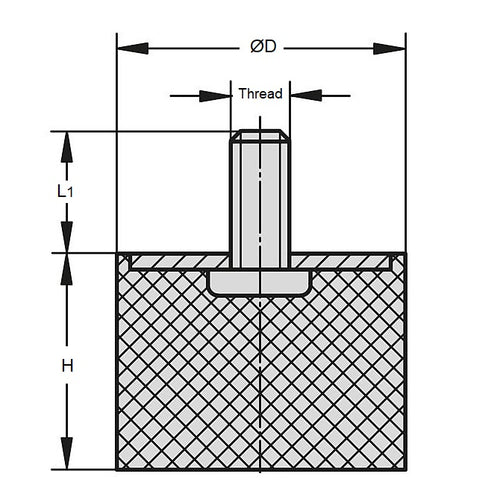

- Nom. Body Diameter (D) : 8.0 mm
- Body Height (H) 8.0 mm
- Thread Size (G) M3x0.5
- Shore Hardness 70
- Thread Length (L1) 6.0 mm
- Compression Load 15 Kg
- Deflection 2.0 mm
- Configuration Male to Blank
- Material Natural Rubber
Product Compliance and Data
Additional Resources
Cross References
- 0808MFB06-70
- 0808MFB0670
