S687A-ZZ-MC3 - Datasheet
MBA
Category Information
Bearings - Single Row Ball - Unflanged - Precision - 440C Stainless440C Stainless Precision Unflanged Single Row Ball Bearings. Stainless steel radial ball bearings
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
- Standard single row radial ball bearings.
Product Data

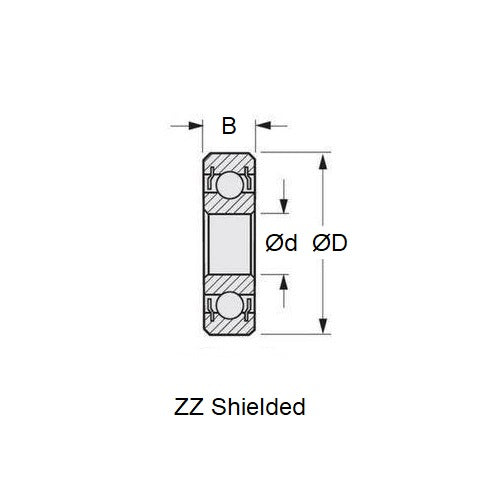

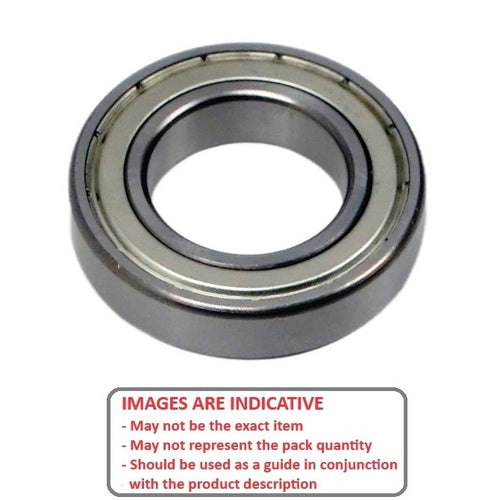

Double Shielded Standard Stainless Steel Bearing
- ID (d)
:
7.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.276 in.) - O.D. (D)
14.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.551 in.) - Width (B)
5.000
mm
+ 0.000 / - 0.125
(Equiv. 0.197 in.) - Precision Grade Abec 1
- Closure Type ZZ
- Bearing Type Radial
- Material Stainless Steel AISI 440C
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part 687A
- Limiting Speed 40000
- Cage Type Ribbon
- Static Load Rating KGf 52
- Dynamic Load Rating KGf 120
- Radii 0.15 mm
- Inner Shoulder (UI) 8.50mm
- Outer Shoulder (UO) 12.70 mm
- Number of Balls 9
- Clearance MC3 (5 to 10)
- Precision Grade Abec 1
- Closure Type ZZ
- Max Temperature 120 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- Fishing Reel Parts
- Shimano® - Aerocast - Spool Shaft Bearing
- Shimano® - Baitrunner Aero GT 6010 - Spool Bearing
- Shimano® - Bass One - Handle Shaft Outside Bearing
- Shimano® - TLD20 - Inner Spool Shaft Bearings
- Shimano® - Triton 200G - Handle Shaft Bearing
- Shimano® - ZX 3010 - Spool Shaft Bearing
Cross References
- SHIMANO® 14
- SHIMANO® 223
- SHIMANO® 26
- SS687AZZMC3 687A
- Stainless 687AZZMC3
- Stainless 687A-ZZ-MC3
- 7804K114
- SHIMANO® BNT0087
- SHIMANO® BR0037
- Reid Tool® DMB-75
- SHIMANO® RD0026
- SHIMANO® RD10397
- SHIMANO® RD12096
- SHIMANO® RD7295
- SHIMANO® RD7934
- SHIMANO® RD8554
- SHIMANO® RD8738
- SHIMANO® RD9597
- Shielded Width A S687/5
- GRW S687-2Z
- Shielded S687A / 5
- Shielded Width A SS687/5
- GRW SS687-2Z
- Shielded SS687A / 5
- Similar Part SS687t
- NTN® SS687-ZZSt
- MPB SSUL70CHH
- MPB SUL70CHH
- SHIMANO® TGT0223
- SHIMANO® TGT0596
- SHIMANO® TGT0628
- SHIMANO® TLD0123
- SHIMANO® TLD0214
- SHIMANO® TT0017
- RMB® ULZ714X
- ADR WAX7-ZZ
- DDL1470ZZ
- DD-L1470-ZZ
- DDL1470-ZZ
- WAX7ZZ
- DMB75
- 687H-ZZ
- 687HZZ
- 687AZMC3
- 687A-Z-MC3
- S6872Z
- S687A-ZZMC3
- S687SS
- S687ZZ
- SS687ZZ
- SS6872Z
- SS687SS
- SS687A-ZZMC3
- SS687ZZSt
- SSL1470ZZ
- SSL1470-ZZ
- SS-L1470-ZZ
- 687A Basic Size Ref
