CMF079-57-1270C-R60 - Datasheet
MBA
Category Information

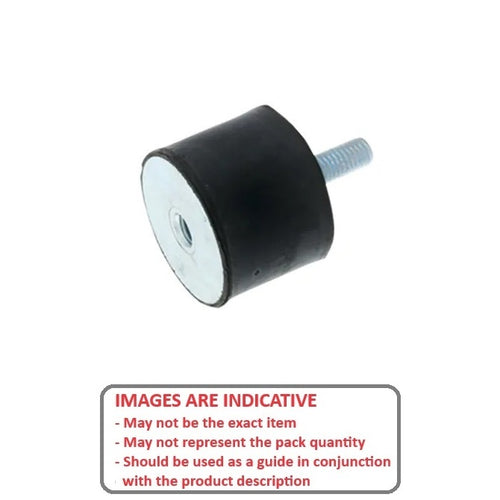

Mounts - Bobbin - Male to FemaleMale to Female Bobbin Mounts. Vibration dampening
- An expanded range may be available on special order. Please enquire.
Product Data

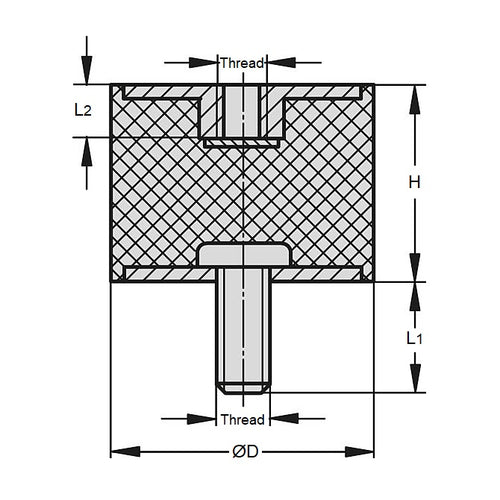

- Nom. Body Diameter (D) : 79.4 mm
- Body Height (H) 57.2 mm
- Thread Size 1/2 UNC (13 TPI)
- Shore Hardness 60
- Thread Length/Depth (L1/L2) 31.8 / 13.7 mm
- Compression Load 326 (698) Kg (lbs)
- Max Shear Load 63.503 Kg (lbs)
- Configuration Male to Female
- Material Natural Rubber
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® VM-725-1
- VM7251
