Miniature Bearings Australia
MLM-095C-045-TP-040 - Datasheet
MBA
Category Information

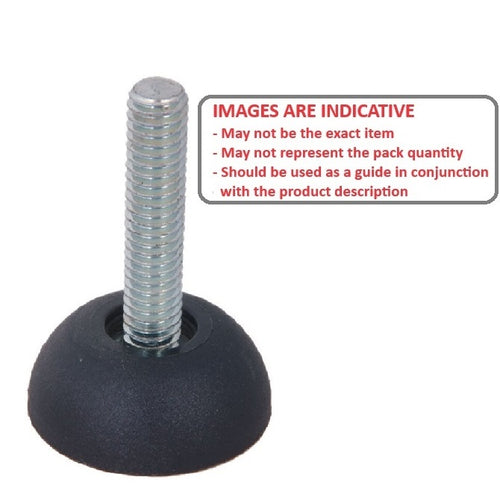

Mounts - Levelling Studded - Standard - ThermoplasticThermoplastic Standard Levelling Studded Mounts. Levelling adjusters. Economical choice for a wide range of applications.
- An expanded range may be available on special order. Please enquire.
- Base is made from reinforced thermoplastic.
- Threaded stem is steel.
- Optional non skid rubber pads available separately
Product Data

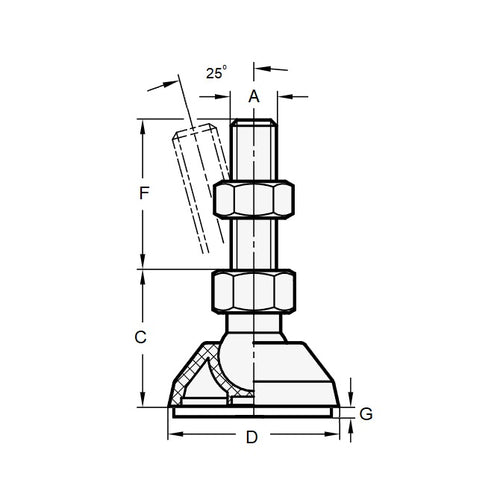

- Thread Size (A) : 3/8-16 UNC (9.53mm)
- Base Diameter (D) 39.9 mm
- Foot Height (C) 13.0 mm
- Thread Length (F) 44.5 mm
- Base Height (E) 13.0 mm
- Overall Height 57.5 mm
- Load Rating 78 Kg
- Finish Zinc Plated
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® RST-503
- RST503
- MLM0078095CPB
- MLM0784095CPB
