WLB075-101-26-BI - Datasheet
MBA
Category Information

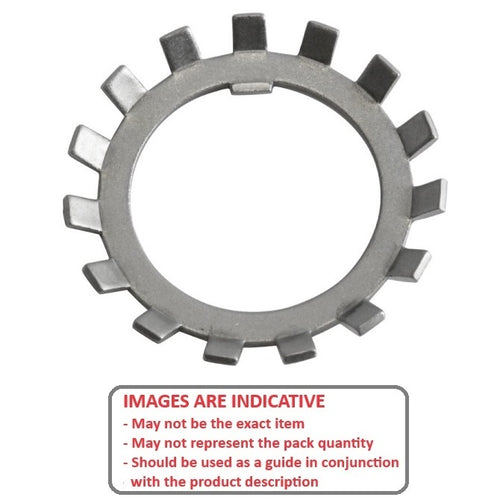

Washers - Lock - Tabbed - for Bearing Locknutsfor Bearing Locknuts Tabbed Lock Washers. This category includes equivalents to AW, W, TW, MB, WH and WT types.
- Lock washers are available in many different materials and types, including tabbed, split and toothed. An expanded range may be available on special order. Please enquire.
- Designed to prevent nuts and bolts from loosening due to vibration or torque by creating tension and friction within the bolted joint, effectively securing the connection and preventing unwanted rotations.
- Dimensions are nominal and may vary between batches.
- For use with bearing lock nuts
Product Data

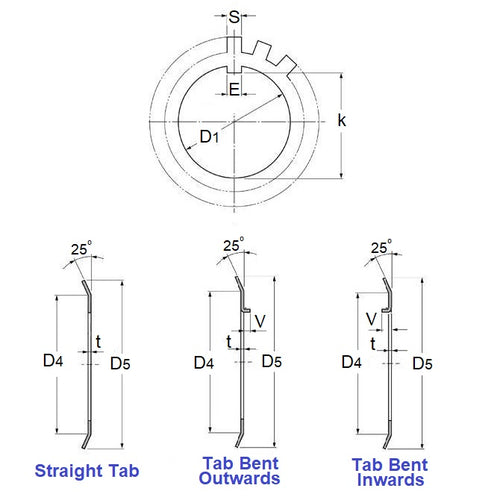

- Approximate ID (D1) : 75.00 mm
- Approx OD (D5) 101.20 mm
- Tabs 19 Nr.
- Inner Face (D4) 91.3 mm
- thickness (t) 2.6 mm
- Matching Locknut NH-15
- Inner Tab Type Bent Inwards
- Series WH / Heavy Duty
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- Huyett® WH-15
- WH15
