Miniature Bearings Australia
CFF075-55-120M-R60 - Datasheet
MBA
Category Information

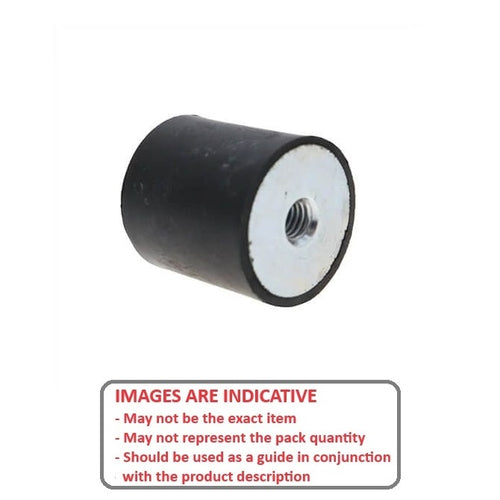

Mounts - Bobbin - FemaleFemale Bobbin Mounts. Vibration dampening
- An expanded range may be available on special order. Please enquire.
- Also see Bumpers

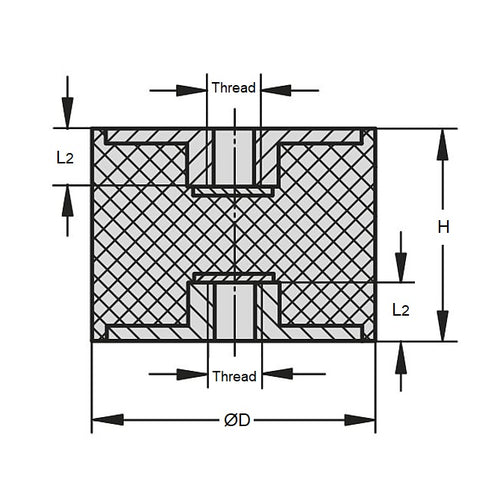

Product Data
- Nom. Body Diameter (D) : 75.0 mm
- Body Height (H) 55.0 mm
- Thread Size M12x1.75
- Shore Hardness 60
- Compression Load 245 (524) Kg (lbs)
- Deflection 4.9 mm
- Max Shear Load 82.4 (184.6) Kg (lbs)
- Configuration Female to Female
- Material Natural Rubber
Product Compliance and Data
Additional Resources
Cross References
- Trelleborg® 20-00125
- C-ZY-12-75-55
- CZY127555
- 2000125
