CFF075-40-120M-R70 - Datasheet
MBA
Category Information

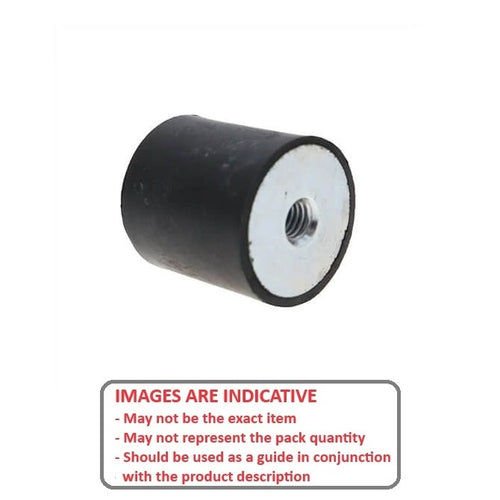

Mounts - Bobbin - FemaleFemale Bobbin Mounts. Vibration dampening
- An expanded range may be available on special order. Please enquire.
- Also see Bumpers
Product Data

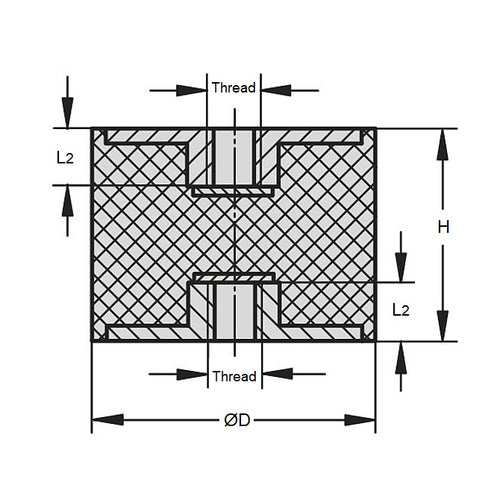

- Nom. Body Diameter (D) : 75.0 mm
- Body Height (H) 40.0 mm
- Thread Size M12x1.75
- Shore Hardness 70
- Compression Load 400 (856) Kg (lbs)
- Deflection 3.4 mm
- Configuration Female to Female
- Material Natural Rubber
Product Compliance and Data
Additional Resources
Cross References
- 7540FF12-70
- 7540FF1270
